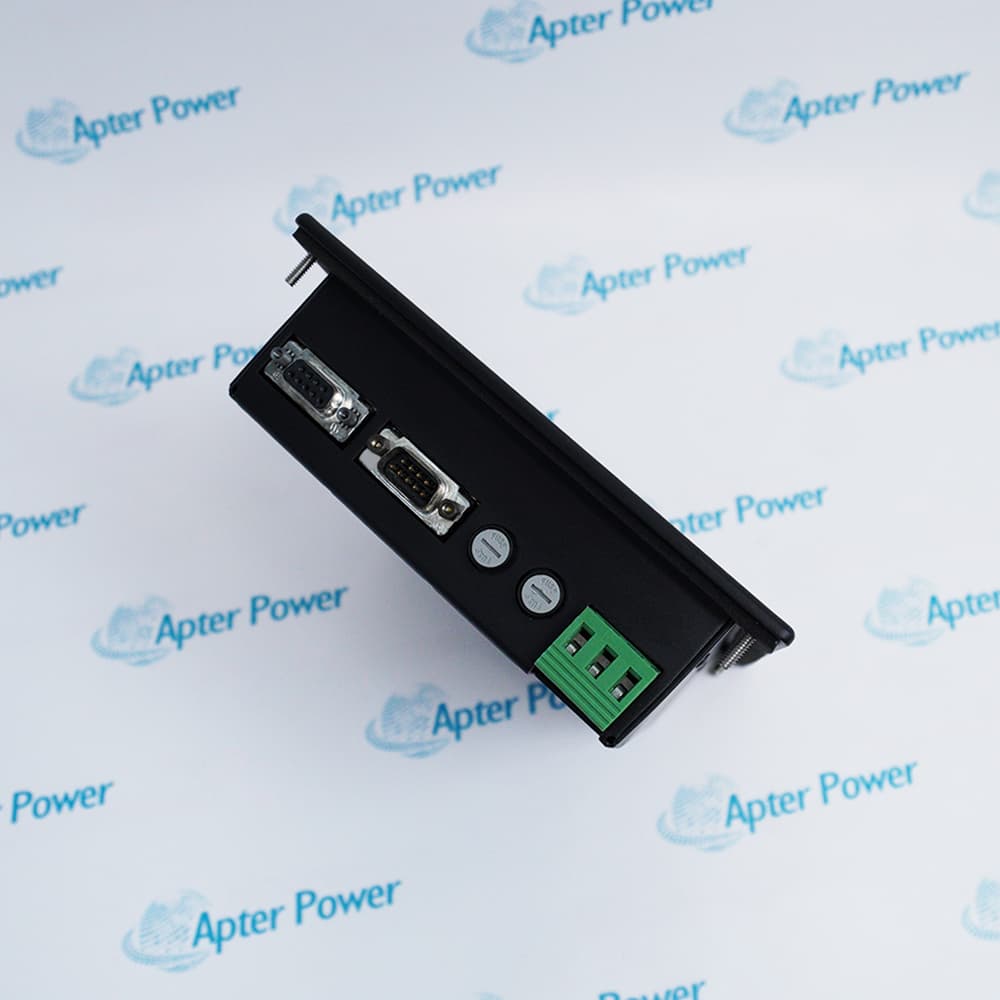

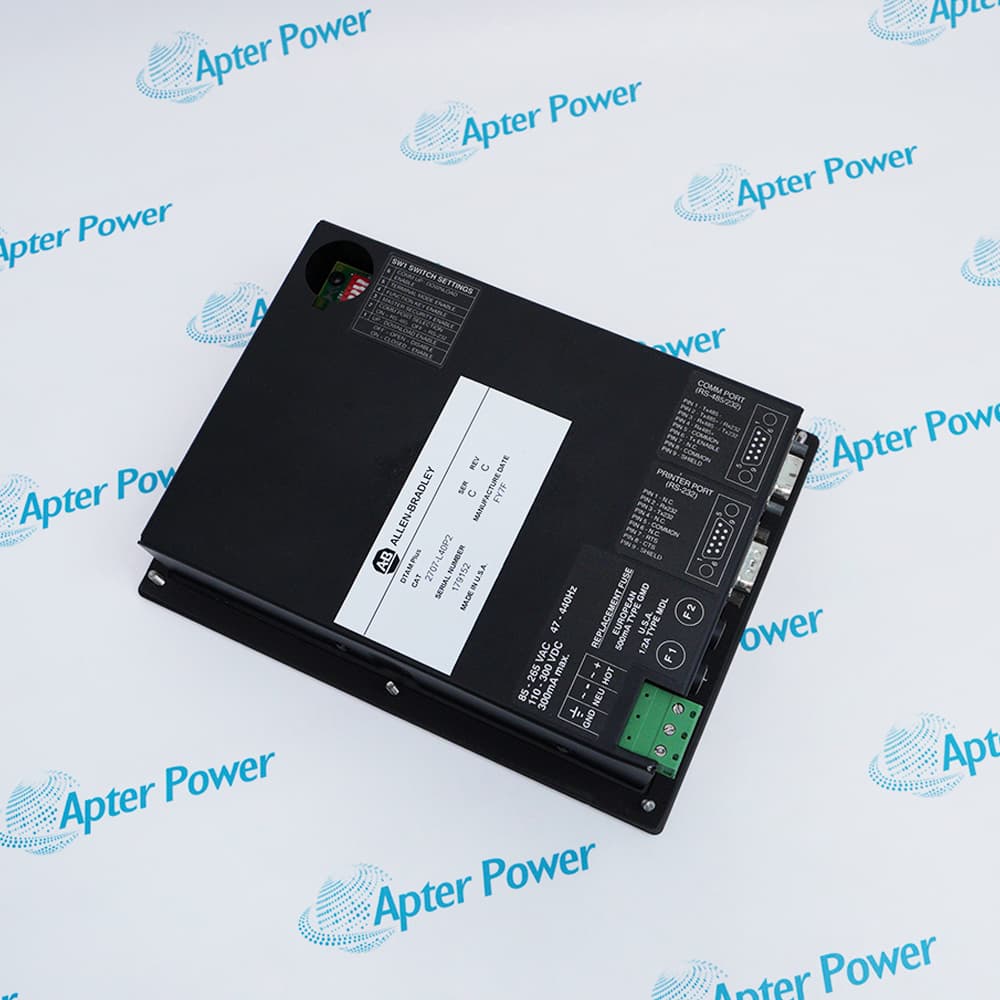

2707-L40P2
LCD DISPLAY
In Stock
Product Describe：
DISCONTINUED BY MANUFACTURER
DTAM PLUS OPERATOR INTERFACE
LCD DISPLAY
4 LINES X 20 CHAR
40K MEM
1 X RS-232/485 COMMUNICATION PORT
1 X RS-232 PRINTER PORT
REAL TIME CLOCK
25 FUNCTION KEYS
P2 POWER SUPPLY: 85-265 VAC 47-440 HZ OR 110-300 VDC
The 2707-L40P2 is a MicroView operator interface terminal equipped with a 4-line by 20-character Vacuum Fluorescent Display (VFD) and a 24V DC power supply. This specific model features a point-to-point RS-232/RS-422 communication port, designed for direct connection to MicroLogix, SLC, and PLC-5 controllers to provide a compact and cost-effective monitoring solution.
High-Visibility VFD Display
Non-volatile Flash Memory
NEMA Type 4/4X Rated
Designed for high visibility in industrial environments, the 2707-L40P2 offers 10 user-definable function keys and a tactile numeric keypad for efficient data entry. The terminal utilizes non-volatile flash memory to store up to 50 messages, ensuring that critical data is retained without the need for battery backup. When panel-mounted, it achieves NEMA Type 4, 4X, and 12 ratings, providing reliable operation in wash-down and dusty conditions.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 2707-L40P2 LCD DISPLAY Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Food Processing
Used in wash-down environments to monitor production line status and adjust recipe parameters. The NEMA Type 4X rating ensures terminal functionality during high-pressure cleaning.
Material Handling
Integrated into conveyor control systems for local operator input and diagnostic feedback. The VFD display provides high visibility for reading system alerts from a distance.
Automotive Assembly
Deployed in sub-assembly stations to display real-time variables and assembly instructions. The 10 user-definable function keys allow operators to quickly trigger specific control sequences.
Water Treatment
Applied in small pumping stations to monitor flow rates and tank levels via serial communication. Non-volatile flash memory ensures message data is retained during power outages.
Packaging Machinery
Engineered for integration into compact labeling and wrapping machines for batch counting. The tactile keypad allows for precise data entry of production targets and timing.
Textile Production
Used in weaving and knitting machinery to display machine status and error codes. It interfaces directly with MicroLogix and SLC controllers in high-dust industrial environments.
The 2707-L40P2 is designed as a dedicated interface for compact industrial machinery,it is frequently integrated into auxiliary control panels for small-scale air compressors, pump skids, and automated labeling systems. The Vacuum Fluorescent Display (VFD) is engineered for high visibility in dark or dimly lit environments, providing clear feedback on machine status and alarm conditions.
In conveyor and sorting systems, this terminal acts as a localized operator node for manual override and diagnostic monitoring. Its tactile numeric keys support heavy-duty use in textile and plastic extrusion machinery where high levels of dust or debris are present. The rugged construction and wide operating temperature range of 0 to 55 °C enable the unit to withstand the demanding cycles typical of standalone manufacturing equipment.
What are the primary display and operator interface specifications for the 2707-L40P2?
The 2707-L40P2 features a 4-line by 20-character vacuum fluorescent display (VFD) for high visibility. The operator interface includes a numeric keypad and 10 user-definable function keys for efficient data entry and control.
What power supply and communication port configurations are standard on the 2707-L40P2?
This model is designed for 24V DC input power and includes one RS-232/RS-422 communication port. It interfaces directly with MicroLogix, SLC, and PLC-5 controllers using specific communication protocols.
How does the 2707-L40P2 handle message storage and memory backup?
The terminal provides non-volatile memory for message storage, eliminating the need for battery backup. It supports up to 50 configurable messages that can include real-time variables and bar graphs.
What environmental protection ratings apply to the 2707-L40P2 when properly installed?
When correctly panel-mounted, the 2707-L40P2 meets NEMA Type 4, 4X (indoor use only), and 12 ratings. The operating temperature range is specified from 0°C to 55°.
What are the physical dimensions and mounting requirements for the 2707-L40P2?
The 2707-L40P2 requires a panel cutout for installation and uses mounting clips to secure the unit. Its compact design allows for integration into small control panels where space is limited.
