Can ABB AO820-3BSE008546R1 change from current to voltage output without checking its wiring?

No. Channel mode is configured in software, but current and voltage outputs use separate terminal sets. Match the field wiring to the selected output mode.

What load check is required when connecting a field device to ABB AO820-3BSE008546R1?

For current output, the load must not exceed 550 ohms. For voltage output, it must be at least 5 kilohms. Apply the limit for the configured mode.

Why might ABB AO820-3BSE008546R1 not indicate an open current loop near zero output?

ABB specifies open-circuit channel supervision for current greater than 1 mA. Use that threshold when interpreting the diagnostic state during loop checks.

How does ABB AO820-3BSE008546R1 report loss of the supervised process voltage?

The process-voltage supervision input produces channel-error signals when the voltage disappears. These errors can be read through ModuleBus.

What must be configured for the fault output of ABB AO820-3BSE008546R1?

OSP sets the output to a predetermined state when an error is detected. Confirm the configured OSP value for each channel before releasing the process loop.

Which terminal-unit choices are listed for ABB AO820-3BSE008546R1?

ABB lists TU810V1, TU812V1, TU814V1, TU830V1 and TU833. The published mechanical keying code is BC; select the MTU and wiring arrangement for the installation.

Does a vertical compact-MTU installation change the ambient limit for ABB AO820-3BSE008546R1?

Yes. The general maximum ambient is 55 degrees C, but vertical mounting in a compact MTU is limited to 40 degrees C. The published operating range is 0 to 55 degrees C; approvals cover 5 to 55 degrees C.

Can ABB AO820-3BSE008546R1 be selected where HART or redundant analog outputs are required?

No. ABB marks both HART and redundancy as unsupported for this module. Check the system requirement before selecting it for those duties.

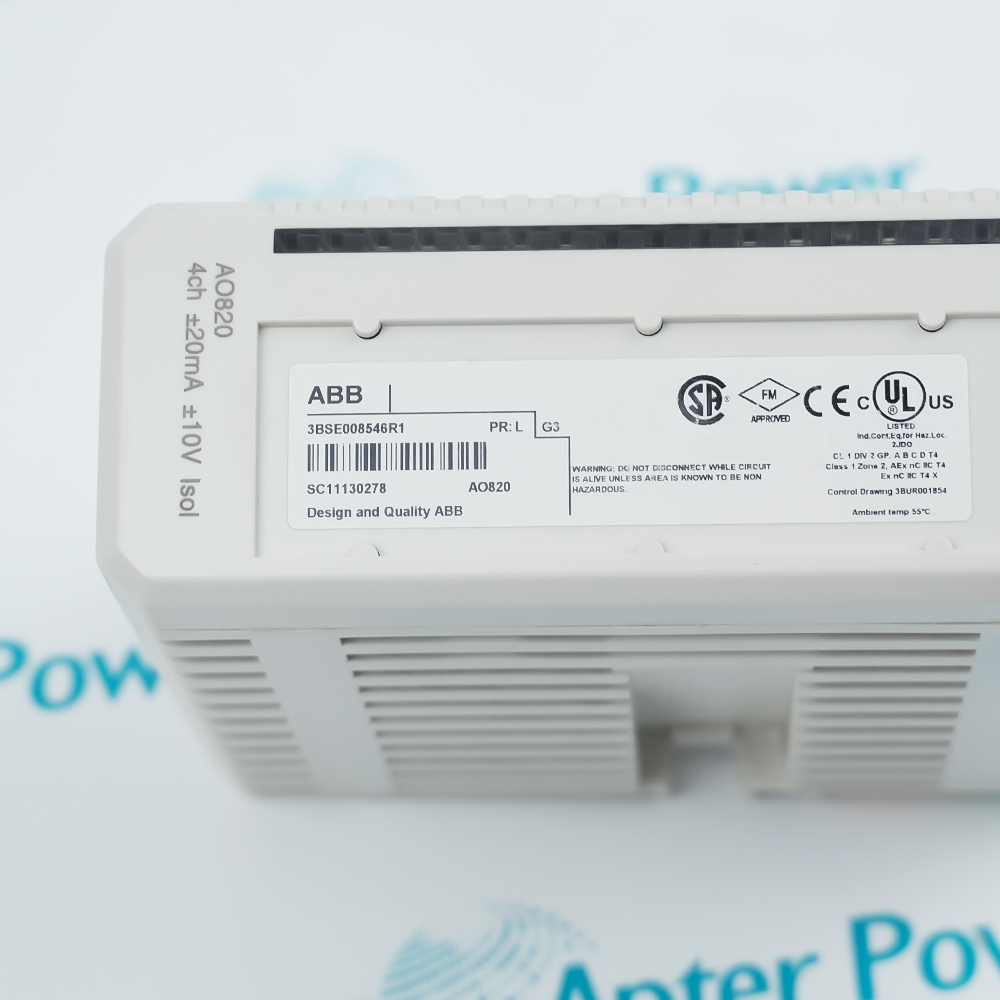

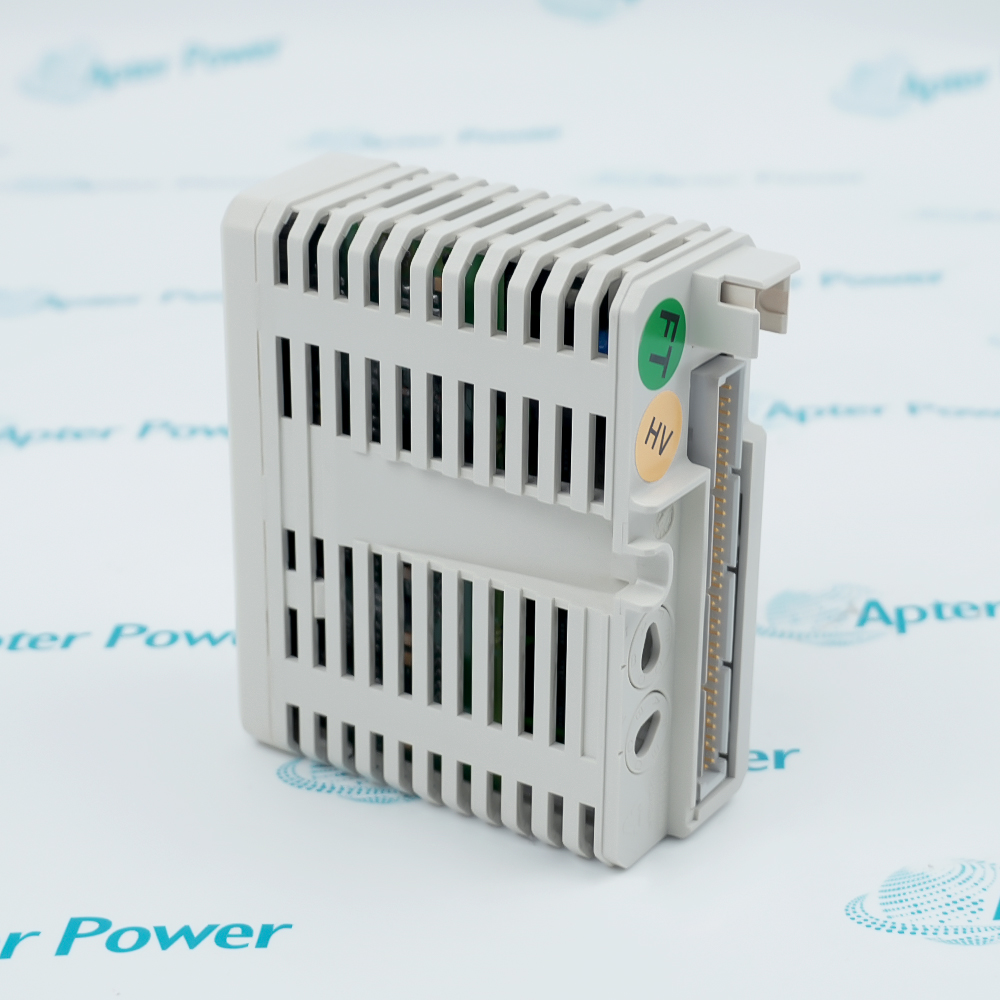

ABB AO820 3BSE008546R1 4-Channel Analog Output Module

Name: AO820-3BSE008546R1
Brand: ABB
SKU: AO820-3BSE008546R1

AO820-3BSE008546R1

4-channel bipolar analog output module

In Stock

Ships by Tuesday, October 6

Fast Shipping Available

Technical specifications for AO820-3BSE008546R1

Manufacturer:

ABB

Product Category:

PLC Systems

Spare Part Number:

AO820-3BSE008546R1

Estimated shipping dimensions:

4.5 x 10.2 x 11.9 cm

Weight:

0.18 kg

Tariff Code:

8537101190

Counliy of origin:

Sweden

Type:

Analog Output

Channels:

Signal specification:

-20...+20 mA; 0...20 mA; 4...20 mA; -10...+10 V; 0...10 V; 2...10 V

Resolution:

12 bits including sign

Isolation:

Individually isolated channel-to-channel and channel-to-common

Under/over range:

±15%

Output load:

≤550 Ω current; ≥5 kΩ voltage

Rise time:

<0.7 ms

Update cycle:

≤1.5 ms

Maximum field cable:

600 m

Power dissipation:

Typical 6 W

Operating temperature:

0 to +55 °C

Information

Overview Manuals Common Applications Product Precautions

ABB AO820 3BSE008546R1 is a four-channel bipolar analog output module for the S800 I/O system.

Generates configurable bipolar current or voltage outputs for S800 I/O control.
Provides galvanic isolation between individual channels and the common circuit.
Reports output readback, open-circuit and process-voltage diagnostics.
Applies a configured output state on fault through the module's OSP behavior.

Install the ABB AO820 on the S800 ModuleBus with an approved terminal unit and configure each channel for its documented output mode. Use it for isolated process-control commands where diagnostic feedback and controlled fault response are required.

Important Notice: Confirm the complete ABB AO820 3BSE008546R1 marking, S800 ModuleBus address, terminal unit, channel mode, field load, wiring and OSP response before commissioning.

Apter Power ABB AO820-3BSE008546R1 Manuals and Guides

Apter Power ABB AO820-3BSE008546R1 Product and System Technical Reference PDF Apter Power ABB AO820-3BSE008546R1 Installation and Commissioning Workbook PDF

The first document presents model-specific technical identity and engineering data. The second provides a distinct field workflow for hardware selection, signal configuration, diagnostics and acceptance checks.

S800 analog output integration

Places ABB AO820 in a modular S800 I/O station for isolated process-control commands.

Current command-loop control

Drives compatible current-actuator loops from individually configurable output channels.

Voltage command output

Provides configured voltage signals for field devices that require bipolar or unipolar control.

Diagnostic and OSP response

Supports loop checkout through readback and channel diagnostics with a defined fault output state.

Read the applicable ABB S800 I/O installation instructions before work. Verify ABB AO820 3BSE008546R1, its terminal unit and the configured output system before commissioning.

Confirm the complete ABB AO820 3BSE008546R1 marking and approved S800 I/O configuration.

Isolate the I/O station and field circuits before removing or wiring the module.

Fit the approved terminal unit and ensure the ModuleBus connector is fully seated.

Set each channel to the intended current or voltage range and verify scaling.

Check channel load, cable routing, shielding and isolation before energizing.

Verify output readback, open-circuit diagnostics and process-voltage supervision.

Confirm OSP behavior and the approved safe output state for the process.

Complete a controlled loop test and record the final channel response before release.

FAQS

Can ABB AO820-3BSE008546R1 change from current to voltage output without checking its wiring?

No. Channel mode is configured in software, but current and voltage outputs use separate terminal sets. Match the field wiring to the selected output mode.
What load check is required when connecting a field device to ABB AO820-3BSE008546R1?

For current output, the load must not exceed 550 ohms. For voltage output, it must be at least 5 kilohms. Apply the limit for the configured mode.
Why might ABB AO820-3BSE008546R1 not indicate an open current loop near zero output?

ABB specifies open-circuit channel supervision for current greater than 1 mA. Use that threshold when interpreting the diagnostic state during loop checks.
How does ABB AO820-3BSE008546R1 report loss of the supervised process voltage?

The process-voltage supervision input produces channel-error signals when the voltage disappears. These errors can be read through ModuleBus.
What must be configured for the fault output of ABB AO820-3BSE008546R1?

OSP sets the output to a predetermined state when an error is detected. Confirm the configured OSP value for each channel before releasing the process loop.
Which terminal-unit choices are listed for ABB AO820-3BSE008546R1?

ABB lists TU810V1, TU812V1, TU814V1, TU830V1 and TU833. The published mechanical keying code is BC; select the MTU and wiring arrangement for the installation.
Does a vertical compact-MTU installation change the ambient limit for ABB AO820-3BSE008546R1?

Yes. The general maximum ambient is 55 degrees C, but vertical mounting in a compact MTU is limited to 40 degrees C. The published operating range is 0 to 55 degrees C; approvals cover 5 to 55 degrees C.
Can ABB AO820-3BSE008546R1 be selected where HART or redundant analog outputs are required?

No. ABB marks both HART and redundancy as unsupported for this module. Check the system requirement before selecting it for those duties.
