      ABB 1TGE102009R2300
      ABB 1TGE102009R2300
      ABB 1TGE102009R2300
      ABB 1TGE102009R2300
      ABB 1TGE102009R2300
      ABB 1TGE102009R2300
      Product image is representative; revision or series may vary. Contact us to request a specific version.

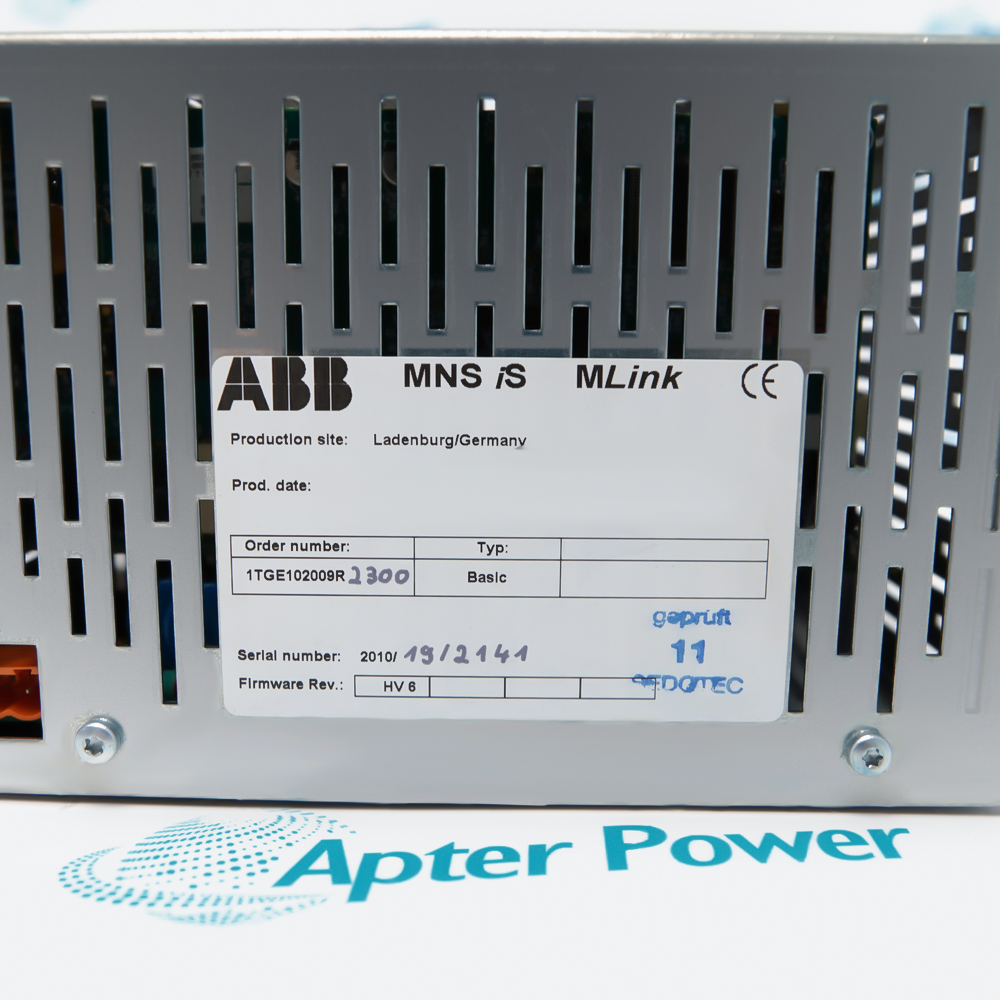

      1TGE102009R2300

      MLink Gateway
      In Stock
      Ships by Tuesday, October 6
      Fast Shipping Available

      Product Describe：

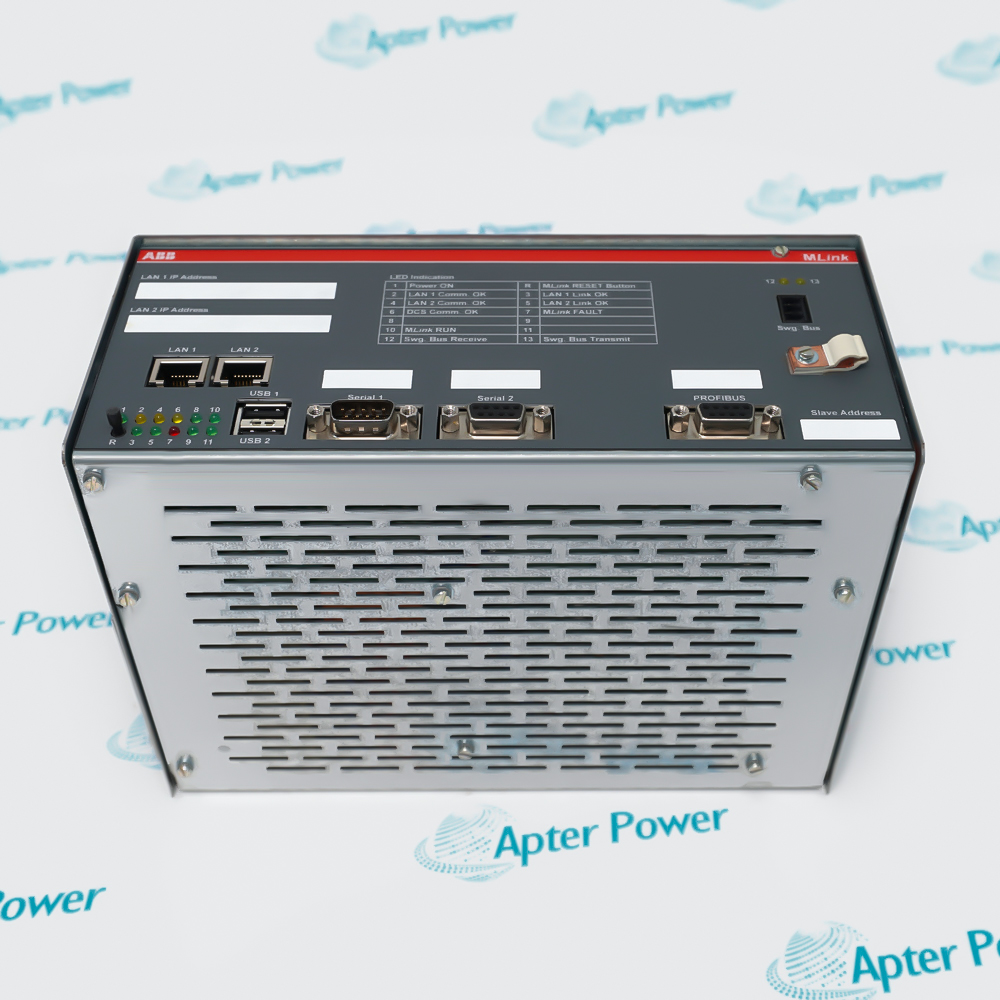

      ABB 1TGE102009R2300 is the standard MLink gateway variant with Modbus RS232 and TCP interfaces for an MNS iS installation.

      Ask our team:

      Get a quick price for： 1TGE102009R2300
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 1TGE102009R2300

      Technical specifications for 1TGE102009R2300

      • Manufacturer:
        ABB
      • Product Category:
        General Automation
      • Spare Part Number:
        1TGE102009R2300
      • Estimated shipping dimensions:
        23.5x17x10.2cm
      • Weight:
        1.74 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Product:
        MLink
      • Variant:
        Standard
      • Serial protocol:
        Modbus RTU over RS232
      • Ethernet protocol:
        Modbus TCP
      • Supply:
        24 V DC
      • Permitted supply range:
        19 to 33 V DC
      • Typical current:
        1000 mA
      • Maximum current:
        1700 mA
      • Operator interface:
        MView web interface
      • Data interface:
        OPC
      • Event function:
        Time stamping
      • Operating temperature:
        0 to 55 degC
      • Storage temperature:
        -20 to 70 degC
      • Protection:
        IP20
      • Published MTBF:
        15 years at 40 degC
      • Reference:
        1TGC910127M0201 Release 5.4
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB 1TGE102009R2300 is the standard MLink gateway variant with Modbus RS232 and TCP interfaces for an MNS iS installation.
      • Bridges MNS iS data to Modbus networks
      • Provides RS232 Modbus RTU communication
      • Provides Ethernet Modbus TCP communication
      • Hosts the MView web interface

      1TGE102009R2300 operates within the documented ABB MNS iS MLink communication system configuration and approved field interfaces.

      Engineered applications include MNS iS host integration, Modbus RTU data exchange, Modbus TCP supervision, MLink gateway replacement.

      Important Notice: Record every network address, serial setting, Ethernet parameter, MNS iS assignment and host mapping before changing 1TGE102009R2300.

      ABB 1TGE102009R2300 Manuals & Downloads
      ABB 1TGE102009R2300 Technical Reference (PDF)ABB 1TGE102009R2300 Installation & Commissioning Guide (PDF)

      Important Notice: The first document consolidates verified product and system data. The second provides installation, connection, commissioning and acceptance guidance.

      MNS iS host integration
      Connects the documented MNS iS system to plant supervision.
      Modbus RTU data exchange
      Exchanges mapped device data with an approved serial Modbus master.
      Modbus TCP supervision
      Publishes system data to an approved Ethernet Modbus client.
      MLink gateway replacement
      Restores the exact standard gateway while retaining addressing and host mappings.
      Read the applicable ABB instructions before work. Verify 1TGE102009R2300, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Verify the complete 1TGE102009R2300 marking and its assigned ABB MNS iS MLink communication system position before work.
      2
      Place the connected MNS iS host integration process in the approved maintenance state.
      3
      Isolate every documented power, signal and stored-energy source before disconnecting conductors or cables.
      4
      Record the installed slot, connectors, conductors, addressing, firmware and software configuration before removal.
      5
      Use ESD-safe handling and protect keyed electrical, fiber or sensor interfaces as applicable.
      6
      Confirm the installed MNS iS switchgear communication network and 24 V DC supply against the approved project.
      7
      Restore power in a controlled sequence and review device, network and host diagnostics.
      8
      Prove the intended Modbus RTU data exchange function and retain the final acceptance result.

      Alternative Names

      Alternative Names

      1TGE102009R2300 ABB 1TGE102009R2300

      Technical notes

      Technical notes

      Record every network address, serial setting, Ethernet parameter, MNS iS assignment and host mapping before changing 1TGE102009R2300.

      FAQS

      • Which communication option code is ABB 1TGE102009R2300?
        ABB lists 1TGE102009R2300 as the standard MLink option combining Modbus RS232 and Modbus TCP.
      • Which supply range applies to ABB 1TGE102009R2300?
        The gateway uses 24 V DC and permits 19 to 33 V DC at its supply input.
      • What current demand must be allowed for ABB 1TGE102009R2300?
        ABB publishes 1000 mA typical and 1700 mA maximum current, so the installed 24 V DC source must cover the maximum.
      • How does ABB 1TGE102009R2300 exchange serial data?
        Its RS232 interface supports Modbus RTU communication using the documented address, baud rate and framing settings.
      • How does ABB 1TGE102009R2300 exchange Ethernet data?
        Its Ethernet interface supports Modbus TCP and must retain the approved IP addressing and host mapping.
      • Which local service interface is available on ABB 1TGE102009R2300?
        The MLink platform provides the MView web interface for approved monitoring and service tasks.
      • Which environmental limits apply to ABB 1TGE102009R2300?
        Operate it from 0 to 55 degC, store it from -20 to 70 degC and maintain the documented IP20 enclosure arrangement.
      • What must be commissioned after replacing ABB 1TGE102009R2300?
        Verify the MNS iS connection, both Modbus paths, OPC or web access where used, time stamping and all host data mappings.
