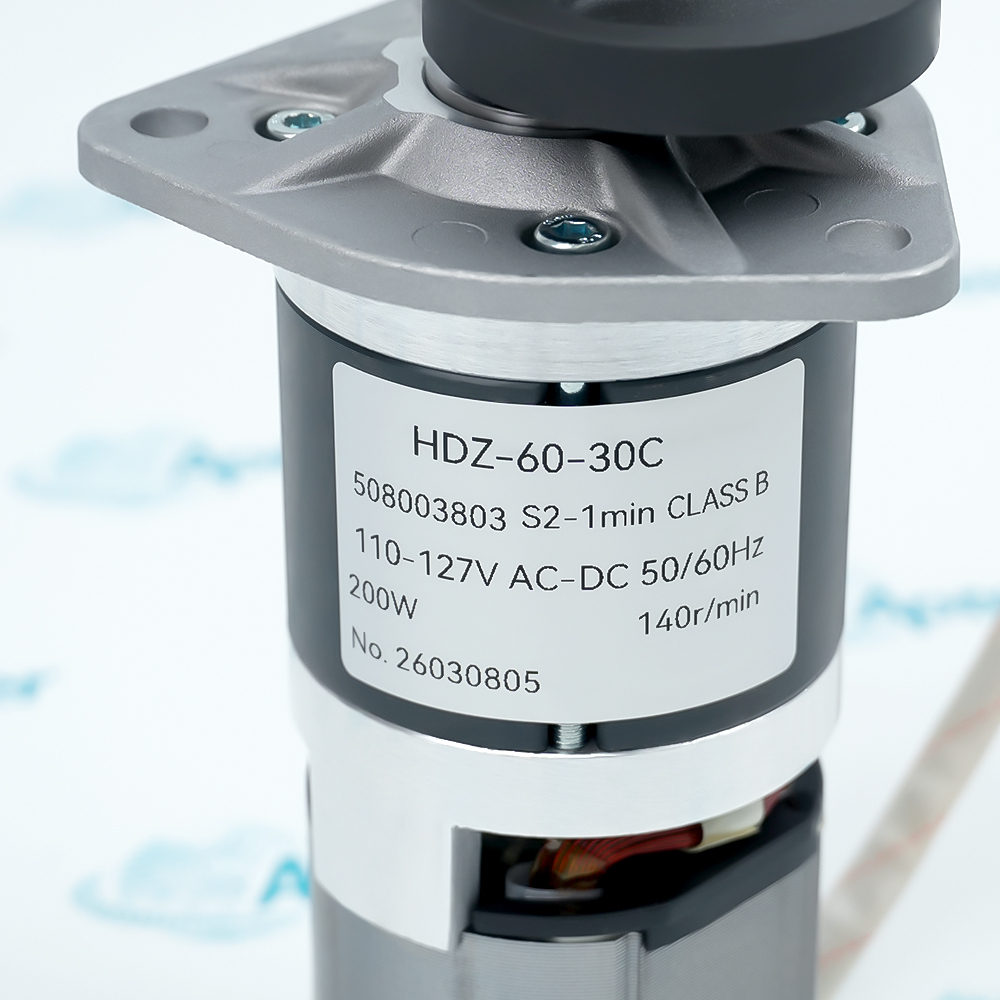

The HDZ-60-30C is identified by ABB as an energy storage motor. It is supplied as a motor unit for use in energy storage systems, designed to convert electrical energy into mechanical energy for industrial applications requiring energy storage and backup functions.
Energy Storage Motor Design
High Efficiency Operation
Reliable Industrial Construction
ABB motors are engineered to deliver high efficiency, reliability and optimized performance in industrial applications. They are designed with robust construction and proven insulation systems to ensure reliable operation in demanding environments, while supporting efficient energy use and reduced operating costs.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB HDZ-60-30C Energy Storage Motor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Distribution
Used in medium-voltage switchgear in substations and distribution networks, these switches automatically store energy in the closing springs.
Oil & Gas
In the power systems of oil extraction platforms, refineries, and natural gas processing facilities, they serve as critical drive components.
Infrastructure & Transport
Applied to railway traction substations, airport and subway power supply systems, they work with circuit breakers to automate power distribution and enable remote energy storage control in high-load environments at transportation hubs.
Mining & Metals
Integrated into high-voltage distribution rooms in mining and metal smelting plants, their robust deceleration mechanism design withstands the harsh conditions of heavy industrial environments, ensuring the power supply security of smelting processes.
Manufacturing Industry
Widely used in large-scale automotive manufacturing, electronics factories, and other industrial sites, they work with primary-side power distribution equipment for load control and line protection, supporting the power management needs of factory automation systems.
Data Centers
In backup power switching systems for data centers and critical facilities, ensure that circuit breakers have sufficient operating energy during the switchover between mains power and generator power to maintain continuous power supply to critical IT loads.

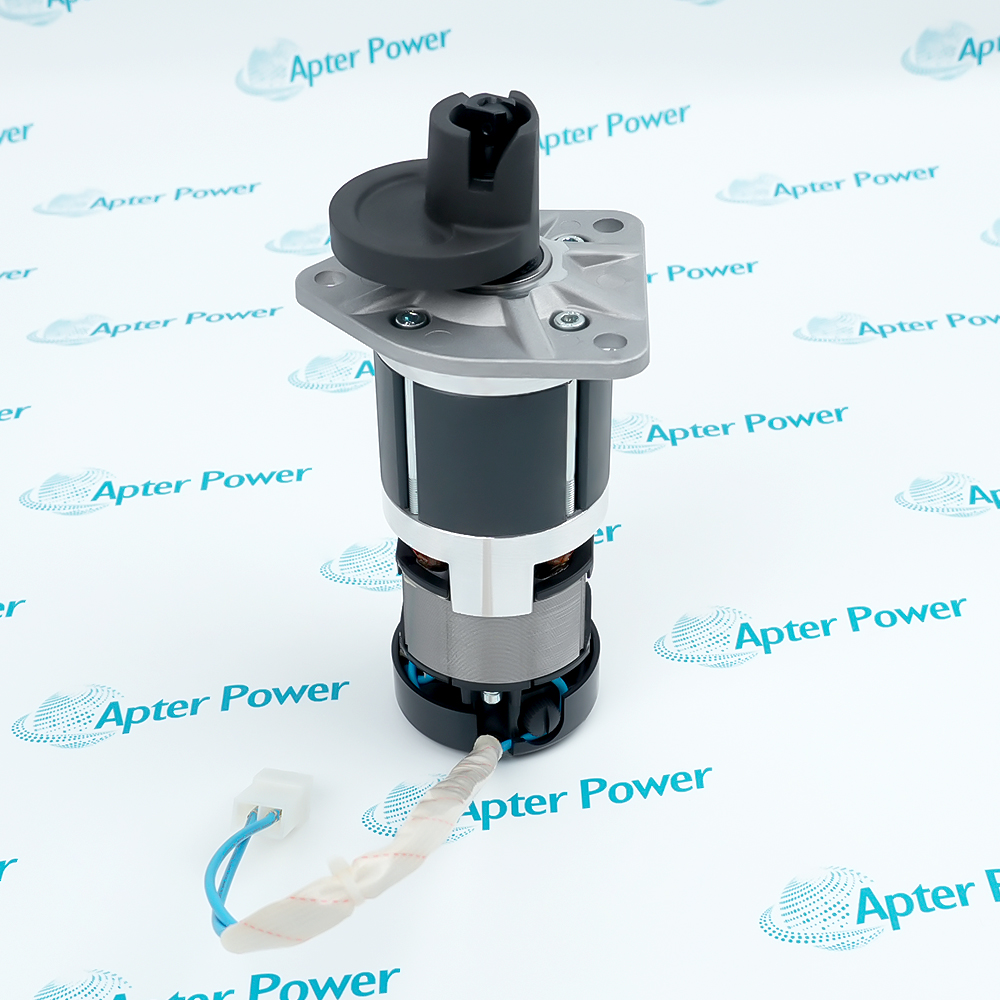

The HDZ-60-30C is supplied as a motor unit with a compact and robust design, intended for integration into industrial systems. The construction includes a sealed housing with a defined protection class, standardized electrical connections, and mounting interfaces for installation. The motor is designed to operate with consistent performance under specified electrical and environmental conditions, supporting continuous operation within system requirements.
What is the primary function of the ABB HDZ-60-30C motor within a circuit breaker?
The HDZ-60-30C is a geared universal motor designed for automatic charging of the circuit-breaker closing spring, ensuring the operating mechanism has sufficient stored energy for switching.
What are the electrical supply characteristics for the HDZ-60-30C model?
This model is a universal motor compatible with both AC and DC auxiliary supplies, typically operating at a rated voltage of 220-250V (or 110V depending on version) to support diverse switchgear configurations.
How does the HDZ-60-30C interact with the breaker after a closing operation?
After each circuit-breaker closing operation, the geared motor immediately recharges the closing springs automatically until a limit switch disconnects the power supply upon full charge.
Is it possible to charge the springs manually if the HDZ-60-30C loses power?
Yes, in the case of an auxiliary power cut or during maintenance, the closing spring can still be charged manually using the special crank handle incorporated in the operating mechanism.
Which ABB circuit breaker series are compatible with the HDZ-60-30C energy
The HDZ-60-30C is widely used in ABB’s primary distribution switchgear, including the VD4 vacuum circuit-breakers, HD4 gas-insulated breakers, and Vmax series indoor units.
