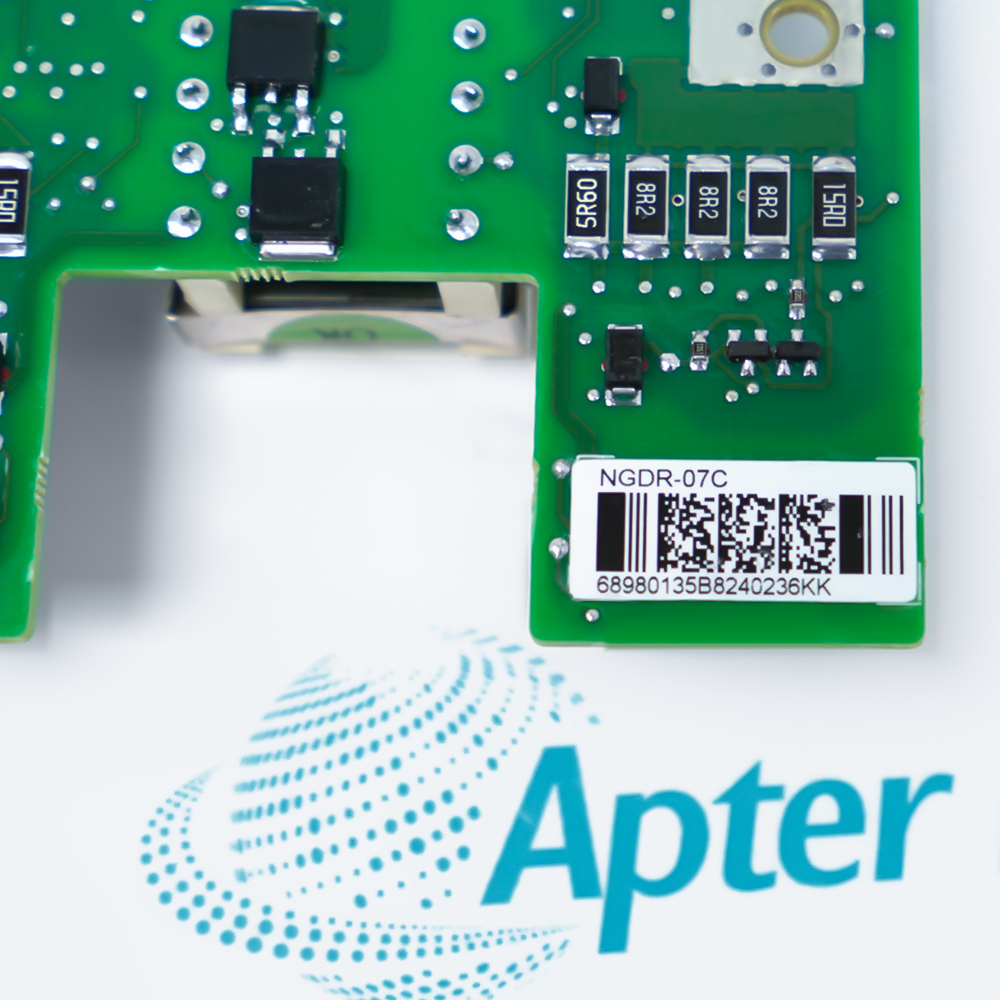

      ABB NGDR-07C
      ABB NGDR-07C
      ABB NGDR-07C
      ABB NGDR-07C
      ABB NGDR-07C
      ABB NGDR-07C

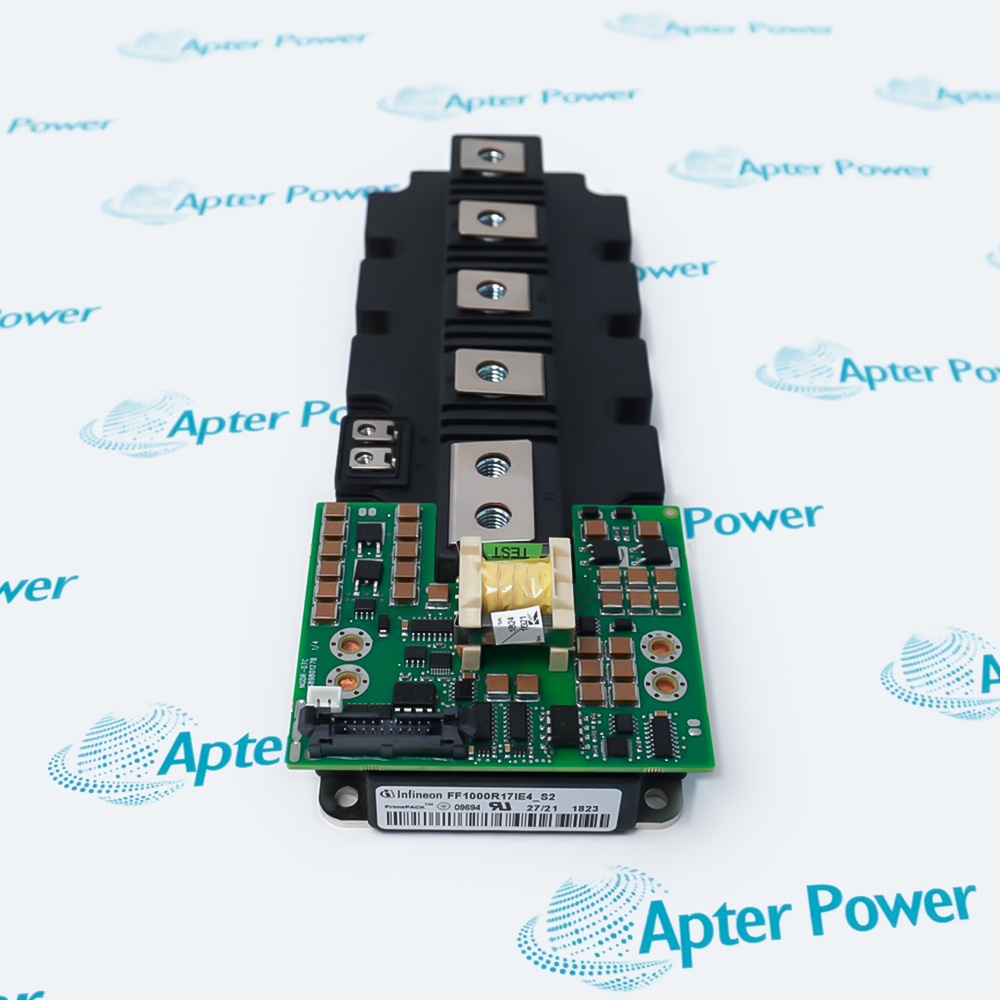

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      NGDR-07C

      Gate Driver Board
      In Stock
      Ships by Tuesday, October 6
      Fast Shipping Available

      Product Describe：

      ABB NGDR-07C is an NGDR-family gate driver board used in the power-stage control path of an ACS 600 phase module.

      Ask our team:

      Get a quick price for： NGDR-07C
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for NGDR-07C

      Technical specifications for NGDR-07C

      • Manufacturer:
        ABB
      • Product Category:
        General Automation
      • Spare Part Number:
        NGDR-07C
      • Estimated shipping dimensions:
        9.3x8x2.5cm
      • Weight:
        0.05 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Board family:
        NGDR gate driver
      • Drive family:
        ACS 600 MultiDrive
      • Documented frame use:
        R4i and larger phase modules
      • Primary function:
        Amplifies IGBT control pulses
      • Power-plate relationship:
        Two NGDR boards control one power plate in documented R4i-R7i architecture
      • Controller relationship:
        Operates in the NINT / NXPP / NGDR control path
      • Exact suffix boundary:
        Verify 07C from board marking and controlled spare-parts record
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB NGDR-07C is an NGDR-family gate driver board used in the power-stage control path of an ACS 600 phase module.
      • Belongs to the ACS 600 NGDR board family
      • Amplifies control pulses for IGBT devices
      • Works in the phase-module power stage
      • Requires exact board-marking verification

      NGDR-07C operates within the documented ABB ACS 600 phase-module drive hardware configuration and approved field interfaces.

      Engineered applications include IGBT gate-pulse amplification, Phase-module power control, ACS 600 drive service, Controlled NGDR board replacement.

      Important Notice: ABB's public ACS 600 manual documents the NGDR family role but does not decode the 07C suffix; verify the complete board marking and controlled drive drawing before replacement.

      ABB NGDR-07C Manuals & Downloads
      ABB NGDR-07C Technical Reference (PDF)ABB NGDR-07C Installation & Commissioning Guide (PDF)

      Important Notice: The first document consolidates verified product and system data. The second provides installation, connection, commissioning and acceptance guidance.

      IGBT gate-pulse amplification
      Amplifies the documented semiconductor gate-control pulses.
      Phase-module power control
      Supports the power-plate switching path inside the phase module.
      ACS 600 drive service
      Services the installed ACS 600 MultiDrive converter section.
      Controlled NGDR board replacement
      Restores only the exact NGDR-07C position with every harness retained.
      Read the applicable ABB instructions before work. Verify NGDR-07C, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Verify the complete NGDR-07C marking and its assigned ABB ACS 600 phase-module drive hardware position before work.
      2
      Place the connected IGBT gate-pulse amplification process in the approved maintenance state.
      3
      Isolate every documented power, signal and stored-energy source before disconnecting conductors or cables.
      4
      Record the installed board position, connectors and harness routing before removal.
      5
      Use ESD-safe handling and protect every keyed gate and feedback interface.
      6
      Confirm the installed ACS 600 phase module and NINT and NXPP control boards against the approved project.
      7
      Restore power in a controlled sequence and review drive diagnostics.
      8
      Prove the intended phase-module power-control function and retain the final acceptance result.

      Alternative Names

      Alternative Names

      NGDR 07C NGDR07C ABB NGDR-07C

      Technical notes

      Technical notes

      ABB's public ACS 600 manual documents the NGDR family role but does not decode the 07C suffix; verify the complete board marking and controlled drive drawing before replacement.

      FAQS

      • Which board family contains ABB NGDR-07C?
        NGDR-07C belongs to ABB's NGDR gate-driver board family used in ACS 600 phase-module hardware.
      • What control function is assigned to ABB NGDR-07C?
        The NGDR family amplifies control pulses that drive the IGBT power devices.
      • Where is ABB NGDR-07C installed in the drive architecture?
        It belongs in the documented ACS 600 phase-module power stage, not in a general controller I/O position.
      • How does ABB NGDR-07C relate to a power plate?
        ABB's documented R4i-R7i architecture uses two NGDR boards to control one power plate.
      • Which companion boards must be checked with ABB NGDR-07C?
        Inspect the documented NINT, NXPP and NGDR control path and retain every matched harness identity.
      • Does ABB public documentation decode the 07C suffix of NGDR-07C?
        No. The public hardware manual explains the NGDR family role; the exact 07C suffix must be verified from the board marking and controlled spare record.
      • Which safety controls apply before handling ABB NGDR-07C?
        Isolate the converter, wait the published discharge time, verify a safe DC-link condition and use ESD-safe board handling.
      • How is ABB NGDR-07C commissioned after replacement?
        Confirm the exact board identity, restore all gate and feedback connectors, review drive diagnostics and perform the approved controlled motor test.
