Operators Keyboard
ulti-pin parallel bus interface
typically linked via a 37-pin D-sub or dedicated
ribbon cable to the Master series central control rack

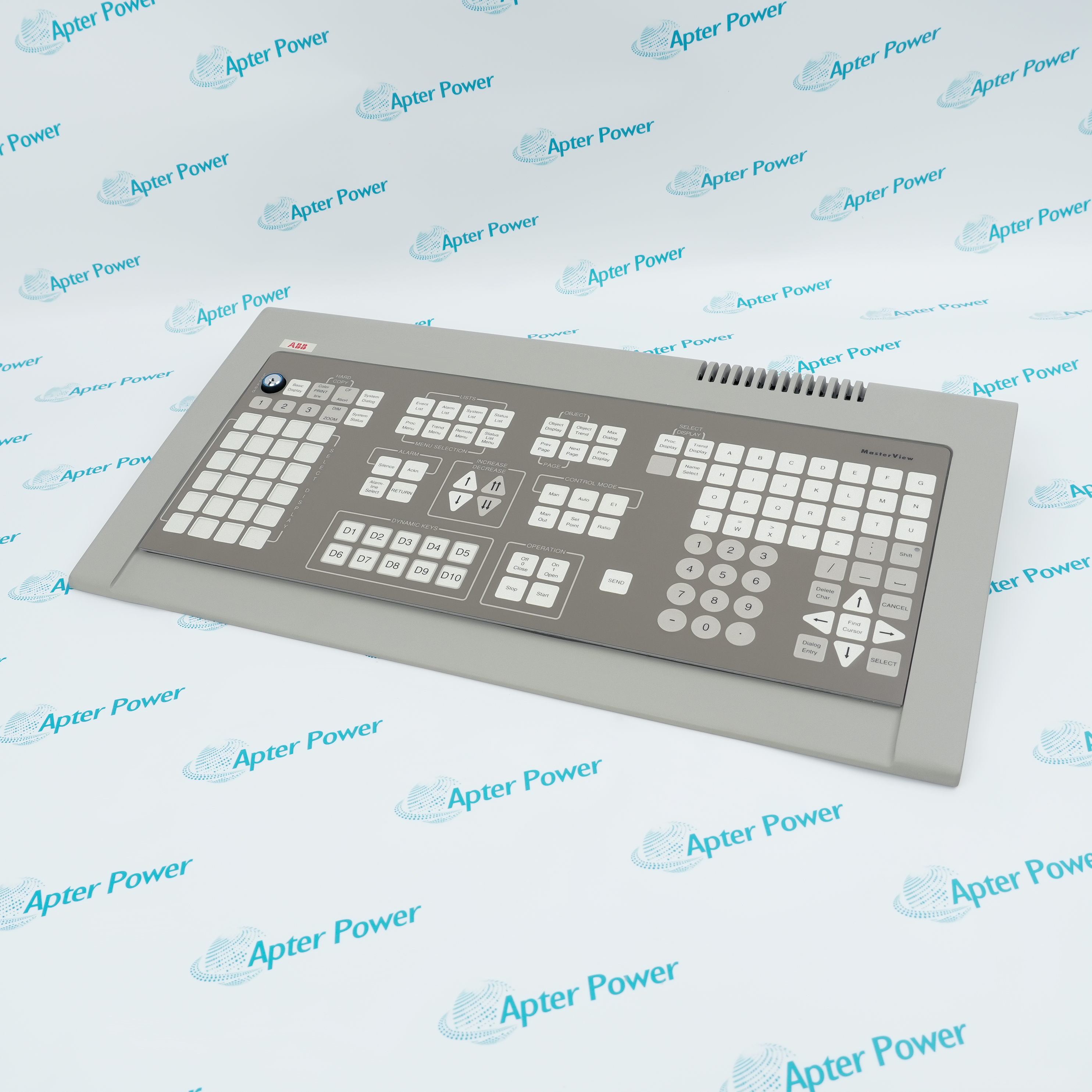

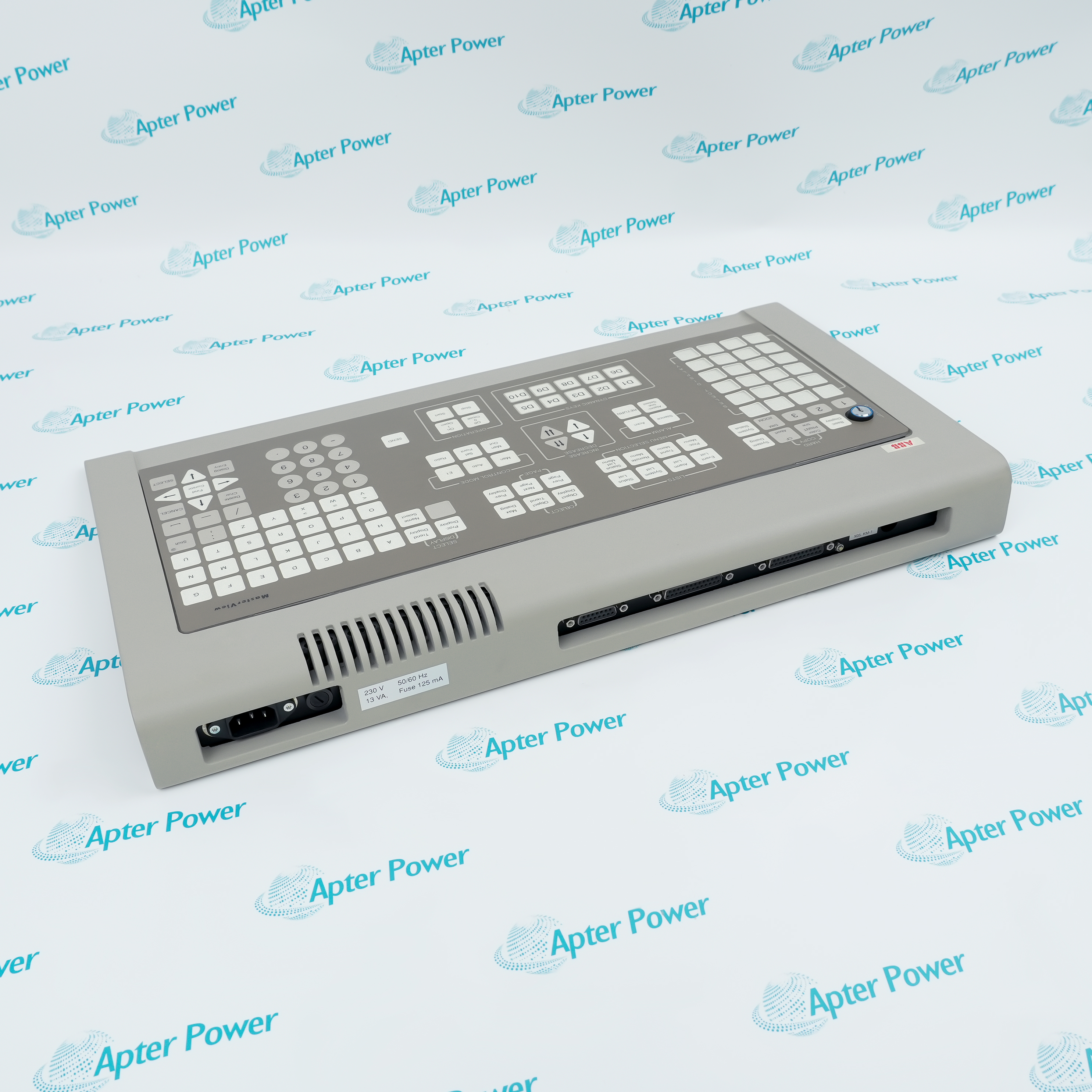

The DSIH75VP 57310290-RD is a high-reliability industrial operator keyboard for the MasterView 800 platform, Advant DCS control desks, and variable speed drive consoles. Operating as the physical Human-Machine Interface on the factory floor, this hardware component fits via flush-mount installation onto central control room operator desks or main power distribution cabinet doors. In heavy industrial process environments requiring high-frequency equipment staging, critical alarm resets, process ramp tuning, and batch formulation changes, the DSIH75VP executes hardware-grade safety routing for every operator directive.
Direct 230V AC Power Supply and High Power-Line Noise Immunity
High-Lifespan Tactile Membrane Keys and EN1E Standard Layout for Blind-Typing
IP65 Sweden Build Quality and Zero-Recommissioning Plug-and-Play
The keyboard deploys a highly durable, heavy-duty industrial membrane matrix keys technology, uniquely optimized for long-term, high-frequency keystrokes and gloved field operations. Each individual button encapsulates a highly elastic mechanical tactile dampening mechanism, rendering an exceptionally crisp and definitive physical snap rebound feedback to the operator. This superior tactile confirmation effectively eliminates accidental double-presses triggered by loud ambient plant noise while physically removing visual fatigue during elongated command string typings.
The hardware complies with the standard EN1E functional keyboard layout, where panel engraving, color-coding, and graphic iconography adhere strictly to international industrial process automation specifications. Macro-command hotkeys, system navigation matrices, and dedicated alphanumeric keypads are geometrically arranged to maximize typing precision during high-stress process trips or emergency sequences.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB DSIH75VP 57310290-RD Operators Keyboard Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Iron & Steel Metallurgy Industry
Used in blast furnace control rooms and hot/cold rolling line consoles to execute mill speed trimming, emergency gate closures, and main circuit closing operations.
Petrochemical & Chemical Industry
Installed in refinery or ethylene plant central control rooms to quickly switch reactor formulas, adjust control valve openings, and reset safety interlock alarms.
Thermal Power
Deployed on boiler or steam turbine consoles in power plant central control rooms to execute coal feeder start/stop, feed pump unit logic switching, and load adjustment directives.
Pulp & Paper Industry
Deployed in front of large high-speed paper machine control cabinets for fine tension trim of multi-section synchronous drive systems and steam valve control in drying sections.
Non-Ferrous Smelting Industry
Deployed in central control hubs of aluminium or copper electrolysis lines with high magnetic interference for hard-key adjustment of current and voltage references in high-power rectifier cabinets.
Pharmaceutical & Bio-Fermentation Industry
Used on central control consoles for large fermentation tanks and continuous reactors outside clean areas to execute macro-command triggering for large-scale multi-stage batch processes.
During use, ensure the input power supply complies with the fixed 230 V AC (50/60 Hz) specification, and disconnect the primary power lines to prevent high-voltage electrical shock before performing internal wiring, terminal servicing, or hardware removal.
During operator console installation, execute a hard connection between the keyboard chassis earthing terminal and the protective earth (PE) busbar of the cabinet to block electromagnetic interference and safeguard against leakage currents.
When wiping or cleaning, do not spray liquid reagents or conductive cleaning agents directly into the gaps of the physical keys to prevent matrix short-circuits on the internal circuit board. Finally, remove industrial dust from between the mechanical keys regularly to prevent solid particle accumulation from causing contact failures or physical key jamming.
The DSIH75VP 57310290-RD functions as a dedicated membrane operator terminal keyboard in ABB industrial control systems. Operating as the physical interaction core of the control room Human-Machine Interface (HMI), it converts keypress commands from field operators into control bus signals. It provides high-speed interconnection with upper-level DCS substations or large process control cabinets, offering a rigid operational security barrier beyond traditional soft mice and commercial keyboards.
DSIH75VP 57310290-RD is an industrial-grade operator panel control keyboard manufactured by ABB. It is integrated onto the surface of drive control cabinets or DCS operator desks for manual input of system commands and operating parameters.
How to use a product like DSIH75VP 57310290-RD?
Mount the assembly into a cutout slot on the primary control cabinet door or console. Connect it to the ABB system's central controller via a dedicated multi-pin bus cable at the rear. Once energized, it enables users to execute start, stop, reset, and parameter adjustments on downstream industrial assets using the keys.
What is the difference between DSIH75VP 57310290-RD and the same-series 57310290-RB or -DF models?
The core difference is that the part number suffix (such as -RD) specifically designates the keyboard's physical button layout, printed language nomenclature (such as German, English, or specific symbols), and internal voltage ratings.
How to perform routine cleaning and maintenance on DSIH75VP 57310290-RD?
Only utilize a clean, slightly damp soft cloth or specialized mild industrial electronics cleaners to wipe away surface dirt. The use of highly corrosive organic solvents like lacquer thinner or acetone is strictly prohibited to prevent degrading the surface membrane.
Does DSIH75VP 57310290-RD support hot-swapping online?
To expand power capacity by connecting two Siemens SITOP PSU8200 (6EP1336-3BA10) units in parallel, you must configure their physical hardware switches and align their electrical parameters to ensure a symmetrical load distribution.
