      General Electric DS200TCQAG1BFD-DS215TCQAG1BZZ01A
      General Electric DS200TCQAG1BFD-DS215TCQAG1BZZ01A
      General Electric DS200TCQAG1BFD-DS215TCQAG1BZZ01A
      General Electric DS200TCQAG1BFD-DS215TCQAG1BZZ01A
      General Electric DS200TCQAG1BFD-DS215TCQAG1BZZ01A
      General Electric DS200TCQAG1BFD-DS215TCQAG1BZZ01A
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      DS200TCQAG1BFD-DS215TCQAG1BZZ01A

      TCQA I/O Board
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      General Electric DS200TCQAG1BFD-DS215TCQAG1BZZ01A identifies a TCQA analog I/O board assembly for the SPEEDTRONIC Mark V control platform. The complete paired identifier must be retained when matching an installed board and its documented revision.

      Ask our team:

      Get a quick price for： DS200TCQAG1BFD-DS215TCQAG1BZZ01A
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for DS200TCQAG1BFD-DS215TCQAG1BZZ01A

      Technical specifications for DS200TCQAG1BFD-DS215TCQAG1BZZ01A

      • Manufacturer:
        General Electric
      • Product Category:
        Gas turbine control
      • Spare Part Number:
        DS200TCQAG1BFD-DS215TCQAG1BZZ01A
      • Estimated shipping dimensions:
        28x21.2x2.5cm
      • Weight:
        0.58 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Board designation:
        TCQA
      • Product role:
        Analog I/O board assembly
      • Control family:
        SPEEDTRONIC Mark V
      • Installed location:
        Documented Mark V R, S or T control core
      • Terminal-board relationship:
        Installed-system TBQA/TBQB wiring record
      • Replacement control:
        Match both DS200 and DS215 identifiers
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      General Electric DS200TCQAG1BFD-DS215TCQAG1BZZ01A identifies a TCQA analog I/O board assembly for the SPEEDTRONIC Mark V control platform. The complete paired identifier must be retained when matching an installed board and its documented revision.
      • TCQA analog I/O board function
      • Mark V control-core integration
      • Terminal-board signal interface
      • Complete dual-identifier revision control

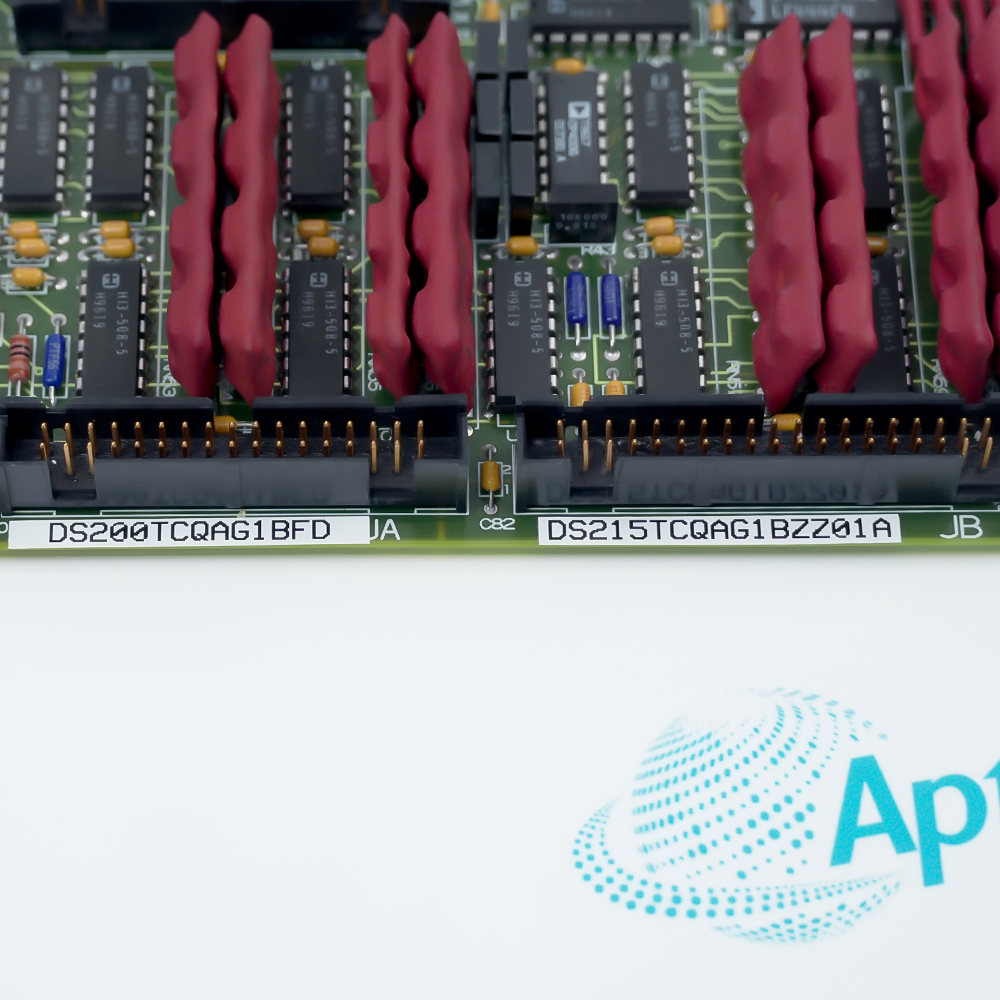

      Record the full DS200TCQAG1BFD-DS215TCQAG1BZZ01A marking, core location, terminal-board cables and socketed devices before removal. Reinstall only in the documented Mark V location and complete the approved diagnostic checks before release.

      Important Notice: Verify DS200TCQAG1BFD-DS215TCQAG1BZZ01A from the physical marking and current manufacturer documentation before installation or configuration.

      Apter Power GE DS200TCQAG1BFD-DS215TCQAG1BZZ01A Manuals and Guides
      Apter Power GE DS200TCQAG1BFD-DS215TCQAG1BZZ01A Product Technical Reference PDFApter Power GE DS200TCQAG1BFD-DS215TCQAG1BZZ01A Installation and Verification Workbook PDF

      The first document presents model-specific technical and system data. The second provides a distinct installation, connection, commissioning and acceptance workflow.

      Mark V analog signal processing
      Maintains the documented analog input and output path in a SPEEDTRONIC Mark V control core.
      Turbine control maintenance
      Supports controlled replacement of the recorded TCQA board assembly.
      Core-level diagnostics
      Provides the board identity required for approved Mark V diagnostic and calibration checks.
      Legacy system support
      Preserves the exact DS200 and DS215 identifiers used by the installed control record.
      Read the applicable General Electric instructions before work. Verify DS200TCQAG1BFD-DS215TCQAG1BZZ01A and the installed system configuration.
      1
      Verify the complete DS200TCQAG1BFD-DS215TCQAG1BZZ01A marking before work.
      2
      Place the turbine and Mark V control in the approved maintenance state.
      3
      Record the R, S or T core location and every connected cable before removal.
      4
      Use ESD controls and handle the TCQA board only by its edges.
      5
      Record socketed devices, jumpers and revision markings without changing them.
      6
      Do not substitute a visually similar TCQA suffix without GE documentation.
      7
      Seat the board and latching cable connectors without force or offset.
      8
      Run the applicable Mark V diagnostics and verify signal response before release.

      Technical notes

      Technical notes

      Record the full DS200TCQAG1BFD-DS215TCQAG1BZZ01A marking, core location, terminal-board cables and socketed devices before removal. Reinstall only in the documented Mark V location and complete the approved diagnostic checks before release.

      FAQS

      • What is GE DS200TCQAG1BFD-DS215TCQAG1BZZ01A?
        It is a TCQA analog I/O board assembly identified for the SPEEDTRONIC Mark V control platform.
      • Why must both identifiers be retained?
        The paired DS200 and DS215 markings define the supplied assembly and revision record; shortening the identity can cause a mismatch.
      • Where is the TCQA used?
        GE Mark V documentation places TCQA boards in the control-core analog I/O architecture; the exact R, S or T location must come from the installed record.
      • Which terminal boards are associated with the TCQA path?
        Mark V documentation describes TCQA signal paths with the applicable TBQA and TBQB terminal-board wiring.
      • Can another TCQA suffix replace this assembly?
        Not by appearance alone. The complete suffix, revision, socketed devices and site configuration require documented approval.
      • What should be recorded before removal?
        Record the full marking, core position, cable destinations, socketed devices, jumpers and diagnostic state.
      • What ESD practice is required?
        Use a grounded ESD workstation and transport the board in approved static-protective packaging.
      • What confirms successful commissioning?
        The board is correctly seated, diagnostics pass, and the affected analog signals agree with the approved operating record.
