      SCHMERSAL SRB-NA-R-C.35-CH2A-24V
      SCHMERSAL SRB-NA-R-C.35-CH2A-24V
      SCHMERSAL SRB-NA-R-C.35-CH2A-24V
      SCHMERSAL SRB-NA-R-C.35-CH2A-24V
      SCHMERSAL SRB-NA-R-C.35-CH2A-24V
      SCHMERSAL SRB-NA-R-C.35-CH2A-24V

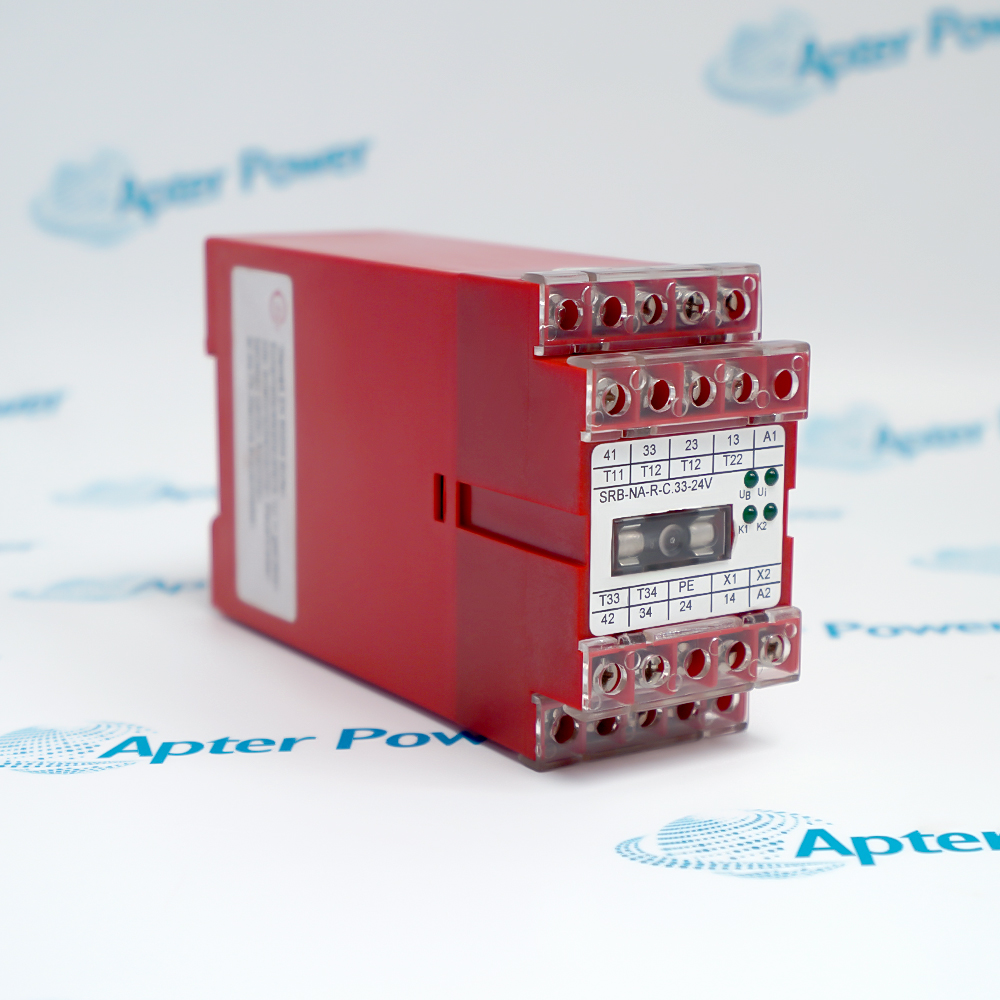

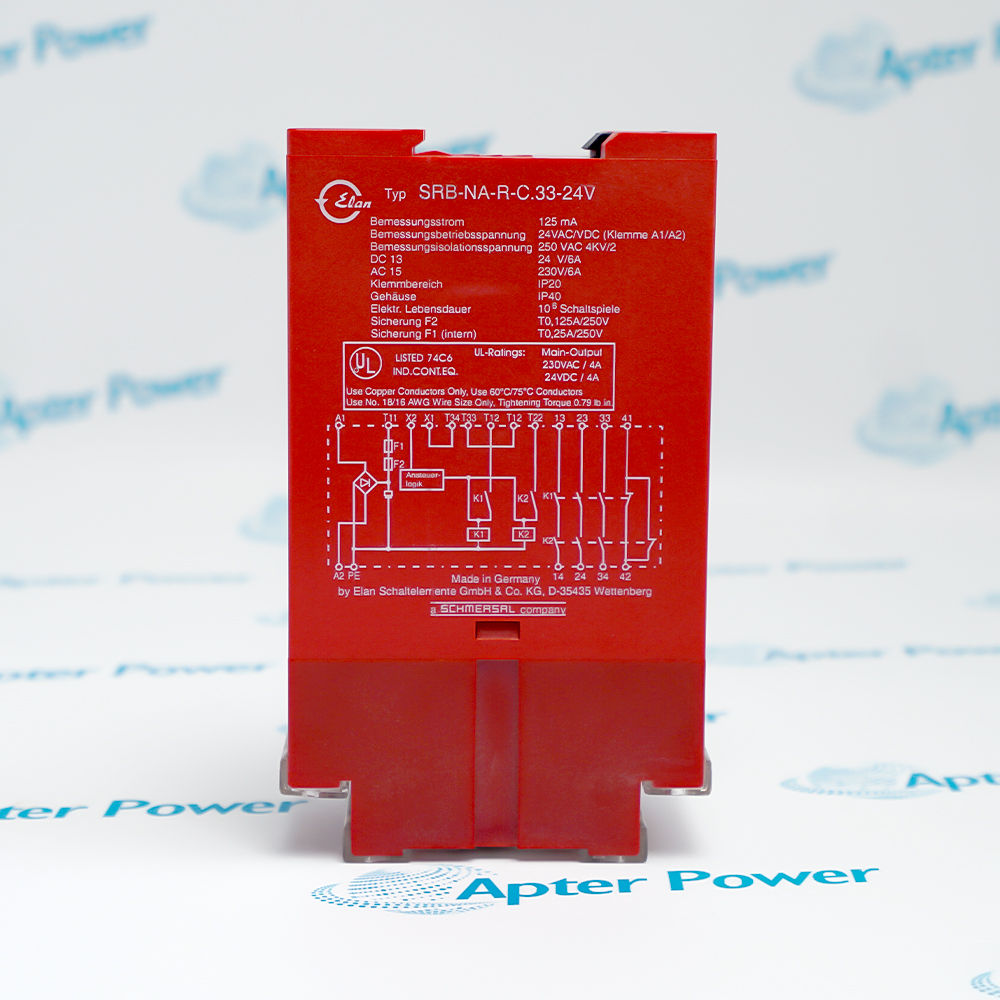

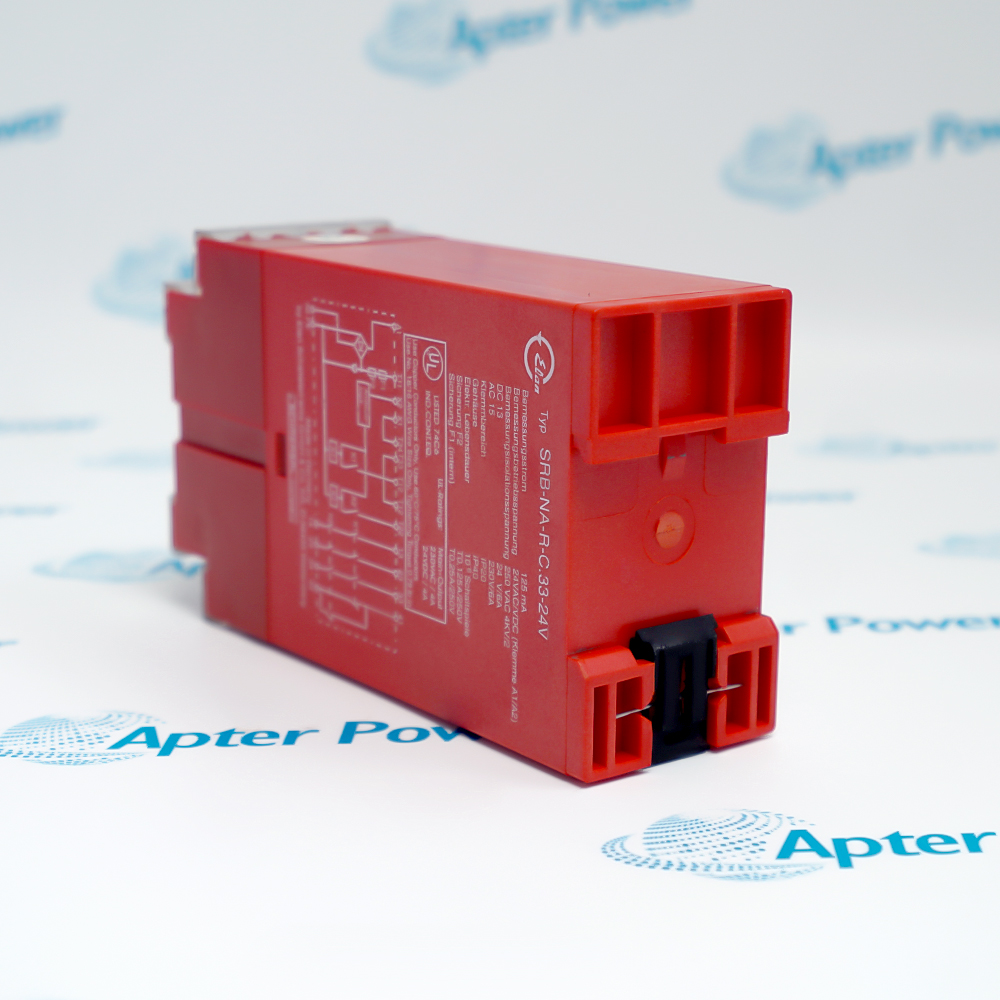

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      SRB-NA-R-C.35-CH2A-24V

      Safety Relay Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      SCHMERSAL SRB-NA-R-C.35-CH2A-24V belongs to the SRB-NA-R-C.35 24 V safety-relay family for emergency-stop and guard-door monitoring. The supplied family catalog defines the common 24 V electrical and installation data but does not decode the complete CH2A suffix.

      Ask our team:

      Get a quick price for： SRB-NA-R-C.35-CH2A-24V
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for SRB-NA-R-C.35-CH2A-24V

      Technical specifications for SRB-NA-R-C.35-CH2A-24V

      • Manufacturer:
        SCHMERSAL
      • Product Category:
        General Automation
      • Spare Part Number:
        SRB-NA-R-C.35-CH2A-24V
      • Estimated shipping dimensions:
        4.6x14x8cm
      • Weight:
        0.3 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Manufacturer:
        Schmersal / ELAN
      • Supplied model identity:
        SRB-NA-R-C.35-CH2A-24V
      • Documented family:
        SRB-NA-R-C.35, 24 V variants
      • Safety function:
        Emergency-stop or guard-door monitoring
      • Enabling outputs:
        4
      • Monitoring outputs:
        1
      • Delayed enabling output:
        1; adjustable 0 to 30 s
      • Reset behavior:
        Automatic reset selectable; feedback loop provided
      • Nominal supply:
        24 V DC or 24 V AC, depending on documented variant
      • DC supply tolerance:
        -15% / +20%; maximum ripple 10%
      • AC supply tolerance:
        -15% / +6%; 50/60 Hz
      • Maximum power consumption:
        3.5 W DC; 4.7 VA AC
      • Enabling-contact capacity:
        230 V AC / 6 A ohmic; DC-13 24 V / 2 A; AC-15 230 V / 3 A
      • Pick-up time:
        200 ms maximum
      • Drop-out time:
        30 ms maximum
      • Operating temperature:
        -25 to +45 deg C
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      SCHMERSAL SRB-NA-R-C.35-CH2A-24V belongs to the SRB-NA-R-C.35 24 V safety-relay family for emergency-stop and guard-door monitoring. The supplied family catalog defines the common 24 V electrical and installation data but does not decode the complete CH2A suffix.
      • Provides emergency-stop or guard-door monitoring within the SRB-NA-R-C.35 family
      • Provides four enabling outputs and one monitoring output
      • Includes one delayed enabling output adjustable from 0 to 30 seconds
      • Supports feedback-loop monitoring and selectable reset behavior

      Monitors a documented single- or dual-channel emergency-stop circuit. Monitors an approved safety-door circuit and controls enabling contacts.

      Important Notice: The supplied ELAN/Schmersal catalog supports the SRB-NA-R-C.35 24 V family values. It does not define the complete CH2A suffix, so option-specific data must be verified from the installed nameplate and controlled wiring documentation.

      SRB-NA-R-C.35-CH2A-24V Manuals & Downloads
      SRB-NA-R-C.35-CH2A-24V Technical Reference (PDF)SRB-NA-R-C.35-CH2A-24V Installation & Commissioning Guide (PDF)

      These documents are different: the first consolidates verified product and system data; the second provides installation, connection, commissioning and acceptance guidance.

      Emergency-stop monitoring
      Monitors a documented single- or dual-channel emergency-stop circuit.
      Guard-door interlocking
      Monitors an approved safety-door circuit and controls enabling contacts.
      Delayed machine stop
      Uses the documented delayed enabling output where the validated risk assessment requires run-down time.
      Safety-relay replacement
      Restores the exact installed relay after wiring, delay and reset behavior are recorded.
      Read the applicable manufacturer instructions before work. Verify SRB-NA-R-C.35-CH2A-24V, the installed system and every configured field interface before isolation, wiring or commissioning.
      1
      Verify the full SRB-NA-R-C.35-CH2A-24V marking; the supplied catalog does not decode the CH2A suffix.
      2
      Place the machine and its safety function in the authorized maintenance state before relay work.
      3
      Record every input, enabling output, monitoring output, feedback-loop connection and delay setting before removal.
      4
      Confirm the actual nameplate supply and use only the documented 24 V circuit arrangement.
      5
      Wire the emergency-stop or guard-door circuit exactly as defined by the validated safety design.
      6
      Preserve the selected automatic/manual reset behavior and prove the feedback loop before enabling motion.
      7
      Set the delayed enabling output only to the value established by the machine risk assessment and controlled drawing.
      8
      After installation, test channel faults, reset behavior, contact transfer, delay time and safe-state response before release.

      Alternative Names

      Alternative Names

      SRB-NA-R-C.35/CH2A-24V SRBNARC35CH2A24V Schmersal SRB-NA-R-C.35 ELAN SRB-NA-R-C.35

      Technical notes

      Technical notes

      The supplied ELAN/Schmersal catalog supports the common SRB-NA-R-C.35 24 V family data but does not decode the complete CH2A suffix. Verify the nameplate, wiring arrangement, reset behavior and delay setting before replacement.

      FAQS

      • What safety function does SRB-NA-R-C.35-CH2A-24V perform?
        The SRB-NA-R-C.35 family is documented for emergency-stop or guard-door monitoring with enabling and monitoring outputs.
      • How many enabling outputs are available on SRB-NA-R-C.35-CH2A-24V?
        The documented family provides four enabling outputs and one monitoring output.
      • Does SRB-NA-R-C.35-CH2A-24V provide a delayed safety output?
        Yes. One enabling output is documented as drop-out delayed, with an adjustable 0 to 30 second range.
      • Which reset method applies to SRB-NA-R-C.35-CH2A-24V?
        The family supports selectable automatic reset and includes a feedback loop; the installed setting must be recorded and validated.
      • Which supply should be used for SRB-NA-R-C.35-CH2A-24V?
        Use the exact nameplate supply. The catalog documents 24 V DC and 24 V AC family variants with their respective tolerances.
      • What contact duty is documented for SRB-NA-R-C.35-CH2A-24V?
        The family data lists 230 V AC / 6 A for an ohmic enabling load, DC-13 at 24 V / 2 A and AC-15 at 230 V / 3 A.
      • Which response times apply to SRB-NA-R-C.35-CH2A-24V?
        The family specification lists a maximum 200 ms pick-up time and maximum 30 ms drop-out time, apart from the intentionally delayed output.
      • What must be tested after replacing SRB-NA-R-C.35-CH2A-24V?
        Prove channel-fault detection, feedback and reset behavior, all enabling contacts, the configured delay and the machine's safe-state response.
