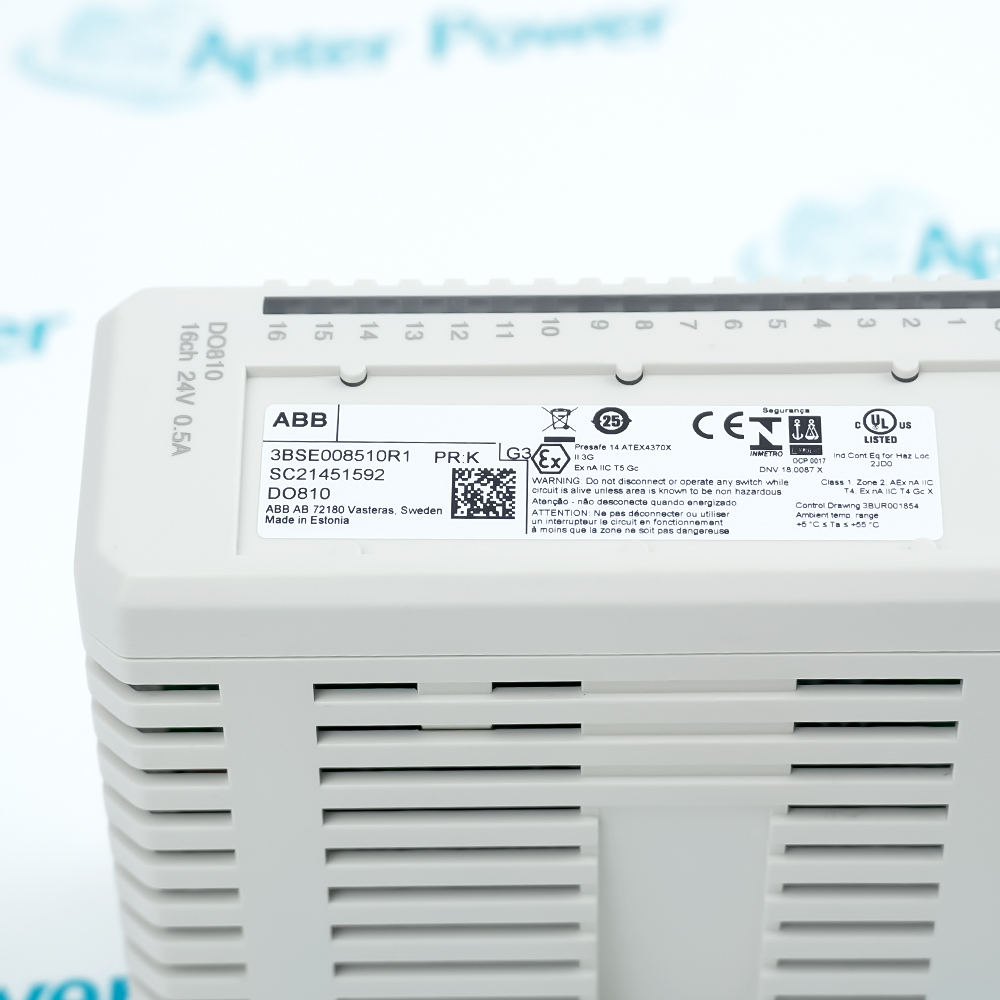

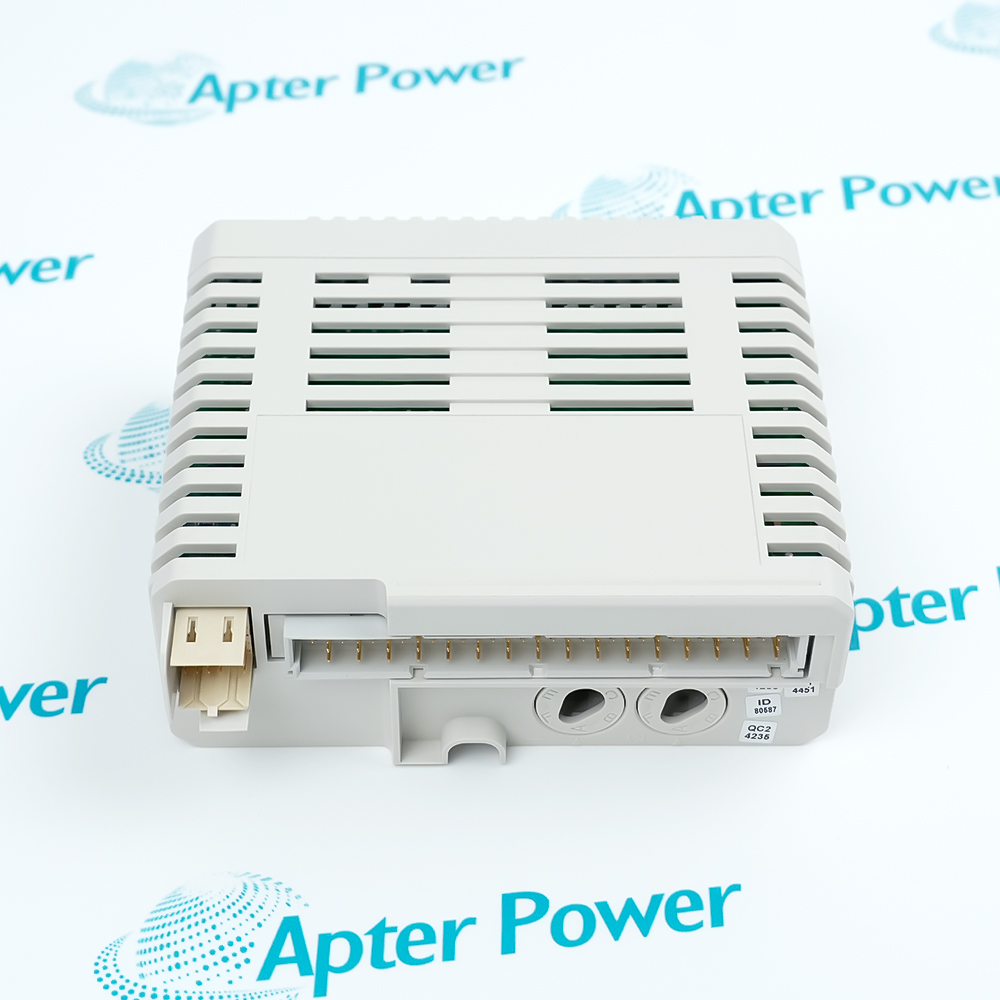

      DO810 3BSE008510R1

      Digital Output Module
      In Stock

      Product Describe：

      DO810

      3BSE008510R1

      DIGITAL OUTPUT MODULE

      SHORT CIRCUIT PROOF


      Ask our team:

      Get a quick price for： DO810 3BSE008510R1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for DO810 3BSE008510R1

      Technical specifications for DO810 3BSE008510R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        DO810 3BSE008510R1
      • Estimated shipping dimensions:
        4.5x11x12cm
      • Weight:
        0.15 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Voltage Range:
        24 V DC
      • Current Rating:
        0.5 A
      • Isolation Voltage:
        1500 V
      • Number of Channels:
        8
      • Communication Interface:
        N/A
      • Operating Temperature Range:
        -40°C to +85°C
      • Certifications:
        CE, UL, IEC
      • Rated insulation voltage:
        50 V
      • Dielectric test voltage:
        500 V a.c
      • Current consumption +5 V Modulebus:
        80 mA
      • Relative humidity:
        5 to 95 %, non-condensing
      Ask for Quote

      Information

      Information

      Overview Manuals Hardware compatibility
      The ABB DO810 (3BSE008510R1) is a high-performance digital output module designed specifically for S800 I/O systems. This module provides 16 24V DC output channels, each with a rated current of 0.5 A, and adopts a grouped protection design (8 channels per group).
        • 16 channels for 24 V d.c. current sourcing outputs
        • 2 isolated groups of 8 channels with process voltage supervision
        • OSP sets outputs to predetermined state upon error detection
      In complex automated production lines, the hot swappable function and intuitive LED status indicator lights of DO810 greatly simplify the on-site maintenance process and reduce the risk of system downtime. Whether it is a new project or an old system upgrade, this module can provide excellent signal integration capabilities.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      ABB DO810 3BSE008510R1 Digital Output Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      This module must be used in conjunction with the Module Termination Unit (MTU) base, and commonly used models include: TU810/TU812: Compact base, easy to connect. TU814/TU830/TU833: Optional according to wiring density or specific industry standards.

      FAQS

      • What is DO810 3BSE008510R1?
        DO810 3BSE008510R1 is a Digital Output Module
      • What are the DO810 3BSE008510R1 key specifications?
        It has 16 channels, operates on 24 V d.c. (12–32 V), with a continuous output current of 0.5 A.
      • What is the DO810 3BSE008510R1 isolation structure?
        The outputs are divided into two individually isolated groups of 8 channels.
      • Does the DO810 3BSE008510R1 have diagnostics?
        Yes, it includes process voltage supervision that signals if the voltage disappears, as well as channel error signals via ModuleBus.
      • What termination units are compatible?
        The module requires a TU810, TU812, TU814, TU830, or TU833 termination unit.
      • Are the DO810 3BSE008510R1outputs protected?
        Yes, they are protected against short circuits, over voltage, and over temperature.
