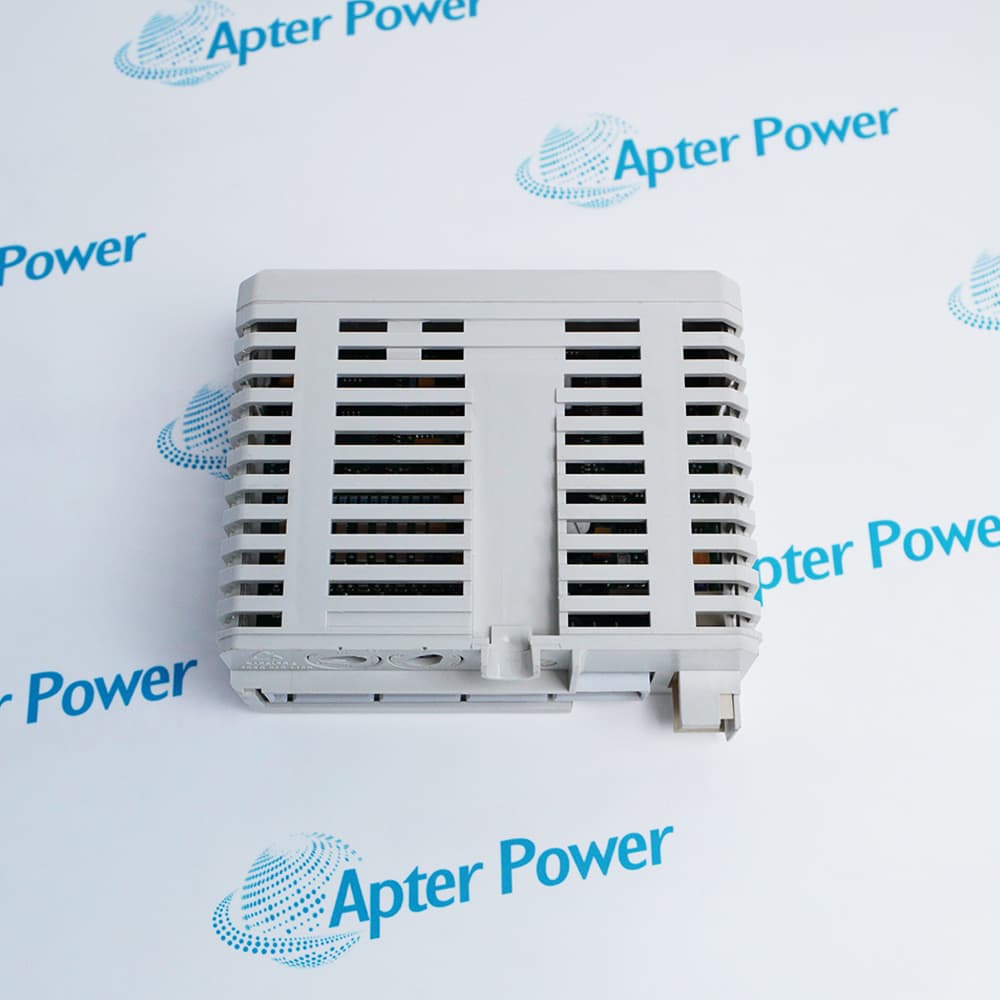

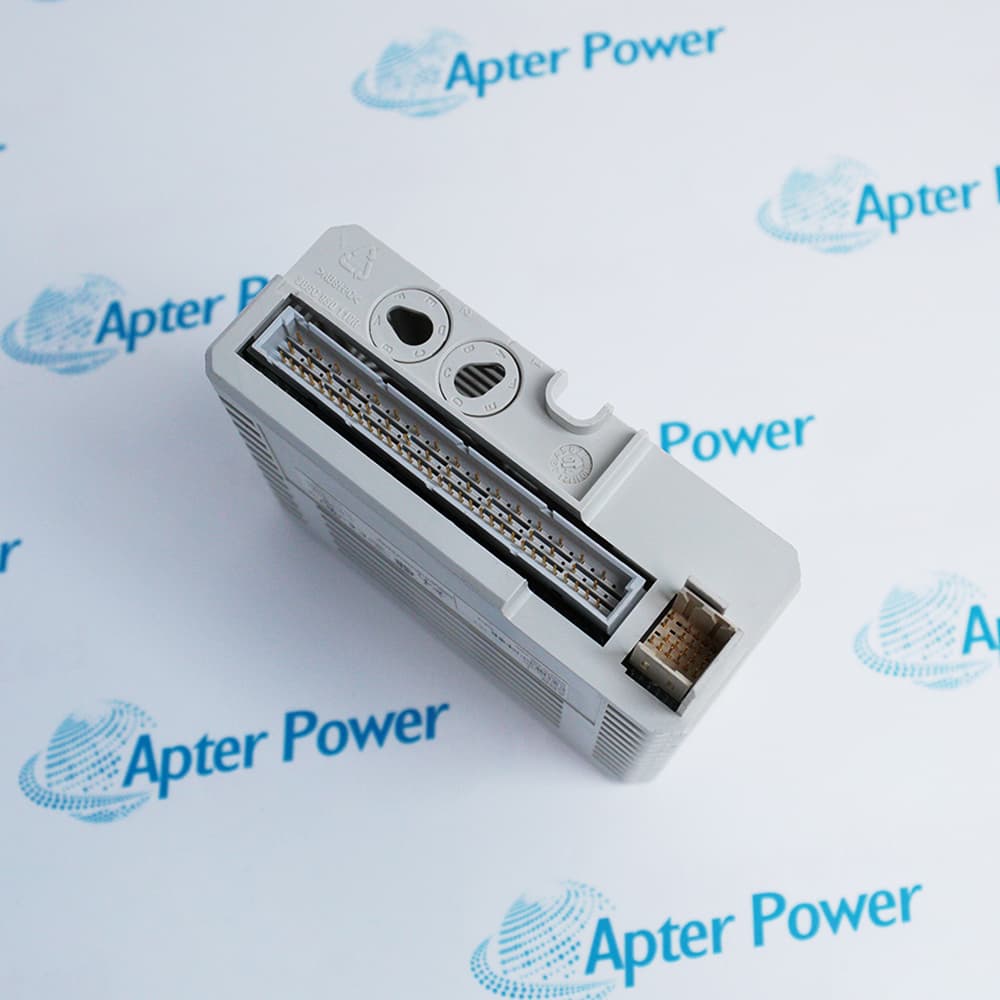

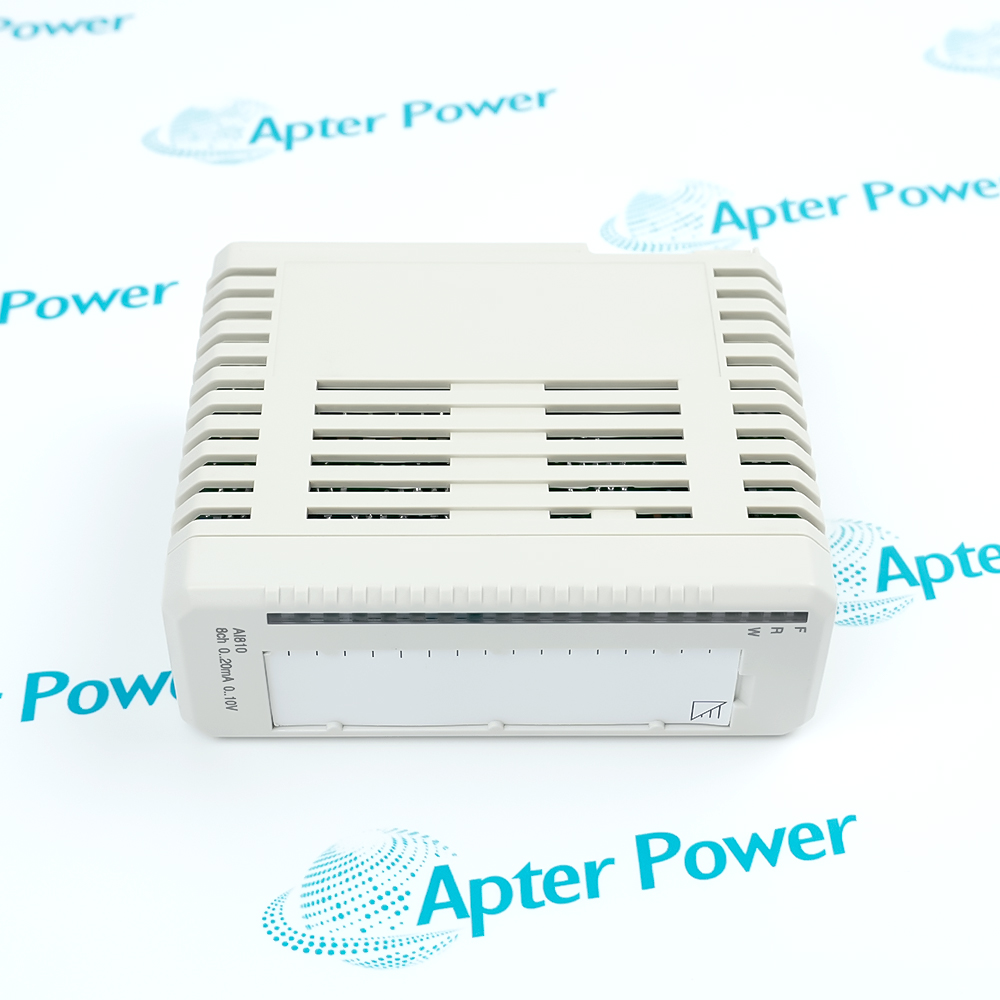

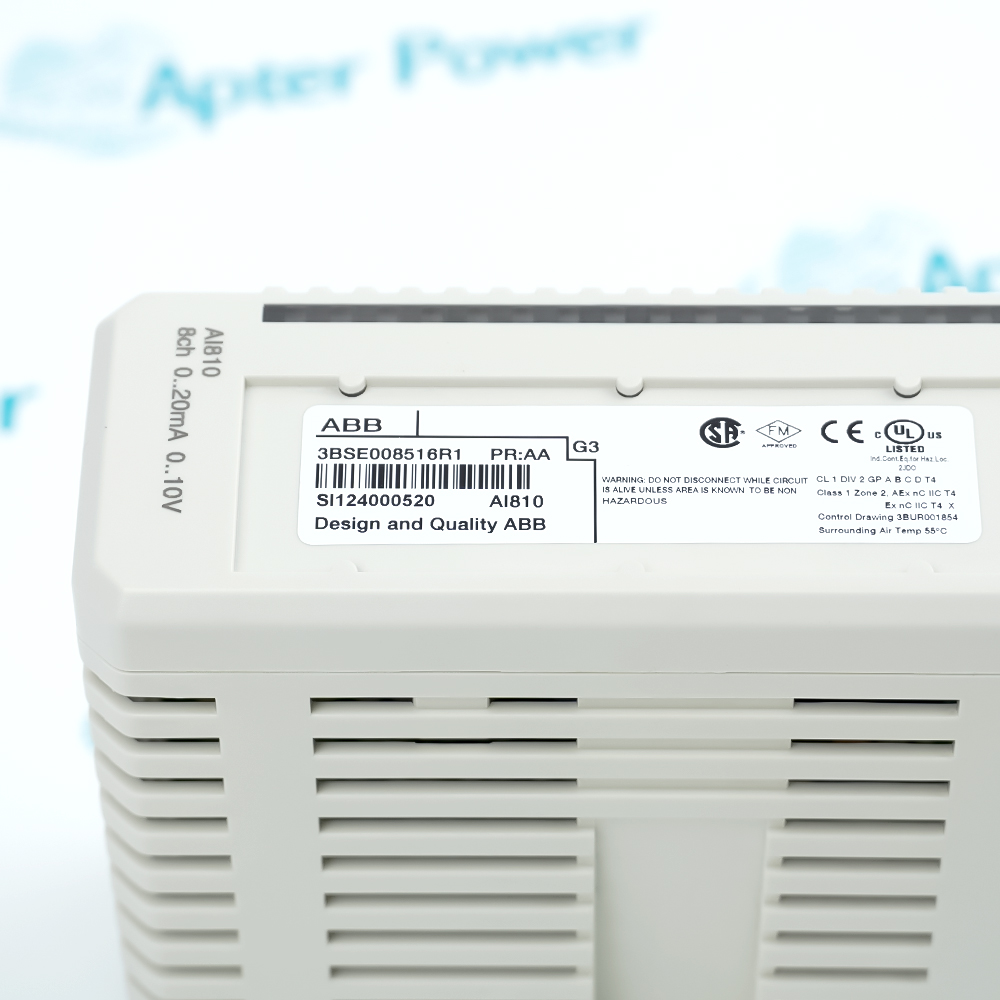

      ABB AI810 3BSE008516R1
      ABB AI810 3BSE008516R1
      ABB AI810 3BSE008516R1
      ABB AI810 3BSE008516R1
      ABB AI810 3BSE008516R1
      ABB AI810 3BSE008516R1
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      AI810 3BSE008516R1

      INPUT MODULE
      In Stock

      Product Describe：

      INPUT MODULE
      ANALOG
      8 CHANNEL
      0-20 MA
      0-10 VDC

      Ask our team:

      Get a quick price for： AI810 3BSE008516R1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for AI810 3BSE008516R1

      Technical specifications for AI810 3BSE008516R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        3BSE008516R1
      • Estimated shipping dimensions:
        4.5x10.6x12cm
      • Weight:
        0.15 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Resolution:
        12 bit
      • Under/over range:
        -5% / +15%
      • Error:
        Max. 0.1%
      • Update cycle time:
        8 ms
      • Rated insulation voltage:
        50 V
      • Dielectric test voltage:
        500 V a.c.
      • Power dissipation:
        1.5 W
      • Signal specification:
        0..20mA, 4..20mA, 0..10V, 2..10V
      • Number of channels:
        8
      • Input filter (rise time 0-90%):
        140 ms
      • Maximum field cable length:
        600 meters (656 yards)
      • Max input voltage (non destructive):
        30 V d.c.
      • NMRR, 50Hz, 60Hz:
        > 40 dB
      • Current consumption +5 V Modulebus:
        70 mA
      • Current consumption +24 V Modulebus:
        40 mA
      Ask for Quote

      Information

      Information

      Overview Manuals Key features and advantages
      The ABB AI810 (3BSE008516R1) is an 8-channel analog input module belonging to the ABB S800 I/O series. This module is designed to process industry standard voltage or current signals (such as 4-20 mA) and provide accurate signal acquisition for distributed control systems (DCS).
        • 1 group of 8 channels isolated from ground
        • 12 Bit resolution
        • Input shunt resistors protected to 30 V by PTC resistor
        • Analog inputs are short circuit secured to ZP or +24 V
      In terms of hardware security, the AI810 module demonstrates ABB's consistent industrial grade reliability standards. Each input channel is equipped with advanced PTC resistor protection circuits, whose parallel resistors can withstand continuous overvoltage of up to 30V, effectively preventing damage to the backplane circuit caused by wiring errors or sensor failures.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      ABB AI810 3BSE008516R1 INPUT MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      High adaptability: Through configuration, the same module can receive mixed current and voltage signals. Security protection: Each input channel is integrated with PTC resistors to prevent module burnout caused by wiring errors or external overvoltage. Hot swappable support: supports online replacement (Hot Swap), can be maintained without downtime (requires compatible MTU base).

      FAQS

      • What is the resolution of the AI810 module?
        The resolution of the AI810 module is 12-bit.
      • What are the over/under ranges of the AI810 module?
        The under range of the AI810 module is -5%, and the over range is +15%.
      • Does the AI810 support HART?
        Yes, the analog inputs are compatible with HART communication.
      • What is the conversion resolution of AI810 module?
        AI810 provides a resolution of 12 bits. This means that it can quantize analog signals into 4096 steps, meeting the accuracy requirements of most general industrial process controls.
      • If the input channel experiences current overload, is there any protective measure for AI810?
        Yes, there is. Each input channel of AI810 is equipped with PTC resistor protection. The current parallel resistor can withstand a continuous voltage of up to 30 V. If a short circuit or overload occurs, PTC will limit the current to prevent circuit damage.
      • Does AI810 support hot swap?
        Yes, it is. In the S800 I/O system, as long as the base (MTU) and communication interface module (CI) support it, the AI810 can be replaced while the system is powered on without interfering with the normal operation of other modules.
      Why Choose Apter Power?
      1.Full one year warranty on all components
      2.Professional after selling team
      3.Same-day dispatch payment come
      4.All units are fully tested well with certificate
      5.Speak With an Expert Sales Representative
      6.More than 20 years experience in automation
      7.Stable employees more than 10+ years working experience
      Common Applications
      • Oil
      • Gas
      • Power Generation
      • Chemical & Pharma
      • Water Treatment
      • Solar power
      Delivery and payment
      Delivery
      Logistic partners UPS, FedEx and DHL
      International delivery available
      Same day dispatch from warehouse inventory
      Warranty
      All parts new original are covered by Apterpower 12 month warranty

      Returns
      No hassle returns policy

      Dedicated customer support team

      Payment options
      We accept Bank transfers and the following methods of payment:
      Trusted by 5,000+ plants worldwide | Backed by our vast inventory of top-tier control parts, modules and cards, fast shipments are dispatched to cover your urgent needs. ABOUT US >>
      Disclaimer: We are not an authorized distributor or distributor of the product manufacturer of this website, The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because our company is not an authorized distributor of this product, the Original Manufacturer`s warranty does not apply.While many DCS PLC products will have firmware already installed, Our company makes no representation as to whether a DSC PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Our company also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from our company, its distributors, or any other source. Our company also makes no representations as to your right to install any such firmware on the product. Our company will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
