How is the exact AO810V2 3BSE038415R1 execution identified?

Match AO810V2 and ABB article number 3BSE038415R1.

What documented function does AO810V2 3BSE038415R1 perform?

It provides eight 14-bit unipolar current-output channels.

Which installed system must be matched before fitting AO810V2 3BSE038415R1?

Match the S800 ModuleBus position and compatible TU810/TU812/TU814/TU830/TU833 MTU.

Which interfaces must be recorded for AO810V2 3BSE038415R1?

Record L1+/L2+ supply, channel polarity, load, range and terminal assignment.

What handling controls apply to AO810V2 3BSE038415R1?

Isolate external loop power and use ESD controls before handling.

What must be restored after installing AO810V2 3BSE038415R1?

Restore AE keying, OSP behavior, channel ranges and controller configuration.

What evidence confirms AO810V2 3BSE038415R1 is ready for service?

Retain diagnostics plus controlled output and field-response results for all eight channels.

Which manufacturer record supports the AO810V2 3BSE038415R1 page?

ABB's AO810V2 data sheet supplies the exact model, channel, performance and compatibility data.

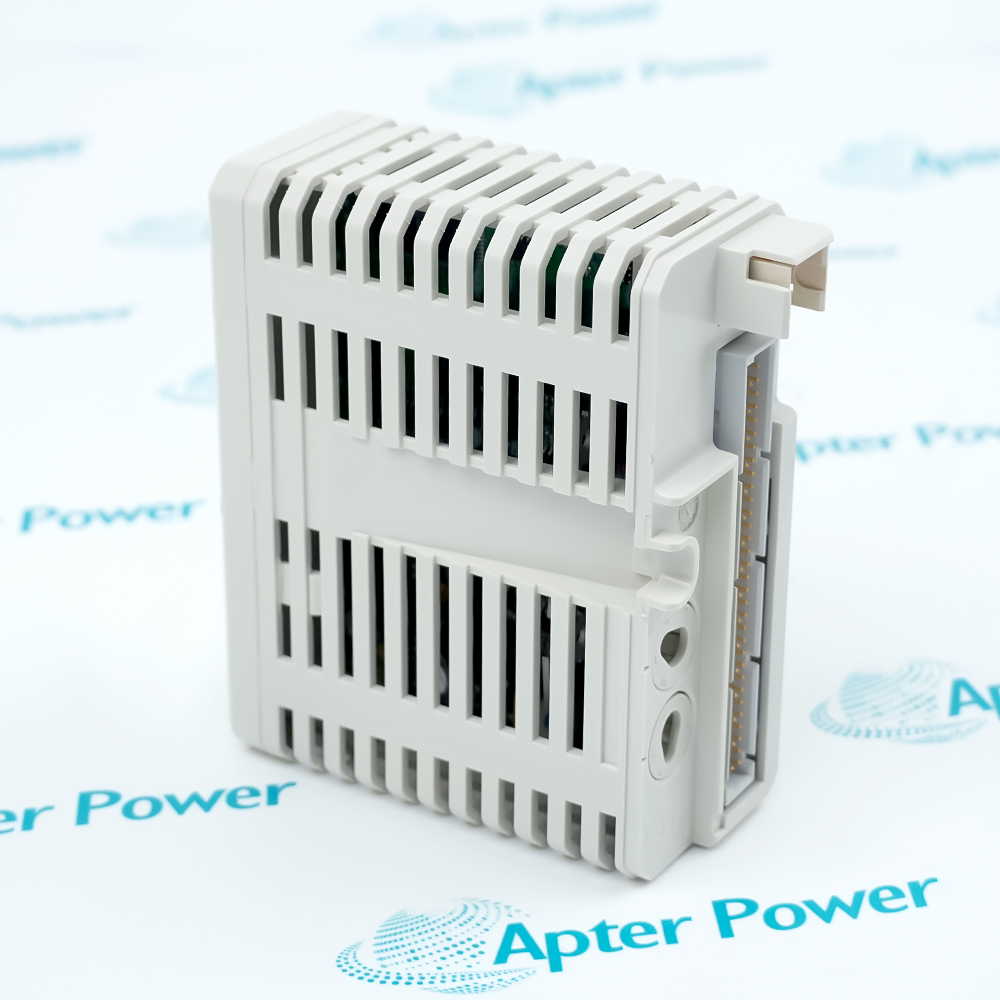

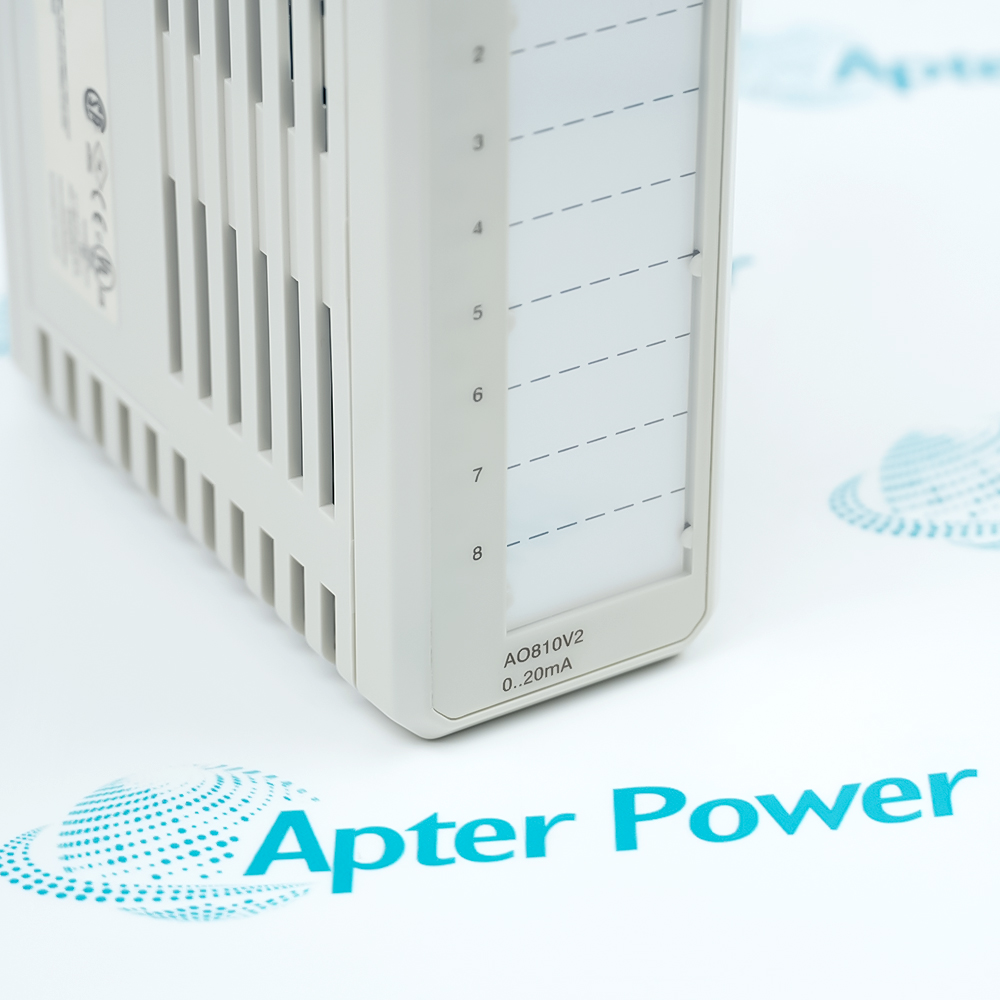

Product image is representative; revision or series may vary. Contact us to request a specific version.

AO810V2 3BSE038415R1

Name: AO810V2 3BSE038415R1
Brand: ABB
SKU: 3BSE038415R1

AO810V2 8-Channel Analog Output Module

In Stock

Ships by Tuesday, October 20

Fast Shipping Available

Product Describe：

ABB AO810V2 3BSE038415R1 is an S800 I/O analog output module with eight unipolar current-output channels. It supports 0–20 mA and 4–20 mA signals with 14-bit resolution and channel diagnostics.

Ask our team:

Phone:
+86 180 3023 5313
E-Mail:
sales13@apterpower.com

Get a quick price for： AO810V2 3BSE038415R1

Quantity*

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy.

Technical specifications Information Alternative names Technical notes FAQ

Technical specifications for AO810V2 3BSE038415R1

Manufacturer:

ABB
Product Category:

DCS System
Spare Part Number:

3BSE038415R1
Estimated shipping dimensions:

4.5x10.5x12cm
Weight:

0.18 kg
Tariff Code:

8537101190
Counliy of origin:

Sweden
ABB article number:

3BSE038415R1
Module type:

Analog output
Channels:

8
Signal ranges:

0...20 mA and 4...20 mA
Resolution:

14 bit
Isolation:

Groupwise isolated from ground
Output load:

500 ohm with L1+; 250 to 850 ohm with L2+
Current error:

Maximum 0.1% at 0 to 500 ohm
Temperature drift:

Typical 30 ppm/C; maximum 60 ppm/C
Rise time:

0.35 ms at 500 ohm
Update cycle:

2 ms or less
Rated insulation voltage:

50 V
Compatible MTUs:

TU810, TU812, TU814, TU830, TU833
Keying code:

AE
Protection:

Short-circuit-proof current-limited outputs
Diagnostics:

Power-low, open-circuit and channel error reporting
Operating temperature:

0 to +55 C; approval limits apply

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

AO810V2 3BSE038415R1 provides eight current-output channels for a documented ABB S800 I/O station.

Eight 0...20 mA or 4...20 mA outputs
14-bit output resolution
Groupwise isolation from ground
Cyclic self-diagnostics and open-circuit supervision

The module operates with a compatible MTU and the configured ModuleBus position. Commissioning restores every channel range, output value, external supply path, OSP state and controller assignment before controlled loop testing.

Important Notice: Confirm AO810V2, 3BSE038415R1, compatible MTU, AE keying, external supply, eight channel ranges, loads, OSP behavior, polarity, diagnostics and controlled loop-test evidence before commissioning.

AO810V2 3BSE038415R1 Manuals & Downloads

These are two different documents: the first consolidates verified technical and system data; the second provides installation checks, commissioning steps and acceptance records.

Process control outputs

Drives eight documented current loops.

Valve and actuator commands

Provides configured 0/4...20 mA setpoints.

S800 I/O maintenance

Restores an exact AO810V2 ModuleBus position.

Analog-loop commissioning

Supports controlled scaling and response tests.

Read the applicable ABB installation instructions before work. Verify AO810V2 3BSE038415R1, the installed host system and all configured field interfaces before isolation, wiring or commissioning.

Confirm AO810V2 and 3BSE038415R1 on the module label.

Place the controller, process and all eight loops in the approved maintenance state.

Isolate external loop power and record the L1+/L2+ supply arrangement.

Record the MTU, ModuleBus position, channel ranges, loads and polarities.

Use ESD controls and inspect keying, base contacts and terminal condition.

Restore the exact MTU, AE keying, OSP settings and controller configuration.

Review module, power-low, open-circuit and channel diagnostics after energization.

Command each output with controlled values and record loop response before release.

Alternative Names

AO810V2 3BSE038415R1 AO810V2 3BSE038415RI AO810V2 3BSE0384I5R1 AO810V2 3BSEO38415R1 AO8I0V2 3BSE038415R1 A0810V2 3BSE038415R1 AO81OV2 3BSE038415R1

Technical notes

Match AO810V2 to the documented S800 I/O ModuleBus position and approved MTU. Preserve channel range, output-scale, OSP behavior, external supply connection and field-loop polarity. Do not treat the module as HART, redundant, high-integrity or intrinsically safe hardware.

FAQS

How is the exact AO810V2 3BSE038415R1 execution identified?

Match AO810V2 and ABB article number 3BSE038415R1.
What documented function does AO810V2 3BSE038415R1 perform?

It provides eight 14-bit unipolar current-output channels.
Which installed system must be matched before fitting AO810V2 3BSE038415R1?

Match the S800 ModuleBus position and compatible TU810/TU812/TU814/TU830/TU833 MTU.
Which interfaces must be recorded for AO810V2 3BSE038415R1?

Record L1+/L2+ supply, channel polarity, load, range and terminal assignment.
What handling controls apply to AO810V2 3BSE038415R1?

Isolate external loop power and use ESD controls before handling.
What must be restored after installing AO810V2 3BSE038415R1?

Restore AE keying, OSP behavior, channel ranges and controller configuration.
What evidence confirms AO810V2 3BSE038415R1 is ready for service?

Retain diagnostics plus controlled output and field-response results for all eight channels.
Which manufacturer record supports the AO810V2 3BSE038415R1 page?

ABB's AO810V2 data sheet supplies the exact model, channel, performance and compatibility data.
