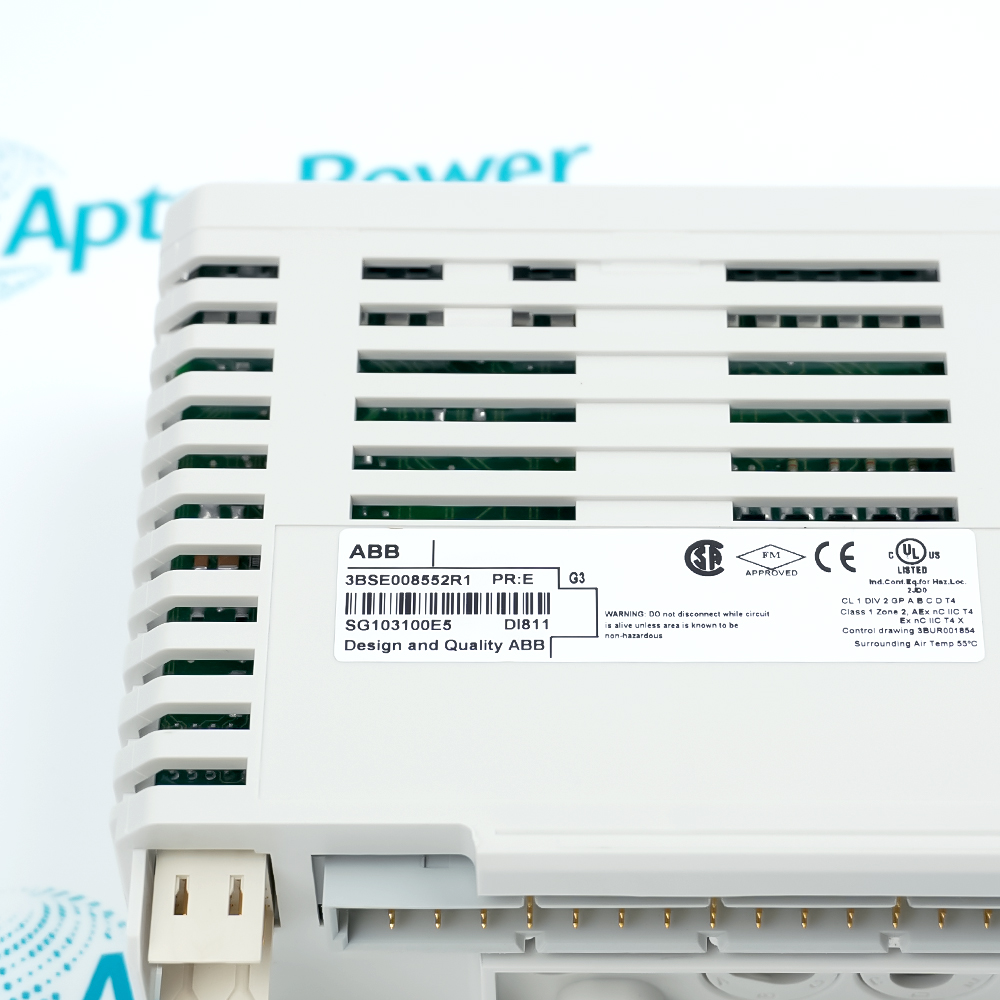

      DI811 3BSE008552R1

      Digital Input Module
      In Stock

      Product Describe：

      3BSE008552R1
      DIGITAL INPUT MODULE
      20mA
      50V
      16 CHANNEL
      INSTANTANEOUS
      LED INDICATORS

      Ask our team:

      Get a quick price for： DI811 3BSE008552R1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for DI811 3BSE008552R1

      Technical specifications for DI811 3BSE008552R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        3BSE008552R1
      • Estimated shipping dimensions:
        4.5x11x12cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Voltage:
        48V
      • Input Current:
        Up to 20mA per channel
      • Power Consumption:
        Max 2W
      • Installation Size:
        Compact DIN rail mountable
      • Operating Temperature:
        -25°C to +60°C
      • Input channel:
        16 digital input channels
      • Signal voltage:
        rated at 48 V d.c. (DC), operating range between 36 and 60 V d.c
      • Signal type:
        Current Sinking input
      • Channel isolation:
        divided into two groups, each with 8 channels, isolated from each other
      • Power consumption/current:
        At 48 V, the input current for each channel is approximately 4 mA
      Ask for Quote

      Information

      Information

      Overview Manuals Features
      The ABB DI811 3BSE008552R1 is a 16-channel, 48 V DC digital input module for the S800 I/O system, featuring current sinking, two isolated groups of 8 channels, and voltage supervision..
        • 16 channels for 48 V d.c. inputs with current sinking
        • 2 isolated groups of 8 with voltage supervision
        • Input status indicators
      In terms of physical structure and security, DI811 adopts a modular design, with 16 input channels divided into 2 mutually isolated groups (8 channels per group). This grouping isolation mechanism greatly enhances the system's anti-interference ability and prevents fault propagation.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      ABB DI811 3BSE008552R1 Digital Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Diagnosis and monitoring: Each input channel is equipped with an independent status indicator LED. In addition, each input has a dedicated process voltage monitoring interface, which can send an error signal to the control system through the Modulus Bus in case of power loss. Modular installation: It needs to be installed on a specific terminal unit (MTU), compatible models include TU810, TU812, TU830, etc. These bases provide on-site wiring interfaces and support "hot plugging" of modules.

      FAQS

      • What is DI811 3BSE008552R1 ?
        DI811 3BSE008552R1 is a Digital Input Module
      • How does a digital input module work?
        A digital input module accepts inputs from digital devices such as switches and proximity sensors. The input module will detect one of the two possible conditions of an input device: open or closed. For example, a push button switch is a digital device and can either be open or closed.
      • What is the operating voltage of the DI811 3BSE008552R1?
        The DI811 accepts 48 V DC input signals, with a "1" signal range of 30-60 V and "0" signal range of -60 to +10 V.
      • How are the DI811 3BSE008552R1 channels organized?
        The 16 channels are divided into two isolated groups, with 8 channels each, which allows for separate voltage supervision.
      • What termination units are compatible with DI811 3BSE008552R1?
        The module is designed for mounting on ABB S800 I/O modules, specifically using Terminal Units (MTUs) such as TU810, TU812, TU830, or similar.
      • Does the module support diagnosis?
        Yes, the DI811 supports channel error signals (e.g., if process voltage disappears), which can be read via the ModuleBus.
      • What is the DI811 3BSE008552R1 function of the filter times?
        Selectable filter times of 2, 4, 8, or 16 ms are available to reduce noise.
      • What is the DI811 3BSE008552R1 current consumption?
        The module consumes approximately 50 mA from the +5 V ModuleBus.
