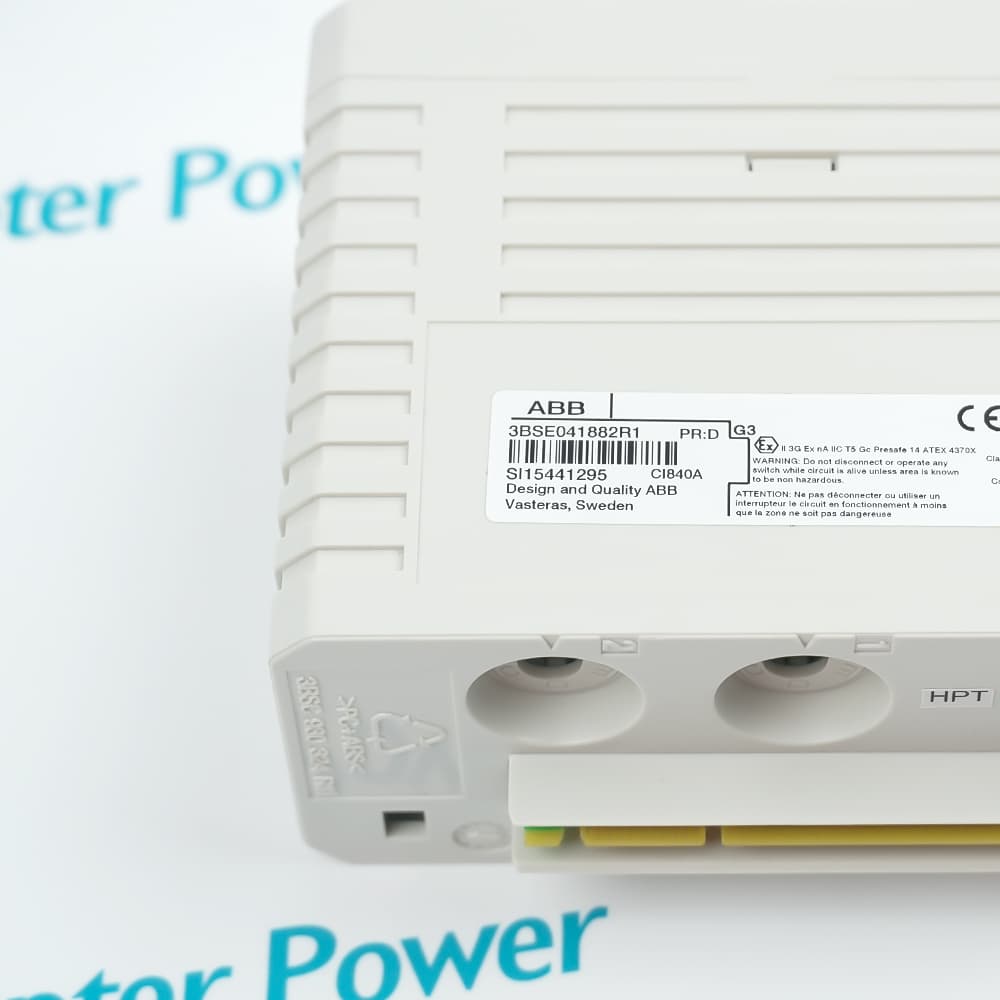

      CI840A 3BSE041882R1

      Profibus Communication Interface - Redundant
      Product image is representative; revision or series may vary. Contact us to request a specific version.
      • 12-month warranty
      • Immediate dispatch
      • Global delivery

      Product Information

      Product Describe

      3BSE041882R1
      COMMUNICATION MODULE
      PROFIBUS DPV1 FIELDBUS INTERFACE
      (CI840A)
      PROFIBUS DP-V1
      up to 12 Mbps
      Modbus RTU
      up to 115.2 kbps

      Technical specifications for CI840A 3BSE041882R1

      Manufacturer: ABB
      Product Category: DCS System
      Spare Part Number: 3BSE041882R1
      Estimated shipping dimensions: 5.4x10.5x12cm
      Weight: 0.26 kg
      Tariff Code: 8537101190
      Country of origin: Sweden
      Place of shipment: Xiamen, Fujian, China
      24V Consumption: Typically 190 mA
      Relative Humidity: 5 to 95 9%, non-condensing
      Storage Temperature: -40 to +70°C
      Power Consumption: Less than 2W
      Connectivity: Standard DB9 connector for easy connection
      Protection level: IP20
      Applicable system: ABB AC 800M controller/S800 I/O
      Support redundancy: Yes. If redundant configuration is required, two CI840A modules and one TU847/TU846 terminal block need to be ordered.
      Communication protocol: Supports PROFIBUS DP-V1
      Module location: Used for data communication in industrial automation equipment.
      By purchasing this item, you agree to the Terms & Conditions
      Apter Power is NOT an authorized distributor of ABB

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.
      Why Choose Apter Power?
      1.Full one year warranty on all components
      2.Professional after selling team
      3.Same-day dispatch payment come
      4.All units are fully tested well with certificate
      5.Speak With an Expert Sales Representative
      6.More than 20 years experience in automation
      7.Stable employees more than 10+ years working experience
      Common Applications
      • Electricity
      • Automation
      • Motion Control
      • Industrial production
      • Wind power generation
      • Solar power
      Delivery and payment
      Delivery
      Logistic partners UPS, FedEx and DHL
      International delivery available
      Same day dispatch from warehouse inventory
      Warranty
      All parts new original are covered by Apterpower 12 month warranty

      Returns
      No hassle returns policy

      Dedicated customer support team

      Payment options
      We accept Bank transfers and the following methods of payment:

      Ask our team:

      Get a quick price for： CI840A 3BSE041882R1
      Quantity*
      Mobile*
      E-mail*
      Company
      Content*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      • Warranty Bill

        We provide 1 year warranty on every product we sell.

        Service means taking a customer problem and making it your own challenge. Years of experience and listening skills enable us to think and act quickly and accordingly. You have a problem? – We have the solution!
        Apter Power is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
        Speed. Warranty. Everywhere.
        Parts:Learn More
      • How to Make Offers?

        The Sales Team at Apter Power is constantly scanning the web to ensure we are offering the lowest prices possible.

        However, if you think we can do better, feel free to make an offer on any of our products. We pride ourselves on saving you money! Here is how to make an offer.
        Only spare parts that you are seriously considering purchasing. Once your bid is accepted, a sales order will be generated and an invoice will be created. If you have any questions about our quotes, please feel free to contact us. We will be happy to help you further. If you receive a lower price than us, please do not hesitate to contact us. We allow you to quickly obtain the same part at a very low cost. Our extensive knowledge of industrial automation parts means that we can provide you with the best value and innovation. We ensure your satisfaction at all times.
        Thequotation team will do their best to respond to the quotation in a timely manner. The response time for the quotation is generally 2 hours.
        Your Automation Specialists

      More Information

      Overview Manuals Core functions and features
      The ABB CI840A (3BSE041882R1) is a PROFIBUS DP-V1 Fieldbus Communication Interface (FCI) for the S800 I/O system, supporting redundant configurations (TU846/TU847 modules).
        • Isolated power supply to I/O modules
        • OSP handling and configuration
        • Input power fused
        • Hot Configuration In Run
      The CI840A module strictly follows industrial grade standards in hardware design and can withstand harsh on-site environments. It has passed the G3 corrosion protection certification (ISA-S71.04) and can be used for a long time in air environments with moderate corrosiveness, such as chemical plants or offshore platforms.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      ABB CI840A 3BSE041882R1 Profibus Communication Interface - Redundant Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      High performance communication: Supports PROFIBUS DP-V1 protocol to achieve seamless data exchange between controllers and field devices. Redundancy Support: Designed specifically for high availability, supports 1+1 redundancy configuration. If redundant communication is required, two CI840A modules and one TU846 or TU847 terminal unit need to be ordered. Hot swapping and online configuration: Supports hot swapping (Hot Swap) and hot configuration in operation (HCIR), allowing for module replacement or configuration changes without interrupting system operation. HART transparent transmission: equipped with HART pass through function, convenient for remote calibration and diagnosis of on-site intelligent instruments. Isolation power supply: Provides isolation power supply for I/O modules and has input power supply fuse protection function.

      Our World，Made Possible By Manufacturing.

      Manufacturing made possible by Apter Power.
      Watch The Video >>

      FAQS

      • What is the 24V power consumption of the CI840A module?
        The typical 24V power consumption of the CI840A module is 190 mA.
      • What is the relative humidity range of the CI840A module?
        The relative humidity range of the CI840A module is 5% to 95%, non-condensing.
      • What is the storage temperature range of the CI840A module?
        The storage temperature range of the CI840A module is -40°C to +70°C.
      • What is the main function of the CI840A?
        It serves as a Communication Interface (FCI) for S800 I/O, allowing them to communicate with controllers via PROFIBUS DP-V1.
      • Does the CI840A support redundancy?
        Yes, it is designed for redundant applications. For redundancy, two CI840A modules are typically used with a TU846 or TU847 module.
      • What is the difference between TU846 and TU847?
        TU846 is generally used for redundant I/O, while TU847 is used for non-redundant I/O configurations.
      • Does it support HART?
        Yes, the module supports HART pass-through, allowing HART communication for field devices.
