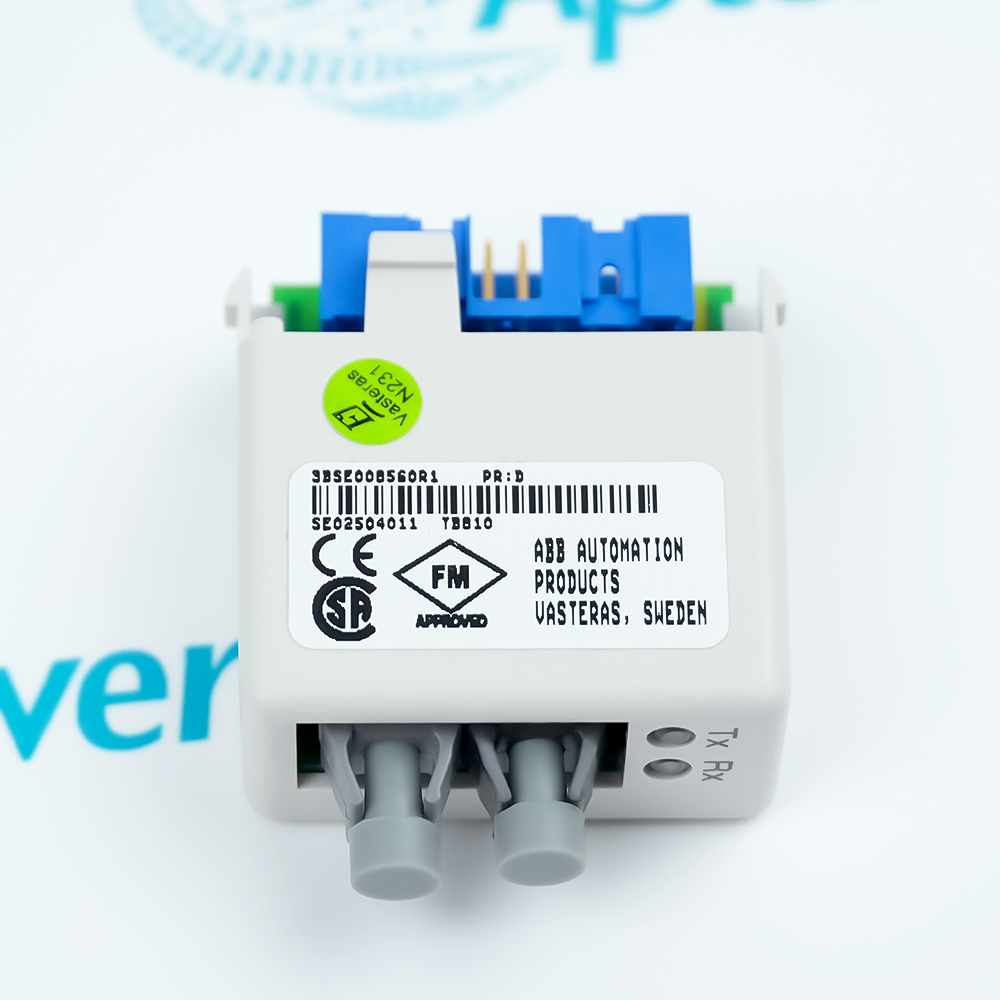

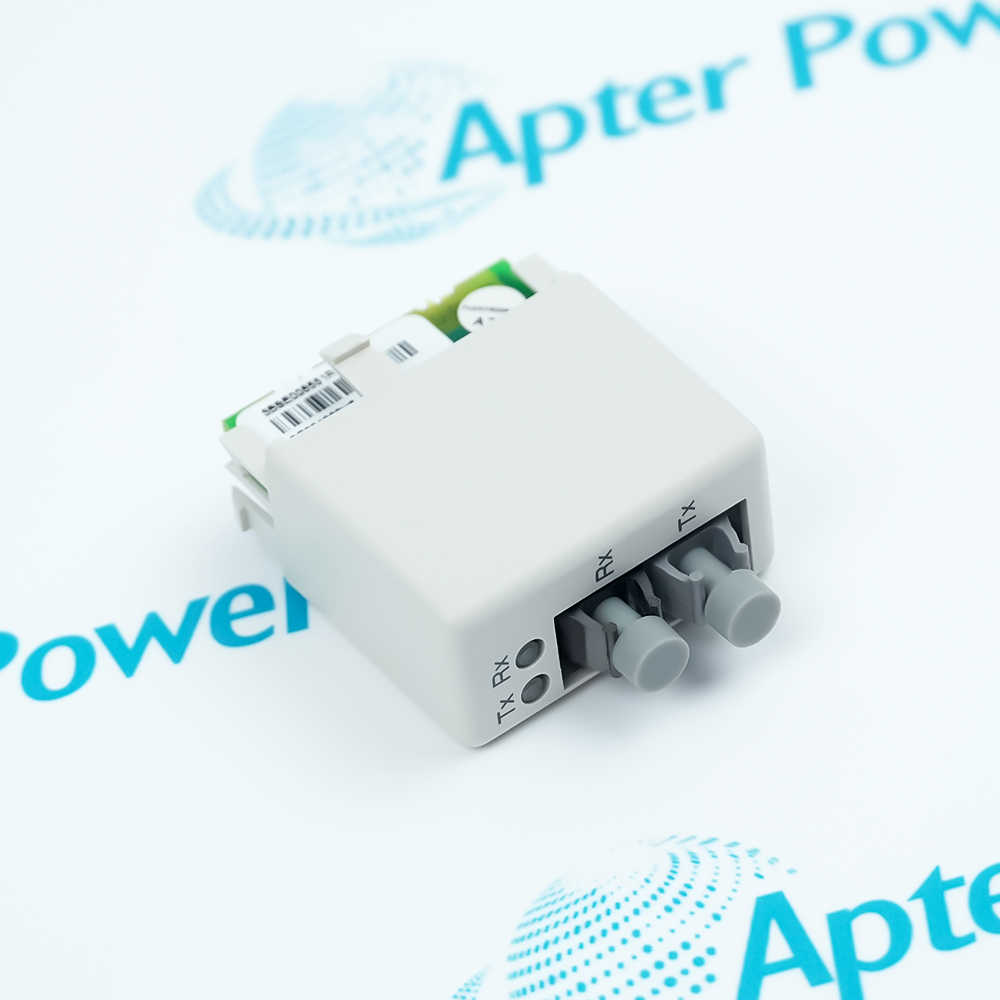

The TB810 3BSE008560R1 is a Modulus Optical Port communication module produced by ABB. It is mainly used in ABB's S800 I/O system and Advant Controller 800 (AC800M) series control systems, responsible for achieving high-speed fiber optic communication between the controller and I/O modules
- Modulebus Fiber Optic Port
- Data Rate & Speed
- Distance & Media
This module uses optical fiber as the transmission medium and naturally has strong resistance to electromagnetic interference (EMI) and radio frequency interference, which can effectively eliminate the risk of loop current caused by ground potential difference.
Important Notice:
Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB TB810 3BSE008560R1 Modulebus Optical Port Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Anti interference: Due to the use of fiber optic transmission, it is completely immune to electromagnetic interference (EMI) and suitable for harsh industrial environments.
System compatibility: Widely used in the Advant Controller 800 series, supporting distributed layout of S800 I/O.
Environmental standards: Compliant with the EU RoHS Directive (2011/65/EU).
Long distance distributed I/O expansion: When the I/O station is located within a 2-kilometer range of the control cabinet, the TB810 can connect remote I/O clusters to the AC 800M controller through fiber optics.
High noise environment communication: deployed next to variable frequency speed control systems and high-power switchgear to replace cable connections that are prone to interference.
System upgrade and renovation: As a key component of ABB System 800xA or Advant MOD 300 DCS system, it is used to enhance the automation coverage of existing infrastructure.
