      bachmann CNT204
      bachmann CNT204
      bachmann CNT204
      bachmann CNT204
      bachmann CNT204
      bachmann CNT204
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      CNT204

      Four-Channel Counter Module
      In Stock
      Ships by Wednesday, September 30
      Fast Shipping Available

      Product Describe：

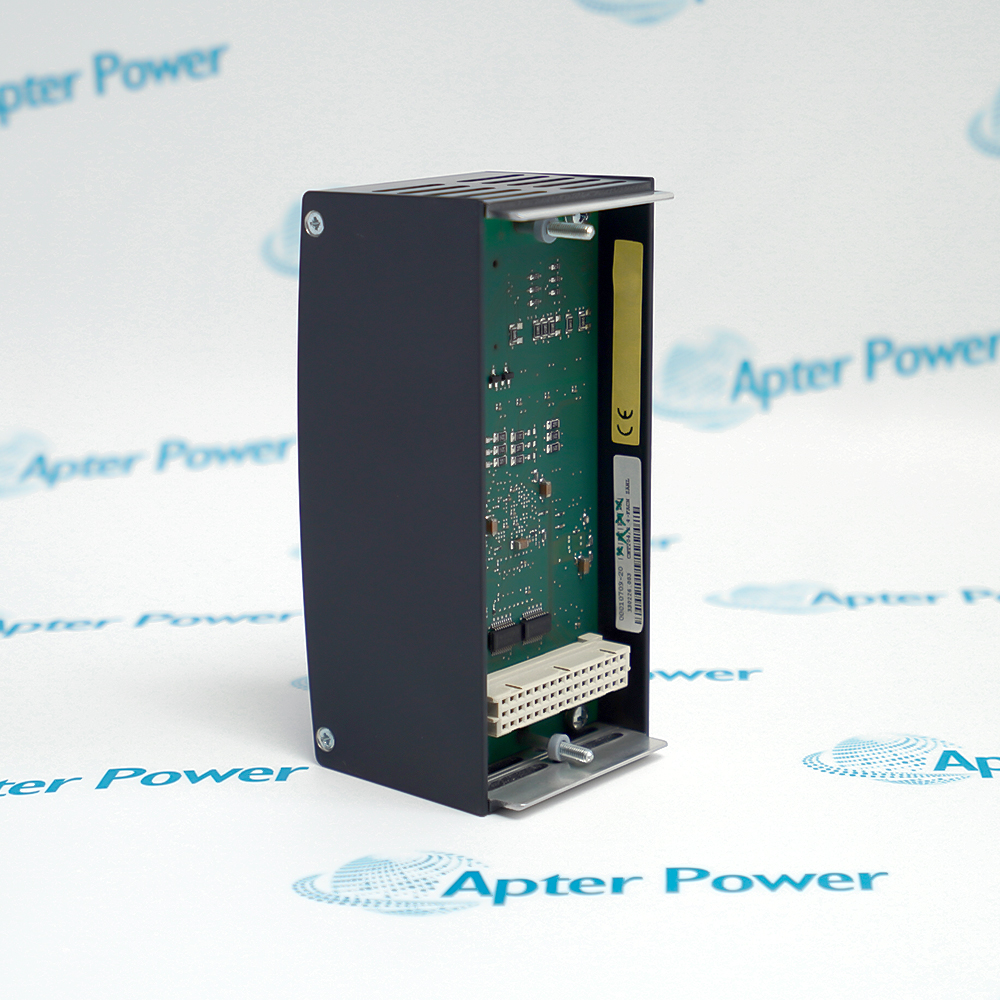

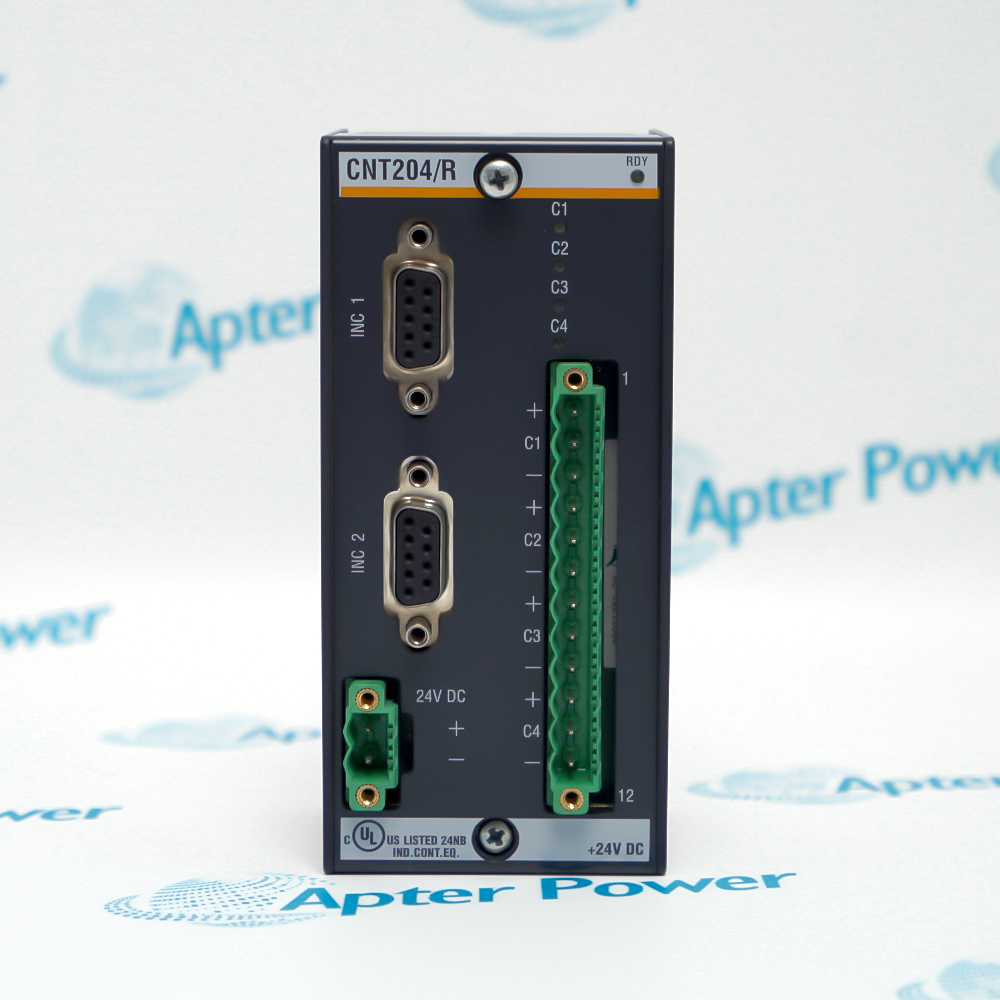

      Bachmann CNT204 is a four-channel counter module for the M1 automation system. It accepts four single-line pulse-generator inputs, while two channels can be configured for incremental encoders with synchronized measurement functions.

      Ask our team:

      Get a quick price for： CNT204
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for CNT204

      Technical specifications for CNT204

      • Manufacturer:
        bachmann
      • Product Category:
        PLC Systems
      • Spare Part Number:
        CNT204
      • Estimated shipping dimensions:
        5.5x5.5x11.8cm
      • Weight:
        0.24 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Austria
      • Counter inputs:
        Four single-line pulse-generator inputs
      • Encoder capability:
        Two channels configurable as incremental encoder inputs
      • Channel indication:
        Green LED per counter/initiator input
      • Encoder power:
        Available at the module terminal block
      • Synchronization:
        Inputs can be synchronized
      • Period measurement resolution:
        42 ns
      • Differential phase measurement:
        C1/C3 or C2/C4 at 42 ns
      • Supply monitoring:
        All supply voltages monitored
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bachmann CNT204 is a four-channel counter module for the M1 automation system. It accepts four single-line pulse-generator inputs, while two channels can be configured for incremental encoders with synchronized measurement functions.
      • Four independent counter inputs
      • Two incremental-encoder channels
      • 42 ns period-measurement resolution
      • Input synchronization and supply monitoring

      Confirm the exact CNT204 variant, terminal assignment, sensor supply and counter or encoder mode for every channel. Remove module and field power, preserve shielding and run controlled count, period and direction tests before release.

      Important Notice: Verify CNT204 from the physical marking and current manufacturer documentation before installation or configuration.

      Apter Power Bachmann CNT204 Manuals and Guides
      Apter Power Bachmann CNT204 Product Technical Reference PDFApter Power Bachmann CNT204 Installation and Verification Workbook PDF

      The first document presents model-specific technical and system data. The second provides a distinct installation, connection, commissioning and acceptance workflow.

      Pulse counting
      Counts four documented single-line pulse-generator inputs in an M1 station.
      Incremental encoders
      Uses two channels as an approved incremental-encoder interface.
      Period and speed measurement
      Applies the documented 42 ns measurement resolution to timing applications.
      Phase comparison
      Measures differential phase on the documented C1/C3 or C2/C4 channel pairs.
      Read the applicable Bachmann instructions before work. Verify CNT204 and the installed system configuration.
      1
      Verify CNT204 and the complete hardware variant before work.
      2
      Record every channel's counter, initiator or encoder assignment.
      3
      Confirm sensor supply and terminal-block wiring.
      4
      Remove module and field power before insertion or wiring changes.
      5
      Maintain shield termination and separation from noisy conductors.
      6
      Do not exceed the documented input and encoder limits.
      7
      Check supply-monitoring and channel LEDs after startup.
      8
      Prove count, direction, period and synchronization functions before release.

      Technical notes

      Technical notes

      Confirm the exact CNT204 variant, terminal assignment, sensor supply and counter or encoder mode for every channel. Remove module and field power, preserve shielding and run controlled count, period and direction tests before release.

      FAQS

      • What is Bachmann CNT204?
        It is a four-channel counter module for the Bachmann M1 automation system.
      • How many single-line counter inputs are provided?
        The official data sheet specifies four inputs for single-line pulse generators.
      • Can CNT204 read incremental encoders?
        Yes. Two input channels can be configured for incremental encoders.
      • Is encoder power available from the module?
        The official data sheet states that encoder power is available directly from the module terminal block.
      • Can the inputs be synchronized?
        Yes. The CNT204 family supports synchronized inputs.
      • What period-measurement resolution is documented?
        The data sheet specifies 42 ns resolution.
      • Which channel pairs support differential phase measurement?
        The documented pairs are C1/C3 or C2/C4.
      • What confirms successful commissioning?
        Supply monitoring is normal and controlled counter, direction, period and synchronization tests pass for the configured channels.
      Trusted by 5,000+ plants worldwide | Backed by our vast inventory of top-tier control parts, modules and cards, fast shipments are dispatched to cover your urgent needs. ABOUT US >>
