ME203/CNW

Name: ME203/CNW
Brand: bachmann
SKU: ME203/CNW

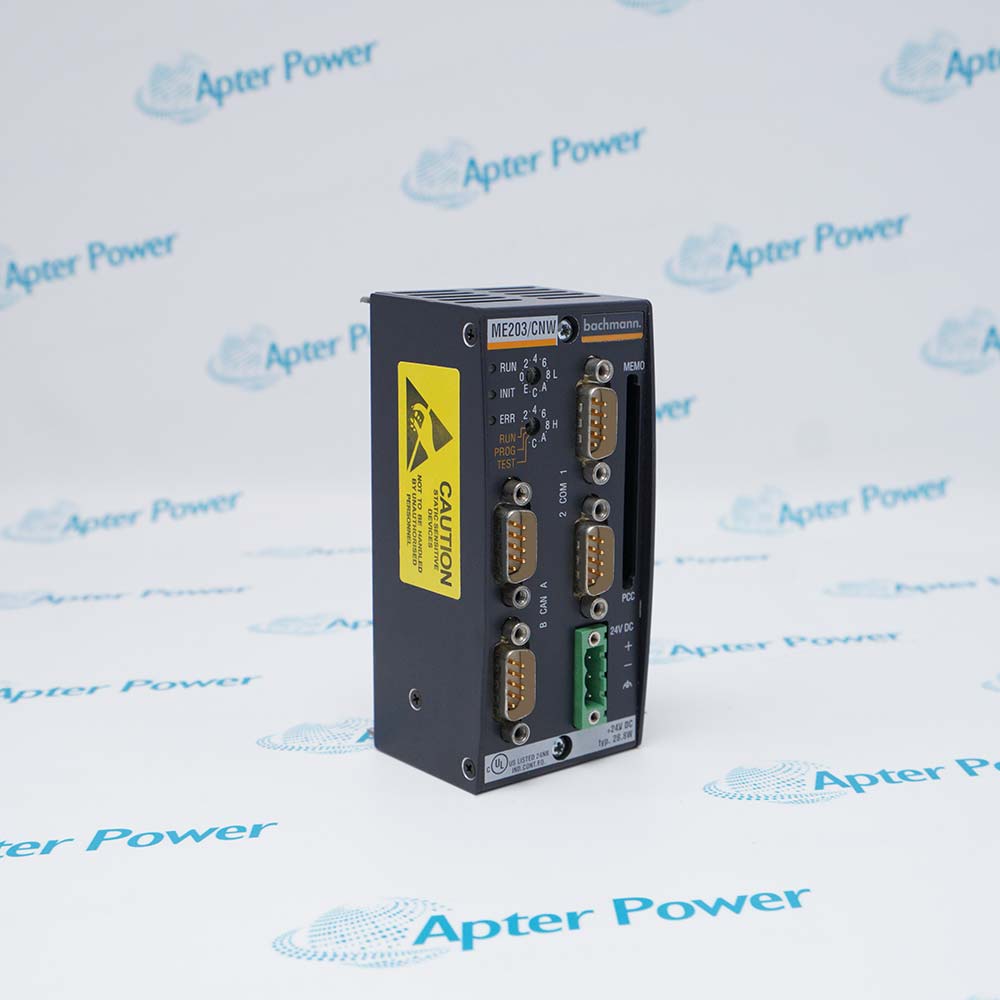

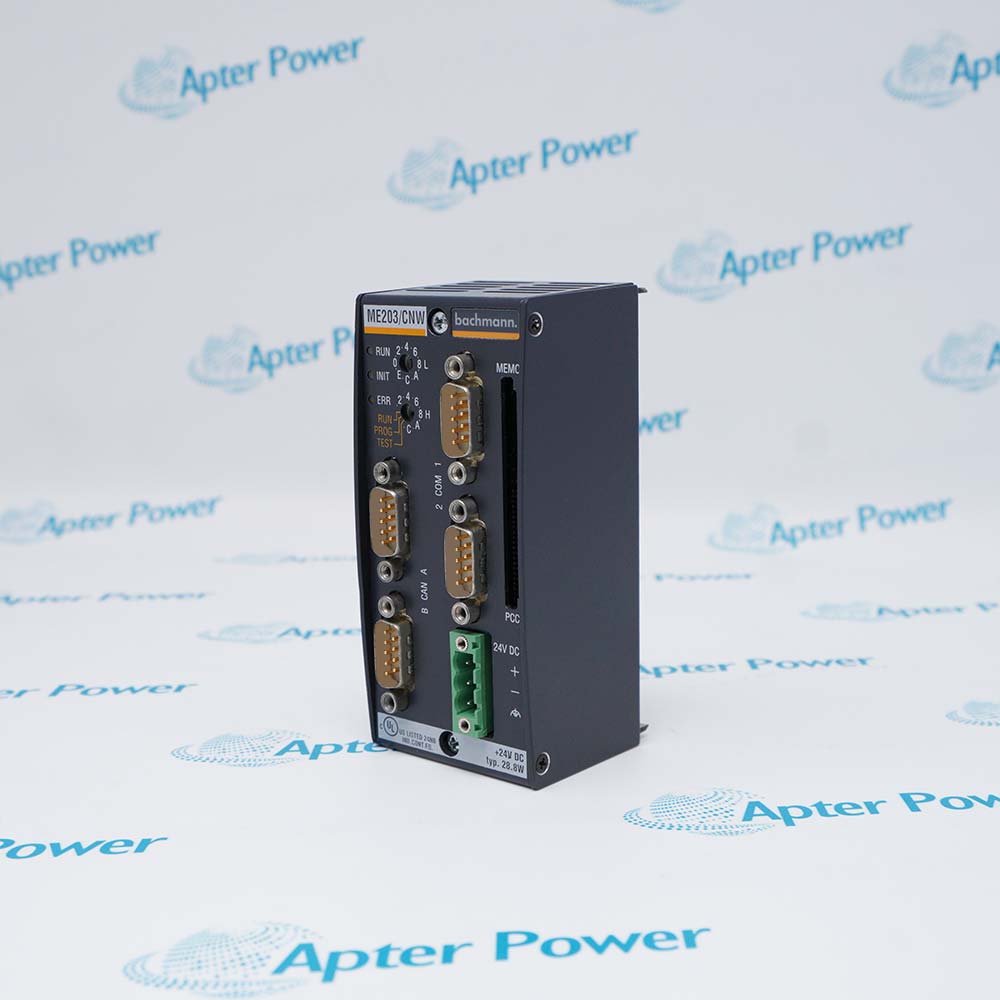

CPU module

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

CPU module 386EX (33MHz)
M1 system controller
8 MB DRAM memory
512 KB backed SRAM

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Warranty Policy

Review the applicable warranty coverage and claim process.
Return Notice

Check the return process and obtain approval before sending an item back.
Shipping Method

Review shipping arrangements, transit estimates and delivery responsibilities.
Parts Availability

Browse stock listings and confirm current availability with our team.
How to order

See how to submit an enquiry, review a quotation and confirm an order.

Get a quick price for ME203/CNW

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for ME203/CNW

Manufacturer:

bachmann
Product Category:

PLC Systems
Spare Part Number:

ME203/CNW
Estimated shipping dimensions:

5.4x11.8x5.4cm
Weight:

0.1 kg
Tariff Code:

8537101190
Counliy of origin:

Austria
Current Consumption from Backplane:

5 V DC at 0.55 A typical
Power Dissipation:

2.75 W typical
System Memory (DRAM):

8 MB volatile memory for program execution
Retentive Memory (SRAM):

512 KB NVRAM backed by an internal lithium battery
Module Width:

1 standard slot width
Storage Temperature:

-40 °C to +85 °C
Relative Humidity:

5% to 95% non-condensing
Hardware Enclosure Rating:

IP20

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The ME203/CN is a central processing unit module designed for the M1 modular automation control system. The hardware occupies a single-width slot on the M1 system backplane and integrates an industrial-grade 80386 EX microprocessor.

CAN Bus-Includes 1 integrated CAN fieldbus interface for connecting decentralized devices
Network Interface-Includes 1 integrated Ethernet port for network configuration, remote communication, and routing functions
Serial Interface-Includes a standard RS232 serial communication interface for local configuration or peripheral connections

The module contains 8 MB of volatile DRAM memory for system operations and 512 KB of battery-backed SRAM retentive memory dedicated to data preservation during power interruptions. A front-accessible PC memory card slot is integrated into the module faceplate to house external program media ranging from 8 MB to 64 MB. The suffix designation specifies a native hardware configuration that includes an integrated CAN fieldbus interface alongside serial RS232 communication lines.

This CPU module operates on the VxWorks real-time operating system and is configured using the Bachmann SolutionCenter software platform. System errors, operational modes, and communication interface activities are indicated locally by a row of LED indicators situated on the front panel.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Bachmann ME203/CNW CPU module Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Wind Power Generation

Deployed inside the main control cabinet of wind turbines to acquire position sensor data from pitch and yaw systems via the integrated CAN bus and execute control logic.

Rail Transportation

Operates within the Train Control and Management System (TCMS) to coordinate logic interlocking of HVAC, braking, and lighting subsystems via serial and bus interfaces.

Hydroelectric Power Generation

Acts as the logic core of hydro-turbine governor control systems, processing sensor variables such as unit speed and oil pressure to output adjustment commands.

Steel and Metallurgical Equipment

Controls blast furnace feeding systems and converter auxiliary equipment, utilizing digital modules on the passive backplane to execute material handling logic.

Plastics and Rubber Extrusion

Receives analog inputs from multiple temperature sensors in heating zones and outputs pulse signals to solid-state relays for constant temperature control.

Petrochemical Auxiliary Systems

Operates within non-safety interlocking distributed control boxes for wastewater reuse or refinery peripheral utilities, providing logic calculation and data forwarding for field I/O modules.

During the use of ME203/CN, ensure that the ambient temperature remains between 0 °C and 60 °C without condensation while the enclosure meets a protection rating above IP20. Main programs and configuration data must be loaded and backed up using a specific PC memory card inserted into the slot.

When the main power is disconnected, the internal lithium battery must be inspected periodically and replaced timely to prevent data loss within the real-time clock (RTC) and the 512 KB retentive SRAM.

Technical notes

This component is applied as the main logic controller within industrial machinery sectors, specifically wind turbine generator systems, maritime automation, and utility infrastructure networks.
