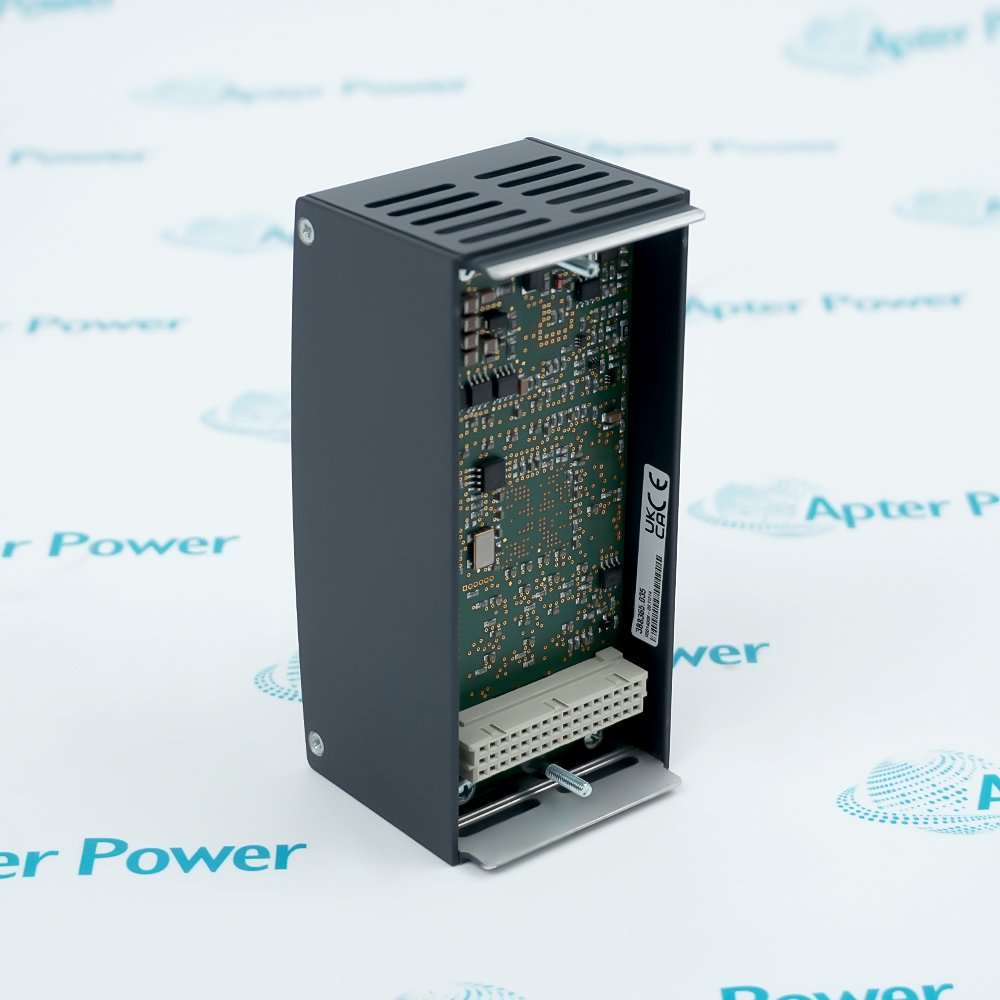

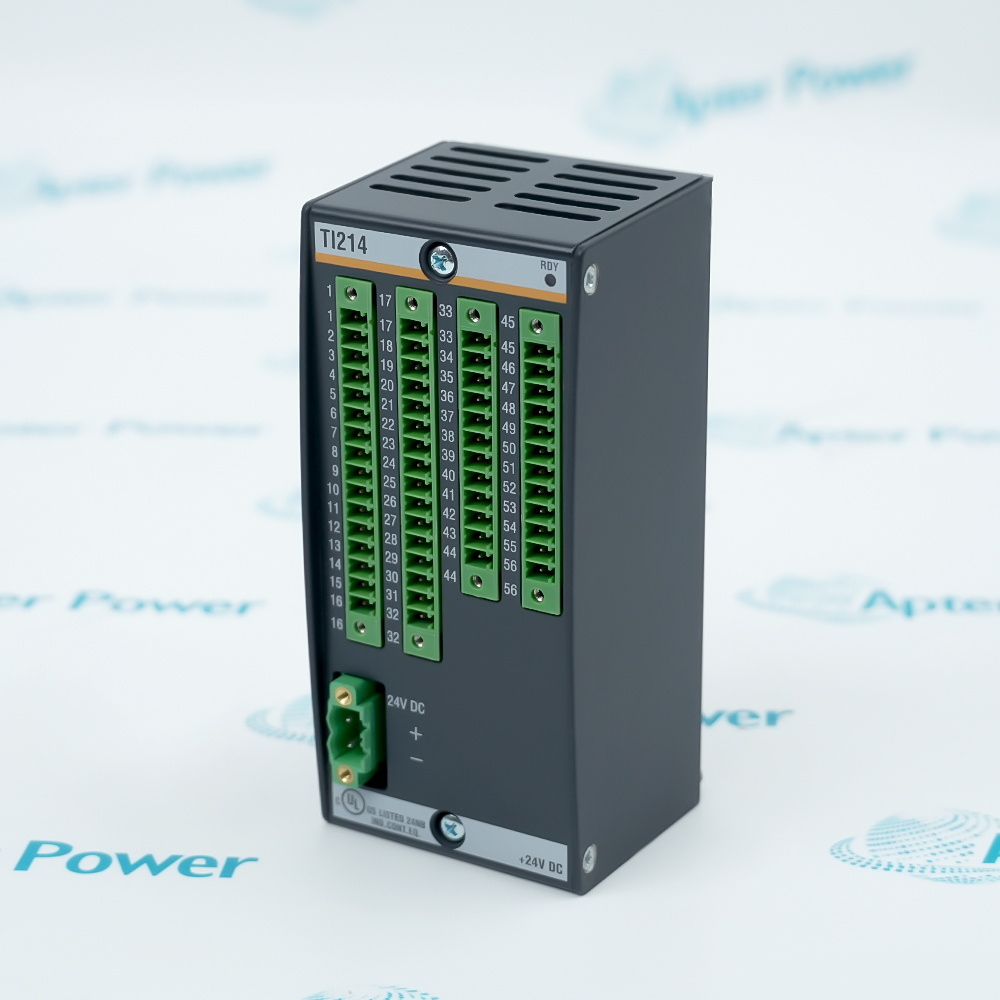

The TI214 temperature input module ensures precise thermal monitoring and control across 14 independent channels, seamlessly accommodating Pt100/Pt1000 sensors and Type J/K thermocouples for maximum operational safety.
2-wire or 3-wire input for Pt100/Pt1000 sensors
14 inputs for Pt100/Pt1000 sensors as well as type J or K thermocouples
The TI214 employs an innovative 3-wire measurement and evaluation algorithm
The temperature recording modules TI214/x provide 14 temperature measuring channels in a single module width. With the TI214 either Pt100/Pt1000 sensors in 2 and 3 wire technology or type J or K thermocouples can be connected to each measuring channel. The TI214/2 module allows for the connection of type N or S thermocouples. The sensor type can be individually selected for each channel. In this way, the most effective and cost-efficient solution can be implemented for the application program. The average determination of the measured value can be set between 16 fold and 64 fold for easy an reliable interference sup pression.
With the module version TI214 the temperature of the switching cabinet can be measured on the same module with an inexpensive Pt100 sensor, while for example the temperature control systems are fitted with thermocou ples. The new 3-wire measuring evaluation of the Pt100/Pt1000 sensor compensates for the voltage errors of both sym metrical cable runs and enables the precision of complex 4-wire measuring technology to be implemented in an inex pensive 3 wire technology. The Pt sensors can also be con nected in simple 2-wire technology and this is sufficient for many applications with short measuring lines.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
BACHMANN TI214 Temperature Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Wind Power
Monitoring the temperature of generator windings, main bearings, gearbox oil, and internal control cabinets in wind turbines.
Rail Transit
Used for dense multi-point temperature monitoring of traction converters, auxiliary inverters, and braking resistor banks in electric locomotives or high-speed trains.
Marine & Offshore
Monitoring main diesel engine cylinder jacket water temperature, exhaust manifold high temperatures, and cargo tank thermal management on LNG carriers.
Metallurgy & Steel
Multi-channel thermocouple high-temperature monitoring for blast furnace walls and heating furnace linings to prevent localized overheating damage.
Petrochemical
Multi-point temperature collection and closed-loop safety control for reaction vessels, distillation columns, and dense industrial piping networks.
Power Generation
Precision multi-channel thermal management for steam turbine bearings, boiler steam pipes, and hydro-generator stator windings.
During wiring and configuration, ensure the physical sensor type strictly matches the software channel settings. When employing 3-wire Pt100/Pt1000 measurement, symmetrical lead wires must be used to guarantee precise error compensation. For electrical safety, strictly keep the channel interference voltage within ±36V and protect the module from conductive dust or condensation. If special high-temperature thermocouples like Type N or S need to be collected, never force them into the standard TI214; the enhanced TI214/2 hardware variant must be selected instead.
Alternative Names
Alternative Names
T1214TI2I4T12I4DPM200
Technical notes
Technical notes
The Bachmann TI214 is a high-density temperature recording module purpose-built for M1 systems, integrating 14 independent measurement channels within a single module width. The standard version supports Pt100/Pt1000 RTDs and Type J/K thermocouples, while the enhanced TI214/2 variant extends support to Type N/S thermocouples, allowing each channel to be individually configured and mixed in deployment. Utilizing an innovative 3-wire evaluation algorithm, the module precisely compensates for lead wire voltage errors, enabling economic 3-wire wiring to achieve the high precision of 4-wire technology. Furthermore, it features a built-in hardware average determination adjustable between 16-fold and 64-fold alongside low-pass filtering, delivering exceptional interference suppression and a high-resolution data output of up to 14 bits, making it a highly cost-effective industrial thermal management solution.
It is a high-density temperature input module dedicated to the M1 automation control system, developed by Bachmann in Austria.
What is the primary purpose of the TI214 module?
It is used to precisely collect data from multiple temperature sensors and perform thermal management in fields like industrial automation, wind power, and rail transit.
How many measurement channels does the TI214 module have?
The module integrates 14 independent temperature measurement channels within a single-width (1-slot) form factor.
Does the TI214 module support mixing different sensors on the same module?
Yes, each of its channels can be independently configured, allowing a mix of RTDs and thermocouples on the same module.
How do you physically install the TI214 module?
It needs to be inserted into a standard backplane slot of the Bachmann M1 controller and communicates with the main CPU via the backplane bus.
