      YASKAWA JEPMC-CP200
      YASKAWA JEPMC-CP200
      YASKAWA JEPMC-CP200
      YASKAWA JEPMC-CP200
      YASKAWA JEPMC-CP200
      YASKAWA JEPMC-CP200
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      JEPMC-CP200

      CPU Controller Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

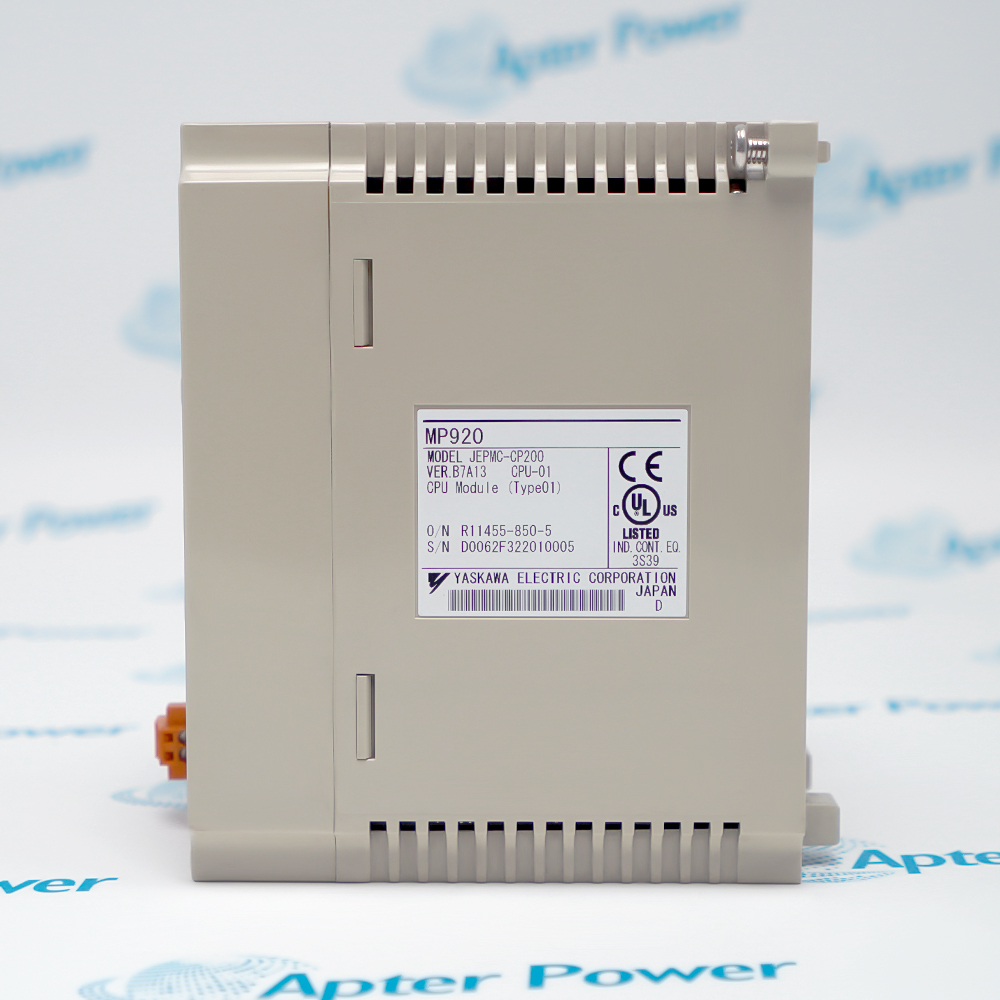

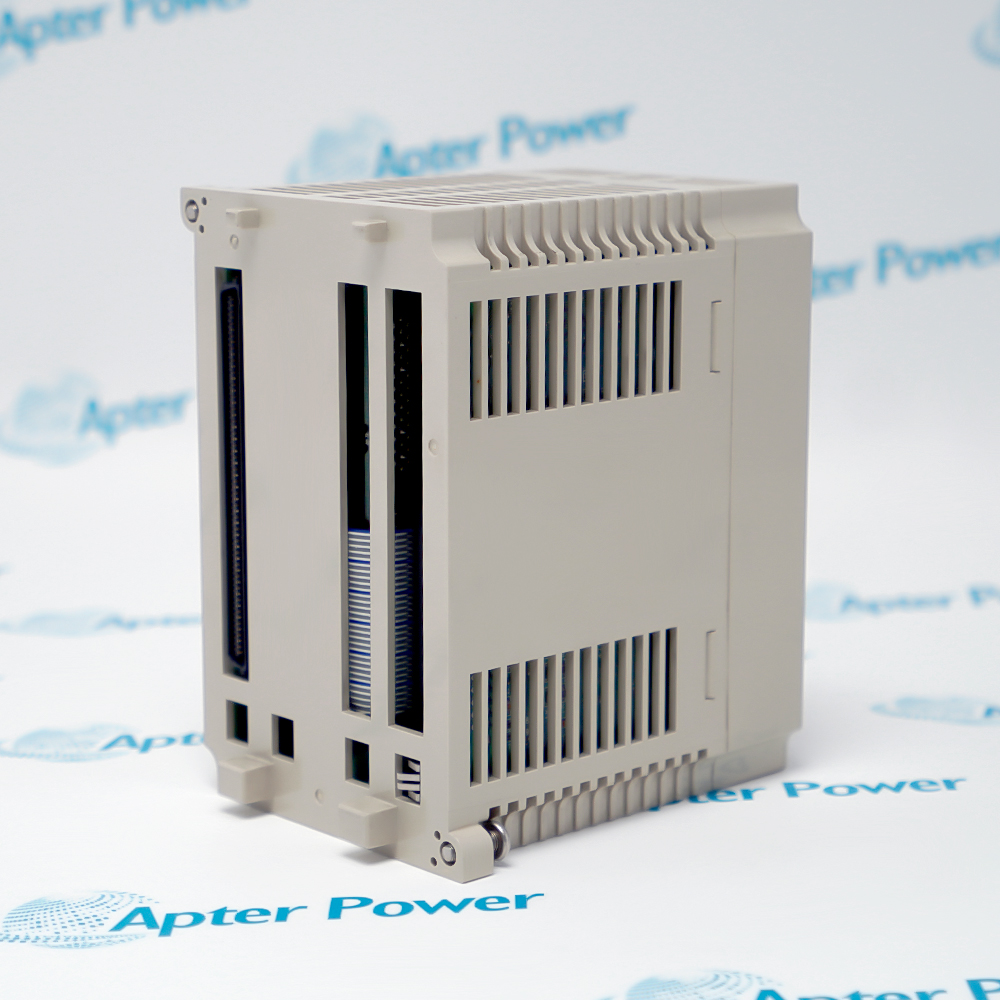

      YASKAWA JEPMC-CP200 is the CPU-01 processor module for the MP920 Machine Controller. It provides 2 MB flash memory, 2 MB battery-backed SRAM and two configurable RS-232C communication ports.

      Ask our team:

      Get a quick price for： JEPMC-CP200
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for JEPMC-CP200

      Technical specifications for JEPMC-CP200

      • Manufacturer:
        YASKAWA
      • Product Category:
        PLC Systems
      • Spare Part Number:
        JEPMC-CP200
      • Estimated shipping dimensions:
        8x12.5x13cm
      • Weight:
        0.48 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Japan
      • Module designation:
        CPU-01
      • Controller family:
        MP920
      • Flash memory:
        2 MB
      • SRAM:
        2 MB, battery backed
      • Serial ports:
        Two RS-232C ports
      • Serial rates:
        9.6, 14.4 or 19.2 kbit/s
      • Connector:
        Female 9-pin D-sub
      • Supported serial modes:
        MEMOBUS, no-protocol and MELSEC
      • Current consumption:
        980 mA
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      YASKAWA JEPMC-CP200 is the CPU-01 processor module for the MP920 Machine Controller. It provides 2 MB flash memory, 2 MB battery-backed SRAM and two configurable RS-232C communication ports.
      • MP920 CPU-01 processing module
      • 2 MB flash application memory
      • 2 MB battery-backed SRAM
      • Two configurable RS-232C ports

      Back up the MP920 application, communication settings and memory records before replacement. Confirm the JEPMC-CP200 marking, rack position, battery condition and serial-port assignments, then verify controller status and communications before release.

      Important Notice: Verify JEPMC-CP200 from the physical marking and current manufacturer documentation before installation or configuration.

      Apter Power YASKAWA JEPMC-CP200 Manuals and Guides
      Apter Power YASKAWA JEPMC-CP200 Product Technical Reference PDFApter Power YASKAWA JEPMC-CP200 Installation and Verification Workbook PDF

      The first document presents model-specific technical and system data. The second provides a distinct installation, connection, commissioning and acceptance workflow.

      MP920 machine control
      Executes the approved sequence and motion-related application in the MP920 controller.
      Serial device integration
      Uses the documented RS-232C ports for MEMOBUS, no-protocol or MELSEC communication.
      Controller maintenance
      Provides the exact CPU-01 identity for controlled replacement and restoration.
      Legacy automation support
      Maintains the documented MP920 hardware and memory architecture.
      Read the applicable YASKAWA instructions before work. Verify JEPMC-CP200 and the installed system configuration.
      1
      Verify the complete JEPMC-CP200 marking and CPU-01 designation.
      2
      Back up the application, register data and communication parameters.
      3
      Record rack position and every connected RS-232C cable.
      4
      Check battery status before disturbing battery-backed SRAM.
      5
      Remove controller power and use ESD controls before module handling.
      6
      Preserve DIP-switch positions unless the Yaskawa procedure requires a change.
      7
      Restore each serial port with the documented protocol and baud rate.
      8
      Verify READY, RUN and diagnostic indications before release.

      Technical notes

      Technical notes

      Back up the MP920 application, communication settings and memory records before replacement. Confirm the JEPMC-CP200 marking, rack position, battery condition and serial-port assignments, then verify controller status and communications before release.

      FAQS

      • What is YASKAWA JEPMC-CP200?
        It is the CPU-01 processor module for the MP920 Machine Controller.
      • How much flash memory is provided?
        The Yaskawa manual specifies 2 MB of flash memory.
      • How much SRAM is provided?
        The module has 2 MB of battery-backed SRAM.
      • How many serial ports are available?
        Two RS-232C ports are provided on female 9-pin D-sub connectors.
      • Which serial rates are documented?
        The manual lists 9.6, 14.4 and 19.2 kbit/s.
      • Which serial modes are supported?
        The ports can be configured for MEMOBUS, no-protocol or MELSEC operation as documented.
      • Why must the battery be checked?
        SRAM is battery backed, so battery condition affects retention of data when controller power is removed.
      • What confirms successful commissioning?
        The controller enters the approved state, diagnostics are clear and both configured serial links pass their functional checks.
