Technical specifications for CA202 144-202-000-205
-
Manufacturer:Vibro-Meter
-
Product Category:General Automation
-
Spare Part Number:CA202 144-202-000-205
-
Estimated shipping dimensions:16.0x16.0x12.0cm
-
Weight:0.8 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Input power requirements:None
-
Signal transmission:2-pole system insulated from casing, charge output
-
Dynamic measuring range (random):0.01 g to 400 g peak
-
Overload capacity (spikes):Up to 500 g peak
-
Linearity:± 1% between 0.01 g and 20 g peak, ± 2% up to 400 g peak
-
Transverse sensitivity:≤ 3%
-
Resonant frequency (mounted):20 kHz nominal
-
Frequency response:± 5% between 0.5 Hz and 5 000 Hz
-
Shock acceleration:≤ 1 000 g peak
Information
Overview
Manuals
Common Applications
Product Precautions

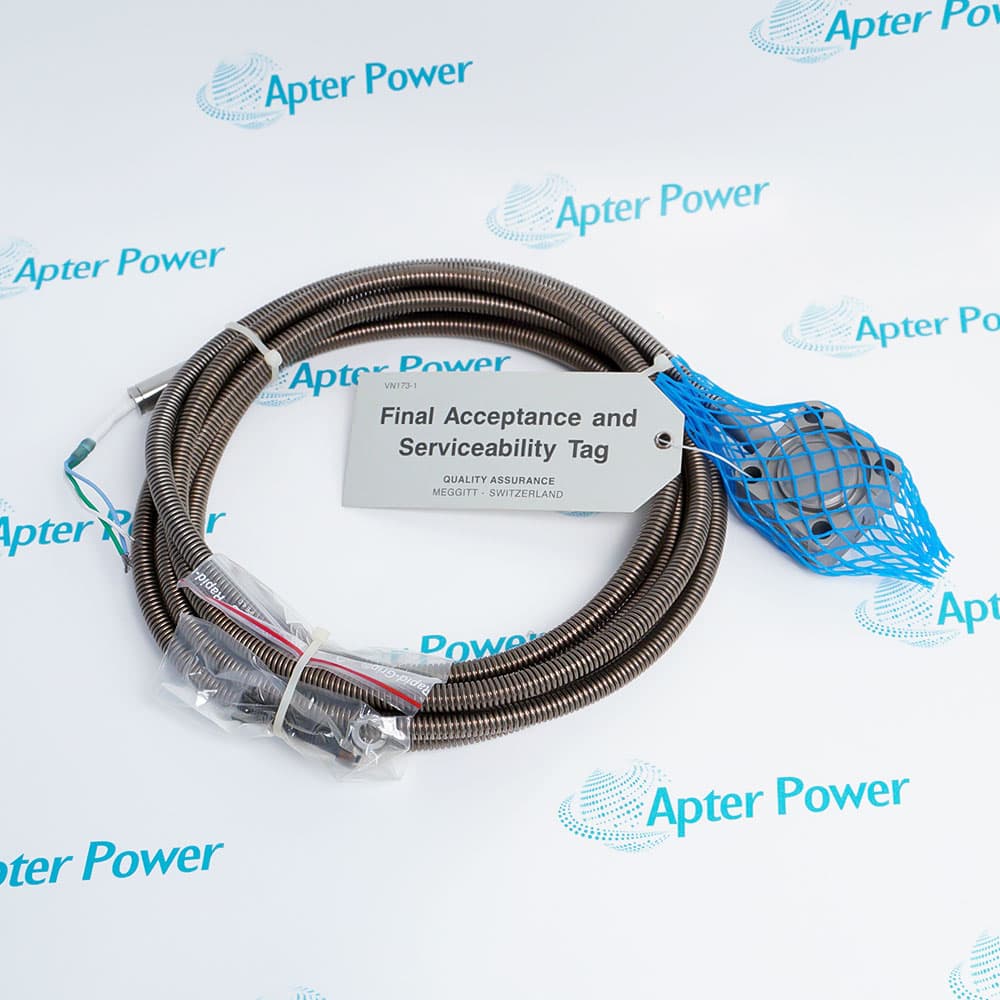

The CA202 144-202-000-205 is a piezoelectric accelerometer from Meggitt's Vibro-Meter product line. Operating as a field-level measuring instrument, this device is developed for industrial rotating machinery monitoring systems. Under industrial conditions characterized by wide temperature fluctuations or where standard sensors are prone to interference, this model captures dynamic vibration data from machine surfaces and converts it into charge signals for subsequent data processing and machinery health assessments.
- Symmetrical sensor with internal case insulation and differential output
- Available in standard versions and Ex versions certified for use in potentially explosive atmospheres
- Hermetically welded austenitic stainless-steel case and heat-resistant stainless-steel protection hose
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Vibro Meter CA202 144-202-000-205 Piezoelectric Accelerometer Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Used for casing vibration monitoring on main steam turbine bearing housings, large boiler feedwater pumps, and induced draft fan casings.
Gas Turbine Power Generation Industry
Installed in high-temperature, non-hazardous areas such as the exhaust-end bearings of heavy gas turbines to monitor casing vibration under thermal radiation.
Petroleum Refining Industry
Used for continuous condition monitoring of large furnace blowers and high-pressure water pumps in refinery utility areas.
Hydroelectric Power
Used for low-to-medium frequency vibration measurement on hydro-generator thrust bearing support structures and upper guide bearing casings.
Metallurgy & Iron and Steel Industry
Used for shock and vibration monitoring on blast furnace blower bearing pedestals and heavy-duty main drive gearboxes of hot/cold rolling mills.
Pulp & Paper Industry
Used for bearing housing monitoring on high-temperature, high-humidity, continuously operating equipment such as large dryer drum drive gearboxes and high-speed sizing machines in paper mills.
During use, ensure the sensor base is vertically tightened to a flat measuring surface with the specified torque, and avoid over-bending or pulling the flexible stainless-steel protection hose to prevent damaging the hermetic weld. Since it outputs a weak charge signal, the transmission cable must be routed away from high-voltage power lines to prevent electromagnetic interference, and it must be connected to a compatible charge amplifier or signal conditioner (such as the IPC704) before entering the control system.
Alternative Names
CA202
144-202-000-205
CA2O2 144-202-000-205
CA202 I44-2O2-OOO-2O5
Technical notes
Boasting a wide frequency response extending from 0.5 to 6000 Hz and a high sensitivity rating of 100 pC/g, the CA202 144-202-000-205 model captures precise dynamic data with exceptional accuracy. To ensure stable operation across extreme environments, the CA202 144-202-000-205 is engineered to deliver reliable functionality throughout a broad temperature spectrum from -55 up to 260°C.
FAQ View All FAQ
-
What is CA202 144-202-000-205?It is an industrial-grade piezoelectric accelerometer from Meggitt’s Vibro-Meter product line.
-
What is the primary use of CA202 144-202-000-205?It is specifically engineered for heavy-duty industrial vibration monitoring and measurement on critical rotating machinery.
-
What measuring element does CA202 144-202-000-205 use?It features a symmetrical shear mode polycrystalline measuring element.
-
What is the case material of CA202 144-202-000-205?Its case (housing) is made of austenitic stainless steel material.
-
Does CA202 144-202-000-205 have case insulation?Yes, the sensor features internal case insulation to prevent electrical loop interference.
