Technical specifications for 6ES7223-1BH32-0XB0
-
Manufacturer:Siemens
-
Product Category:PLC Systems
-
Spare Part Number:6ES7223-1BH32-0XB0
-
Estimated shipping dimensions:4.4x7.4x9.9cm
-
Weight:0.18 kg
-
Tariff Code:8537101101
-
Counliy of origin:Germany
-
Minimum Rated Voltage:20.4 V DC
-
Maximum Rated Voltage:28.8 V DC
-
Input Type:Digital Input
-
Number of Digital Inputs:8
-
Number of Digital Outputs:8
-
IP Protection:IP20
-
Rated Current:0.5 A
-
Power Loss:2.5 W
-
Output Type:Transistor Outputs
-
Shielded Cable Length:Maximum 500 m
-
Unshielded Cable Length:Maximum 150 m
-
Operating Range:20.4~28.8VDC
-
Supply Voltage:24VDC
-
Power Loss:Typical 2.5W
Information
Overview
Manuals
Common Applications
System Integration

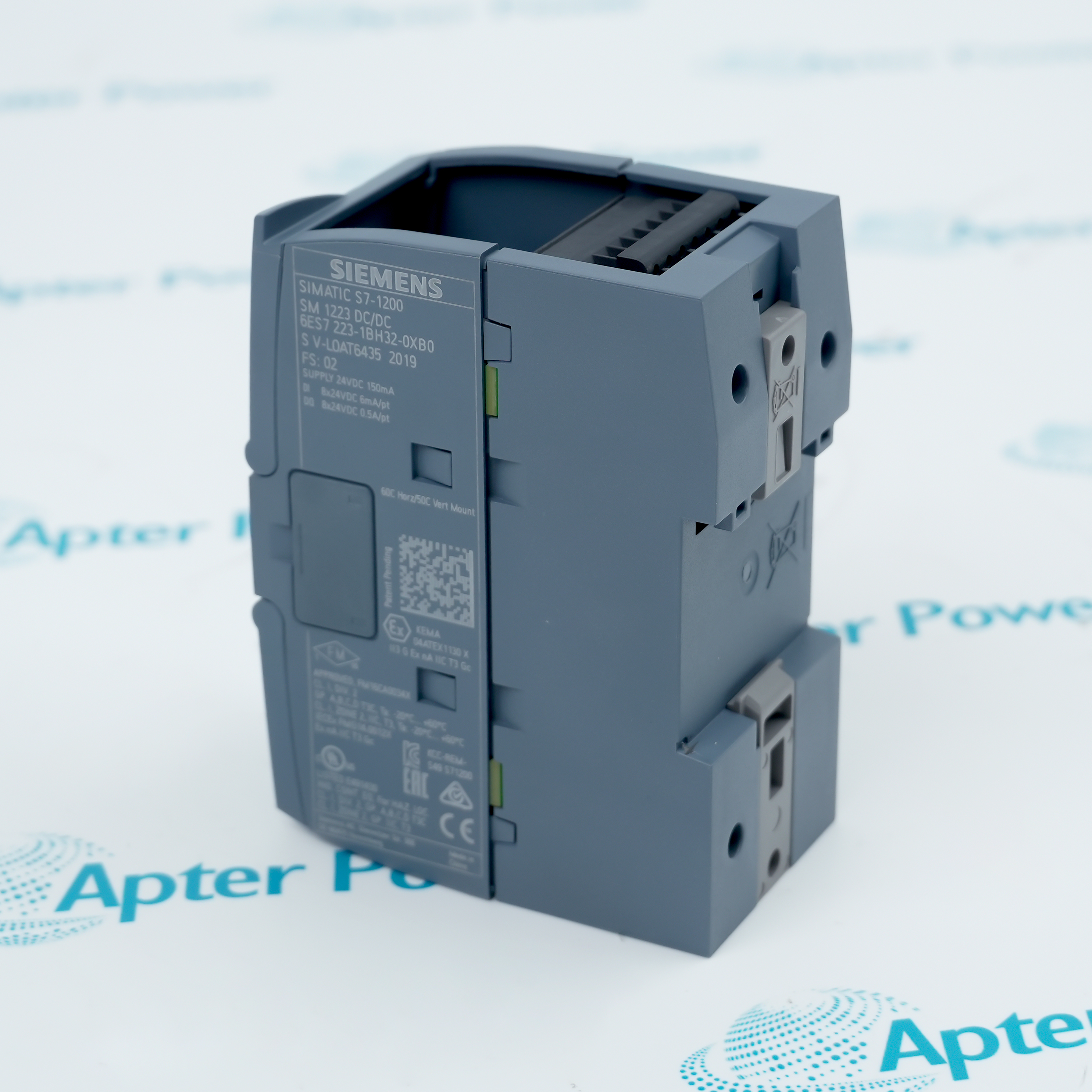

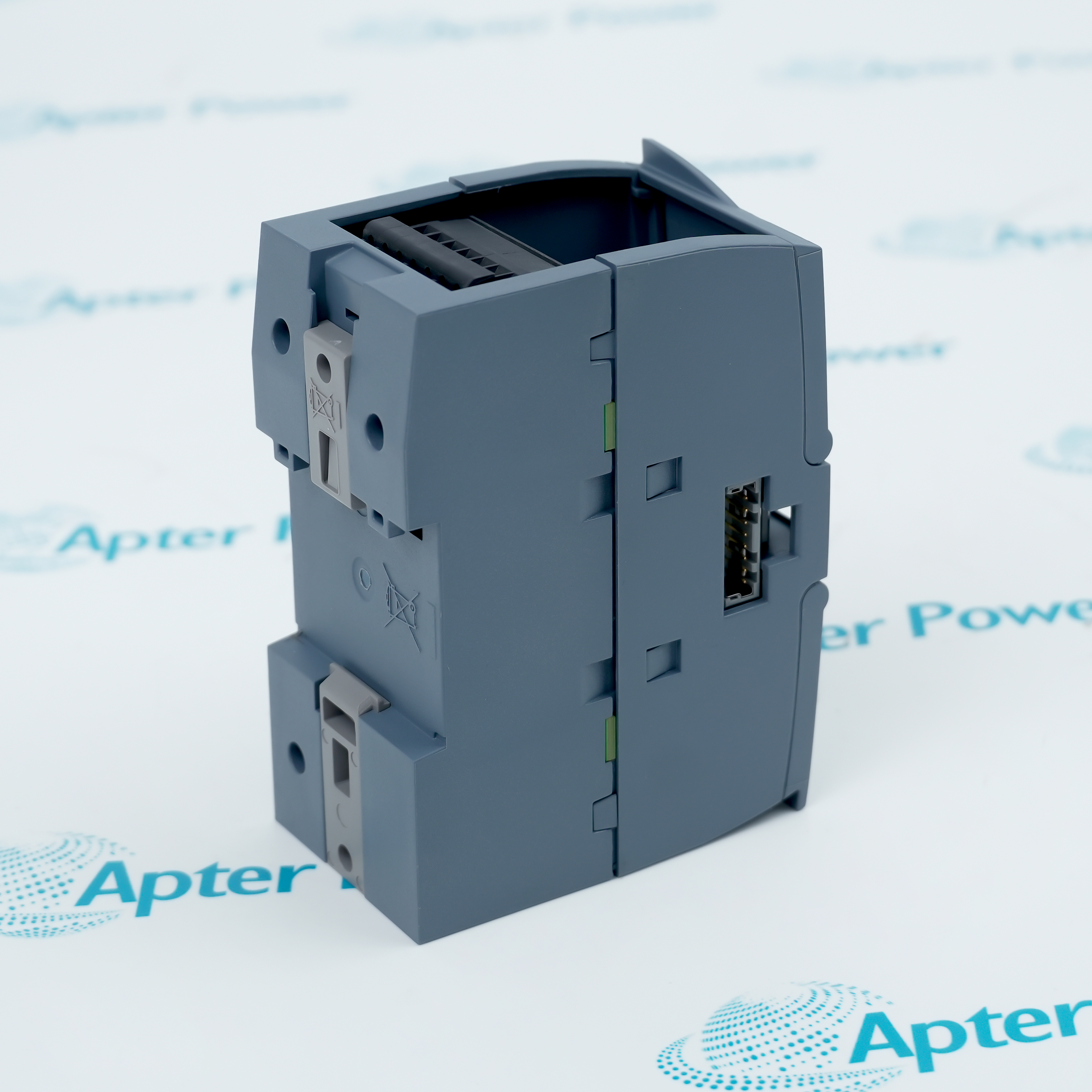

The 6ES7223-1BH32-0XB0 is a SIMATIC S7-1200 SM1223 digital input/output expansion module designed to extend the I/O capacity of S7-1200 PLC systems. Featuring 8 digital inputs and 8 transistor outputs, the module provides reliable high-speed signal processing for industrial automation, machine control, packaging equipment, conveyor systems, and OEM applications.
- High-speed switching
- Flexible expansion
- Easy installation
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7223-1BH32-0XB0 Digital I/O SM 1223 Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Reading safety light curtain and travel switch statuses of pneumatic presses and controlling 24V indicator lights and control relays.
Logistics & Warehousing
Reads photoelectric switches for package tracking and controls sorting gates or diverter motors.
Food & Beverage Production
Detecting photoelectric registration marks on labels in labeling machines and outputting pulse signals to actuate cutting tools.
Water & Wastewater Treatment
Collecting limit switch signals from automatic filters and outputting transistor signals to control 24V DC solenoid valves for backwashing.
Packaging Machinery
Checks safety door limit switches and controls film-cutting blades or thermal sealing elements.
Print & Paper Industries
Receives web break detection signals and controls pneumatic ink pumps.
The SIMATIC S7-1200 CPU family combines a compact structure, flexible expansion, and reliable Ethernet communication. Adding the 6ES7223-1BH32-0XB0 expansion module to this system further optimizes installation costs, while the integrated PROFINET interface enables seamless communication with HMIs, drives, and distributed I/O systems.
