      6ES7221-1BH32-0XB0

      Digital Input Module
      In Stock
      Ships by Friday, November 6
      Fast Shipping Available

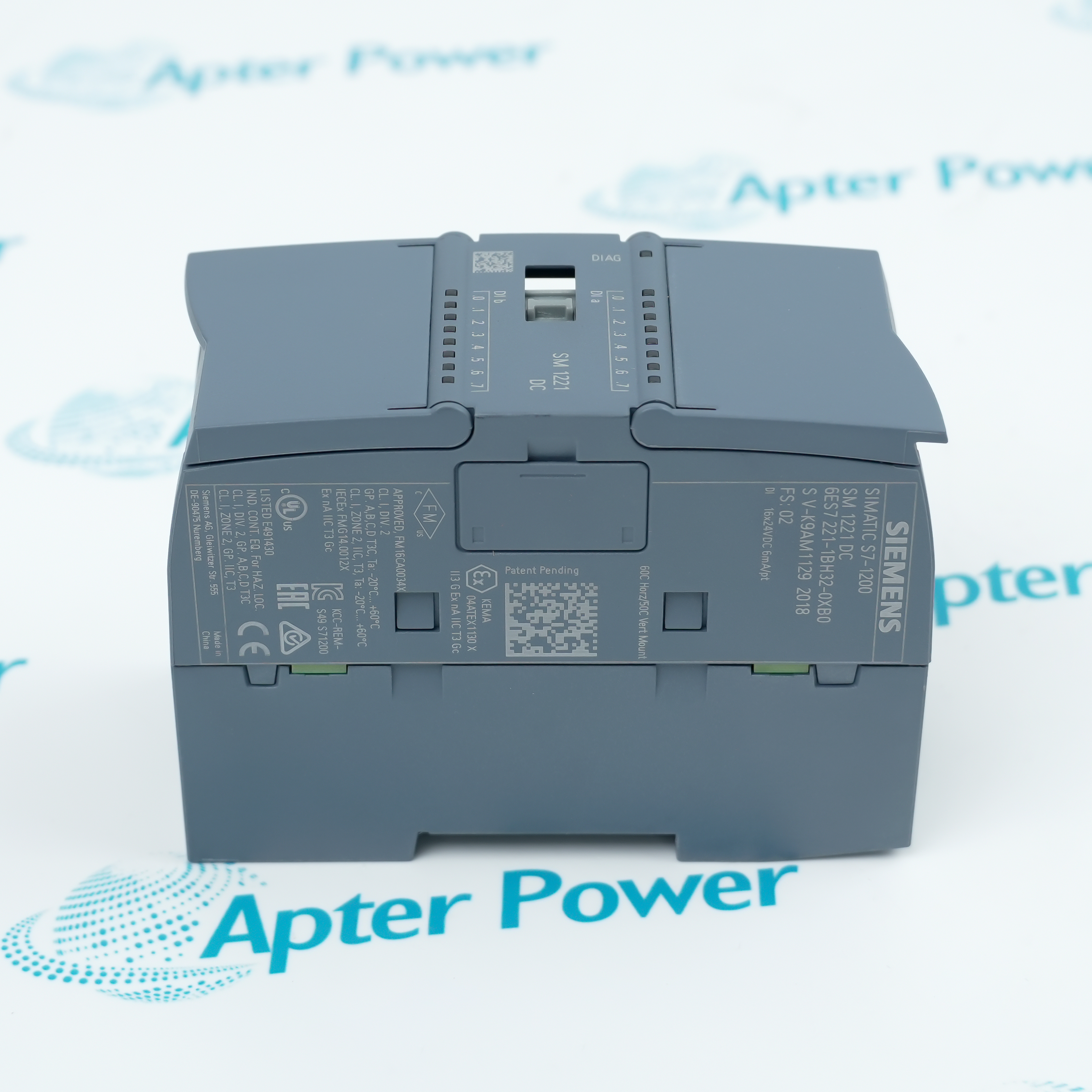

      Siemens 6ES7221-1BH32-0XB0

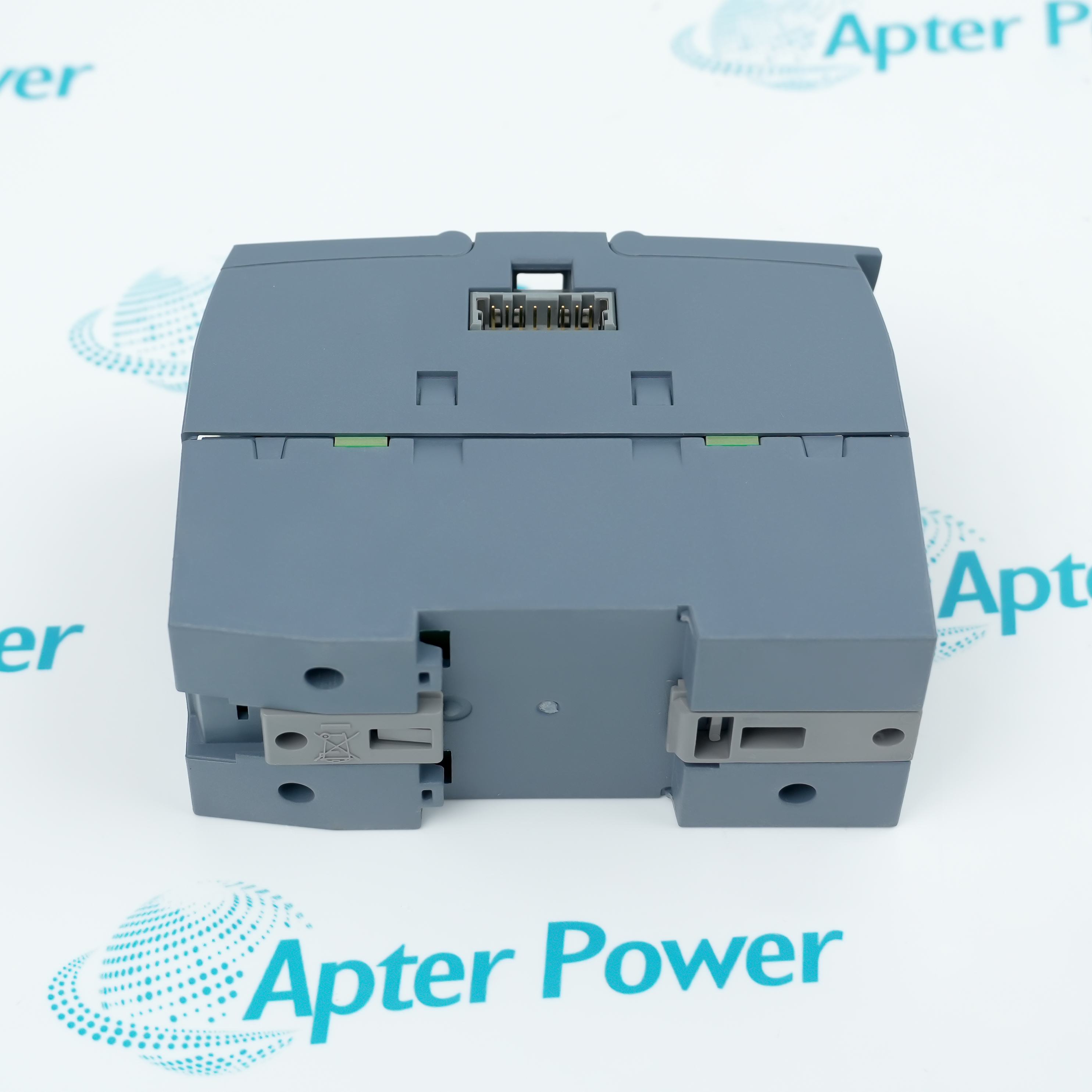

      Siemens 6ES7221-1BH32-0XB0
      Siemens 6ES7221-1BH32-0XB0
      Siemens 6ES7221-1BH32-0XB0
      Siemens 6ES7221-1BH32-0XB0
      Siemens 6ES7221-1BH32-0XB0
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      DIGITAL INPUT MODULE
      SIMATIC S7-1200
      SINK/SOURCE
      SM 1221

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 6ES7221-1BH32-0XB0
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 6ES7221-1BH32-0XB0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6ES7221-1BH32-0XB0
      • Estimated shipping dimensions:
        4.5x7.5x10cm
      • Weight:
        0.18 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Product type designation:
        SM 1221, DI 16x24 V DC
      • Rated value (DC):
        24 V
      • Permissible range, lower limit (DC):
        20.4 V
      • Permissible range, upper limit (DC):
        28.8 V
      • Input current:
        130 mA
      • Power loss, typ.:
        2.5 W
      • Number of digital inputs:
        16
      • Rated value (DC):
        24 V
      • Relative humidity:
        95 %
      Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      The 6ES7221-1BH32-0XB0 is a digital input expansion module (SM 1221) for the SIMATIC S7-1200 PLC system. It features 16 digital input channels of 24 V DC equally divided into two electrically isolated common terminal groups, flexibly supporting both NPN and PNP sensor signal wiring.
        • The module's 16 input channels support both sinking and sourcing wiring
        • Dual isolation and optical coupler protection
        • Users can directly configure the digital filter time for the input channels using TIA Portal software
      As a state acquisition component within the control cabinet, this module integrates 16 24 V DC digital input channels into its hardware space. Its input circuits utilize a Sink/Source wiring architecture, allowing users to connect NPN or PNP industrial sensors as well as various mechanical switch contacts simply by changing the common terminal wiring, which directly adapts to different onsite third-party devices.

      The module is fully compatible with the Siemens automation software system, enabling engineers to complete the hardware configuration by dragging and dropping it into the sliding bus slot on the right side of the CPU within TIA Portal or STEP 7. To reduce industrial electromagnetic interference, optocouplers are configured between the internal channel circuits and the system backplane bus. Working in conjunction with the common terminals divided into two isolated groups, they block overvoltages and noise introduced by long-distance transmission.

      Additionally, users can configure channel filter times in the software to filter out signal chatter caused by physical contact bounce, making it a foundational electrical component for building digital data acquisition systems.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
       Siemens 6ES7221-1BH32-0XB0 Digital Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Automotive Manufacturing
      Reads proximity switches for workpiece clamping verification, cylinder stroke switches, and operator box button inputs on assembly lines.

      Packaging Machinery
      Monitors material shortage sensors for packaging films, cutter safety position switches, and emergency stop button states.

      Pharmaceutical & Medical Manufacturing
      Acquires capsule counting photoelectric signals, carton forming limits, and cleanroom differential pressure switch alarms.

      Metallurgy & Steel Industry
      Detects billet/coil position proximity switches, hydraulic station pressure switches, and maintenance isolation switches.

      Rubber & Plastics Machinery
      Reads safety gate travel switches, mold open/close limit switches, and ejector pin reset sensors in injection molding machines.

      Petrochemical & Chemical Industry
      Reads valve open/close feedbacks, metering pump running statuses, and overflow switches in non-hazardous auxiliary plant systems.
       The 16 inputs are split into two groups sharing common terminals 1M and 2M. Wiring must strictly match the sensor type PNP or NPN and avoid mixing reference potentials. Route signal wires separately from power cables to prevent EMI. Crucially this module does NOT support hot swapping. Always isolate all power before installation or wiring to prevent hardware damage.

      Alternative Names

      6ES7221 1BH32 0XB0 6ES7221-1BH32-OXBO 6ES722I-IBH32-0XB0 6ES722I-IBH32-OXBO

      Technical notes

      This module achieves electrical isolation between the input channels and the main logic circuits via built-in optocouplers. It allows users to adjust channel filter times within TIA Portal to eliminate mechanical contact chatter. Operating with a typical power loss of only 1.5 W and generating zero direct carbon emissions during its operational phase, the module mounts onto the right side of the CPU via integrated side-sliding bus connectors, serving as a core digital expansion component for the highly reliable data acquisition of onsite pushbuttons, proximity switches, and sensor statuses.

      FAQ View All FAQ

      • What is 6ES7221-1BH32-0XB0?
        6ES7221-1BH32-0XB0 is a Digital Input Module manufactured by Siemens.
      • What is the primary function of 6ES7221-1BH32-0XB0?
        It is used to expand 16 digital input channels of 24 V DC for the S7-1200 PLC control system to receive onsite digital signals.
      • How to install and use a product like 6ES7221-1BH32-0XB0?
        Snap it onto a standard DIN rail and slide it to the left to connect with the S7-1200 CPU or previous module via the built-in side bus connector, then wire the external power and signal lines before configuring it in the software.
      • What onsite devices can send signals to 6ES7221-1BH32-0XB0?
        It can receive digital status signals from pushbuttons, limit switches, proximity switches, photoelectric sensors, and various relay contacts.
      • Does the input signal of 6ES7221-1BH32-0XB0 support sink or source wiring?
        It features sink/source (IEC Type 1 Sink) inputs, meaning it flexibly supports NPN or PNP sensors by altering the wiring of the common terminal (M or L+).
