Technical specifications for 6ES7223-1BL32-0XB0
-
Manufacturer:Siemens
-
Product Category:PLC Systems
-
Spare Part Number:6ES7223-1BL32-0XB0
-
Estimated shipping dimensions:7.6x7.6x10.2cm
-
Weight:0.5 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Quantity:16 digital input channels
-
Input type:SINK/SOURCE
-
Input current:Maximum 4mA per point
-
Input voltage range:20.4V to 28.8V
-
Maximum current:185mA
-
Operating temperature range:-25°C to +60°C
-
Storage temperature range:-40°C to +85°C
-
Protection rating:IP20
-
Rated value (DC):24 V
-
Min. supply voltage:20.4 V
-
Max. supply voltage:28.8 V
-
Min. supply voltage:4.5 W
-
Number of digital inputs:16
-
Number of digital outputs:16
Information
Overview
Manuals
Common Applications
Product Precautions

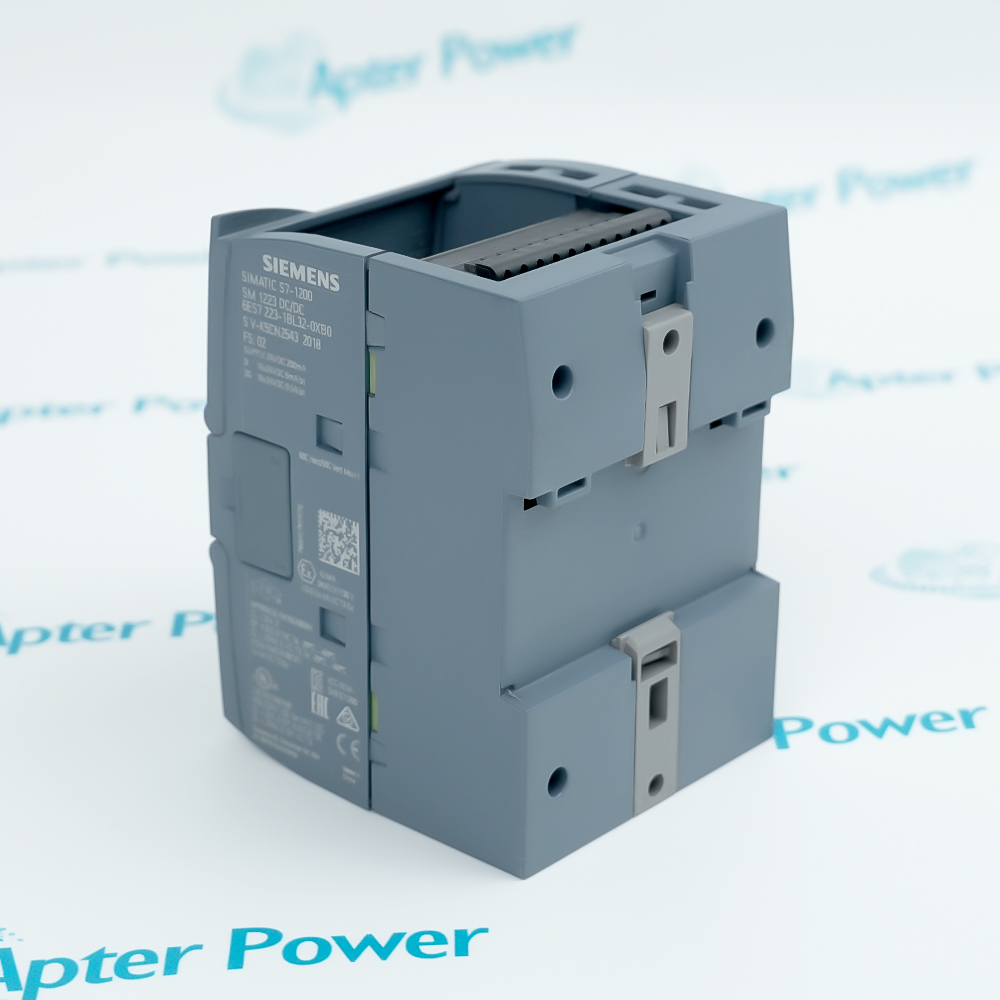

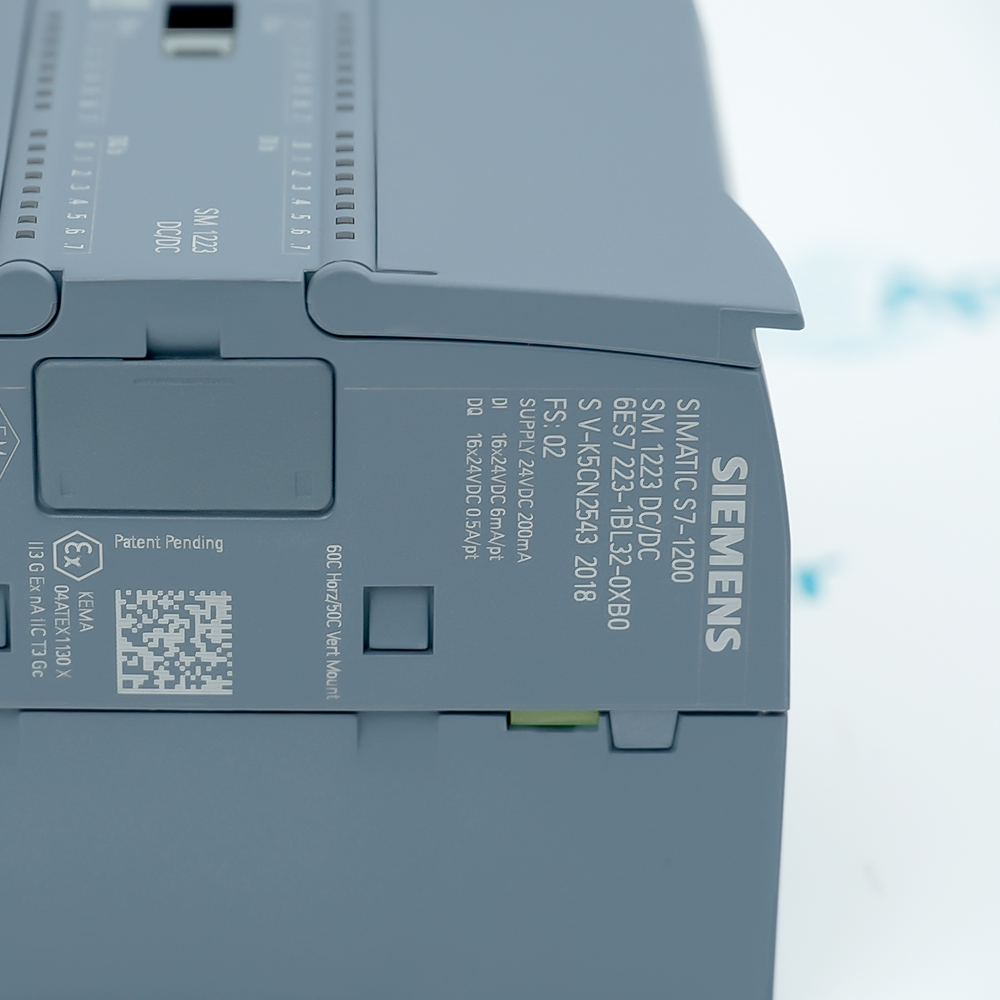

The 6ES7223-1BL32-0XB0 is an SM 1223 digital input/output mixture signal module within the Siemens SIMATIC S7-1200 PLC system. The hardware features 16 onboard digital inputs and 16 digital transistor outputs.
- 16 inputs support Sink/Source wiring, compatible with various sensors
- 16 outputs use 24V transistors for high-speed switching and solenoid driving
- Integrates 32 I/O points per module, allocating addresses via TIA Portal
As an expansion hardware component of the Siemens S7-1200 family, the module contains no central processing unit. It is installed on the right side of a main CPU, connecting to the backplane bus via an integrated slider mechanism to achieve power feeding and data exchange with the master controller. The module has an IP20 protection rating and mounts on standard 35mm DIN-rail. The front panel is equipped with two sets of LED status indicators to display the ON/OFF states of the 16 input and 16 output channels. Within TIA Portal software, hardware configuration and I/O mapped address allocation are completed via its article number for use in machinery manufacturing and distributed control networks.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7223-1BL32-0XB0 DIGITAL I/O MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Packaging Machinery
Interfacing with photoelectric sensors to detect product placement on conveyors while driving high-speed transistor outputs to actuate reject gates or labeling heads.
Food & Beverage Processing
Collecting binary signals from tuning fork level switches in mixing tanks and operating liquid filling valves with zero mechanical wear.
Pharmaceutical Manufacturing
Capturing door-limit switch states in airlocks and triggering digital alarms or interlocking status lamps across tablet press arrays.
Printing & Paper Converting
Scanning for paper-run continuity with light barriers, while outputting precise pulses to electro-pneumatic clutches during high-speed paper feed rotations.
Renewable Energy / Solar Tracking
Acquiring mechanical end-stop signals from solar tracker frames, and running directional motor relays to orient photovoltaic panels during wind storm overrides.
Metal Stamping & Forging
Checking safety light curtains and blank-alignment sensors before activating the main hydraulic ram dual-valve system.
CRITICAL NOTICE: Supply stable 24V DC to L+/M terminals; never connect AC voltage. Ensure output current stays below 0.5A per channel, install flyback diodes across inductive loads to prevent back-EMF damage, and strictly avoid hot-swapping or routing signal cables near high-voltage lines.
Alternative Names
6ES7223-1BL32-0XBO
6ES7223-1BL32-OXB0
6ES7223-IBL32-0XB0
6ES7223-1BL32-OXBO
6ES7223-IBL32-OXBO
6ES7223-IBL32-0XBO
6ES7223-IBL32-OXB0
6ES7223 1BL32 0XB0
Technical notes
The 6ES7223-1BL32-0XB0 is a 70mm S7-1200 expansion module providing 16 optocoupler-isolated 24V DC inputs (Sink/Source) and 16 short-circuit protected 0.5A transistor outputs. It features a 35mm DIN rail mount, slide-out bus integration, and removable screw terminals for quick replacement, fully managed via TIA Portal.
FAQ View All FAQ
-
What is the SIEMENS 6ES7223-1BL32-0XB0 module?It is a digital input/output signal module (SM 1223) for the SIMATIC S7-1200 PLC system, providing expansion capabilities for both digital inputs and digital outputs.
-
How many input and output channels does the 6ES7223-1BL32-0XB0 contain?It features 32 digital channels in total, split into 16 digital inputs (DI) and 16 digital outputs (DO).
-
What type of output does the 6ES7223-1BL32-0XB0 use (relay or transistor)?It uses transistor outputs (MOSFET), which support high-speed switching and have no mechanical wear compared to relay outputs.
-
What is the maximum load current per output channel for the 6ES7223-1BL32-0XB0?Each digital transistor output channel handles a maximum rated current of 0.5 A.
-
How does the 6ES7223-1BL32-0XB0 module connect to an S7-1200 CPU?It mounts onto a standard 35 mm DIN rail to the right side of the CPU and connects via the built-in slide-out bus connector on the side of the housing.
