6ES7416-2XK02-0AB0

Programmable Logic Controller Central Processing Unit
Siemens 6ES7416-2XK02-0AB0
Siemens 6ES7416-2XK02-0AB0
Siemens 6ES7416-2XK02-0AB0
Siemens 6ES7416-2XK02-0AB0
Siemens 6ES7416-2XK02-0AB0
Siemens 6ES7416-2XK02-0AB0

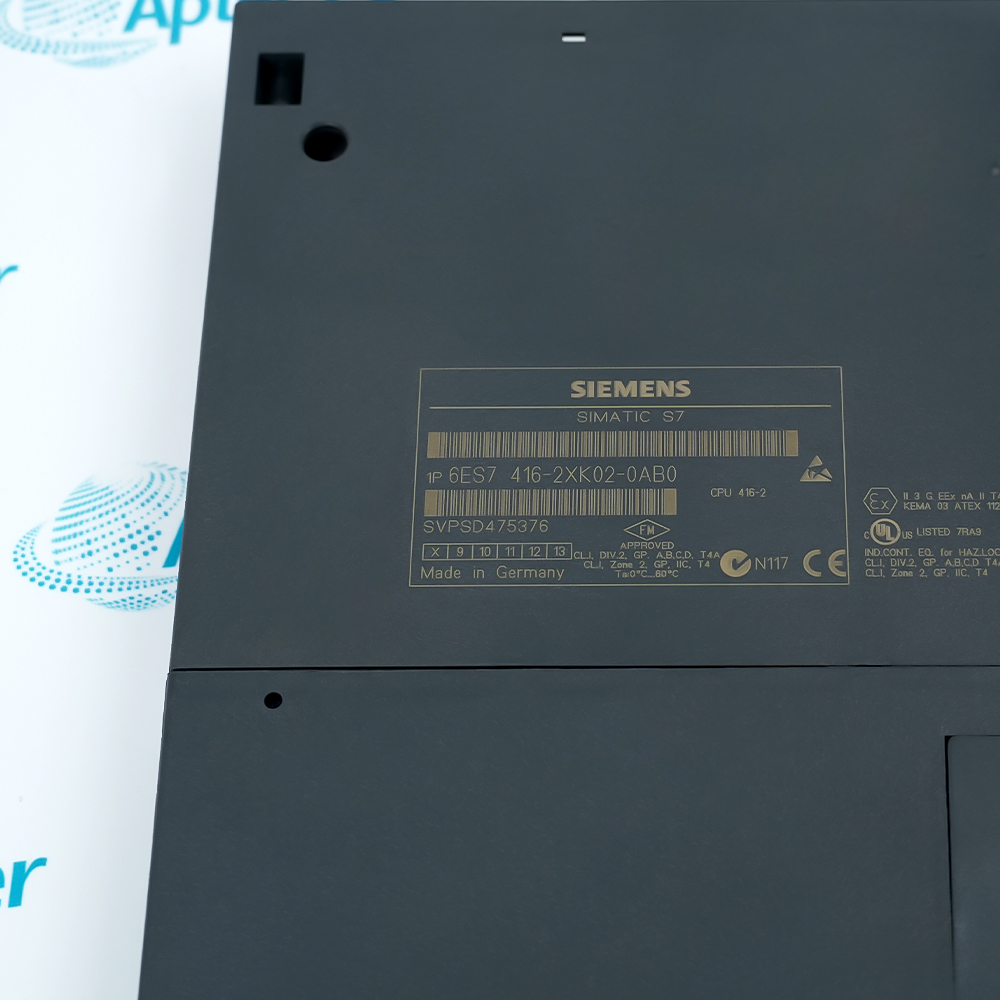

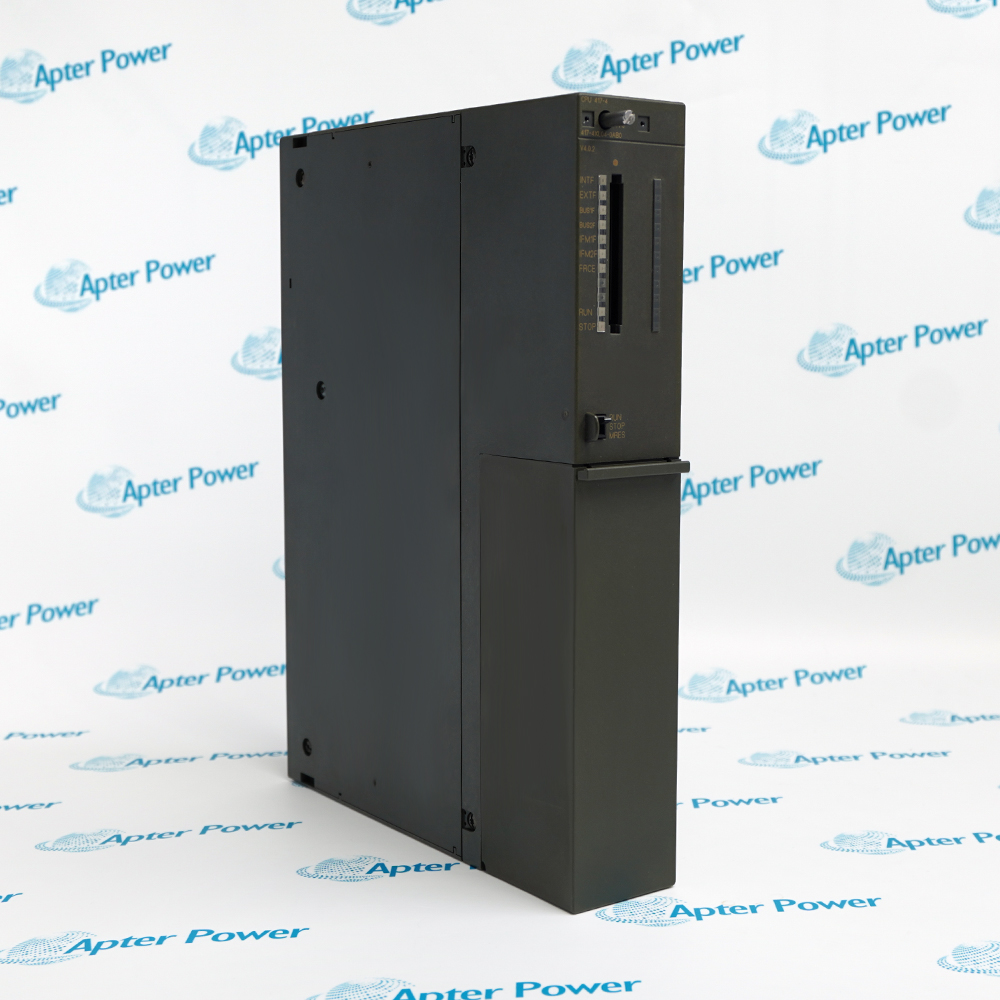

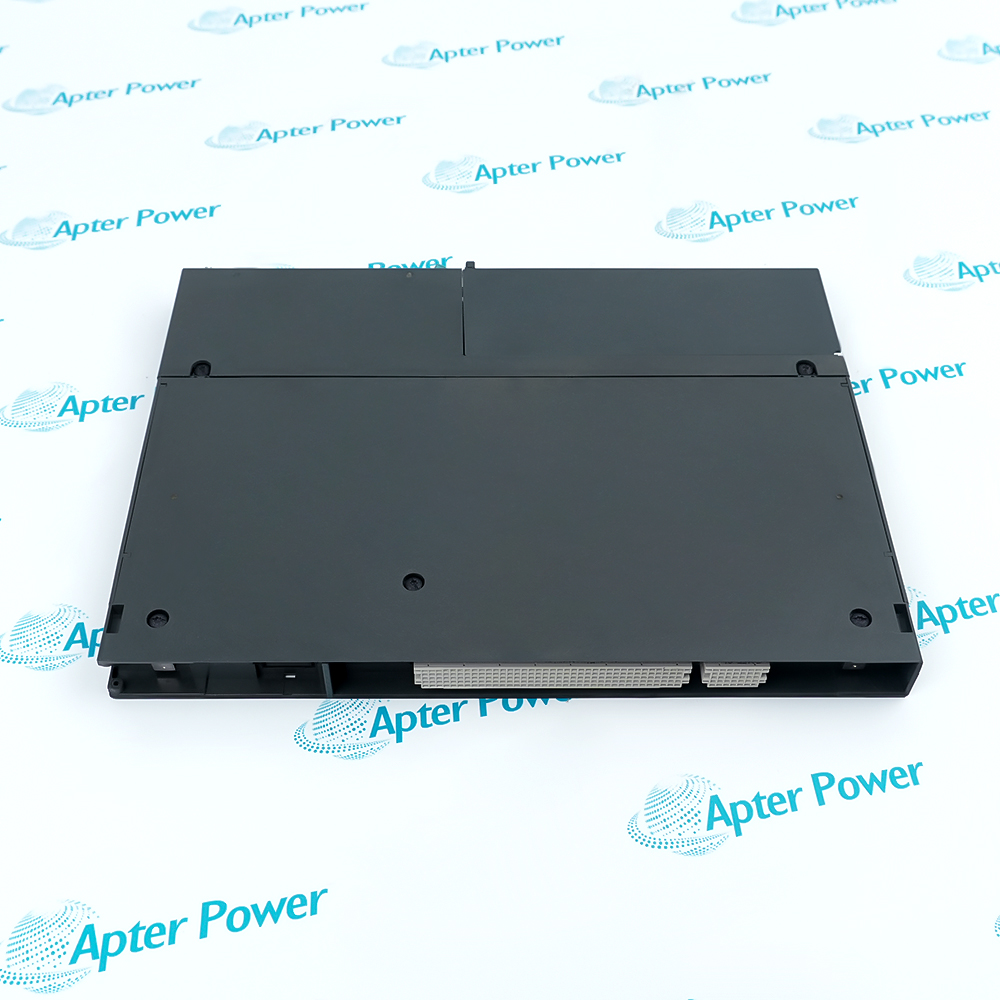

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Siemens 6ES7416-2XK02-0AB0 is an S7-400 CPU 416-2 with separate code and data working memory and two integrated communication interfaces. It executes the configured PLC program and coordinates local and distributed I/O.
  • Manufacturer part number
    6ES7416-2XK02-0AB0
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    2.4cm x 22.3cm x 29cm
  • Country of Origin
    Germany
Get a quick price for 6ES7416-2XK02-0AB0
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Send the complete 6ES7416-2XK02-0AB0 reference, label photos and required quantity. Confirm the complete CPU order number, firmware, memory card and interface markings.

  • 1

    Confirm the offer

    Review the offered execution, condition and included items for 6ES7416-2XK02-0AB0. Confirm the CPU, memory card, backup accessories and connectors actually itemized in the quotation.

  • 2

    Arrange dispatch

    Swift global dispatch. Confirm quantity, dispatch date and delivery details for 6ES7416-2XK02-0AB0 in the quotation.

  • Match the complete marking

    Match the complete Siemens 6ES7416-2XK02-0AB0 marking and installed configuration. Confirm the complete CPU order number, firmware, memory card and interface markings.

  • Check the offered item before ordering

    Request available label and connector photos. Have your maintenance team compare the offered 6ES7416-2XK02-0AB0 with the installed equipment and applicable Siemens documents.

Technical specifications for 6ES7416-2XK02-0AB0

  • Manufacturer:
    Siemens
  • Product Category:
    General Automation
  • Spare Part Number:
    6ES7416-2XK02-0AB0
  • Weight:
    0.75 kg
  • Tariff Code:
    8537101190
  • Code working memory:
    0.8 Mbyte
  • Data working memory:
    0.8 Mbyte
  • Integrated load memory:
    256 Kbyte RAM
  • Load-memory expansion:
    Up to 64 Mbyte RAM or FLASH card
  • Bit-operation time:
    0.08 µs minimum
  • Floating-point operation:
    0.48 µs minimum
  • S7 timers / counters:
    512 / 512
  • Memory markers:
    16 Kbyte
  • Process-image partitions:
    Up to 8
  • Interfaces:
    MPI/DP and PROFIBUS DP
  • Maximum bus rate:
    12 Mbit/s
  • 5 V bus current:
    1.5 A typical; 1.6 A maximum

Information

Overview Downloads Applications / Compatibility Product Precautions
  • Siemens 6ES7416-2XK02-0AB0 supports a structured control program with distinct working, load and system memory resources. Its MPI/DP and dedicated DP paths allow programming access and distributed I/O to be planned as separate parts of the automation system.
Execution: Cyclic and interrupt-driven PLC processing
Network structure: MPI/DP plus dedicated PROFIBUS DP interface
Engineering: Configurable process-image partitions and diagnostic buffer
Working memory contains runtime code and data, while load memory retains the project blocks used to establish that runtime state. An expanded memory card does not increase the fixed working-memory capacity. Preserve the correct project and backup arrangement when replacing the CPU.

The two interfaces have different distributed-I/O resource limits. Their configured bus role, addresses, baud rate and process-image assignment must agree with the installed network. Consistent data transfer is a program-design decision, particularly for drives or multi-byte process values.

The CPU provides diagnostic and test resources for controlled commissioning. Forcing or modifying variables can affect actual outputs, so restore normal program ownership after testing. A successful RUN transition alone does not prove that retained data, communication partners or process interlocks are correct.
Controller platform reference: SIMATIC S7-400 CPU 416-2. Follow the applicable installation instructions and approved design.
Technical and service documents for Siemens 6ES7416-2XK02-0AB0, separating original engineering information from the installation and verification workflow.
Original manufacturer pages retain their technical context. Use the Apter Power guide with the applicable manufacturer instructions and approved installation design.
System and supply context: Siemens 6ES7416-2XK02-0AB0 integrates with SIMATIC S7-400 CPU 416-2. Select companion hardware and configured functions for the actual installed arrangement.

Application scope: The applications describe the complete signal or control path. Confirm the intended function and interface; accessories are supplied only when itemized.
Prepare Siemens 6ES7416-2XK02-0AB0 for its configured installation using these checks.
Capture the running project

Archive the project and record firmware, memory-card type, retained-data requirements and diagnostics. Identify the CPU operating mode and approved output state before stopping the process.

Rebuild network identity

Record both interface roles, addresses, rates and connected partners. Compare the intended slave counts and I/O allocation with the resources of the selected interface, including clock-synchronous restrictions.

Restore memory and program

Install the intended memory and restore the approved project under the site procedure. Check working-memory use separately from load-memory capacity and review startup behavior before releasing outputs.

Validate consistent process data

Exercise representative multi-byte input and output paths and confirm process-image assignments. Review diagnostics and partner status while comparing real values with the PLC interpretation.

Return normal program ownership

Remove all temporary forces and modifications, validate interlocks and record the final RUN state and diagnostic condition. Confirm the expected restart and retention behavior through the approved acceptance plan.

Configuration handover

Retain the final tested settings, physical connection and accepted process response for 6ES7416-2XK02-0AB0.

Alternative Names

Siemens 6ES7416-2XK02-0AB0

Technical notes

Memory budgeting: Assess code, data and load memory separately; memory-card expansion does not expand the working-memory partitions.

Data consistency: Keep the chosen process-image or system-function access method coherent throughout each multi-byte data path.

Interface allocation: Apply separate MPI/DP and DP resource limits and verify the assigned master/slave role before download.

FAQ View All FAQ

  • Does a larger memory card expand working memory on 6ES7416-2XK02-0AB0?
    No. Load memory and runtime working memory are different resources. Check code and data working-memory use independently of card capacity.
  • Why should process-image consistency be reviewed when migrating a project to 6ES7416-2XK02-0AB0?
    Multi-byte values must be transferred consistently. Do not mix a process-image method with SFC14/15 access without reviewing the resulting data semantics.
  • Can both ports of 6ES7416-2XK02-0AB0 be treated as identical DP-master resources?
    No. The MPI/DP path and dedicated DP interface have different slave and I/O-area limits. Allocate each network using its own resource envelope.
  • What can invalidate a replacement test even if 6ES7416-2XK02-0AB0 reaches RUN?
    Unrestored retained data, wrong bus addresses, missing partners or incorrect output interlocks can remain. Verify the process behavior as well as the CPU operating state.
  • How should forcing be handled during commissioning of 6ES7416-2XK02-0AB0?
    Track every force and modification, assess its physical effect and remove it before returning normal program ownership. Retain the final force-status check in the handover.
  • Why must battery and load-memory arrangements be recorded for 6ES7416-2XK02-0AB0?
    They determine which program and data state survive loss of supply. A CPU replacement must preserve the intended startup and retention behavior.
  • When does distributed-I/O allocation shrink with 6ES7416-2XK02-0AB0?
    Clock-synchronous operation halves the distributed address area for each strand assigned to OB61/62. Include that condition in the hardware configuration review.
  • How can diagnostic-buffer sizing improve fault investigation on 6ES7416-2XK02-0AB0?
    Retain enough events for the application and capture the buffer before clearing or restarting. More entries do not replace timestamp and process-context review.
