      Siemens 6SL3120-1TE31-3AA3
      Siemens 6SL3120-1TE31-3AA3
      Siemens 6SL3120-1TE31-3AA3
      Siemens 6SL3120-1TE31-3AA3
      Siemens 6SL3120-1TE31-3AA3
      Siemens 6SL3120-1TE31-3AA3
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      6SL3120-1TE31-3AA3

      Motor Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

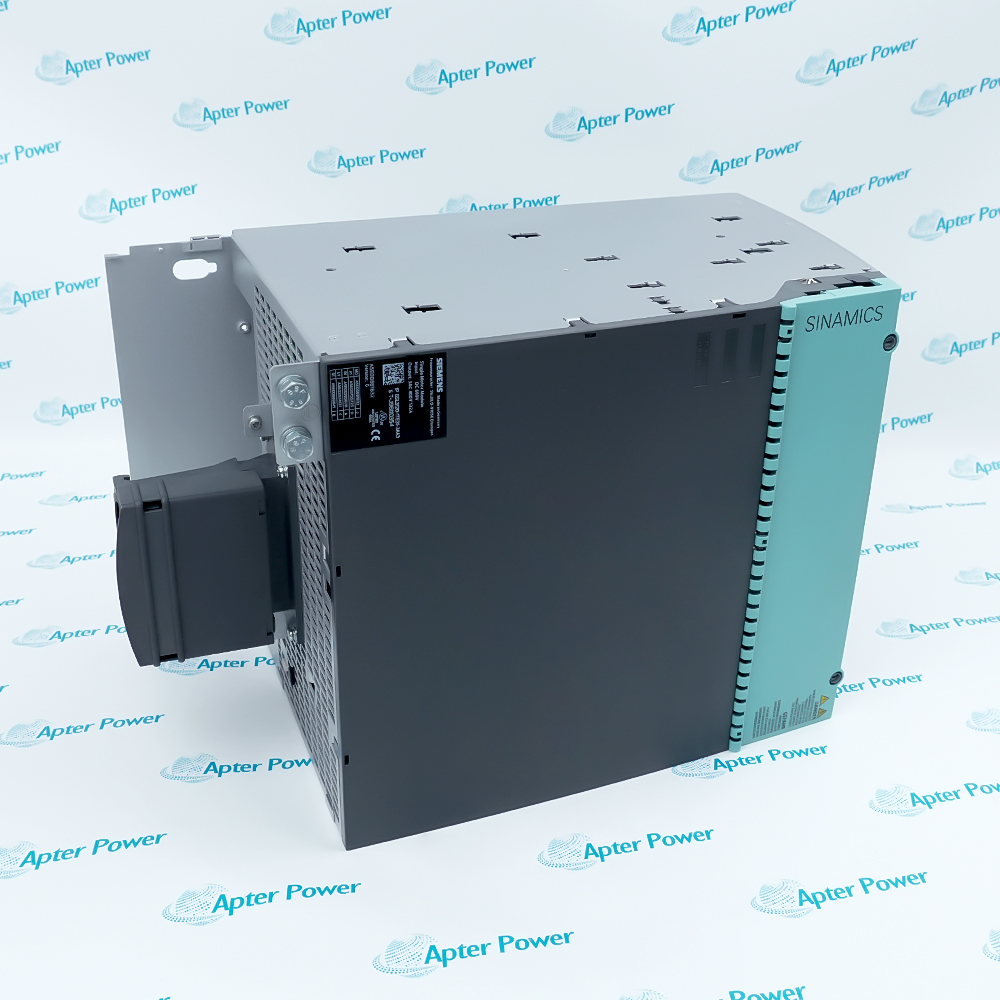

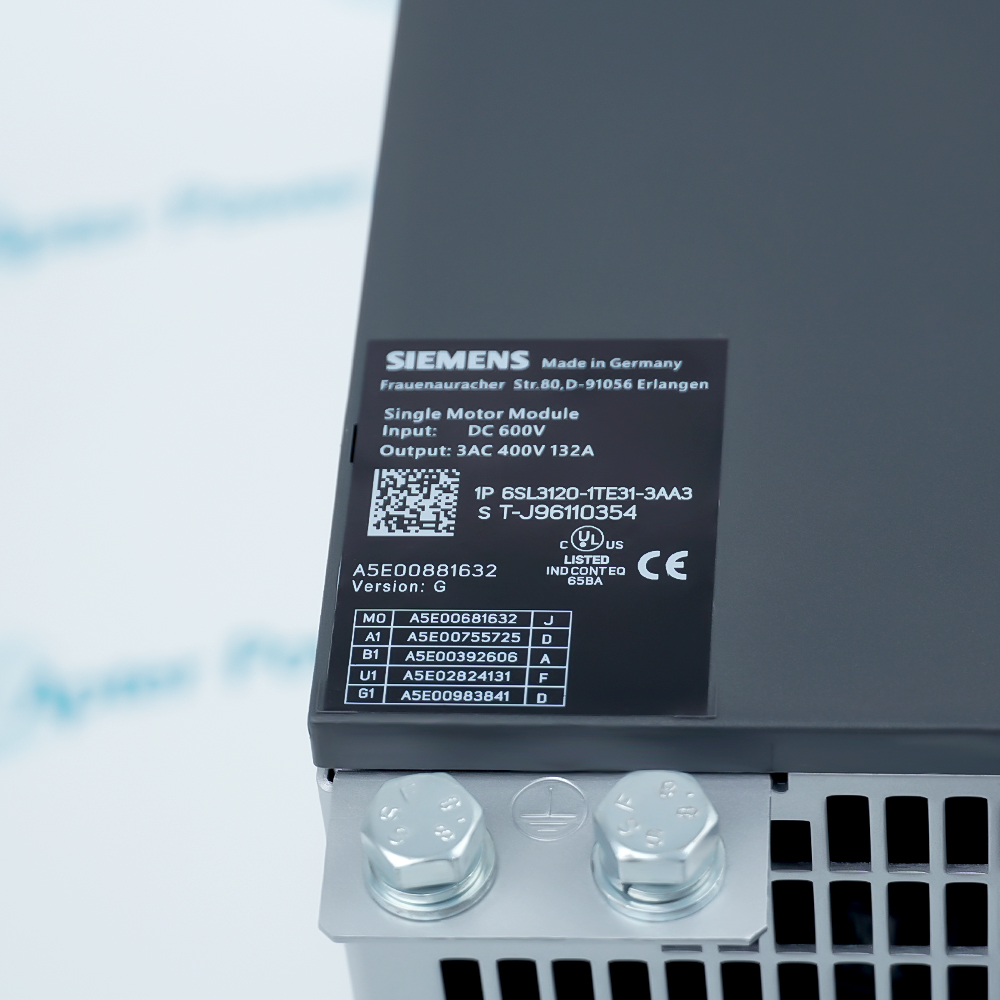

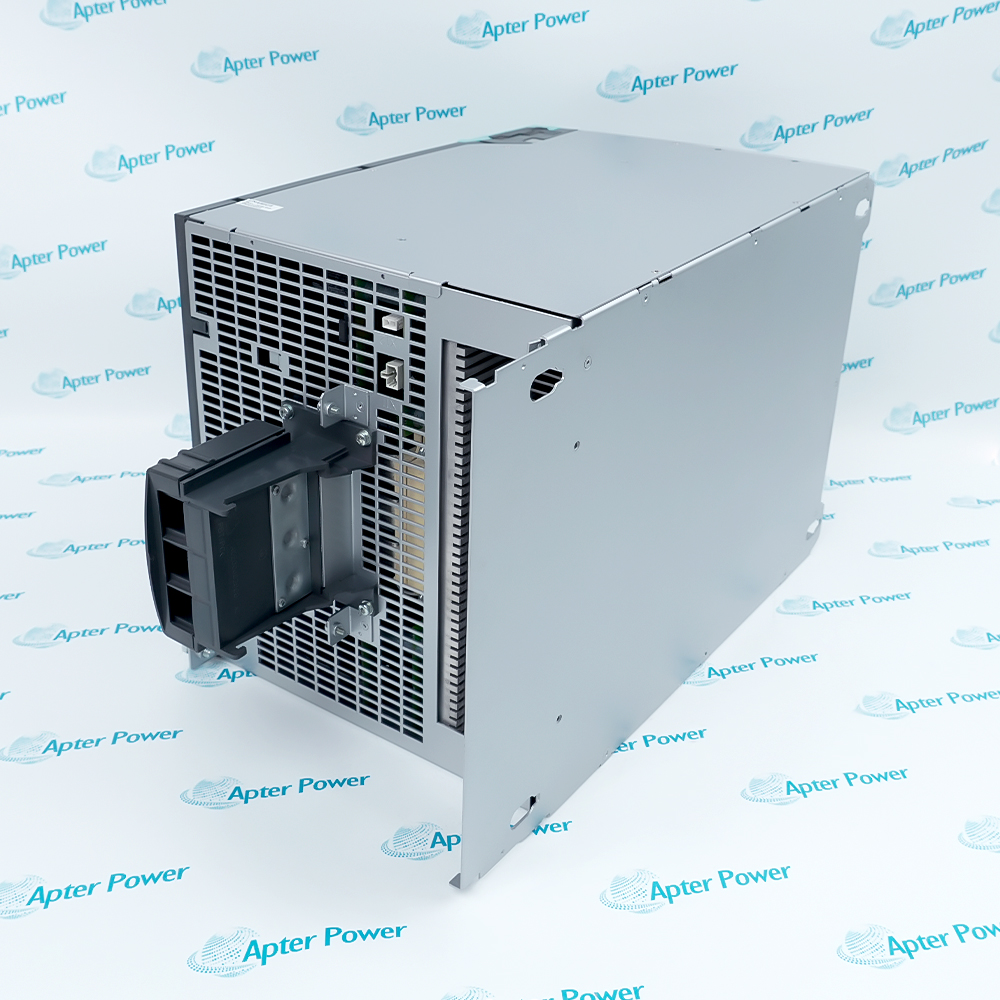

      Siemens 6SL3120-1TE31-3AA3 is a SINAMICS S120 booksize Single Motor Module with 132 A rated output current. It converts a 600 V DC link into a controlled 400 V three-phase motor output and uses Drive-CLiQ connectivity.

      Ask our team:

      Get a quick price for： 6SL3120-1TE31-3AA3
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6SL3120-1TE31-3AA3

      Technical specifications for 6SL3120-1TE31-3AA3

      • Manufacturer:
        Siemens
      • Product Category:
        General Automation
      • Spare Part Number:
        6SL3120-1TE31-3AA3
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • DC-link input:
        600 V DC
      • Motor output:
        400 V three-phase AC
      • Rated output current:
        132 A
      • Rated motor power reference:
        71 kW
      • Module type:
        Single Motor Module
      • Mechanical format:
        Booksize, A type
      • Cooling:
        Internal air cooling
      • Pulse sampling:
        Optimized pulse sample
      • Safety support:
        Extended integrated Safety functions
      • System interface:
        Drive-CLiQ cable included
      • Lifecycle status:
        Active product
      • Product family:
        Single Motor Modules in booksize format
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 6SL3120-1TE31-3AA3 is Motor Module. It converts the SINAMICS DC-link supply into a controlled three-phase motor output for one high-power axis.
      • Provides a 132 A motor output
      • Uses the S120 booksize architecture
      • Includes Drive-CLiQ system connectivity
      • Supports extended integrated Safety functions

      6SL3120-1TE31-3AA3 operates with SINAMICS S120 DC link, SINAMICS control unit and Drive-CLiQ network, approved motor and feedback system, booksize cooling and protective devices.

      Engineered applications include High-power motion axis, Coordinated production-machine drive, Drive-CLiQ servo integration, S120 motor-module replacement.

      Important Notice: Observe DC-link discharge procedures, preserve Drive-CLiQ topology, verify cooling and protective devices, and commission the motor data and integrated Safety functions under the approved project.

      Siemens 6SL3120-1TE31-3AA3 Manuals & Downloads
      Siemens 6SL3120-1TE31-3AA3 Technical Reference (PDF)Siemens 6SL3120-1TE31-3AA3 Installation & Commissioning Guide (PDF)

      Important Notice: The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      High-power motion axis
      Supplies one controlled 132 A motor axis.
      Coordinated production-machine drive
      Participates in coordinated multi-axis machinery.
      Drive-CLiQ servo integration
      Exchanges control and diagnostic data over Drive-CLiQ.
      S120 motor-module replacement
      Restores the exact S120 power-stage identity.
      Read the applicable Siemens instructions before work. Verify 6SL3120-1TE31-3AA3 and the installed Siemens SINAMICS S120 booksize drive system configuration.
      1
      Verify the complete 6SL3120-1TE31-3AA3 marking and its assigned Siemens SINAMICS S120 booksize drive system position before work.
      2
      Place the connected high-power motion axis process in the approved maintenance state.
      3
      Isolate applicable power and 600 V DC-link power, 400 V three-phase motor output and Drive-CLiQ control field energy before disconnection.
      4
      Record every connector, conductor, address, firmware and software identity before removal.
      5
      Use ESD controls and protect keyed interfaces, exposed contacts and electronic assemblies.
      6
      Confirm the installed SINAMICS S120 DC link and SINAMICS control unit and Drive-CLiQ network against the approved project.
      7
      Restore power in a controlled sequence and review device, network and host diagnostics.
      8
      Prove the intended coordinated production-machine drive function and retain the final test result.

      Technical notes

      Technical notes

      Official-source basis: Siemens SiePortal product record, 6SL3120-1TE31-3AA3. Verify the complete model and installed system configuration before work.

      FAQS

      • What power-stage role does 6SL3120-1TE31-3AA3 provide in SINAMICS S120?
        It is a booksize A-type Single Motor Module that converts the S120 DC-link supply into one controlled three-phase motor output.
      • For 6SL3120-1TE31-3AA3, which input and output voltages must match the installed drive group?
        The official product data identifies a 600 VDC link input and a 400 V three-phase AC motor output for this exact article.
      • For 6SL3120-1TE31-3AA3, what output rating identifies this Single Motor Module?
        The documented rated output current is 132 A, with a 71 kW rated-motor-power reference for the stated product data conditions.
      • For 6SL3120-1TE31-3AA3, why must the Drive-CLiQ topology be recorded before module exchange?
        The module includes Drive-CLiQ connectivity. Preserve cable order, control-unit assignment and feedback relationships so the replaced axis is recognized correctly.
      • For 6SL3120-1TE31-3AA3, which cooling arrangement must remain unobstructed?
        This article uses internal air cooling in the booksize assembly; maintain the installed airflow path, spacing and protective devices when refitting the power stage.
      • For 6SL3120-1TE31-3AA3, how should integrated Safety functions be treated during commissioning?
        The product supports extended integrated Safety functions. Restore only the approved project and complete the required Safety acceptance checks before production release.
      • For 6SL3120-1TE31-3AA3, what isolation step applies to the 600 V DC link?
        Follow the SINAMICS shutdown and DC-link discharge procedure, verify a safe voltage condition and secure the motor output before touching the module or Drive-CLiQ connections.
      • For 6SL3120-1TE31-3AA3, what must be proven after installing the 132 A motor module?
        Commission the recorded motor data, feedback, current limits and cooling, then verify Drive-CLiQ diagnostics, axis direction and controlled operation under the approved project.
