      140NOE77110

      Ethernet Network Module
      In Stock
      Ships by Sunday, October 18
      Fast Shipping Available

      Product Describe：

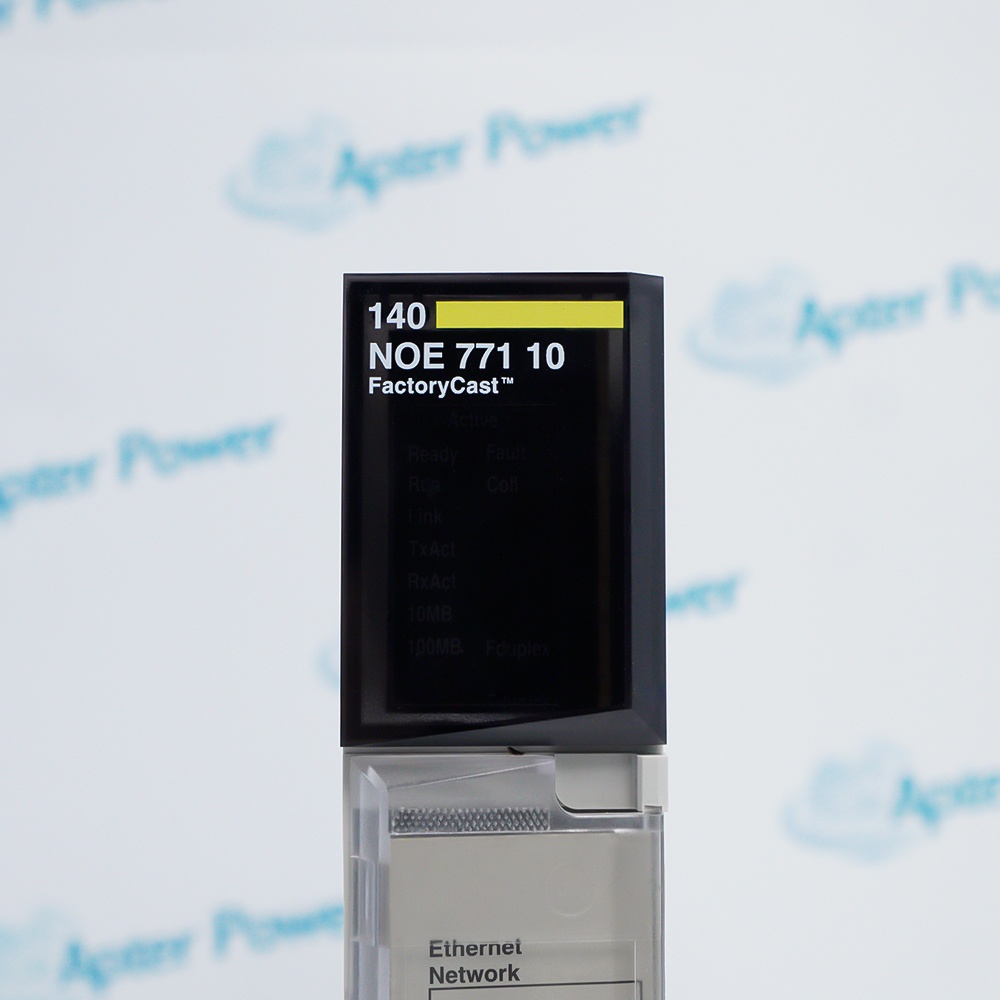

      Schneider Electric 140NOE77110 is a Modicon Quantum FactoryCast Ethernet module providing Modbus TCP messaging, SNMP and copper or fiber Ethernet interfaces.

      Ask our team:

      Get a quick price for： 140NOE77110
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 140NOE77110

      Technical specifications for 140NOE77110

      • Manufacturer:
        Schneider Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        140NOE77110
      • Estimated shipping dimensions:
        31x16.5x5cm
      • Weight:
        0.58 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        France
      • Function:
        Ethernet TCP/IP module
      • FactoryCast class:
        Configurable Class C20
      • Messaging:
        Modbus TCP
      • Management:
        SNMP
      • Copper port:
        RJ45 10/100BASE-TX
      • Fiber port:
        MT-RJ 100BASE-FX
      • Data rate:
        10 / 100 Mbit/s
      • Redundancy:
        Hot standby supported
      • Power source:
        Rack powered
      • Bus current:
        750 mA at 5 V
      • Protection:
        IP20
      • Operating temperature:
        0 to 60 degrees C
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Schneider Electric 140NOE77110 is a Modicon Quantum FactoryCast Ethernet module providing Modbus TCP messaging, SNMP and copper or fiber Ethernet interfaces.
      • Function: Ethernet TCP/IP module
      • FactoryCast class: Configurable Class C20
      • Messaging: Modbus TCP
      • Management: SNMP

      140NOE77110 operates only with the documented system configuration and connected hardware.

      Important Notice: Archive the complete network and FactoryCast configuration before removing the module.

      Schneider Electric 140NOE77110 Manuals & Downloads
      140NOE77110 Technical Reference (PDF)140NOE77110 Manufacturer Datasheet (PDF)

      The first document presents model-specific technical and service content. The second preserves the unchanged manufacturer product data.

      Quantum Ethernet services
      Connects a Quantum rack to documented Modbus TCP and management networks.
      FactoryCast diagnostics
      Provides the embedded FactoryCast class functions configured for the installation.
      Copper or fiber uplink
      Uses the exact RJ45 or MT-RJ interface selected by the network design.
      Hot-standby communications
      Participates in the documented redundant processor architecture.
      Read the applicable Schneider Electric instructions before work. Verify 140NOE77110, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Confirm the complete Schneider Electric 140NOE77110 identity and installed position before work.
      2
      Place the connected machine or process in the approved maintenance state.
      3
      Isolate every documented supply and field circuit before disconnection.
      4
      Record terminal, cable, shield, network and companion-hardware identities.
      5
      Retain function and factorycast class requirements from the installed design.
      6
      Protect connectors, electronics and keyed interfaces from contamination or damage.
      7
      Restore power in the approved sequence and review diagnostics.
      8
      Prove the intended factorycast ethernet tcp/ip network module response and retain the acceptance record.

      Technical notes

      Technical notes

      Archive the complete network and FactoryCast configuration before removing the module.

      FAQS

      • Which protocols are central to 140NOE77110?
        The module supports Ethernet TCP/IP services including Modbus TCP messaging and SNMP management.
      • Which physical interfaces are present?
        It provides RJ45 10/100BASE-TX copper and MT-RJ 100BASE-FX fiber interfaces.
      • What should be backed up before replacement?
        Retain the IP settings, FactoryCast configuration, routing, SNMP data and application references.
      • Does a live link LED prove the application is correct?
        No. Link state does not confirm addressing, messaging, redundancy or controller configuration.
      • How is the module powered?
        It is supplied from the Quantum rack and draws the 5 V bus current.
      • Can a 140NOE77101 configuration be copied blindly?
        No. This page covers 140NOE77110; verify the exact order number and configuration file.
