What is Schneider Electric 140ACO13000?

It is an eight-channel Modicon Quantum analog current-output module.

How many outputs does 140ACO13000 provide?

It provides eight analog current-output channels.

Which ranges does 140ACO13000 support?

Its documented ranges are 0–25 mA, 0–20 mA and 4–20 mA.

What external supply range applies to 140ACO13000?

The catalog lists an external supply up to 6–30 V DC for the documented arrangement.

Can 140ACO13000 configuration be changed online?

The catalog identifies online configuration modification as supported.

What must be recorded before replacing 140ACO13000?

Record ranges, scaling, fallback, word mapping, polarity and field-loop identification.

How is 140ACO13000 commissioned?

With process action controlled, prove each output and confirm field response and diagnostics.

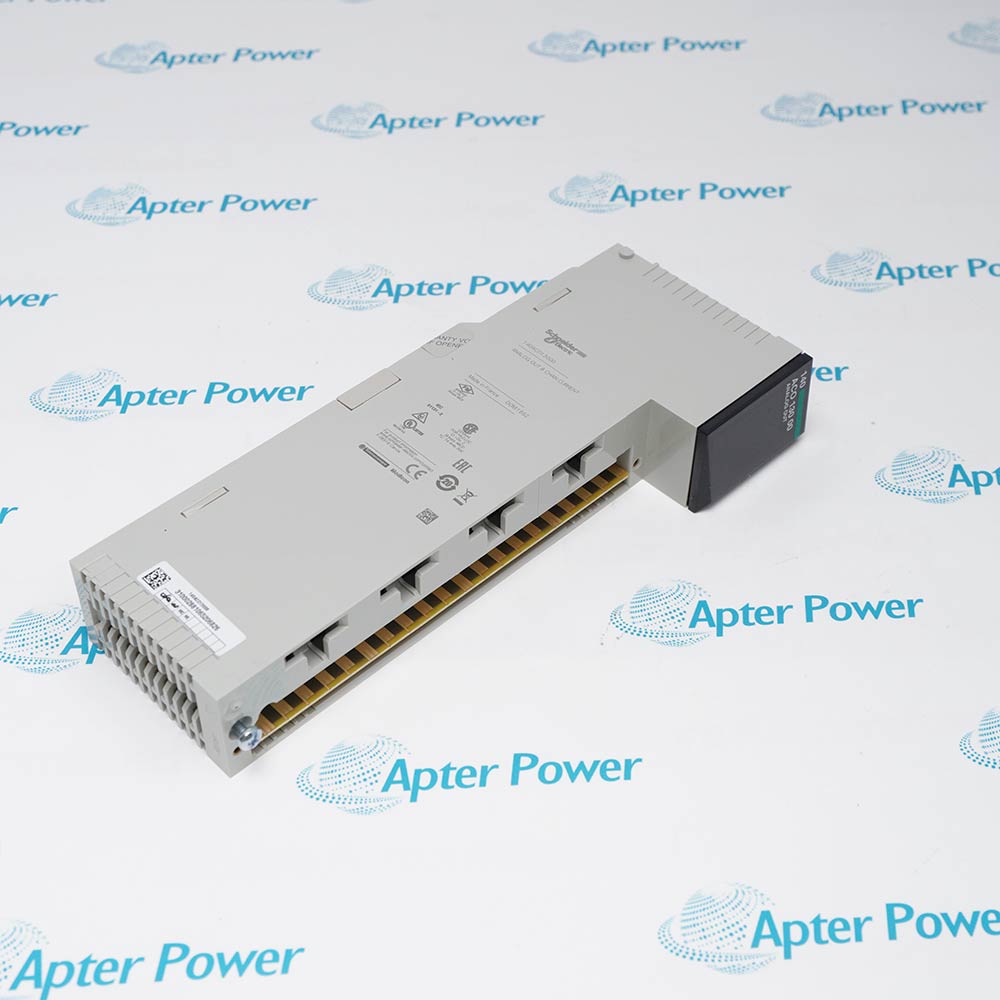

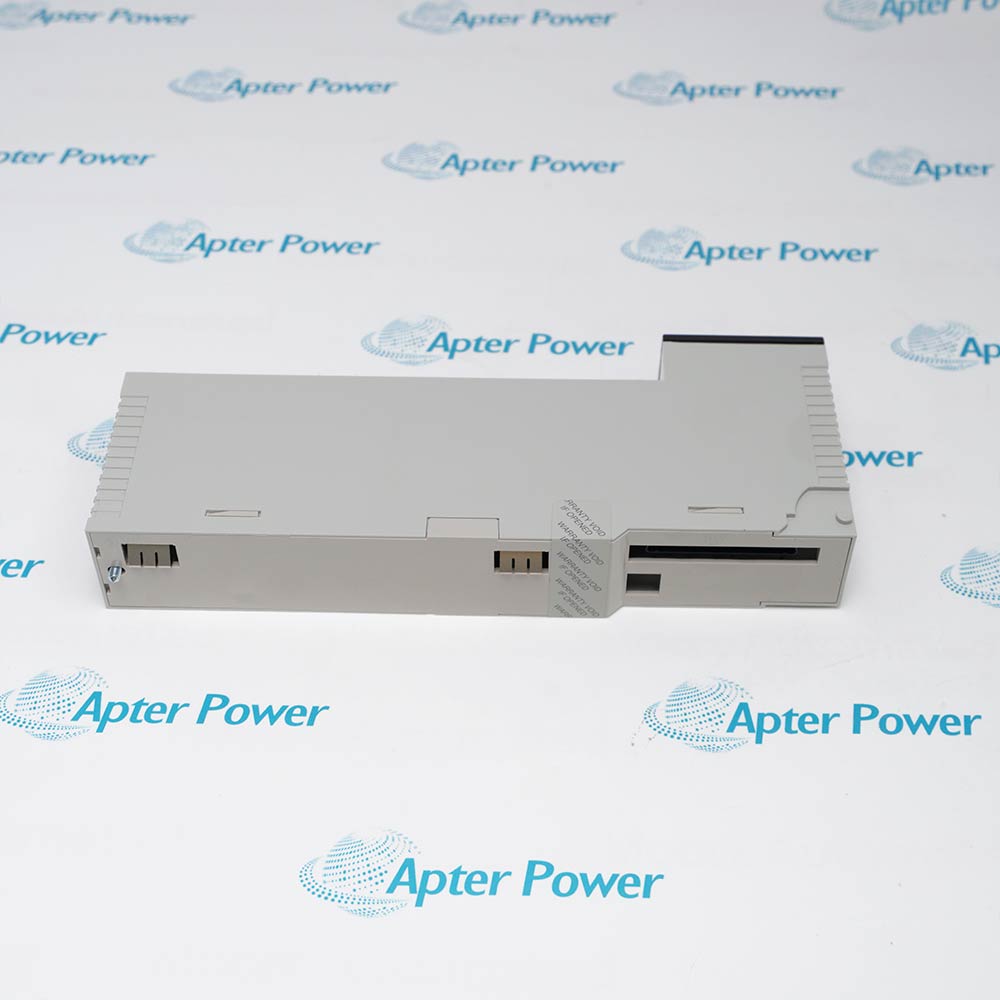

Product image is representative; revision or series may vary. Contact us to request a specific version.

140ACO13000

Name: 140ACO13000
Brand: Schneider Electric
SKU: 140ACO13000

Eight-Channel Analog Output Module

In Stock

Ships by Sunday, October 18

Fast Shipping Available

Product Describe：

Schneider Electric 140ACO13000 is an eight-channel Modicon Quantum current-output module. It supports 0–25 mA, 0–20 mA and 4–20 mA ranges and uses eight controller output words for the channel commands.

Ask our team:

Phone:
+86 180 3023 5313
E-Mail:
sales13@apterpower.com

Get a quick price for： 140ACO13000

Quantity*

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy.

Technical specifications Information Technical notes FAQ

Technical specifications for 140ACO13000

Manufacturer:

Schneider Electric
Product Category:

PLC Systems
Spare Part Number:

140ACO13000
Estimated shipping dimensions:

31x16.5x5cm
Weight:

0.45 kg
Tariff Code:

8537101190
Counliy of origin:

France
Module family:

Modicon Quantum
Output channels:

8
Signal ranges:

0–25 mA, 0–20 mA, 4–20 mA
Controller data:

8 output words
Bus current:

550 mA
Maximum power dissipation:

5.0 W
External supply:

6–30 V DC maximum
Online configuration change:

Supported

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

140ACO13000 delivers eight configured current commands from a Quantum rack to field loops whose range, scaling, external supply and fallback behavior are retained in the controller record.

Provides eight analog current-output channels.
Supports 0–25 mA, 0–20 mA and 4–20 mA ranges.
Uses eight output words in the controller data map.
Accepts an external 6–30 V DC supply for the documented field arrangement.

Eight-channel analog current-output control depends on the exact installed host, wiring, configuration and controlled acceptance record.

Important Notice: Match 140ACO13000 to the complete installed record and verify every affected function before service release.

Schneider Electric 140ACO13000 Manuals & Downloads

Schneider Electric 140ACO13000 Technical Reference (PDF)Schneider Electric 140ACO13000 Installation & Commissioning Guide (PDF)

The first document consolidates the verified product and system evidence; the second provides separate readiness, installation, verification and handover checks.

Current-loop control

Drives eight configured analog current commands to field equipment.

Valve and actuator commands

Supports documented 4–20 mA final-control assignments.

Setpoint distribution

Provides multiple current ranges for matched receiving instruments.

Quantum rack renewal

Retains eight-word data mapping and loop scaling during module replacement.

Read the applicable product and site instructions before work. Verify 140ACO13000, the installed host and every connected interface before isolation or replacement.

Confirm 140ACO13000 and the assigned Quantum rack slot before work.

Place all eight output loops in their approved safe maintenance state.

Record each channel range, scaling, fallback and controller-word assignment.

Verify external supply voltage, polarity and common arrangement before disconnection.

Preserve shielding, terminal order and field-loop identification.

Restore the eight output-word mapping and documented configuration.

Check channel diagnostics with field action inhibited after energization.

Prove each output at controlled values before releasing 140ACO13000.

Technical notes

Match 140ACO13000 to the exact Modicon Quantum position and preserve every documented connection, setting and companion component. After replacement, review diagnostics and verify eight-channel analog current-output control under controlled conditions.

FAQS

What is Schneider Electric 140ACO13000?

It is an eight-channel Modicon Quantum analog current-output module.
How many outputs does 140ACO13000 provide?

It provides eight analog current-output channels.
Which ranges does 140ACO13000 support?

Its documented ranges are 0–25 mA, 0–20 mA and 4–20 mA.
How many controller words does 140ACO13000 use?

It uses eight output words.
What external supply range applies to 140ACO13000?

The catalog lists an external supply up to 6–30 V DC for the documented arrangement.
Can 140ACO13000 configuration be changed online?

The catalog identifies online configuration modification as supported.
What must be recorded before replacing 140ACO13000?

Record ranges, scaling, fallback, word mapping, polarity and field-loop identification.
How is 140ACO13000 commissioned?

With process action controlled, prove each output and confirm field response and diagnostics.
