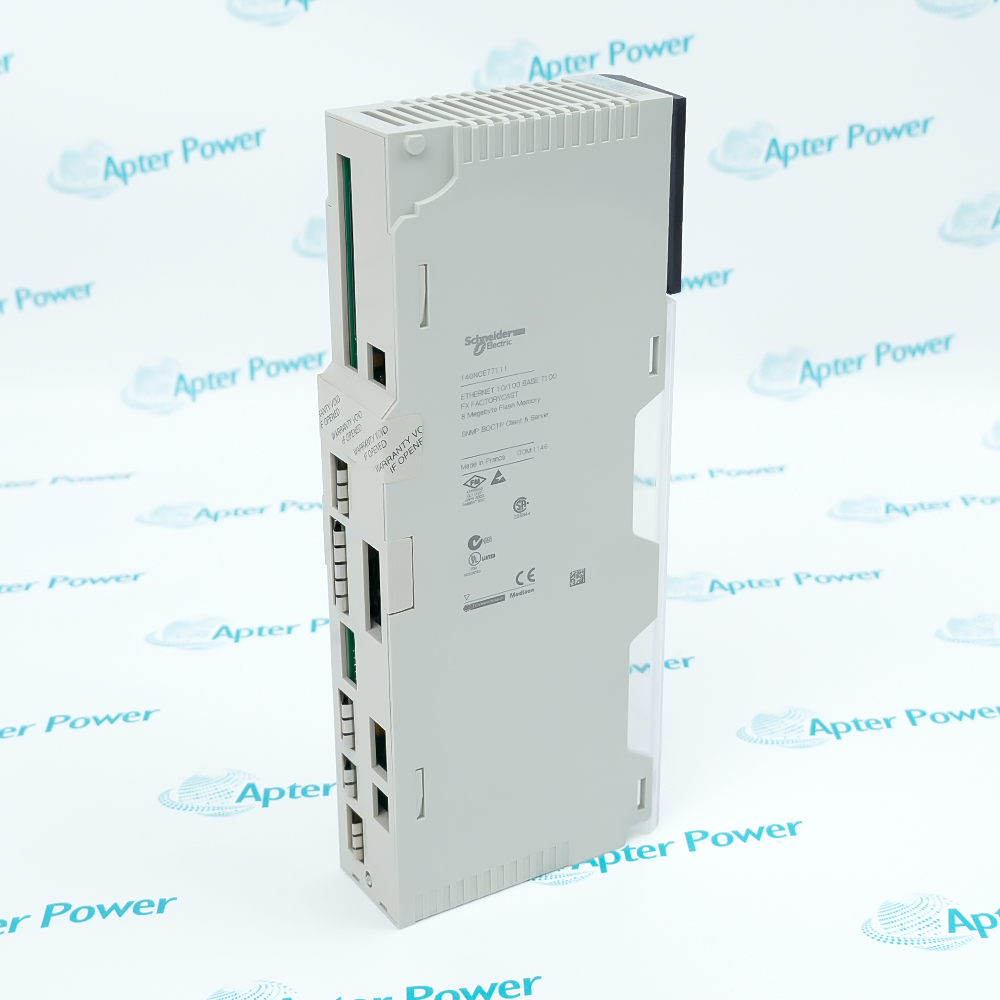

The 140NOE77111 is a single-wide rack-mounted Ethernet communication module for Modicon Quantum series PLCs. This hot-swappable hardware features a backplane power consumption of 5V DC/750mA and provides dual physical network ports via RJ45 copper and MT-RJ multi-mode fiber.
Quantum Platform: Single-wide hot-swappable module for Modicon Quantum PLCs, powered by 5V DC/750mA backplane
Dual Physical Interfaces: Integrates one RJ45 copper port and one MT-RJ multi-mode fiber optic port, supporting 10/100 Mbps auto-sensing
Panel LED Diagnostics: Equipped with multiple high-brightness indicators including Ready, Run, Fault, and Active for real-time hardware status and link activity monitoring

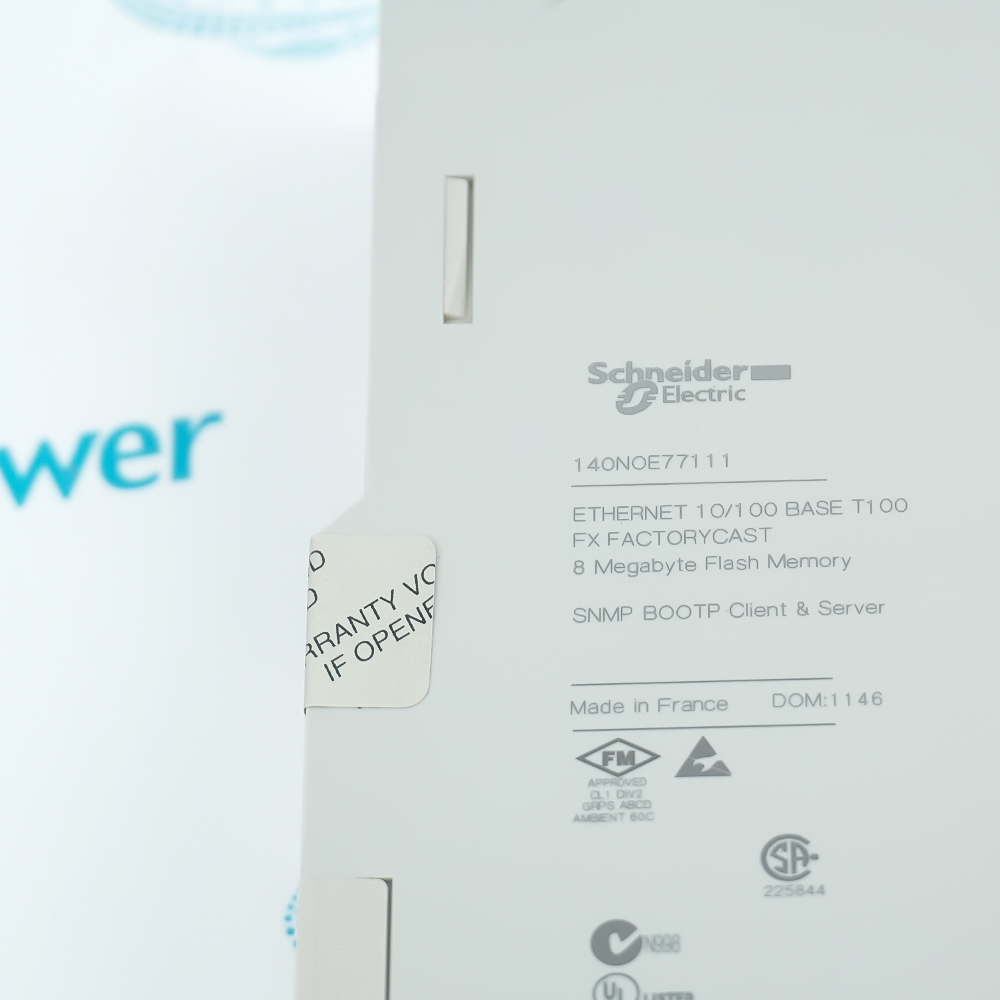

Schneider 140NOE77111 contains one RJ45 10BASE-T 100BASE-TX port for shielded twisted pair cable connections, one MT-RJ 100BASE-FX port for multi-mode fiber optic network connections, and an LED diagnostic matrix panel with multiple status indicators. The prefix 140 refers to the Modicon Quantum hardware platform, NOE specifies the network option Ethernet communication module, and the suffix 77111 designates the specific hardware variant adhering to Transparent Ready standards.
This variant features a built-in Class C30 industrial Web server and fixed firmware network protocol services including Modbus TCP/IP, I/O Scanning, Global Data exchange, FDR faulty device replacement server, NTP time synchronization, SMTP email notification, SNMP network management, and bandwidth management.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Schneider 140NOE77111 Ethernet network TCP/IP module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Water and Wastewater Treatment
Periodically collects real-time data from remote pumping stations, sedimentation tanks, and dosing devices via the I/O Scanning function, and uploads data to the central SCADA system using the Modbus TCP protocol.
Thermal Power Plants
Deployed in Balance of Plant (BOP) control systems, utilizing the Global Data service to achieve fast interlocking data exchange between PLCs in different workshops like coal handling and ash removal.
Hydroelectric Power Plants
Used in hydro-generator unit control systems, establishing a long-distance anti-interference network via its fiber optic interface (MT-RJ) to collect auxiliary loop and governor statuses.
Oil and Gas Pipelines
Installed on PLC racks in valve stations along pipelines, connecting to long-distance electric valve actuators and flow meters via Modbus TCP to achieve remote monitoring and valve shutdown control.
Chemical and Petrochemical Industry
Controls peripheral auxiliary equipment of reactors and distillation columns, utilizing its FDR (Faulty Device Replacement) service to achieve zero-configuration, rapid replacement when a field network slave device is damaged.
When using the 140NOE77111 you must ensure that its operating ambient temperature stays between 0 and 60 °C, and strictly verify whether the total current consumption exceeds the 5V DC backplane power supply capacity when configuring multiple modules within a single rack.
Meanwhile you need to reasonably allocate bandwidth via the underlying firmware when configuring I/O Scanning and Global Data services to prevent network traffic overload, and protect the MT-RJ port from dust contamination during fiber optic connection to avoid optical attenuation.
Schneider 140NOE77111 supports 10/100 Mbps auto-sensing rates, includes a built-in Class C30 industrial Web server, and integrates fixed network protocol services such as I/O Scanning, Global Data exchange, FDR (Faulty Device Replacement), and NTP time synchronization.
It is an Ethernet network TCP/IP communication module for Modicon Quantum series PLCs.
Which automation platform does 140NOE77111 belong to?
It belongs to Schneider Electric's Modicon Quantum large PLC platform.
What communication protocols does 140NOE77111 support?
It mainly supports Modbus TCP and EtherNet/IP industrial Ethernet network protocols.
How to connect 140NOE77111 in the system architecture?
Plug it directly into a local or remote rack slot of the Quantum PLC, connecting via the backplane bus.
