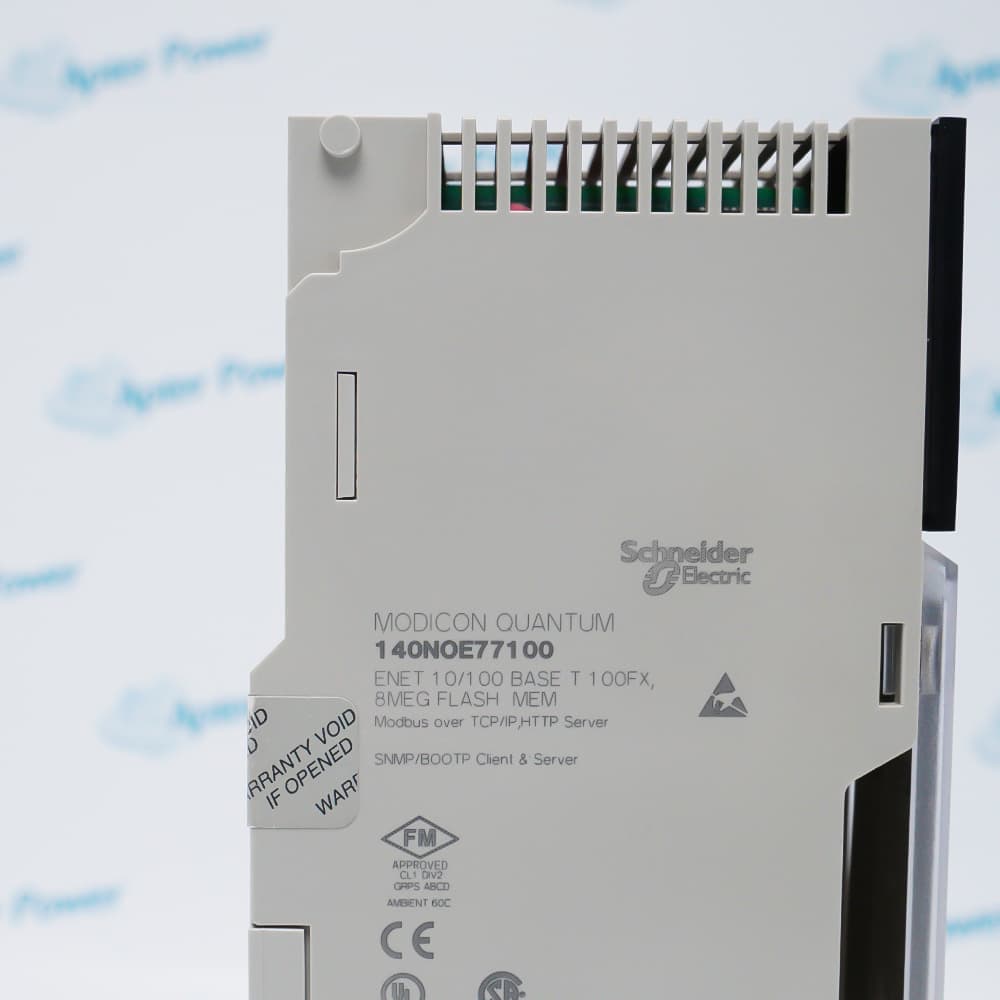

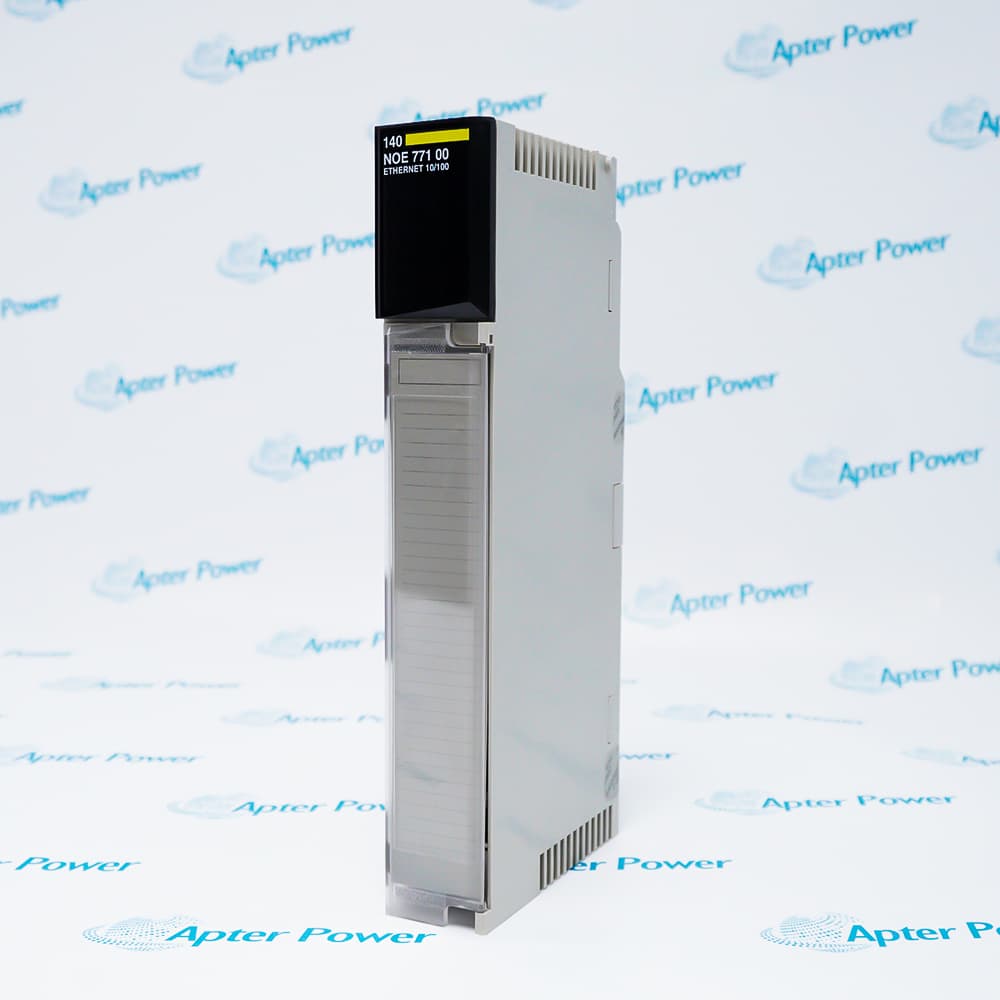

      Schneider Electric 140NOE77100
      Schneider Electric 140NOE77100
      Schneider Electric 140NOE77100
      Schneider Electric 140NOE77100
      Schneider Electric 140NOE77100
      Schneider Electric 140NOE77100
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      140NOE77100

      Ethernet TCP/IP Network Module
      In Stock
      Ships by Sunday, October 18
      Fast Shipping Available

      Product Describe：

      Schneider Electric 140NOE77100 is a Modicon Quantum Ethernet TCP/IP module with the class B20 service set. Its exact product page identifies integrated data-editor and rack-viewer functions for network commissioning and maintenance.

      Ask our team:

      Get a quick price for： 140NOE77100
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 140NOE77100

      Technical specifications for 140NOE77100

      • Manufacturer:
        Schneider Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        140NOE77100
      • Estimated shipping dimensions:
        4x10.5x25cm
      • Weight:
        0.36 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        France
      • Module family:
        Modicon Quantum
      • Network:
        Ethernet TCP/IP
      • Service class:
        B20
      • Integrated services:
        Data editor and rack viewer
      • Configuration record:
        IP settings and controller relationship
      • Firmware control:
        Match hardware and approved update path
      • Acceptance:
        Network, rack and application communication
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      140NOE77100 connects a Quantum rack to its configured Ethernet network, where addressing, controller relationship, services and firmware must remain aligned with the retained project.
      • Provides Ethernet TCP/IP communication for a Modicon Quantum rack.
      • Uses the documented class B20 service execution.
      • Includes data-editor and rack-viewer service functions.
      • Requires the retained IP configuration, controller project and firmware basis.

      Ethernet tcp/ip communication and quantum rack network services depends on the exact installed host, wiring, configuration and controlled acceptance record.

      Important Notice: Match 140NOE77100 to the complete installed record and verify every affected function before service release.

      Schneider Electric 140NOE77100 Manuals & Downloads
      Schneider Electric 140NOE77100 Technical Reference (PDF)Schneider Electric 140NOE77100 Installation & Commissioning Guide (PDF)

      The first document consolidates the verified product and system evidence; the second provides separate readiness, installation, verification and handover checks.

      Quantum Ethernet access
      Connects a Quantum controller rack to the documented TCP/IP network.
      Controller data exchange
      Supports configured Ethernet communication with supervisory and peer systems.
      Rack maintenance visibility
      Uses the documented rack-viewer service during controlled diagnosis.
      Legacy network renewal
      Preserves IP settings, firmware and application services during module replacement.
      Read the applicable product and site instructions before work. Verify 140NOE77100, the installed host and every connected interface before isolation or replacement.
      1
      Confirm 140NOE77100, the Quantum rack slot and approved network drawing before work.
      2
      Place controller communication and dependent equipment in the approved maintenance state.
      3
      Back up IP settings, services, routing and the controller project.
      4
      Record Ethernet cable assignment, switch port and module diagnostic state.
      5
      Verify the exact hardware and approved firmware path before any update.
      6
      Restore addressing without creating a duplicate IP address on the live network.
      7
      Review module, switch, rack and application communication diagnostics.
      8
      Test every required network service before releasing 140NOE77100.

      Technical notes

      Technical notes

      Match 140NOE77100 to the exact Modicon Quantum position and preserve every documented connection, setting and companion component. After replacement, review diagnostics and verify Ethernet TCP/IP communication and Quantum rack network services under controlled conditions.

      FAQS

      • What is Schneider Electric 140NOE77100?
        It is a Modicon Quantum Ethernet TCP/IP network module.
      • Which service class does 140NOE77100 provide?
        The exact product page identifies the class B20 execution.
      • Which integrated services are listed for 140NOE77100?
        The product page identifies data-editor and rack-viewer functions.
      • What must be backed up before replacing 140NOE77100?
        Back up IP addressing, services, routing, controller configuration and diagnostics.
      • Can 140NOE77100 be energized with a duplicate IP address?
        No. Isolate and verify addressing before connecting the replacement to the live network.
      • What firmware check applies to 140NOE77100?
        Match firmware to the exact module hardware and use the approved update procedure.
      • What should be recorded at the switch for 140NOE77100?
        Record the cable label, switch port, link state and relevant network configuration.
      • How is 140NOE77100 commissioned?
        Confirm rack communication, link state and every required application service under controlled conditions.
