What makes the 9662-110 termination assembly non-commoned?

Its sixteen 24 VDC field points remain electrically independent rather than sharing one field common, preserving separate power paths for the documented arrangement.

For 9662-110, how many field circuits are terminated by this assembly?

The exact model terminates 16 independent 24 VDC points; every point number, supply and return must remain traceable.

Which Tricon output module is paired with 9662-110?

The Field Terminations Guide documents the assembly with the 3604E digital output module; verify that pairing before changing field wiring.

For 9662-110, why must a commoned termination panel not replace this model directly?

Changing to a commoned arrangement would alter the documented field-power segregation. Any such change requires a controlled system-design review, not a like-for-like replacement.

For 9662-110, what should be captured from each circuit before disconnection?

Record the point number, individual 24 VDC supply and return, connected load, polarity, fuse or protective device and the 3604E channel assignment.

For 9662-110, where is the field-wiring boundary for maintenance checks?

Use the 9662-110 field wiring diagram in publication 9700052-018 to trace the termination assembly between the 3604E output path and each independent field load.

For 9662-110, how should the sixteen points be checked before energization?

Verify point-to-point continuity, absence of unintended commoning, load polarity and protective-device placement with all field supplies isolated.

For 9662-110, what acceptance test confirms the restored termination assembly?

Energize the independent supplies under control, exercise each assigned 3604E output and confirm the correct field load operates without cross-channel coupling or diagnostics.

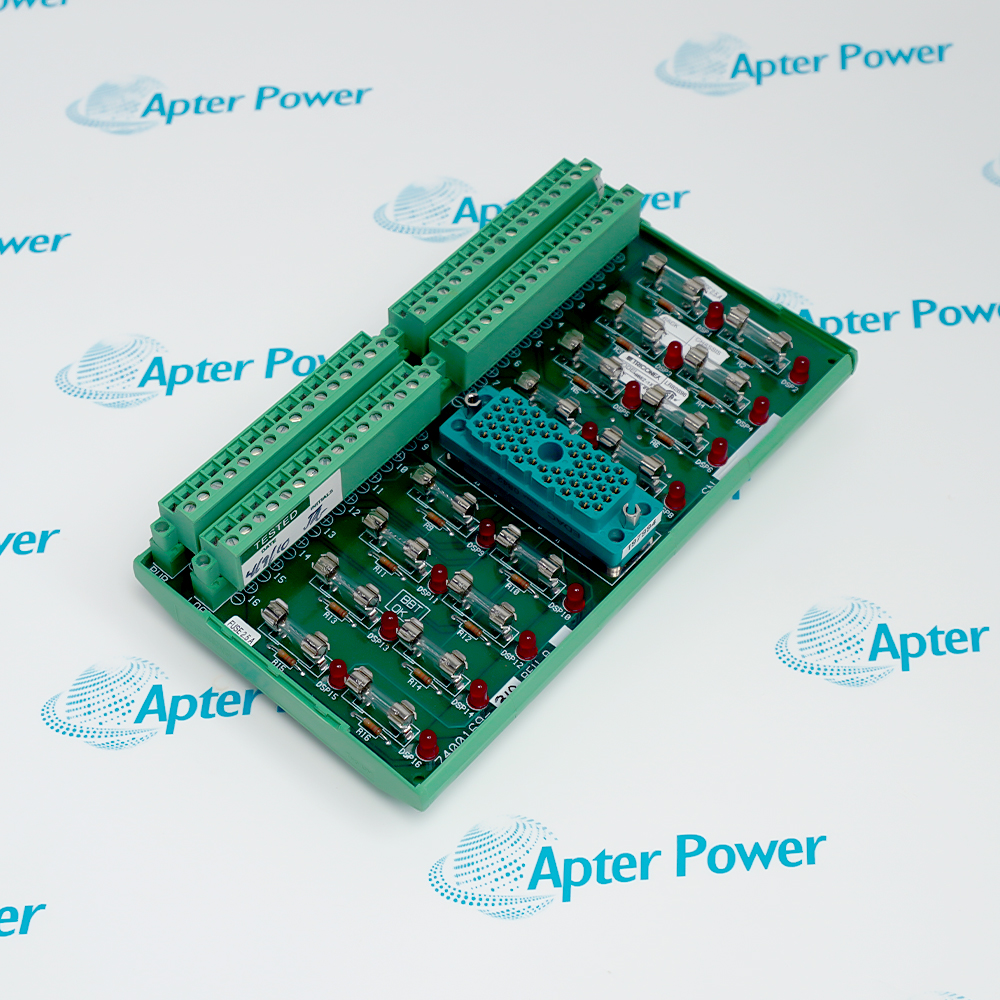

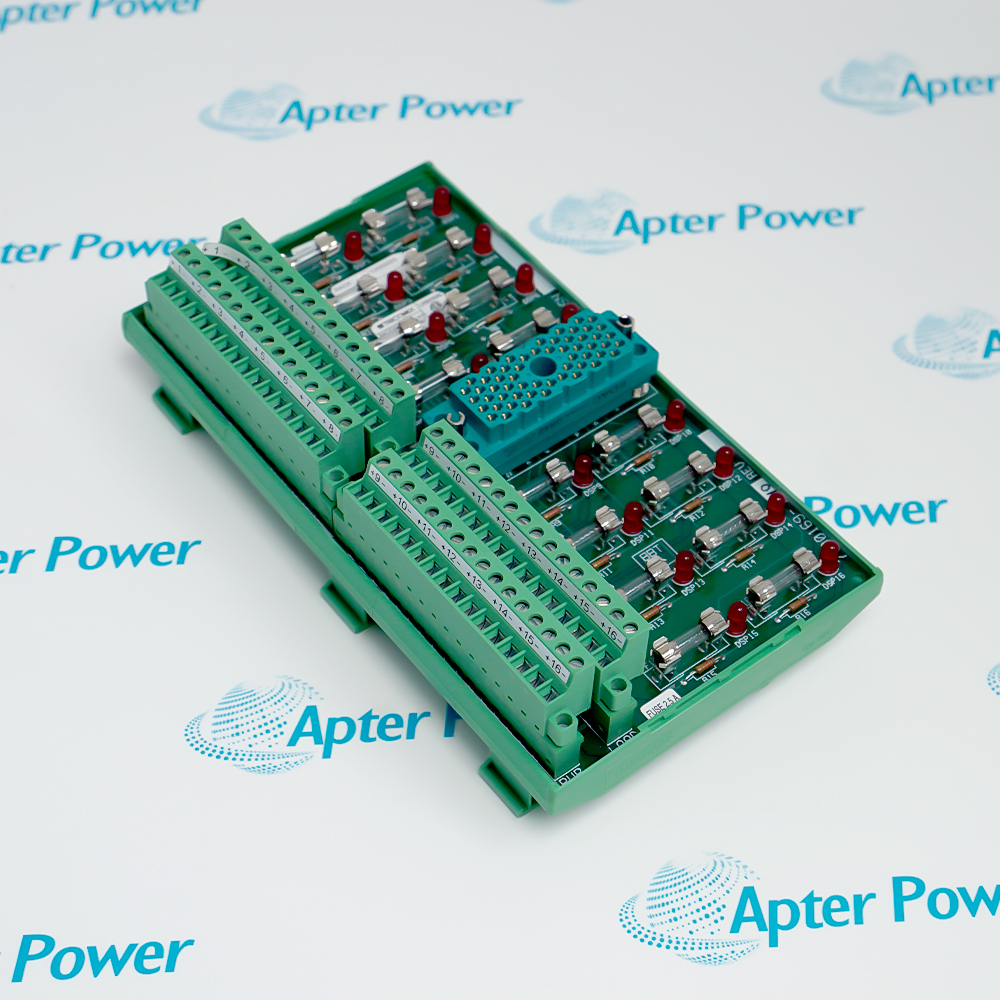

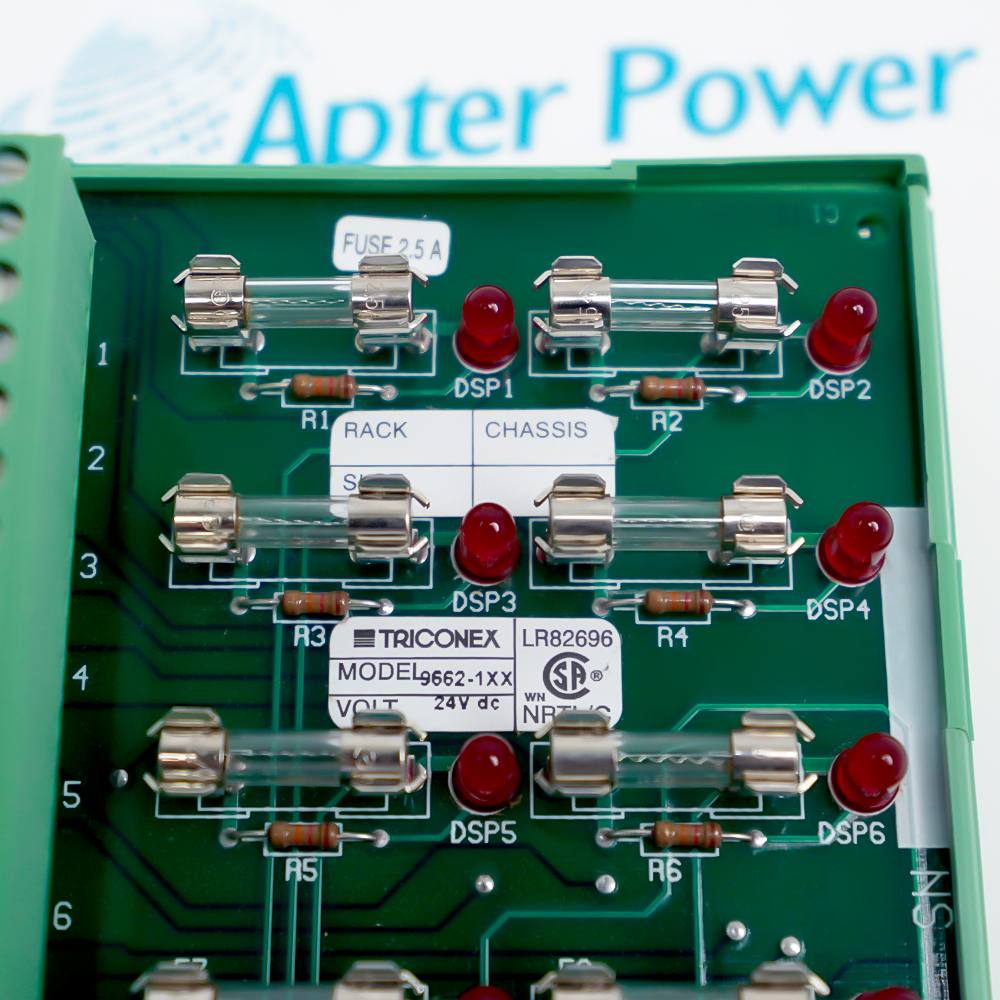

Triconex 9662-110 Field Termination Assembly

Name: 9662-110
Brand: Invensys
SKU: 9662-110

9662-110

Field Termination Assembly

In Stock

Ships by Wednesday, October 14

Fast Shipping Available

Technical specifications for 9662-110

Manufacturer:

Invensys

Product Category:

DCS System

Spare Part Number:

9662-110

Estimated shipping dimensions:

19.8x11.2x6cm

Weight:

0.52 kg

Tariff Code:

8537101190

Counliy of origin:

USA

Field voltage:

24 V DC

Point count:

Commoning:

Non-commoned

Documented module pairing:

3604E digital output module

Function:

Field termination and protected distribution

System:

Tricon controller field terminations

Reference figure:

9662-110 field wiring diagram

Official publication:

9700052-018

Information

Overview Manuals Common Applications Product Precautions

Triconex 9662-110 is Field Termination Assembly. It terminates sixteen independent 24 VDC field circuits for the documented Tricon digital-output arrangement.

Terminates sixteen 24 VDC points
Keeps the points non-commoned
Pairs with the documented 3604E output module
Provides a defined field-wiring boundary

9662-110 operates with Tricon 3604E digital output module, approved 24 VDC field-power circuits, documented Tricon chassis and cables, individual field loads and protective devices.

Engineered applications include Independent 24 VDC output termination, Safety-system actuator wiring, Non-commoned field-power distribution, Tricon termination replacement.

Important Notice: Confirm the 9662-110 marking, 3604E pairing, every point number, individual field supply, fuse or protective device and load polarity before disconnection; do not convert the installation to a commoned arrangement.

Triconex 9662-110 Manuals & Downloads

Triconex 9662-110 Technical Reference (PDF)Triconex 9662-110 Installation & Commissioning Guide (PDF)

Important Notice: The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

Independent 24 VDC output termination

Terminates independent output circuits without a shared common.

Safety-system actuator wiring

Connects controlled safety loads to the output module.

Non-commoned field-power distribution

Maintains separation of field-power paths.

Tricon termination replacement

Restores the exact 9662-110 wiring boundary.

Read the applicable Triconex instructions before work. Verify 9662-110 and the installed Tricon field-termination system configuration.

Verify the complete 9662-110 marking and its assigned Tricon field-termination system position before work.

Place the connected independent 24 VDC output termination process in the approved maintenance state.

Isolate applicable power and sixteen independent 24 VDC output field circuits field energy before disconnection.

Record every connector, conductor, address, firmware and software identity before removal.

Use ESD controls and protect keyed interfaces, exposed contacts and electronic assemblies.

Confirm the installed Tricon 3604E digital output module and approved 24 VDC field-power circuits against the approved project.

Restore power in a controlled sequence and review device, network and host diagnostics.

Prove the intended safety-system actuator wiring function and retain the final test result.

FAQS

What makes the 9662-110 termination assembly non-commoned?

Its sixteen 24 VDC field points remain electrically independent rather than sharing one field common, preserving separate power paths for the documented arrangement.
For 9662-110, how many field circuits are terminated by this assembly?

The exact model terminates 16 independent 24 VDC points; every point number, supply and return must remain traceable.
Which Tricon output module is paired with 9662-110?

The Field Terminations Guide documents the assembly with the 3604E digital output module; verify that pairing before changing field wiring.
For 9662-110, why must a commoned termination panel not replace this model directly?

Changing to a commoned arrangement would alter the documented field-power segregation. Any such change requires a controlled system-design review, not a like-for-like replacement.
For 9662-110, what should be captured from each circuit before disconnection?

Record the point number, individual 24 VDC supply and return, connected load, polarity, fuse or protective device and the 3604E channel assignment.
For 9662-110, where is the field-wiring boundary for maintenance checks?

Use the 9662-110 field wiring diagram in publication 9700052-018 to trace the termination assembly between the 3604E output path and each independent field load.
For 9662-110, how should the sixteen points be checked before energization?

Verify point-to-point continuity, absence of unintended commoning, load polarity and protective-device placement with all field supplies isolated.
For 9662-110, what acceptance test confirms the restored termination assembly?

Energize the independent supplies under control, exercise each assigned 3604E output and confirm the correct field load operates without cross-channel coupling or diagnostics.
