      Invensys CM2201-7400206-100
      Invensys CM2201-7400206-100
      Invensys CM2201-7400206-100
      Invensys CM2201-7400206-100
      Invensys CM2201-7400206-100
      Invensys CM2201-7400206-100
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      CM2201-7400206-100

      Trident communication module baseplate
      In Stock
      Ships by Sunday, October 18
      Fast Shipping Available

      Product Describe：

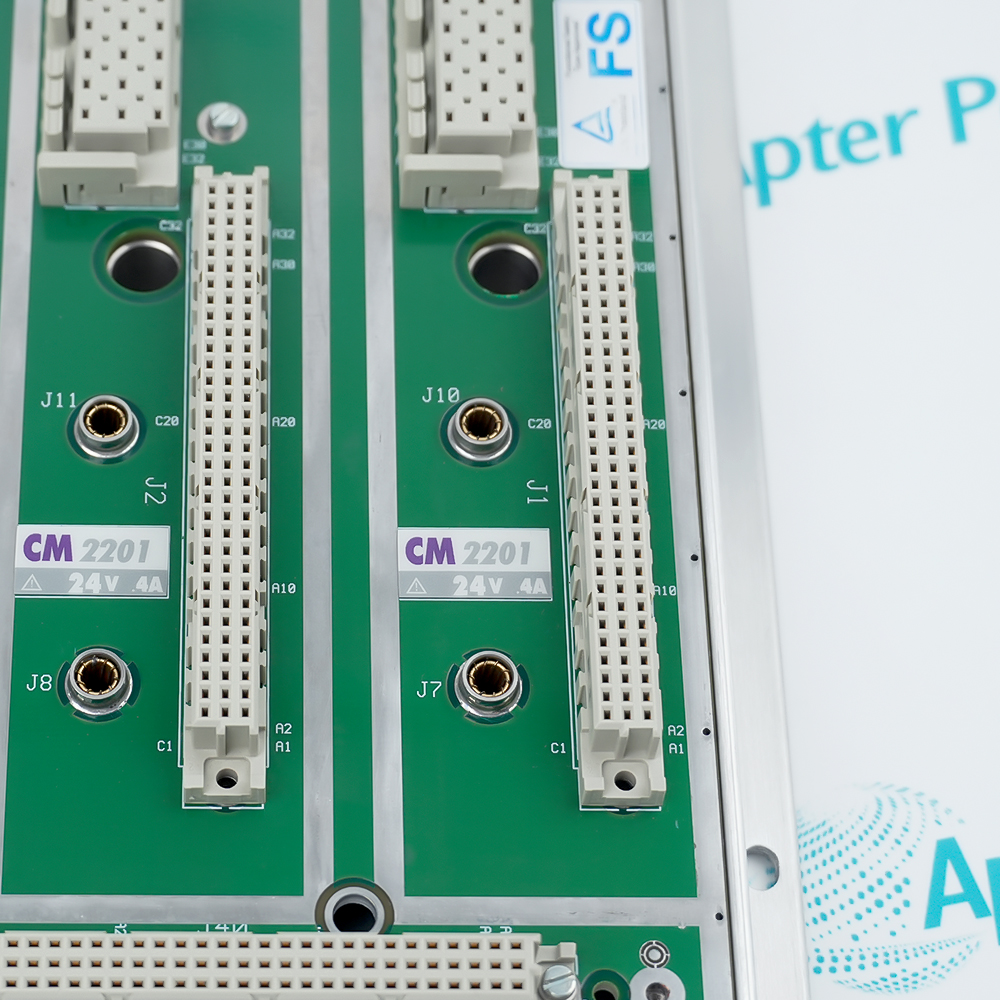

      Triconex CM2201-7400206-100 is the model 2201 communication module baseplate for a Trident safety system. It supports up to two independently operating communication modules and links them to the Main Processor baseplate through two MP interconnect assemblies.

      Ask our team:

      Get a quick price for： CM2201-7400206-100
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for CM2201-7400206-100

      Technical specifications for CM2201-7400206-100

      • Manufacturer:
        Invensys
      • Product Category:
        DCS System
      • Spare Part Number:
        CM2201-7400206-100
      • Estimated shipping dimensions:
        25.2x23x4.2cm
      • Weight:
        1.35 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Complete article:
        CM2201-7400206-100
      • Baseplate model:
        2201
      • Product role:
        Communication module baseplate
      • System family:
        Triconex Trident
      • Module capacity:
        Up to two communication modules
      • Processor connection:
        Two MP interconnect assemblies
      • Serial connectivity per CM:
        Three RS-232/RS-485 ports
      • Ethernet connectivity per CM:
        Two Ethernet ports
      • Installation position:
        Directly above or below the MP baseplate
      • Communication targets:
        Hosts, DCS, open networks, printers, Trident and Tricon V9 systems
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Triconex CM2201-7400206-100 is the supplied article identity for the model 2201 communication module baseplate used in a Trident safety system.
      • Two communication-module positions
      • Three serial ports per installed CM
      • Two Ethernet ports per installed CM
      • Direct MP-baseplate interconnection

      Treat the baseplate as part of the approved safety-system architecture. Preserve baseplate position, both MP interconnect assemblies, communication modules, network wiring and the controlled Trident configuration.

      Important Notice: Confirm the complete CM2201-7400206-100 identity, installed-system configuration, approved isolation and functional acceptance record before service release.

      CM2201-7400206-100 Manuals & Downloads
      CM2201-7400206-100 Technical Reference (PDF)CM2201-7400206-100 Installation & Commissioning Guide (PDF)

      Important Notice: The first document presents exact-model technical data and engineering questions. The second provides a separate installation, commissioning and acceptance workflow.

      DCS and host integration
      Connect approved external hosts and distributed control systems to the Trident controller.
      Redundant communications
      Use two independently operating communication modules for redundant or additional links.
      Peer system networking
      Provide documented paths to other Trident or Tricon systems.
      Safety-system maintenance
      Preserve the exact baseplate and interconnect architecture during controlled service.
      Read the applicable Triconex installation instructions before work. Verify CM2201-7400206-100 and the installed-system configuration before commissioning.
      1
      Verify CM2201-7400206-100 and model 2201 on the installed marking.
      2
      Follow the approved Trident safety lifecycle and maintenance authorization.
      3
      Record the baseplate location and both MP interconnect assemblies.
      4
      Back up communication-module and network configuration.
      5
      Label every serial, Ethernet, AUI and MII connection in use.
      6
      Remove power under the current Trident procedure before baseplate work.
      7
      Do not alter redundant paths without approved change control.
      8
      Verify diagnostics and every approved communication path before release.

      Technical notes

      Technical notes

      Triconex Trident Planning and Installation Guide, version 1.2; Schneider Electric official Trident system documentation. Treat the baseplate as part of the approved safety-system architecture. Preserve baseplate position, both MP interconnect assemblies, communication modules, network wiring and the controlled Trident configuration.

      FAQS

      • What is Triconex CM2201-7400206-100?
        It is the supplied article identity for the model 2201 communication module baseplate used in a Trident safety system.
      • How many communication modules can it hold?
        One CM baseplate supports up to two independently operating communication modules.
      • Where is the baseplate installed?
        It is installed directly above or below the Main Processor baseplate.
      • How is it connected to the Main Processor baseplate?
        Two MP interconnect assemblies provide the documented physical connection.
      • Which interfaces are provided by each communication module?
        Each installed CM supports three RS-232/RS-485 serial ports and two Ethernet ports.
      • Can two modules provide redundancy?
        Yes. Two independently operating CMs can provide redundant connections or additional independent ports.
      • Why is formal change control required?
        The baseplate belongs to a safety-instrumented system, so communication changes must remain within the approved lifecycle.
      • What confirms successful commissioning?
        Trident diagnostics are clear and every approved serial, Ethernet and redundant path passes its controlled test.
