      9761-210

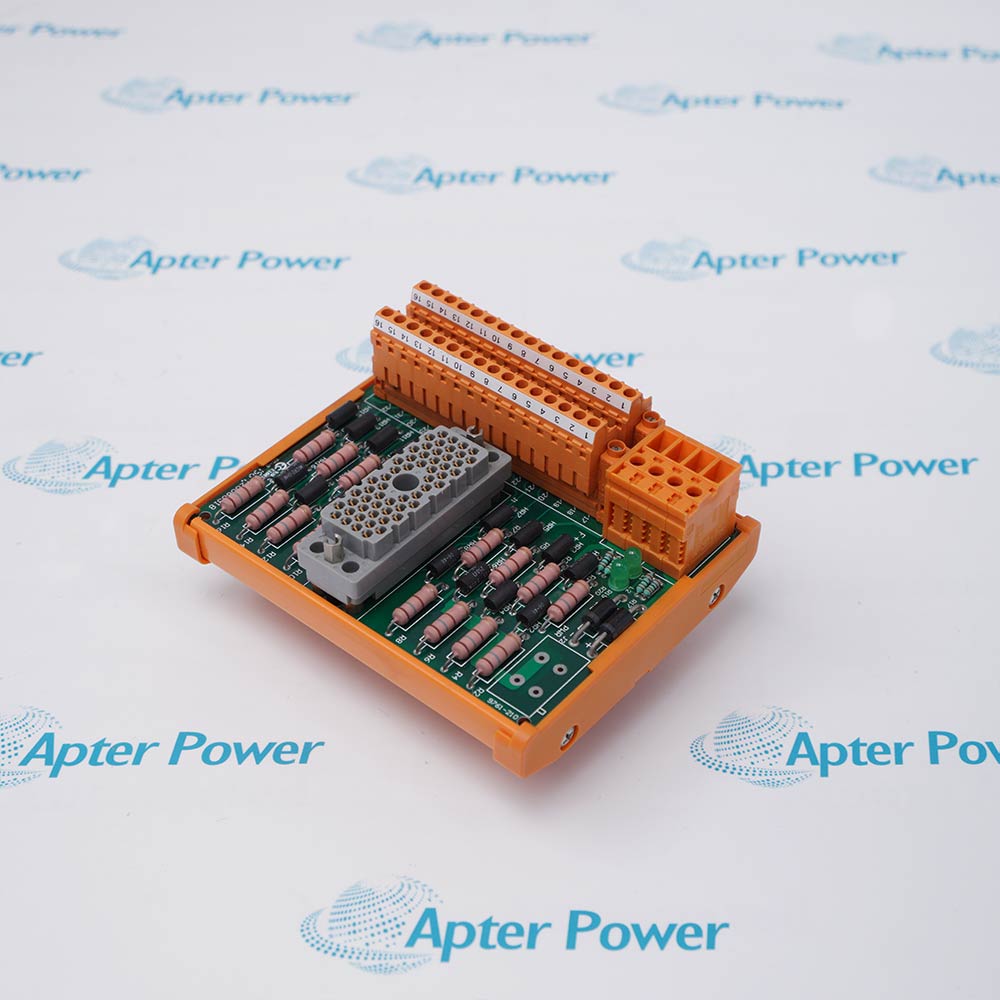

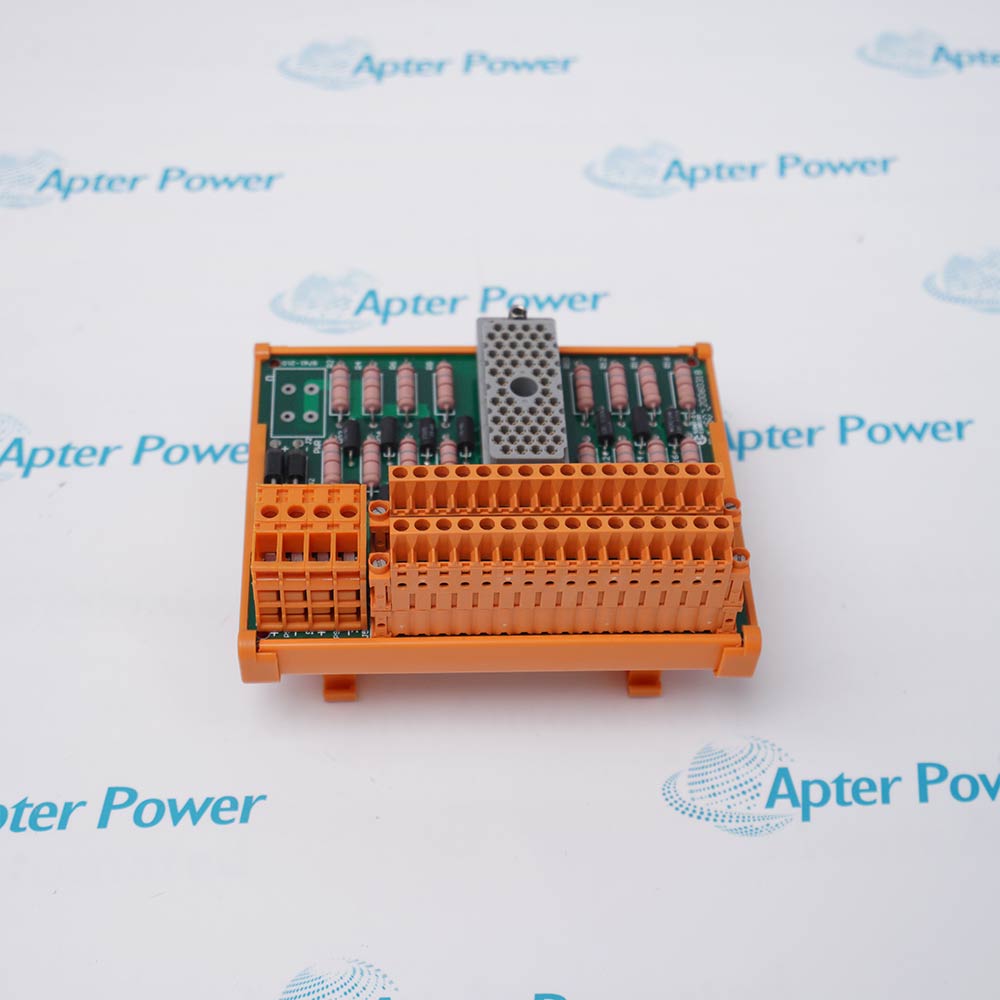

      16-Point 0-5 V Current Input Panel
      In Stock
      Ships by Saturday, September 26
      Fast Shipping Available

      Product Describe：

      Triconex 9761-210 is a sixteen-point current-input termination panel. It powers field transmitters and converts their current into 0-5 V signals for compatible Tricon modules.

      Ask our team:

      Get a quick price for： 9761-210
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 9761-210

      Technical specifications for 9761-210

      • Manufacturer:
        Invensys
      • Product Category:
        DCS System
      • Spare Part Number:
        9761-210
      • Estimated shipping dimensions:
        13x10.7x7.5cm
      • Weight:
        0.34 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Panel type:
        Current input
      • Input points:
        16
      • Voltage conversion:
        0 to 5 VDC
      • Positive-terminal resistor:
        180 Ohm series
      • Input shunt:
        250 Ohm precision
      • Power outputs:
        16
      • Current inputs:
        16
      • Power sources:
        Redundant 24 VDC
      • Power combining:
        Diode ORing
      • Compatible modules:
        2770H; 3700; 3700A; 3721
      • Panels for 32-point module:
        2
      • Panel width:
        4.5 in (11.43 cm)
      • Panel length:
        5 in (12.7 cm)
      • Panel height:
        4.25 in (10.795 cm)
      • ETA number:
        3000510-510
      • Associated cable:
        4000103-510
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Triconex 9761-210 is a sixteen-point current-input termination panel. It powers field transmitters and converts their current into 0-5 V signals for compatible Tricon modules.
      • Supplies and terminates sixteen field current loops
      • Uses precision 250-ohm shunts to convert loop current into 0-5 V inputs
      • Combines two 24 VDC transmitter supplies through diode ORing
      • Pairs two panels with a thirty-two-point analog or HART input module

      9761-210 installs with 3700, 3700A, or 3721 analog-input module, 2770H HART interface module, 4000103-510 I/O cable, redundant 24 VDC transmitter supplies in an engineered Tricon v9-v10 analog input termination configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 16-point 0-5 v current input panel.

      Important Notice: Confirm the complete 9761-210 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 9761-210 Manuals and Guides
      Apter Power 9761-210 Product Technical Reference PDFApter Power 9761-210 Installation and Verification PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Four-to-twenty-milliamp safety transmitter terminationSupports four-to-twenty-milliamp safety transmitter termination through the installed 16-point 0-5 v current input panel in a configured Tricon system.
      HART input-interface connectionUses 9761-210 for hART input-interface connection after the assigned host module, field interface and channel mapping are confirmed.
      Redundant transmitter-power distributionApplies the 9761-210 hardware arrangement to redundant transmitter-power distribution with controlled wiring and signal verification.
      Thirty-two-point analog loop split-panel wiringProvides a defined engineering path for thirty-two-point analog loop split-panel wiring, including installation checks and final functional proof.
      Read the applicable Triconex installation instructions before work. Verify 9761-210 and the installed Tricon v9-v10 analog input termination configuration.
      1Verify 9761-210 and the connected 0-5 V input module before disturbing loops.
      2Place affected transmitter-based safety functions in the approved maintenance state.
      3Isolate both 24 VDC supplies and record loop polarity plus channel assignment.
      4Confirm the 180-ohm series feed and 250-ohm input shunt remain intact.
      5Keep the two panels correctly labeled when serving a thirty-two-point module.
      6Preserve shield grounding and the documented HART interface arrangement where used.
      7Measure transmitter supply and converted voltage at representative current values.
      8Prove channel scaling, diagnostics, alarms, and trip logic before release.

      Technical notes

      Technical notes

      Verify redundant transmitter supplies, 180-ohm feed resistors, 250-ohm conversion shunts, loop polarity, and scaling before enabling channels connected through 9761-210.

      FAQS

      • How should an engineer verify 250-ohm 0-5 V conversion for 9761-210?
        Use the approved connection drawing and the model-specific values in Field Terminations Guide for Tricon v9-v10 Systems; preserve the as-found terminal, connector, polarity, shield, and channel identity.
      • What check is required for dual 24 VDC diode-OR power when commissioning 9761-210?
        Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.
      • Which installation error is most important to prevent on 9761-210?
        Do not interchange 9761-210 with an adjacent execution or alter its matched 3700, 3700A, or 3721 analog-input module; the exact electrical, channel, and connector arrangement must be retained.
      • How is 2770H HART pairing handled during a 9761-210 replacement?
        Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.
      • Which diagnostics should be reviewed after installing 9761-210?
        Review the applicable point, module, power, communication, or load indicators for 9761-210, then confirm the intended role: supplies and terminates sixteen field current loops.
      • Can 9761-210 be substituted for a similar Triconex model without a configuration review?
        No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.
      • What evidence should be retained after two-panel thirty-two-point assignment testing on 9761-210?
        Retain the full 9761-210 identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.
      • Which installed hardware must be matched before fitting 9761-210?
        Match 9761-210 to 3700, 3700A, or 3721 analog-input module and 2770H HART interface module, then confirm the complete physical marking and assigned Tricon v9-v10 analog input termination position.
