9853-610 | Triconex Eight-Point Basic Current Output Panel

Name: 9853-610
Brand: Invensys
SKU: 9853-610

9853-610

Eight-Point Basic Current Output Panel

In Stock

Ships by Saturday, September 26

Fast Shipping Available

Technical specifications for 9853-610

Manufacturer:

Invensys

Product Category:

DCS System

Spare Part Number:

9853-610

Estimated shipping dimensions:

12.5x10.9x7.8cm

Weight:

0.28 kg

Tariff Code:

8537101190

Counliy of origin:

USA

Panel type:

Current output; basic

Output points:

Current output terminals:

8 OUT

Current return terminals:

8 RTN

Loop-power sources:

Redundant 24 VDC

Compatible AO modules:

3805E; 3805H

Compatible HART module:

2870H

Module signal:

4 to 20 mA

Module return:

Commoned; DC coupled

Panel width:

3 in (7.62 cm)

Panel length:

5 in (12.7 cm)

Panel height:

4.25 in (10.795 cm)

ETA number:

3000400-530

Associated cable:

4000098-510

Cable minimum bend radius:

6.25 in (15.875 cm)

Information

Overview Manuals Common Applications Product Precautions

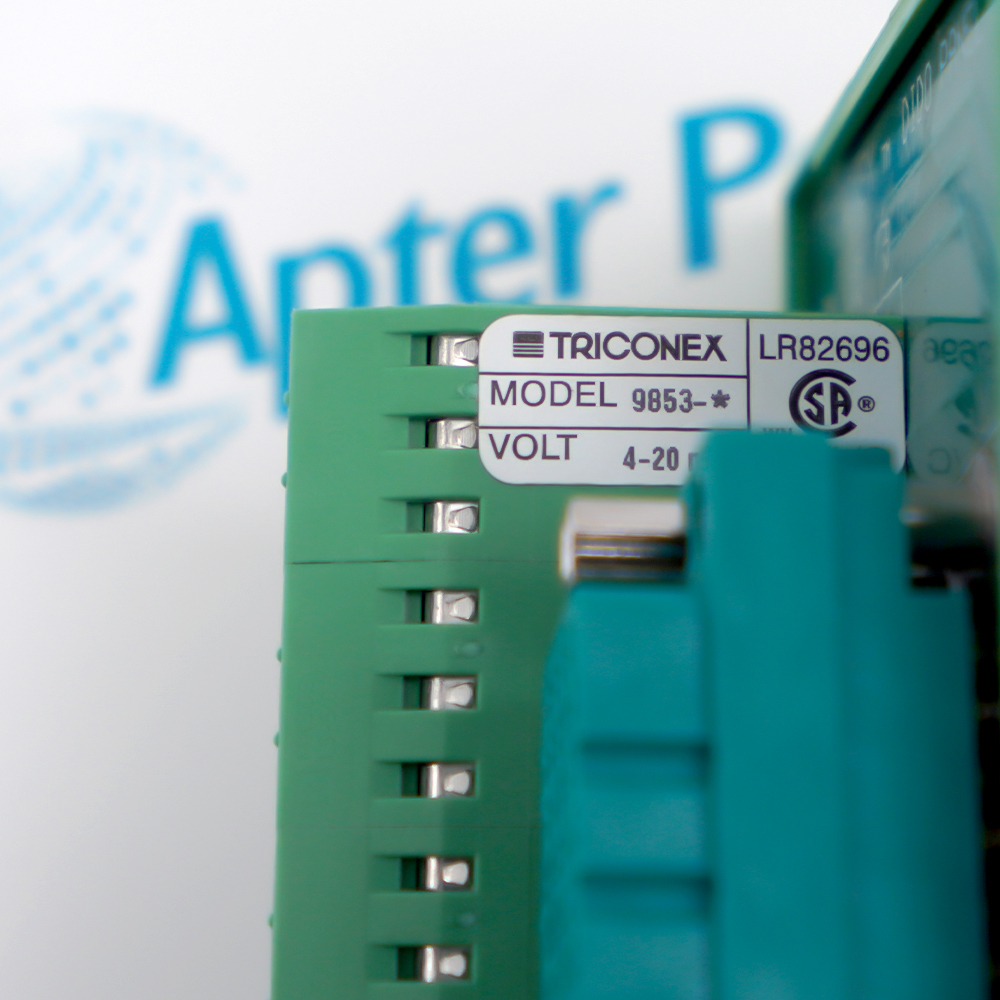

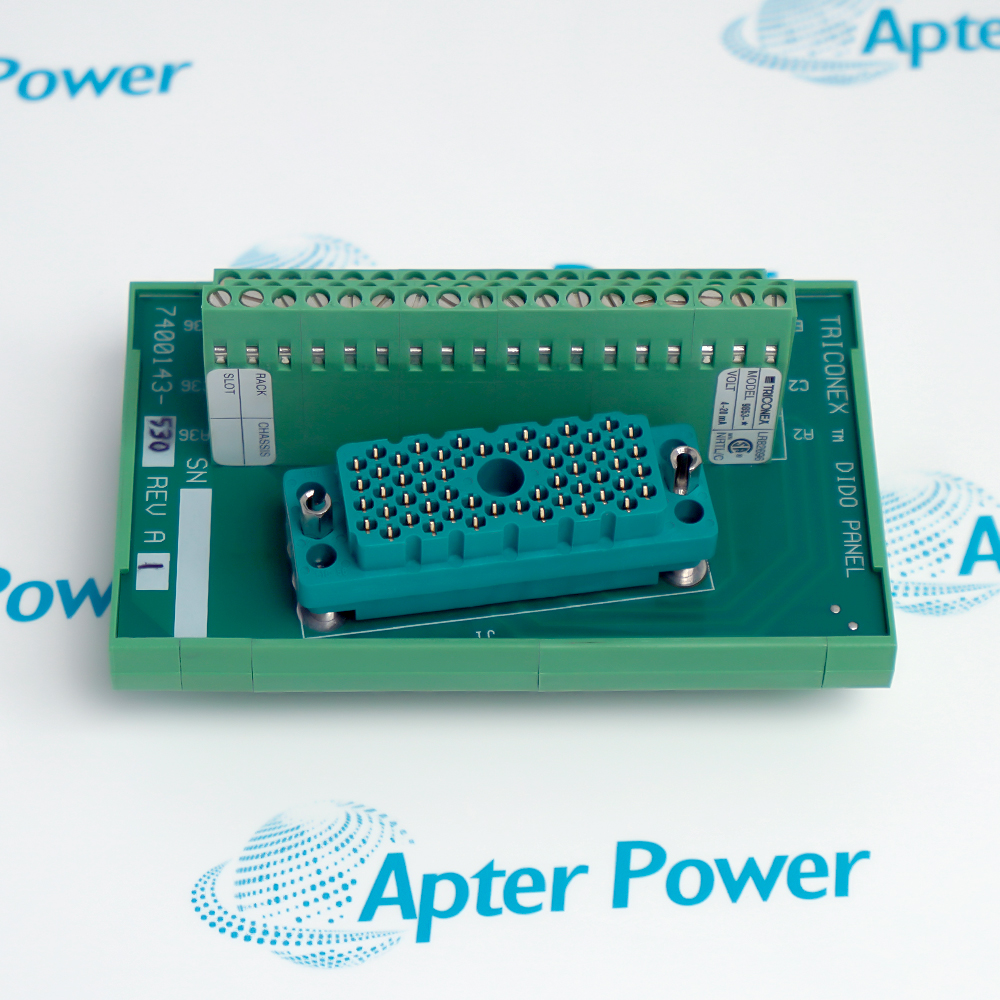

Triconex 9853-610 is an eight-point basic current-output termination panel. It connects Tricon analog-output and HART-interface modules to powered 4-20 mA field loops.

Terminates eight 4-20 mA current outputs and their return conductors
Accepts redundant 24 VDC loop-power connections for analog output service
Interfaces 3805E/3805H output modules or a 2870H HART output interface
Requires a shorting jumper on every unused output point

9853-610 installs with 3805E or 3805H analog-output module, 2870H HART analog-output interface, 4000098-510 I/O cable, redundant 24 VDC loop-power sources in an engineered Tricon v9-v10 analog output termination configuration.

The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this eight-point basic current output panel.

Important Notice: Confirm the complete 9853-610 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

Apter Power 9853-610 Manuals and Guides

Apter Power 9853-610 Product Technical Reference PDF Apter Power 9853-610 Installation and Verification PDF

The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.

Eight-loop control-valve output terminationSupports eight-loop control-valve output termination through the installed eight-point basic current output panel in a configured Tricon system.

HART analog-output field interfaceUses 9853-610 for hART analog-output field interface after the assigned host module, field interface and channel mapping are confirmed.

Redundant loop-power cabinet wiringApplies the 9853-610 hardware arrangement to redundant loop-power cabinet wiring with controlled wiring and signal verification.

Analog output panel replacement and loop testProvides a defined engineering path for analog output panel replacement and loop test, including installation checks and final functional proof.

Read the applicable Triconex installation instructions before work. Verify 9853-610 and the installed Tricon v9-v10 analog output termination configuration.

1Verify 9853-610 and the 3805 or 2870H module assignment before field work.

2Place every connected final element in its approved safe maintenance state.

3Isolate both 24 VDC loop-power feeds and record polarity plus return connections.

4Maintain at least one RTN connection and preserve the commoned-return arrangement.

5Install a shorting jumper on every unused output point.

6Maintain the 4000098-510 cable bend radius and secure both connectors.

7Command representative currents and measure them at the field loop.

8Verify HART communication, LOAD status, and final process response before service.

FAQS

What check is required for common RTN requirement when commissioning 9853-610?

Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.
Which installation error is most important to prevent on 9853-610?

Do not interchange 9853-610 with an adjacent execution or alter its matched 3805E or 3805H analog-output module; the exact electrical, channel, and connector arrangement must be retained.
How is 3805E/3805H versus 2870H pairing handled during a 9853-610 replacement?

Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.
Which diagnostics should be reviewed after installing 9853-610?

Review the applicable point, module, power, communication, or load indicators for 9853-610, then confirm the intended role: terminates eight 4-20 ma current outputs and their return conductors.
Can 9853-610 be substituted for a similar Triconex model without a configuration review?

No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.
What evidence should be retained after redundant loop-power validation testing on 9853-610?

Retain the full 9853-610 identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.
Which installed hardware must be matched before fitting 9853-610?

Match 9853-610 to 3805E or 3805H analog-output module and 2870H HART analog-output interface, then confirm the complete physical marking and assigned Tricon v9-v10 analog output termination position.
How should an engineer verify unused-point shorting jumpers for 9853-610?

Use the approved connection drawing and the model-specific values in Field Terminations Guide for Tricon v9-v10 Systems; preserve the as-found terminal, connector, polarity, shield, and channel identity.
