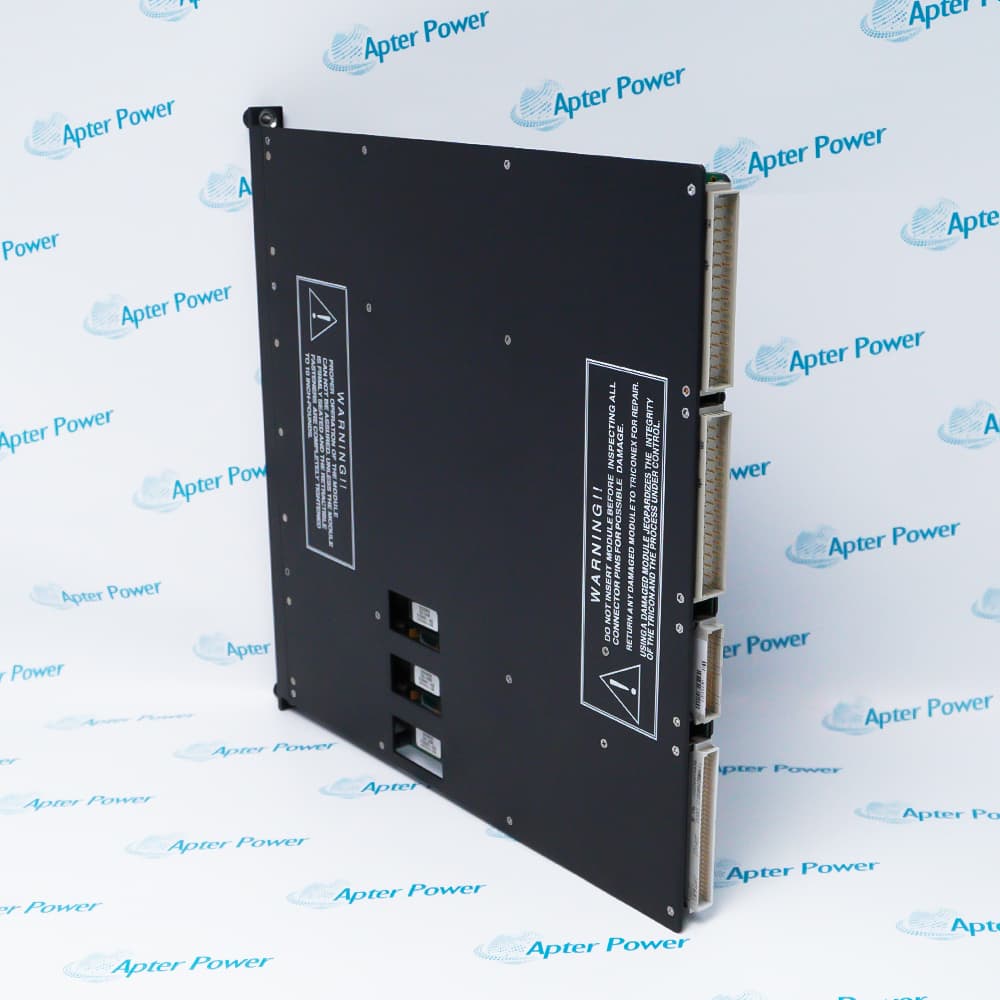

8312 | Triconex 230 VAC 175 W Power Module

Name: 8312
Brand: Invensys
SKU: 8312

Technical specifications for 8312

Manufacturer:

Invensys

Product Category:

DCS System

Spare Part Number:

8312

Estimated shipping dimensions:

6.2x41.2x17.8cm

Weight:

2.85 kg

Tariff Code:

8537101190

Counliy of origin:

USA

Chassis compatibility:

Main; expansion; RXM

Nominal input:

230 VAC

Input range:

185 to 285 VAC

Input frequency:

47 to 63 Hz

Fuse:

2.5 A time-delay

Output hold time:

20 ms minimum

Input-to-output isolation:

>1000 VAC or 1500 VDC

Input conductors:

Three 12 AWG (3.310 mm2)

Over-temperature warning:

>181 degF (83 degC) internal

Alarm contacts:

NO; NC; common

Alarm-contact rating:

120 VAC at 1 A

Minimum input power:

240 W per power module

Output power:

175 W at 60 degC

Output voltage:

6.5 VDC +/-1%

Maximum output current:

27 A at 60 degC

Indicators:

PASS; FAULT; ALARM; TEMP; BAT LOW

Information

Overview Manuals Common Applications Product Precautions

Triconex 8312 is a 230 VAC, 175 W chassis power module. It supplies regulated 6.5 VDC power and alarm supervision for Tricon main, expansion, or RXM chassis.

Converts 230 VAC line power to the regulated DC supply used by Tricon chassis modules
Shares a dual-module redundant chassis power arrangement in which either supply carries full load
Provides hard-wired alarm contacts for module, system, input-power, battery, and temperature events
Supports online replacement of one power module while the companion module remains in service

8312 installs with Tricon main, expansion, or RXM chassis, second redundant chassis power module, 185-285 VAC protected feeder, hard-wired alarm and protective-earth terminals in an engineered Tricon main, expansion, and RXM chassis power configuration.

The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 230 vac 175 w power module.

Important Notice: Confirm the complete 8312 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

Apter Power 8312 Manuals and Guides

Apter Power 8312 Product Technical Reference PDF Apter Power 8312 Installation and Verification PDF

The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.

Redundant Tricon main-chassis powerSupports redundant Tricon main-chassis power through the installed 230 vac 175 w power module in a configured Tricon system.

Expansion-chassis supply replacementUses 8312 for expansion-chassis supply replacement after the assigned host module, field interface and channel mapping are confirmed.

Remote RXM cabinet power conversionApplies the 8312 hardware arrangement to remote RXM cabinet power conversion with controlled wiring and signal verification.

Chassis power-alarm integrationProvides a defined engineering path for chassis power-alarm integration, including installation checks and final functional proof.

Read the applicable Triconex installation instructions before work. Verify 8312 and the installed Tricon main, expansion, and RXM chassis power configuration.

1Verify 8312 and the 230 VAC chassis position before touching the supply.

2Confirm the companion power module can carry the complete chassis load.

3Isolate the selected 185-285 VAC feeder and prove line, neutral, and earth terminals safe.

4Inspect the two-and-a-half-amp time-delay fuse and protected input terminals.

5Maintain the protective-earth conductor and hard-wired alarm-contact assignments.

6Use ESD controls and observe the approved online replacement sequence.

7Check 6.5 VDC regulation plus PASS, FAULT, ALARM, TEMP, and BAT LOW indications.

8Verify chassis diagnostics and alarm annunciation before restoring full redundancy.
