Technical specifications for 3000510-180

  • Manufacturer:
    Invensys
  • Product Category:
    DCS Systems
  • Spare Part Number:
    3000510-180
  • Estimated shipping dimensions:
    12.7x5.1x12.7cm
  • Weight:
    0.3 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • ETA assembly number:
    3000510-180
  • Termination model:
    9561-810
  • Panel type:
    Commoned
  • Nominal field voltage:
    115 V AC/VDC
  • Input points:
    16
  • Point protection:
    1 A slow fuse
  • Fuse indication:
    Blown-fuse indicator per point
  • Leakage current maximum:
    3.3 mA per point
  • Leakage current typical:
    2.5 mA per point
  • Compatible modules:
    3501E; 3501T
  • Points per module:
    32
  • Panels per module:
    2
  • Associated cable:
    4000093-110

Information

Overview Manuals Common Applications Product Precautions

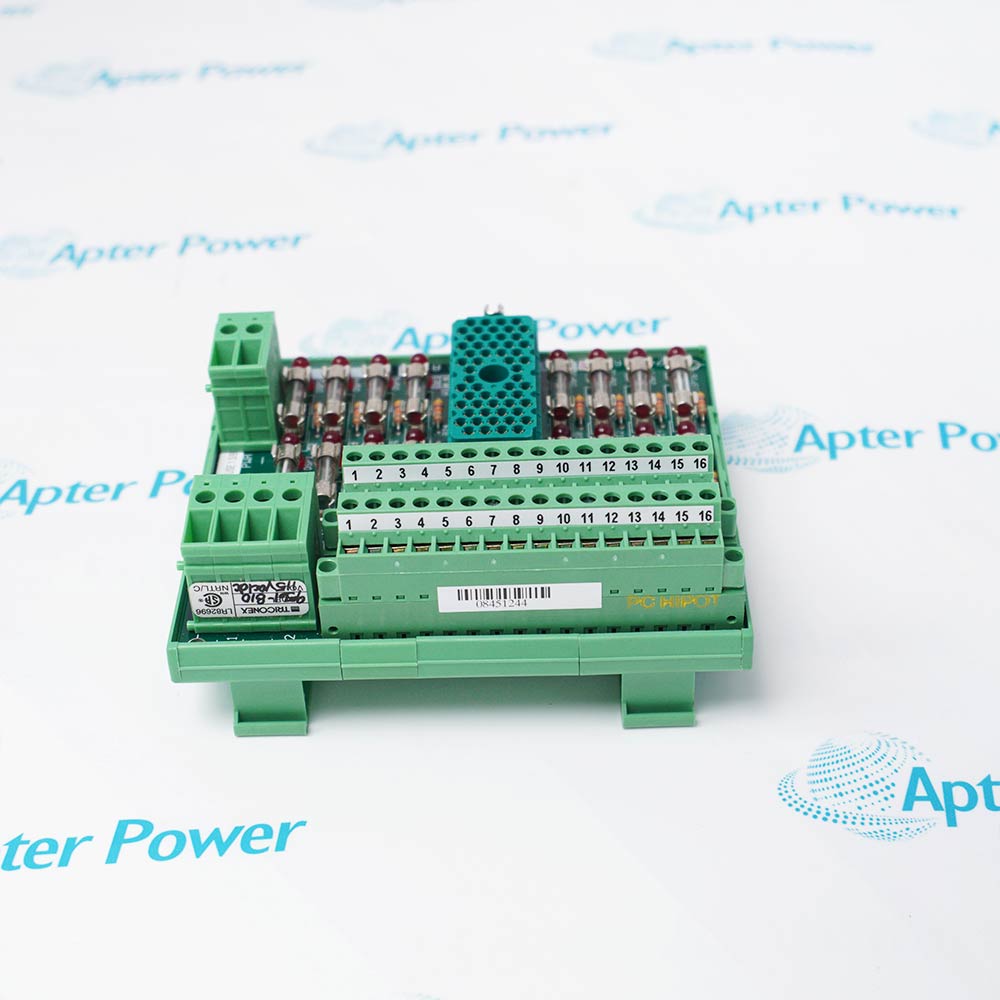

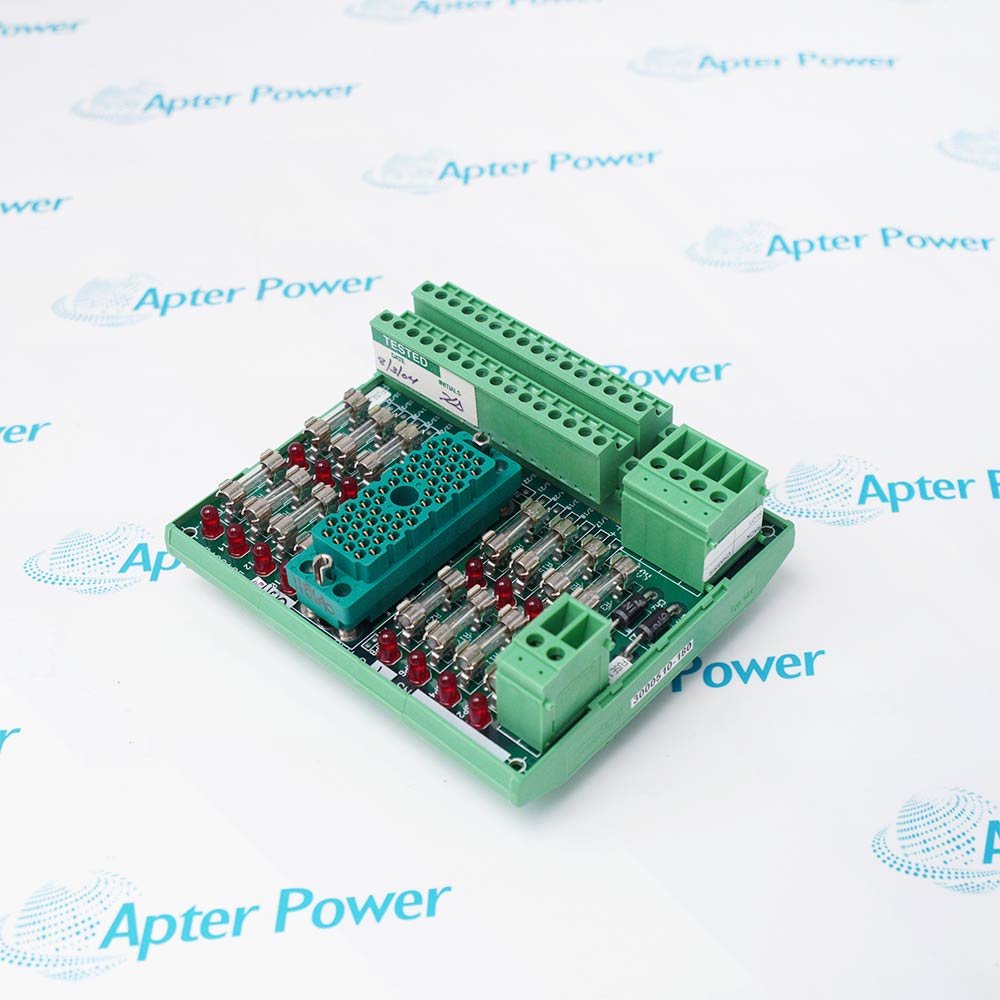

Triconex 3000510-180 is the ETA assembly number associated with the 9561-810 digital input termination panel. It connects fused 115 V AC/VDC field inputs to compatible Tricon modules.
  • Provides the external termination assembly identified with panel model 9561-810
  • Terminates sixteen commoned 115 V AC/VDC digital input circuits
  • Fuses each input and indicates an open point fuse
  • Pairs with two panels per thirty-two-point 3501E or 3501T input module

3000510-180 installs with 9561-810 termination panel, 3501E or 3501T digital-input module, 4000093-110 I/O cable, 115 V AC/VDC input circuits in an engineered Tricon v9-v10 field termination assembly configuration.

The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 9561-810 digital input eta assembly.

Important Notice: Confirm the complete 3000510-180 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

Apter Power 3000510-180 Manuals and Guides
Apter Power 3000510-180 Product Technical Reference PDFApter Power 3000510-180 Installation and Verification PDF
The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
115 V shutdown-permissive terminationSupports 115 V shutdown-permissive termination through the installed 9561-810 digital input eta assembly in a configured Tricon system.
Fused AC/DC field-state interfaceUses 3000510-180 for fused AC/DC field-state interface after the assigned host module, field interface and channel mapping are confirmed.
Thirty-two-point 3501 input split-panel wiringApplies the 3000510-180 hardware arrangement to thirty-two-point 3501 input split-panel wiring with controlled wiring and signal verification.
Legacy ETA identity verificationProvides a defined engineering path for legacy ETA identity verification, including installation checks and final functional proof.
Read the applicable Triconex installation instructions before work. Verify 3000510-180 and the installed Tricon v9-v10 field termination assembly configuration.
1Verify 3000510-180 and the 9561-810 panel marking before replacement.
2Isolate the 115 V AC/VDC field source and prove every input conductor safe.
3Record whether the panel carries channels 1-16 or 17-32.
4Use the documented one-amp slow fuse and inspect each blown-fuse indicator.
5Check field leakage against the connected input device and module threshold.
6Confirm the matching module is 3501E or 3501T and that two panels serve its thirty-two points.
7Seat cable 4000093-110 without stressing the ETA connector.
8Test each assigned state and related safety logic before returning the panel to service.

Technical notes

Verify both the 3000510-180 assembly number and 9561-810 panel marking, retain the correct half-module labels, and prove fuse indication plus field-state transfer after installation.

FAQ View All FAQ

  • What evidence should be retained after 3501E/3501T split-panel assignment testing on 3000510-180?
    Retain the full 3000510-180 identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.
  • Which installed hardware must be matched before fitting 3000510-180?
    Match 3000510-180 to 9561-810 termination panel and 3501E or 3501T digital-input module, then confirm the complete physical marking and assigned Tricon v9-v10 field termination assembly position.
  • How should an engineer verify 3000510-180 to 9561-810 identity for 3000510-180?
    Use the approved connection drawing and the model-specific values in Field Terminations Guide for Tricon v9-v10 Systems; preserve the as-found terminal, connector, polarity, shield, and channel identity.
  • What check is required for 115 V AC/VDC isolation when commissioning 3000510-180?
    Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.
  • Which installation error is most important to prevent on 3000510-180?
    Do not interchange 3000510-180 with an adjacent execution or alter its matched 9561-810 termination panel; the exact electrical, channel, and connector arrangement must be retained.
  • How is one-amp slow point fuses handled during a 3000510-180 replacement?
    Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.
  • Which diagnostics should be reviewed after installing 3000510-180?
    Review the applicable point, module, power, communication, or load indicators for 3000510-180, then confirm the intended role: provides the external termination assembly identified with panel model 9561-810.
  • Can 3000510-180 be substituted for a similar Triconex model without a configuration review?
    No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.
