How should an engineer verify 24/48 V TriStation selection for 3504E?

Use the approved connection drawing and the model-specific values in Tricon Systems Technical Product Guide; preserve the as-found terminal, connector, polarity, shield, and channel identity.

What check is required for voltage-matched ETP pairing when commissioning 3504E?

Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.

Which installation error is most important to prevent on 3504E?

Do not interchange 3504E with an adjacent execution or alter its matched Tricon I/O chassis; the exact electrical, channel, and connector arrangement must be retained.

How is sixty-four commoned input channels handled during a 3504E replacement?

Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.

Which diagnostics should be reviewed after installing 3504E?

Review the applicable point, module, power, communication, or load indicators for 3504E, then confirm the intended role: scans sixty-four commoned dc inputs through three independent channels.

Can 3504E be substituted for a similar Triconex model without a configuration review?

No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.

What evidence should be retained after stuck-transition self-test testing on 3504E?

Retain the full 3504E identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.

Which installed hardware must be matched before fitting 3504E?

Match 3504E to Tricon I/O chassis and voltage-matched external termination panel, then confirm the complete physical marking and assigned Tricon high-density digital input position.

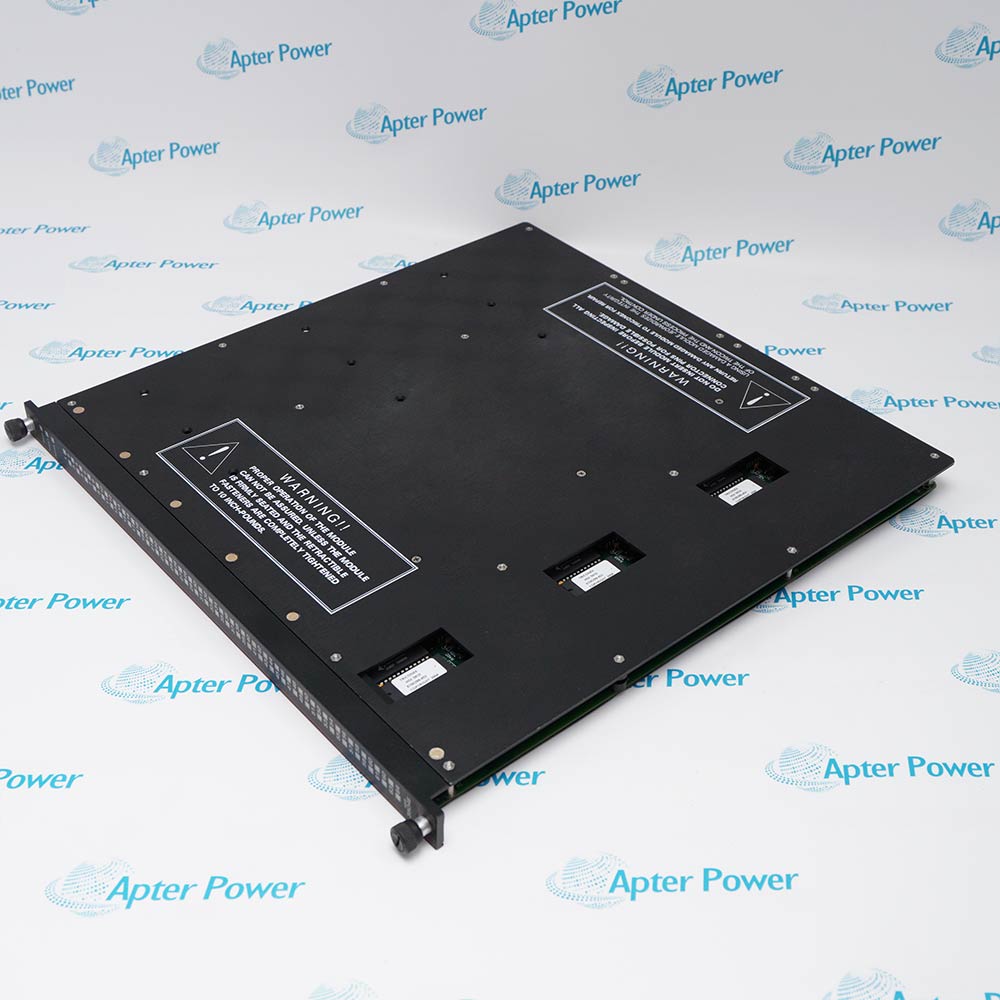

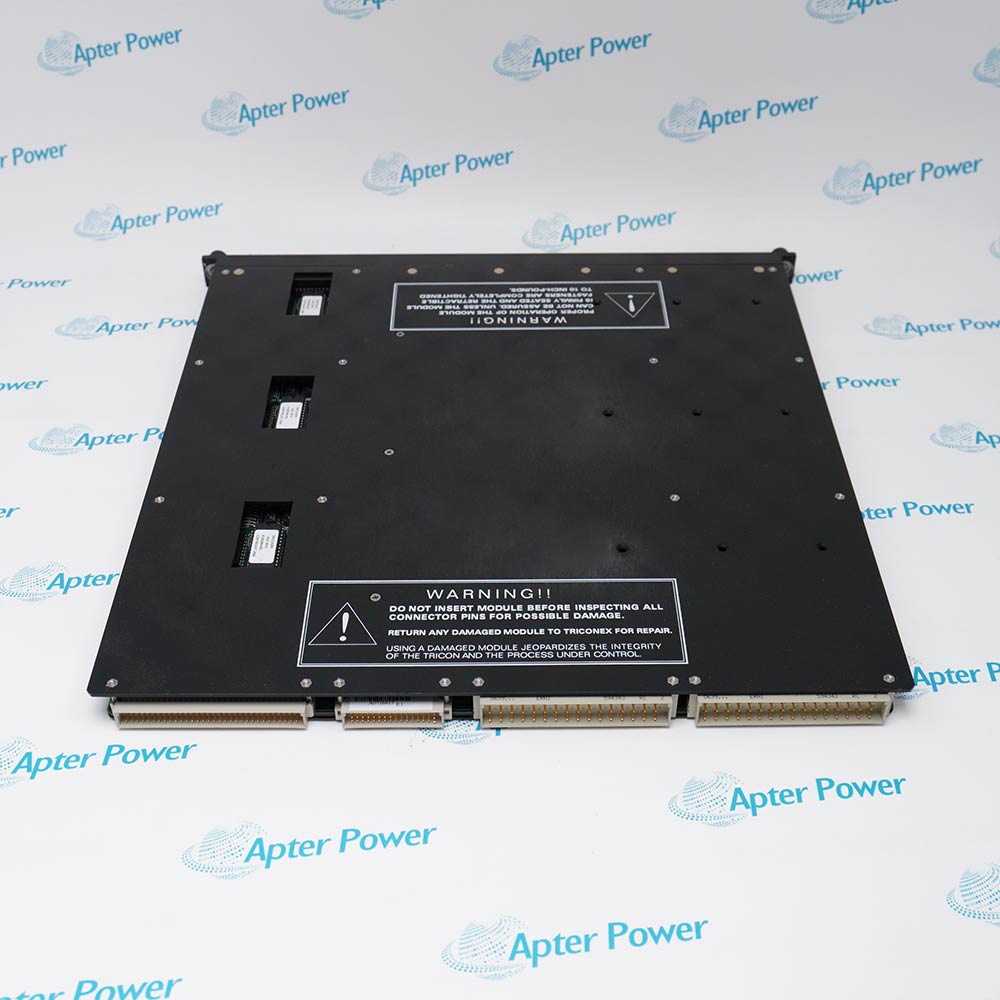

3504E | Triconex 64-Point 24/48 VDC Digital Input Module

Name: 3504E
Brand: Invensys
SKU: 3504E

Technical specifications for 3504E

Manufacturer:

Invensys

Product Category:

DCS System

Spare Part Number:

3504E

Estimated shipping dimensions:

49x45.3x6.8cm

Weight:

2.8 kg

Tariff Code:

8537101190

Counliy of origin:

USA

Module type:

TMR digital input

Input points:

64 commoned; DC coupled

Configured voltage:

24 VDC or 48 VDC

DC range:

20 to 72 VDC

Maximum voltage:

72 VDC

OFF-to-ON at 24 V:

>18 VDC

ON-to-OFF at 24 V:

<6 VDC

OFF-to-ON at 48 V:

>32 VDC

ON-to-OFF at 48 V:

<11 VDC

Typical hysteresis:

4 VDC / 7 VDC

Input delay:

<10 ms OFF-to-ON / ON-to-OFF

Nominal input impedance:

>30 kOhm

Field power per ON point:

Negligible

Input indicators:

1 per point

Module indicators:

PASS; FAULT; ACTIVE

24 V commoned panel:

9566-810

48 V commoned panel:

9565-810

24 V basic panel:

9750-310

48 V basic panel:

9750-410

Information

Overview Manuals Common Applications Product Precautions

Triconex 3504E is a high-density sixty-four-point TMR digital input module. It acquires commoned 24 or 48 VDC field states and transfers voted input data to the main processors.

Scans sixty-four commoned DC inputs through three independent channels
Votes input data at the main processors before control-program execution
Continuously tests the ability to detect transitions to the opposite state
Supports online hot-spare replacement through a separate termination panel

3504E installs with Tricon I/O chassis, voltage-matched external termination panel, 24 or 48 VDC field input circuits, hot-spare module position in an engineered Tricon high-density digital input configuration.

The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 64-point 24/48 vdc digital input module.

Important Notice: Confirm the complete 3504E marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

Apter Power 3504E Manuals and Guides

Apter Power 3504E Product Technical Reference PDF Apter Power 3504E Installation and Verification PDF

The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.

High-density shutdown permissive acquisitionSupports high-density shutdown permissive acquisition through the installed 64-point 24/48 vdc digital input module in a configured Tricon system.

Sixty-four-point machine interlock monitoringUses 3504E for sixty-four-point machine interlock monitoring after the assigned host module, field interface and channel mapping are confirmed.

24/48 VDC field-state migrationApplies the 3504E hardware arrangement to 24/48 VDC field-state migration with controlled wiring and signal verification.

Online spare-supported digital-input maintenanceProvides a defined engineering path for online spare-supported digital-input maintenance, including installation checks and final functional proof.

Read the applicable Triconex installation instructions before work. Verify 3504E and the installed Tricon high-density digital input configuration.

1Verify 3504E and the configured 24 or 48 V execution before module handling.

2Place affected safety functions in the approved maintenance condition.

3Isolate the field supply and record all sixty-four channel assignments.

4Match the external termination panel to the configured field voltage.

5Use ESD controls and confirm the module keying before insertion.

6Do not apply a threshold or panel selection from a 3503E or 3505E module.

7Exercise representative OFF-to-ON and ON-to-OFF transitions on all channel groups.

8Review point status, PASS/FAULT/ACTIVE, and hot-spare behavior before release.

FAQS

How should an engineer verify 24/48 V TriStation selection for 3504E?

Use the approved connection drawing and the model-specific values in Tricon Systems Technical Product Guide; preserve the as-found terminal, connector, polarity, shield, and channel identity.
What check is required for voltage-matched ETP pairing when commissioning 3504E?

Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.
Which installation error is most important to prevent on 3504E?

Do not interchange 3504E with an adjacent execution or alter its matched Tricon I/O chassis; the exact electrical, channel, and connector arrangement must be retained.
How is sixty-four commoned input channels handled during a 3504E replacement?

Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.
Which diagnostics should be reviewed after installing 3504E?

Review the applicable point, module, power, communication, or load indicators for 3504E, then confirm the intended role: scans sixty-four commoned dc inputs through three independent channels.
Can 3504E be substituted for a similar Triconex model without a configuration review?

No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.
What evidence should be retained after stuck-transition self-test testing on 3504E?

Retain the full 3504E identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.
Which installed hardware must be matched before fitting 3504E?

Match 3504E to Tricon I/O chassis and voltage-matched external termination panel, then confirm the complete physical marking and assigned Tricon high-density digital input position.
