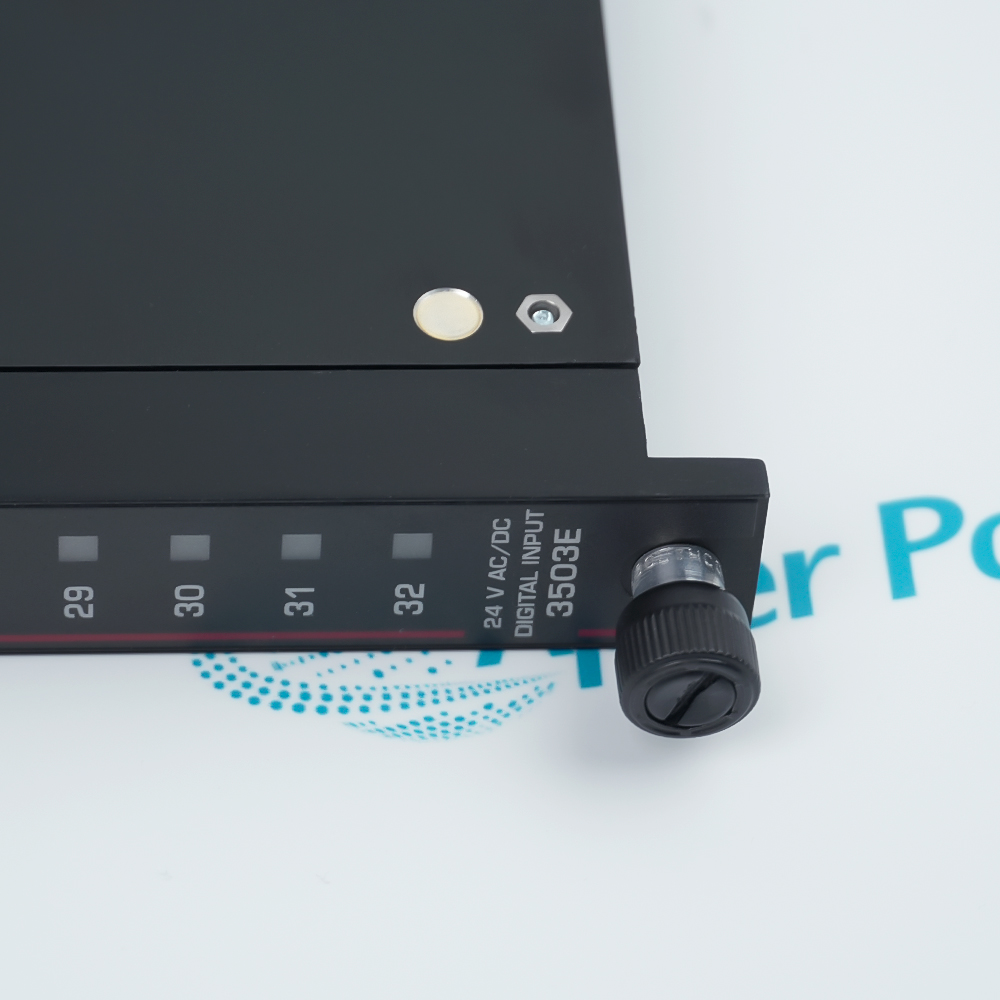

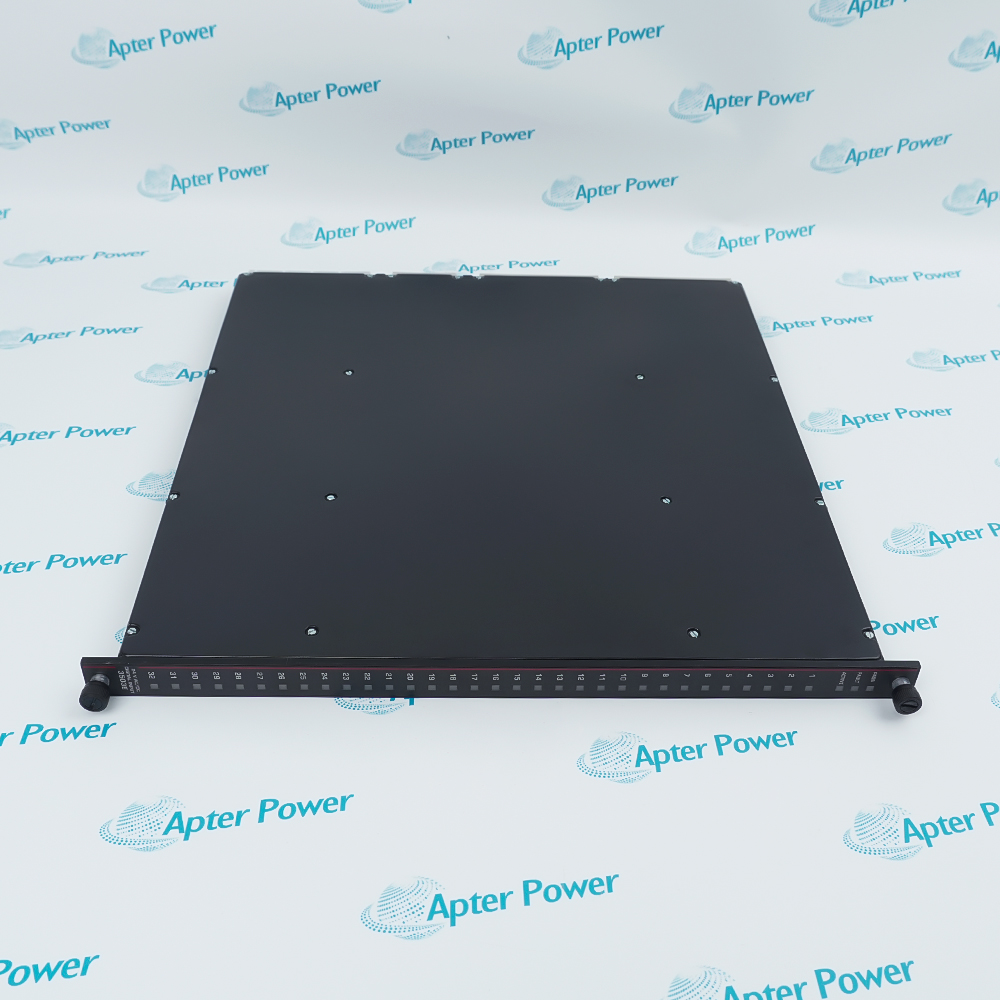

      TRICONEX 3503E

      TMR Digital Input Module
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      TMR Digital Input Module
      DI, 24 VAC/VDC, 32 pts.
      24 VAC/VDC, commoned in
      groups of 8, TMR with self-test
      Provides 32 independent
      discrete digital input points

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for TRICONEX 3503E
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for TRICONEX 3503E

      • Manufacturer:
        Invensys
      • Product Category:
        DCS Systems
      • Spare Part Number:
        TRICONEX 3503E
      • Estimated shipping dimensions:
        1x40.6x39.8cm
      • Weight:
        2.62 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Nominal Input Voltage:
        24 VDC or 24 VAC
      • Input Frequency Range:
        Accommodates an input signal frequency range from DC up to 47.63 Hz
      • Recommended Input Range:
        20 to 42.5 VDC
      • Operating Temperature:
        -40°C to +70°C
      • Operating Range:
        20 to 42.5 VAC / VDC
      • Max Voltage:
        42.5 VAC / VDC
      • Storage Temperature:
        -40°C to +85°C
      • Relative Humidity:
        5% to 95% Non-condensing
      • Safety Compliance:
        IEC 61508 SIL 3 Certified
      Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      The TRICONEX 3503E is a triple-modular redundant digital input module from Schneider Electric's Triconex series. It is one of the core hardware components in safety instrumented systems and emergency shutdown systems in high-risk industrial applications.
        • Triple Modular Redundancy
        • 32 Highly Isolated Channels
        • Supports full online hot-swapping capability
      Certified by TÜV Rheinland to fully comply with the stringent SIL 3 safety standards of IEC 61508, the TRICONEX 3503E is widely deployed across high-risk process industries worldwide, including Emergency Shutdown (ESD) systems, Fire and Gas (F&G) monitoring, and hazardous chemical management. Operating at a nominal 24 VDC, the module features comprehensive online self-diagnostics that actively identify hidden loop faults and stuck-on conditions. Furthermore, its support for full online hot-swapping—combined with seamless integration via dedicated External Termination Panels (ETPs) and TriStation configuration software—empowers site engineers to conduct routine maintenance effortlessly without halting production, drastically reducing the plant’s total cost of ownership and operational complexity over its lifecycle.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
       Invensys TRICONEX 3503E TMR Digital Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Oil & Gas
      Used in Emergency Shutdown (ESD) systems on offshore drilling platforms and onshore oilfields to monitor wellhead pressure switches, level switches, and Surface Safety Valves (SSVs) to prevent blowouts.

      Petroleum Refining
      Deployed in high-risk core units like hydrocrackers and catalytic crackers to collect reactor temperature and pressure alarm switch signals, instantly triggering safety interlocks if process limits are exceeded.

      Nuclear Power
      Applied in Nuclear Reactor Protection Systems (RPS) and engineered safety features systems to reliably collect critical switch signals such as reactor coolant pressure and water levels, ensuring absolute fault-tolerant control.

      Thermal Power
      Integrated into Burner Management Systems (BMS) for boilers to collect digital signals like ignition feedback, low fuel pressure, and furnace flame-out detectors in real time to prevent boiler explosions.

      Iron, Steel & Metallurgy
      Deployed in blast furnace and converter cooling water monitoring and gas recovery systems to collect key valve position feedback and fault switch signals, preventing gas poisoning and explosions.

       When using the TRICONEX 3503E module, ensure it is inserted vertically into the dedicated Tricon chassis with locking fasteners fully secured. All field 24 VDC switch signal wires must be routed through the matching External Termination Panel (ETP), with strict grounding protection implemented to eliminate electrical surges. Although the module supports online hot-swapping, it is crucial to verify the diagnostic error codes via TriStation 1131 software and ensure at least one redundant channel is healthy before performing a replacement, preventing any accidental system trips during operation.
