Technical specifications for 4000103-510

  • Manufacturer:
    Invensys
  • Product Category:
    DCS Systems
  • Spare Part Number:
    4000103-510
  • Estimated shipping dimensions:
    34x24x6cm
  • Weight:
    1.4 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Cable assembly number:
    4000103-510
  • Minimum bend radius:
    6.25 in (15.875 cm)
  • Pulse panel:
    9753-110
  • Current-input panels:
    9761-210; 9761-410; 9762-210; 9762-410
  • Analog-input panels:
    9763-810; 9764-310; 9765-610; 9766-210; 9766-510
  • User-configurable panel:
    9771-210
  • Additional panel:
    9792-610

Information

Overview Manuals Common Applications Product Precautions

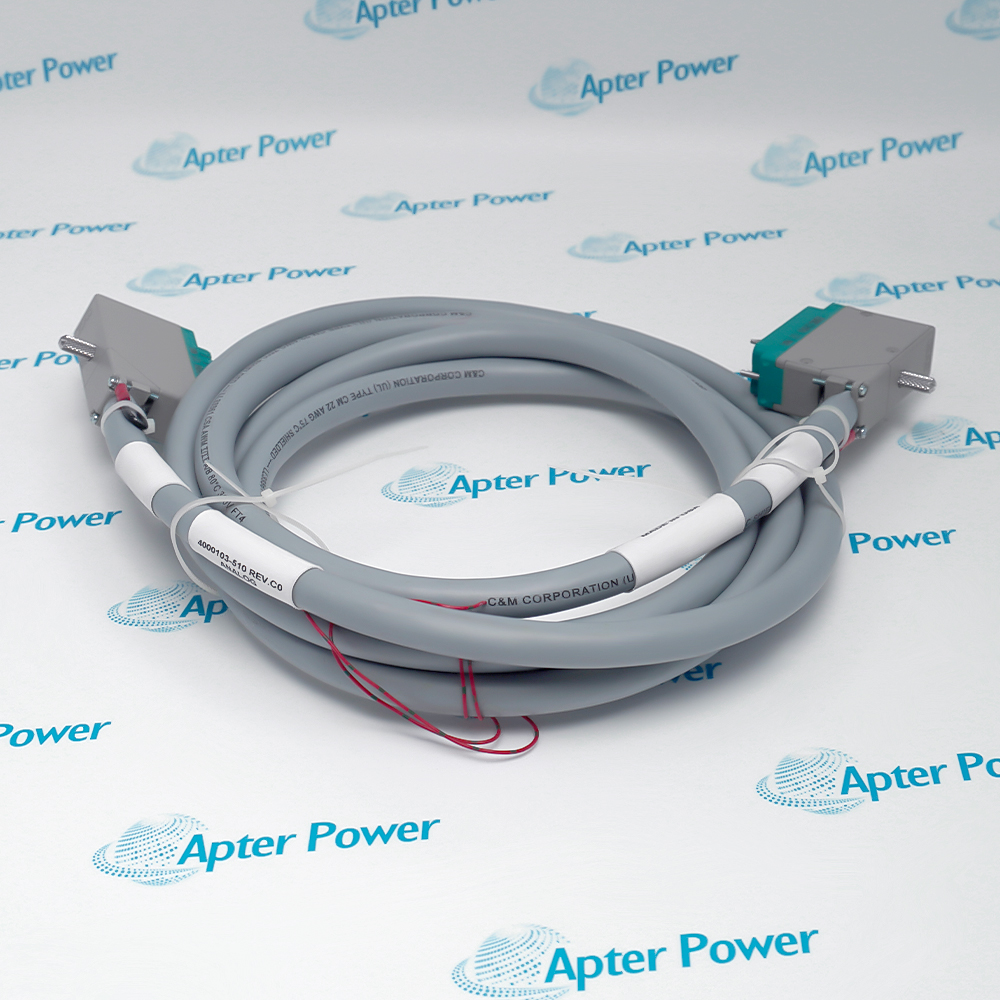

Triconex 4000103-510 is an I/O cable assembly for listed pulse and analog termination panels. It carries field-interface signals between the external panel and Tricon backplane.
  • Connects listed analog or pulse termination panels to the Tricon I/O backplane
  • Carries the complete panel channel set through the keyed cable interface
  • Maintains a documented bend-radius requirement through cabinet routing
  • Provides the cable identity used in the official panel-to-assembly cross-reference

4000103-510 installs with 9753-110 pulse panel, 9761/9762 current-input panels, 9763/9764/9765/9766 analog-input panels, 9771-210 user-configurable current-input panel in an engineered Tricon external termination cabling configuration.

The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this analog/pulse i/o cable assembly.

Important Notice: Confirm the complete 4000103-510 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

Apter Power 4000103-510 Manuals and Guides
Apter Power 4000103-510 Product Technical Reference PDFApter Power 4000103-510 Installation and Verification PDF
The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Pulse-panel backplane connectionSupports pulse-panel backplane connection through the installed analog/pulse i/o cable assembly in a configured Tricon system.
Analog current-input termination cablingUses 4000103-510 for analog current-input termination cabling after the assigned host module, field interface and channel mapping are confirmed.
User-configurable transmitter-panel integrationApplies the 4000103-510 hardware arrangement to user-configurable transmitter-panel integration with controlled wiring and signal verification.
Cabinet cable replacement with bend controlProvides a defined engineering path for cabinet cable replacement with bend control, including installation checks and final functional proof.
Read the applicable Triconex installation instructions before work. Verify 4000103-510 and the installed Tricon external termination cabling configuration.

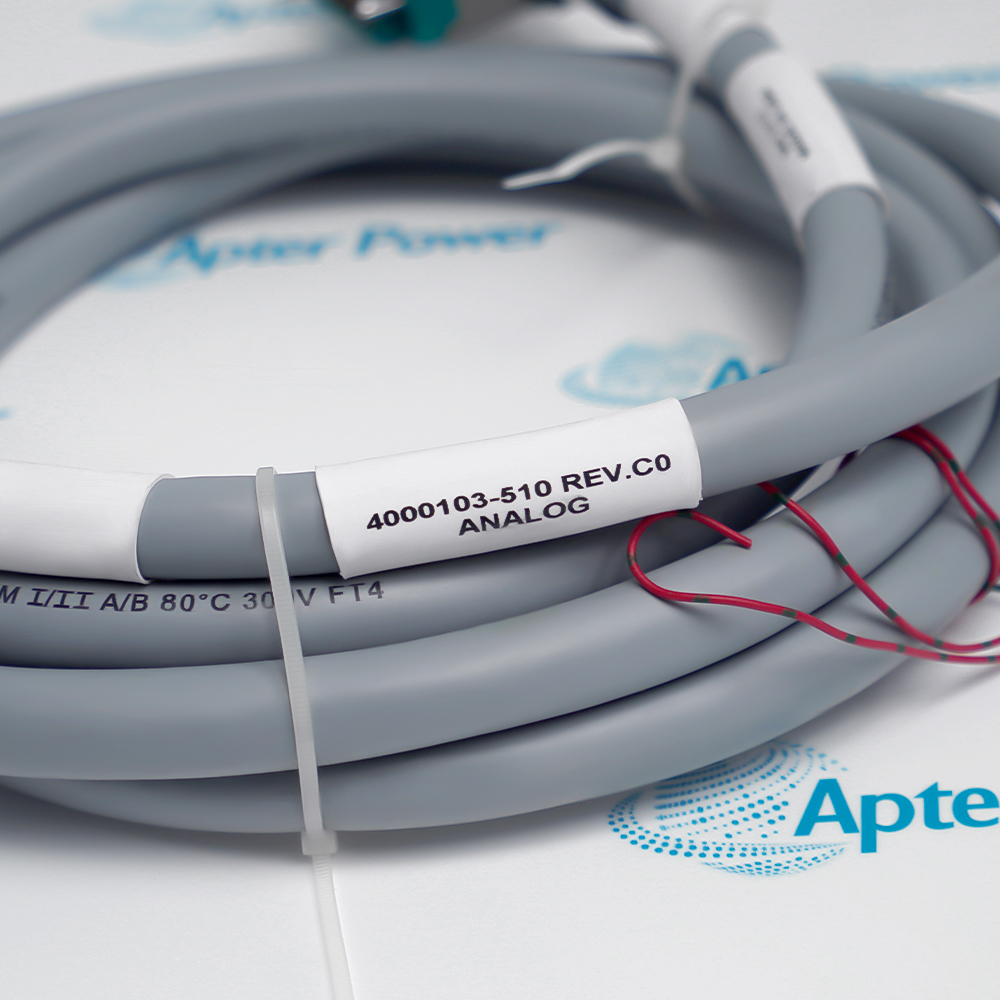

1Verify the complete 4000103-510 cable label at both cabinet ends.
2Place all connected analog or pulse channels in the approved maintenance state.
3Isolate field and chassis energy before releasing either connector.
4Record panel model, module slot, connector orientation, and channel range.
5Maintain a bend radius of at least 6.25 inches throughout the final route.
6Do not pair the cable with a panel absent from the official cross-reference.
7Check pin continuity, connector retention, shielding, and channel identity after routing.
8Prove representative signal values at the controller before returning the cable to service.

Technical notes

Match both cable ends to the approved panel and module, maintain at least the documented bend radius, and perform continuity plus channel-identity checks before reconnecting live field circuits.

FAQ View All FAQ

  • Which diagnostics should be reviewed after installing 4000103-510?
    Review the applicable point, module, power, communication, or load indicators for 4000103-510, then confirm the intended role: connects listed analog or pulse termination panels to the tricon i/o backplane.
  • Can 4000103-510 be substituted for a similar Triconex model without a configuration review?
    No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.
  • What evidence should be retained after analog versus pulse panel matching testing on 4000103-510?
    Retain the full 4000103-510 identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.
  • Which installed hardware must be matched before fitting 4000103-510?
    Match 4000103-510 to 9753-110 pulse panel and 9761/9762 current-input panels, then confirm the complete physical marking and assigned Tricon external termination cabling position.
  • How should an engineer verify official panel cross-reference for 4000103-510?
    Use the approved connection drawing and the model-specific values in Field Terminations Guide for Tricon v9-v10 Systems; preserve the as-found terminal, connector, polarity, shield, and channel identity.
  • What check is required for 6.25-inch bend radius when commissioning 4000103-510?
    Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.
  • Which installation error is most important to prevent on 4000103-510?
    Do not interchange 4000103-510 with an adjacent execution or alter its matched 9753-110 pulse panel; the exact electrical, channel, and connector arrangement must be retained.
  • How is end-to-end channel identity handled during a 4000103-510 replacement?
    Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.
