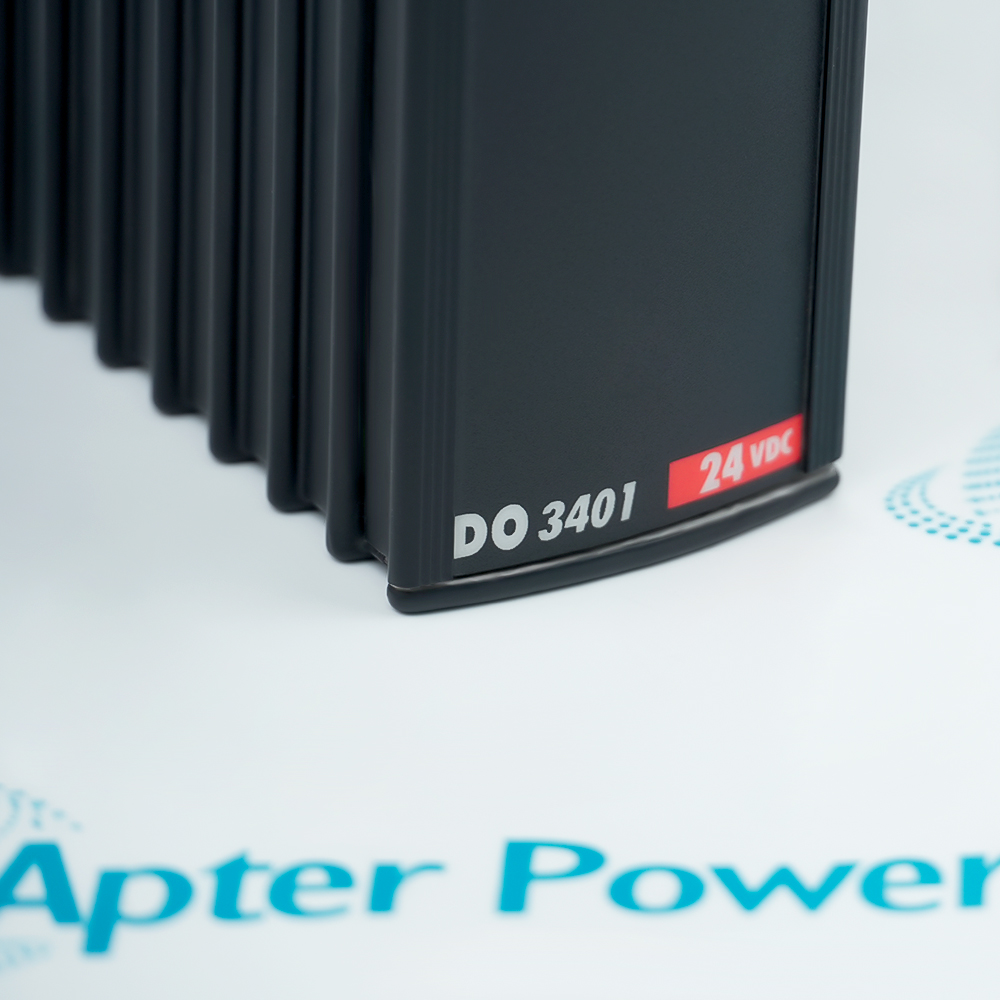

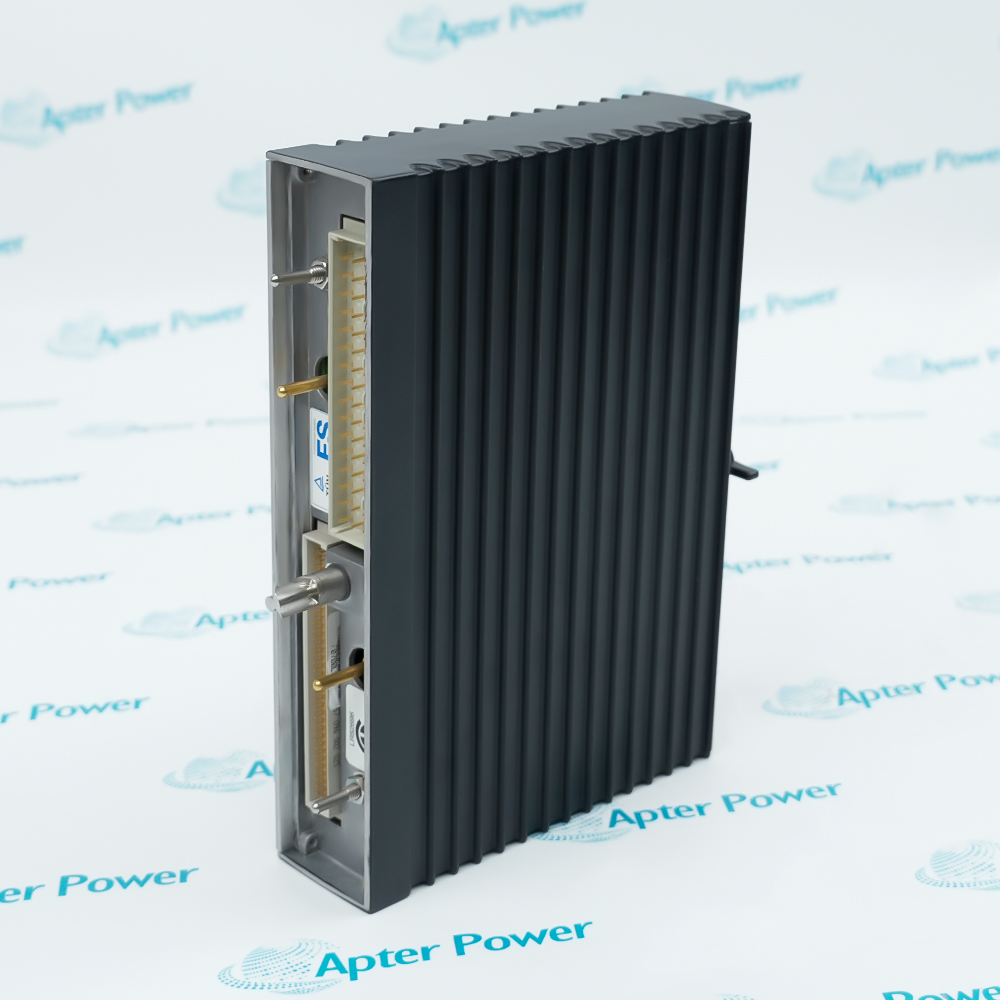

The DO3401 is a 24 VDC digital output module with a Triple Modular Redundant architecture and three isolated microprocessor channels. It executes hardware 2-out-of-3 voting for signal outputs to maintain field device operations during a single-point failure.
SIL 3 Rated: Complies with high industrial safety ratings for emergency shutdown
Allows online module replacement without interrupting safety processes
Integrates continuous diagnostics with channel self-limiting short-circuit protection
DO3401 is certified for stringent SIL 3 safety applications. Each output channel integrates self-limiting current and overload protection, with a maximum reverse voltage tolerance of -0.6 VDC and a channel limit near 5A. This design ensures that neither the module nor the upper control system is damaged during field actuator short-circuits or electrical ground faults.
The Digital Output (DO) Module contains the circuitry for three identical, isolated channels. Each channel includes a proprietary ASIC which receives its output table from the I⁄O communication processor on its corresponding main processor. DO Modules use special quad output circuitry to vote on the individual output signals just before they are applied to the load.
This voter circuitry is based on parallel series paths which pass power if the drivers for channels A and B, or channels B and C, or channels A and C command them to close; in other words, two out of three drivers are voted on. The quad output circuitry provides multiple redundancy for all critical signal paths, guaranteeing safety and maximum availability.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Triconex DO3401 Digital Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas Extraction
Controls solenoid valves of surface safety valves (SSV) to shut off oil and gas flow during pressure anomalies.
Petrochemical Refining
Drives emergency vent valves of hydrocracking reactors to trigger pressure relief circuits during overtemperature and overpressure.
Thermal Power Plants
Controls main fuel trip (MFT) valves for gas or oil in boiler rooms to cut off fuel supply under critical conditions.
Nuclear Power Generation
Drives control rod drop electromagnets in reactor protection systems (RPS) to execute reactor trips during interlock triggers.
Coal Chemical Industry
Controls oxygen and coal slurry shut-off valves of gasifiers to terminate gasification reactions during oxygen-to-coal ratio imbalances.
Oil and Gas Pipelines
Drives station isolation valves at intermediate pump stations along long-distance pipelines to block pipelines during ruptures.
When using the DO3401 module, keep the external power supply within the 15 to 30 VDC range, and limit the single-channel load current below the threshold to prevent channel overload protection. Replace the module online during a single-point fault without power interruption. Check the self-diagnostic reports via system software to verify that the quad voting circuitry maintains redundancy.
