How should an engineer verify 9853-610 current-output termination for 3805E?

Use the approved connection drawing and the model-specific values in Tricon Systems Technical Product Guide; preserve the as-found terminal, connector, polarity, shield, and channel identity.

What check is required for loop-power and load-resistance pairing when commissioning 3805E?

Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.

Which installation error is most important to prevent on 3805E?

Do not interchange 3805E with an adjacent execution or alter its matched 9853-610 or 9861-610 termination panel; the exact electrical, channel, and connector arrangement must be retained.

How is LOAD diagnostic investigation handled during a 3805E replacement?

Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.

Which diagnostics should be reviewed after installing 3805E?

Review the applicable point, module, power, communication, or load indicators for 3805E, then confirm the intended role: votes three internal channels and selects a healthy channel to drive eight current loops.

Can 3805E be substituted for a similar Triconex model without a configuration review?

No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.

What evidence should be retained after hot-spare current-loop commissioning testing on 3805E?

Retain the full 3805E identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.

Which installed hardware must be matched before fitting 3805E?

Match 3805E to 9853-610 or 9861-610 termination panel and 24-42.5 VDC loop-power source, then confirm the complete physical marking and assigned Tricon v9-v10 analog output position.

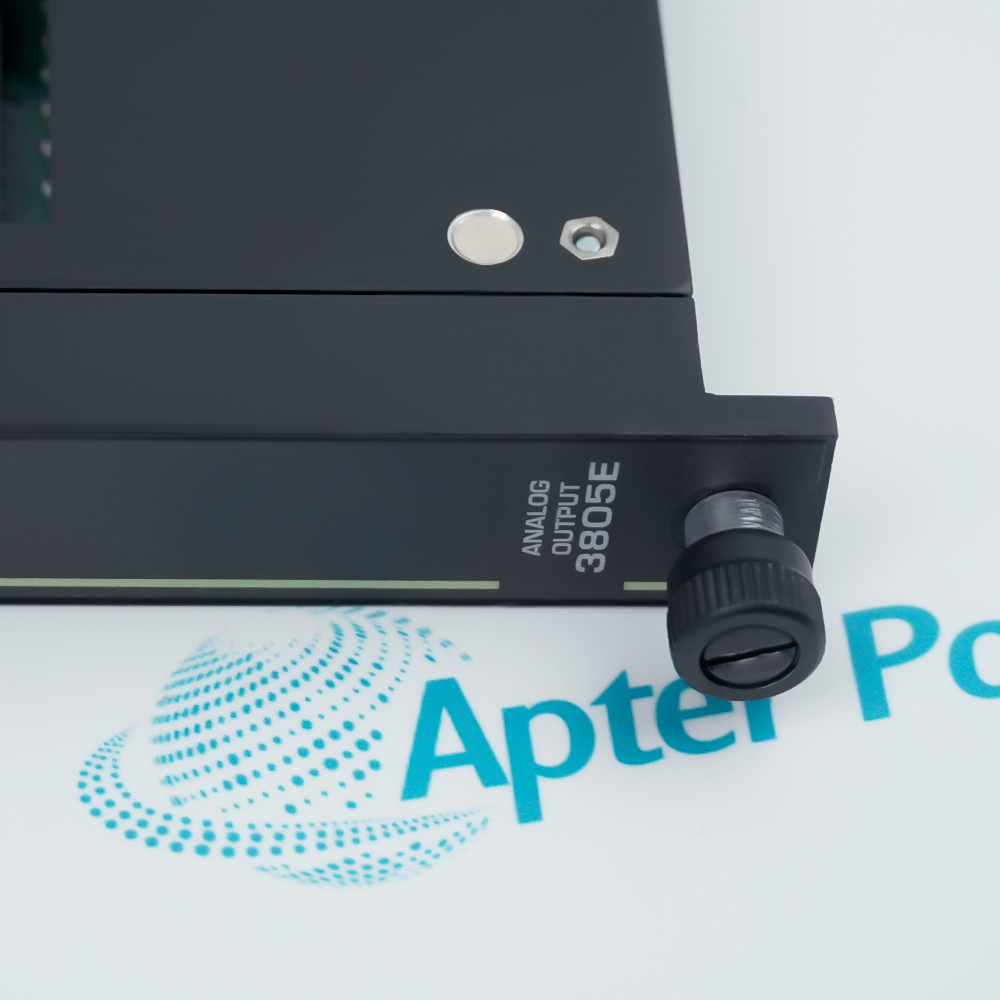

3805E | Triconex Eight-Point 4-20 mA Analog Output Module

Name: 3805E
Brand: Invensys
SKU: 3805E

3805E

Eight-Point 4-20 mA Analog Output Module

In Stock

Ships by Tuesday, September 22

Fast Shipping Available

Technical specifications for 3805E

Manufacturer:

Invensys

Product Category:

DCS System

Spare Part Number:

3805E

Estimated shipping dimensions:

2.1x40.6x40cm

Weight:

2.16 kg

Tariff Code:

8537101190

Counliy of origin:

USA

Module type:

TMR analog output

Output points:

Output current:

4 to 20 mA (+6% overrange)

Return arrangement:

Commoned return; DC coupled

Resolution:

12 bit

Output accuracy:

<0.25% FSR, 0 to 60 degC

External loop power:

24 VDC nominal; 42.5 VDC maximum

Loop-power current:

1 A minimum

Load at >20 VDC:

250 Ohm

Load at >25 VDC:

500 Ohm

Load at >30 VDC:

750 Ohm

Load at >35 VDC:

1000 Ohm

Overrange protection:

+42.5 VDC continuous

Leg-failure switch time:

<10 ms typical

Indicators:

PASS; FAULT; ACTIVE; LOAD; PWR1; PWR2

Compatible basic panel:

9853-610

Compatible nonincendive panel:

9861-610

Information

Overview Manuals Common Applications Product Precautions

Triconex 3805E is an eight-point TMR analog output module. It generates voted 4-20 mA commands for field control loops and supervises output-current integrity.

Votes three internal channels and selects a healthy channel to drive eight current loops
Monitors each current output with loopback diagnostics independent of the field load
Supports redundant external loop-power sources with PWR1 and PWR2 indication
Reports open-loop conditions through the module LOAD diagnostic

3805E installs with 9853-610 or 9861-610 termination panel, 24-42.5 VDC loop-power source, Tricon main and I/O chassis, 4-20 mA field loads in an engineered Tricon v9-v10 analog output configuration.

The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this eight-point 4-20 ma analog output module.

Important Notice: Confirm the complete 3805E marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

Apter Power 3805E Manuals and Guides

Apter Power 3805E Product Technical Reference PDF Apter Power 3805E Installation and Verification PDF

The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.

Safety-related control-valve command loopsSupports safety-related control-valve command loops through the installed eight-point 4-20 ma analog output module in a configured Tricon system.

Voted analog setpoint deliveryUses 3805E for voted analog setpoint delivery after the assigned host module, field interface and channel mapping are confirmed.

Redundant loop-power output cabinetsApplies the 3805E hardware arrangement to redundant loop-power output cabinets with controlled wiring and signal verification.

Online hot-spare analog-output maintenanceProvides a defined engineering path for online hot-spare analog-output maintenance, including installation checks and final functional proof.

Read the applicable Triconex installation instructions before work. Verify 3805E and the installed Tricon v9-v10 analog output configuration.

1Verify 3805E and the assigned analog-output slot before removing the module.

2Place every connected final element in its approved safe maintenance condition.

3Isolate both external loop-power sources and record PWR1/PWR2 polarity.

4Confirm the field load and loop voltage remain inside the published operating table.

5Keep the commoned return and termination-panel wiring unchanged during replacement.

6Use ESD controls and inspect the keyed module and backplane connectors.

7Command several current points across the operating range and compare measured loop current.

8Clear LOAD or FAULT indications and prove the intended process response before service.

FAQS

How should an engineer verify 9853-610 current-output termination for 3805E?

Use the approved connection drawing and the model-specific values in Tricon Systems Technical Product Guide; preserve the as-found terminal, connector, polarity, shield, and channel identity.
What check is required for loop-power and load-resistance pairing when commissioning 3805E?

Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.
Which installation error is most important to prevent on 3805E?

Do not interchange 3805E with an adjacent execution or alter its matched 9853-610 or 9861-610 termination panel; the exact electrical, channel, and connector arrangement must be retained.
How is LOAD diagnostic investigation handled during a 3805E replacement?

Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.
Which diagnostics should be reviewed after installing 3805E?

Review the applicable point, module, power, communication, or load indicators for 3805E, then confirm the intended role: votes three internal channels and selects a healthy channel to drive eight current loops.
Can 3805E be substituted for a similar Triconex model without a configuration review?

No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.
What evidence should be retained after hot-spare current-loop commissioning testing on 3805E?

Retain the full 3805E identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.
Which installed hardware must be matched before fitting 3805E?

Match 3805E to 9853-610 or 9861-610 termination panel and 24-42.5 VDC loop-power source, then confirm the complete physical marking and assigned Tricon v9-v10 analog output position.
