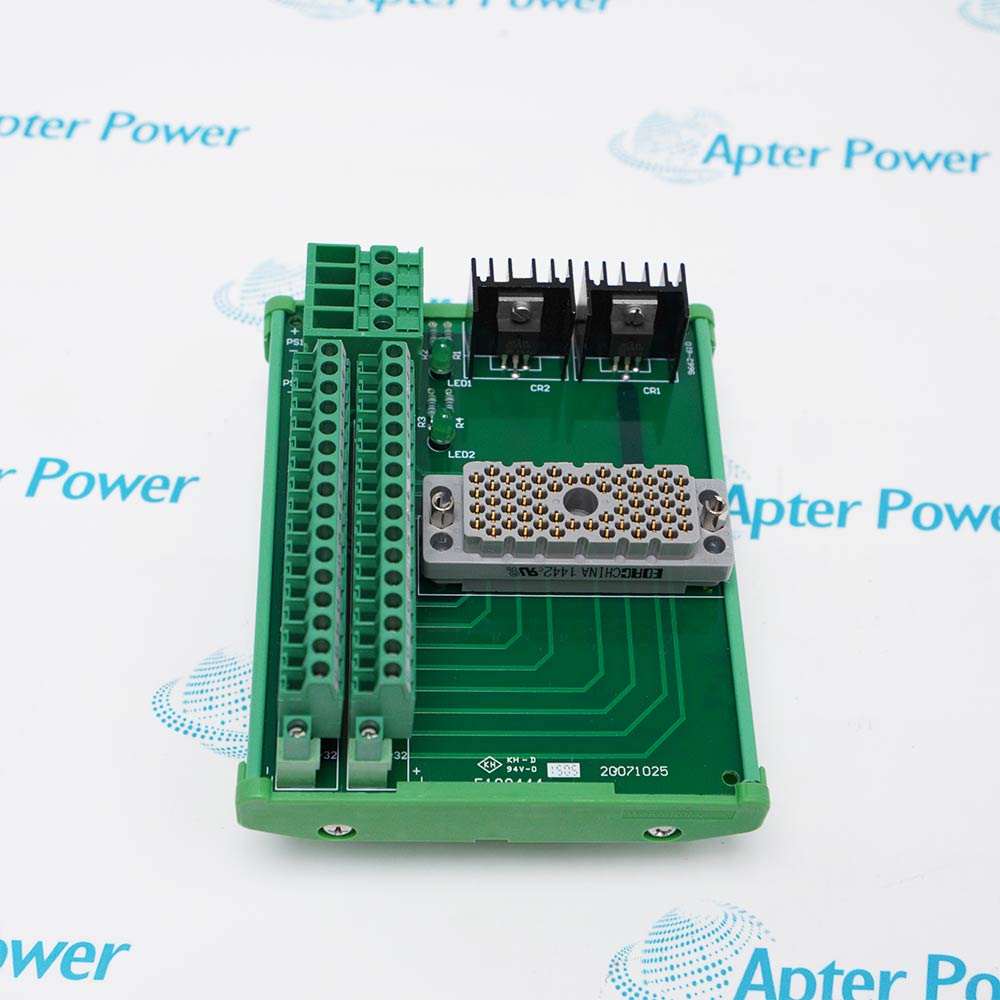

      Invensys 9662-610
      Invensys 9662-610
      Invensys 9662-610
      Invensys 9662-610
      Invensys 9662-610
      Invensys 9662-610
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      9662-610

      16-Point 24 VDC Digital Output Termination Panel
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      Triconex 9662-610 is a commoned sixteen-point 24 VDC digital output termination panel. It connects self-protected Tricon output modules to field loads.

      Ask our team:

      Get a quick price for： 9662-610
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 9662-610

      Technical specifications for 9662-610

      • Manufacturer:
        Invensys
      • Product Category:
        DCS System
      • Spare Part Number:
        3000520-390 , 7400166-390
      • Estimated shipping dimensions:
        15x11.8x8.3cm
      • Weight:
        0.4 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Panel type:
        Commoned
      • Nominal field voltage:
        24 VDC
      • Load terminals:
        16
      • Power terminals:
        Commoned PWR+ / PWR-
      • Maximum total current:
        16 A
      • Total current with 3625:
        10 A maximum per panel
      • Compatible TMR modules:
        3624; 3625
      • Compatible dual modules:
        3664; 3674
      • 3624 points:
        16
      • 3625 / 3664 / 3674 points:
        32
      • Protection requirement:
        Self-protected modules only
      • Panel length:
        5 in (12.7 cm)
      • Panel height:
        4.25 in (10.795 cm)
      • ETA number:
        3000520-390
      • Associated cable:
        4000094-310
      • Panel width:
        4.5 in (11.43 cm)
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Triconex 9662-610 is a commoned sixteen-point 24 VDC digital output termination panel. It connects self-protected Tricon output modules to field loads.
      • Terminates sixteen 24 VDC sourced digital-output load circuits
      • Commons the PWR+ and PWR- field-supply terminals across the panel
      • Supports selected self-protected TMR and dual digital-output modules
      • Provides the numbered field interface for one half of a thirty-two-point module

      9662-610 installs with 3624 or 3625 TMR digital-output module, 3664 or 3674 dual digital-output module, 4000094-310 I/O cable, 24 VDC load supply and protected field loads in an engineered Tricon v9-v10 digital output termination configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 16-point 24 vdc digital output termination panel.

      Important Notice: Confirm the complete 9662-610 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 9662-610 Manuals and Guides
      Apter Power 9662-610 Product Technical Reference PDFApter Power 9662-610 Installation and Verification PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Commoned solenoid-output terminationSupports commoned solenoid-output termination through the installed 16-point 24 vdc digital output termination panel in a configured Tricon system.
      Thirty-two-point module split-panel wiringUses 9662-610 for thirty-two-point module split-panel wiring after the assigned host module, field interface and channel mapping are confirmed.
      Dual digital-output field interfaceApplies the 9662-610 hardware arrangement to dual digital-output field interface with controlled wiring and signal verification.
      Low-density DO upgrade-panel integrationProvides a defined engineering path for low-density DO upgrade-panel integration, including installation checks and final functional proof.
      Read the applicable Triconex installation instructions before work. Verify 9662-610 and the installed Tricon v9-v10 digital output termination configuration.
      1Verify the 9662-610 panel label and module pairing before disconnecting any load.
      2Isolate commoned 24 VDC power and prove the field loads de-energized.
      3For a thirty-two-point module, identify whether the panel carries channels 1-16 or 17-32.
      4Do not use 9662-610 with a digital-output module that is not self-protected.
      5Keep total panel current within sixteen amperes and within ten amperes when paired with 3625.
      6Install the documented load or test resistor on supervised unused points.
      7Inspect the 4000094-310 cable and its backplane connector before energization.
      8Exercise each output and confirm commanded state, load current, and module diagnostics.

      Technical notes

      Technical notes

      Use 9662-610 only with the listed self-protected modules, observe the panel current limit, and install the required supervised-point load before validating LOAD/FUSE diagnostics.

      FAQS

      • What check is required for self-protected module compatibility when commissioning 9662-610?
        Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.
      • Which installation error is most important to prevent on 9662-610?
        Do not interchange 9662-610 with an adjacent execution or alter its matched 3624 or 3625 TMR digital-output module; the exact electrical, channel, and connector arrangement must be retained.
      • How is supervised unused-point loading handled during a 9662-610 replacement?
        Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.
      • Which diagnostics should be reviewed after installing 9662-610?
        Review the applicable point, module, power, communication, or load indicators for 9662-610, then confirm the intended role: terminates sixteen 24 vdc sourced digital-output load circuits.
      • Can 9662-610 be substituted for a similar Triconex model without a configuration review?
        No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.
      • Which installed hardware must be matched before fitting 9662-610?
        Match 9662-610 to 3624 or 3625 TMR digital-output module and 3664 or 3674 dual digital-output module, then confirm the complete physical marking and assigned Tricon v9-v10 digital output termination position.
      • How should an engineer verify 3625 ten-amp panel limit for 9662-610?
        Use the approved connection drawing and the model-specific values in Field Terminations Guide for Tricon v9-v10 Systems; preserve the as-found terminal, connector, polarity, shield, and channel identity.
      • What evidence should be retained after 1-16 versus 17-32 channel labeling testing on 9662-610?
        Retain the full 9662-610 identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.
