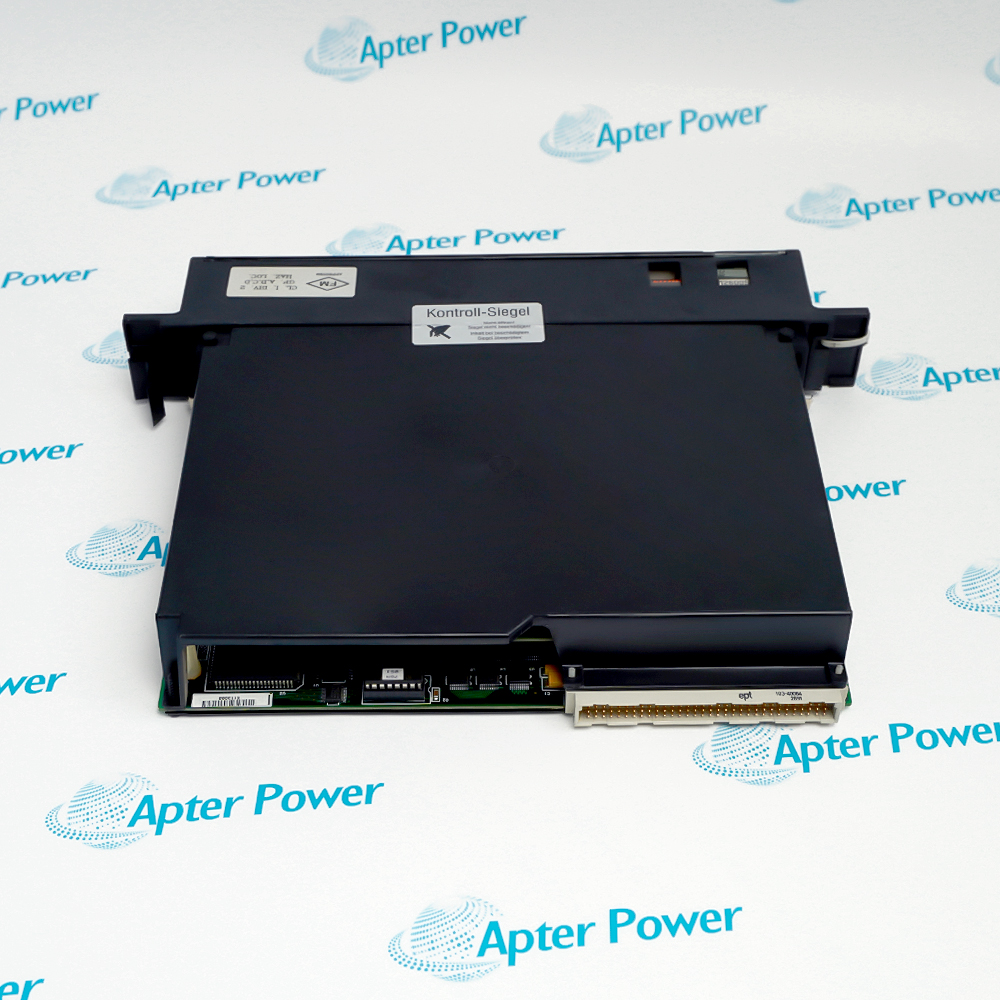

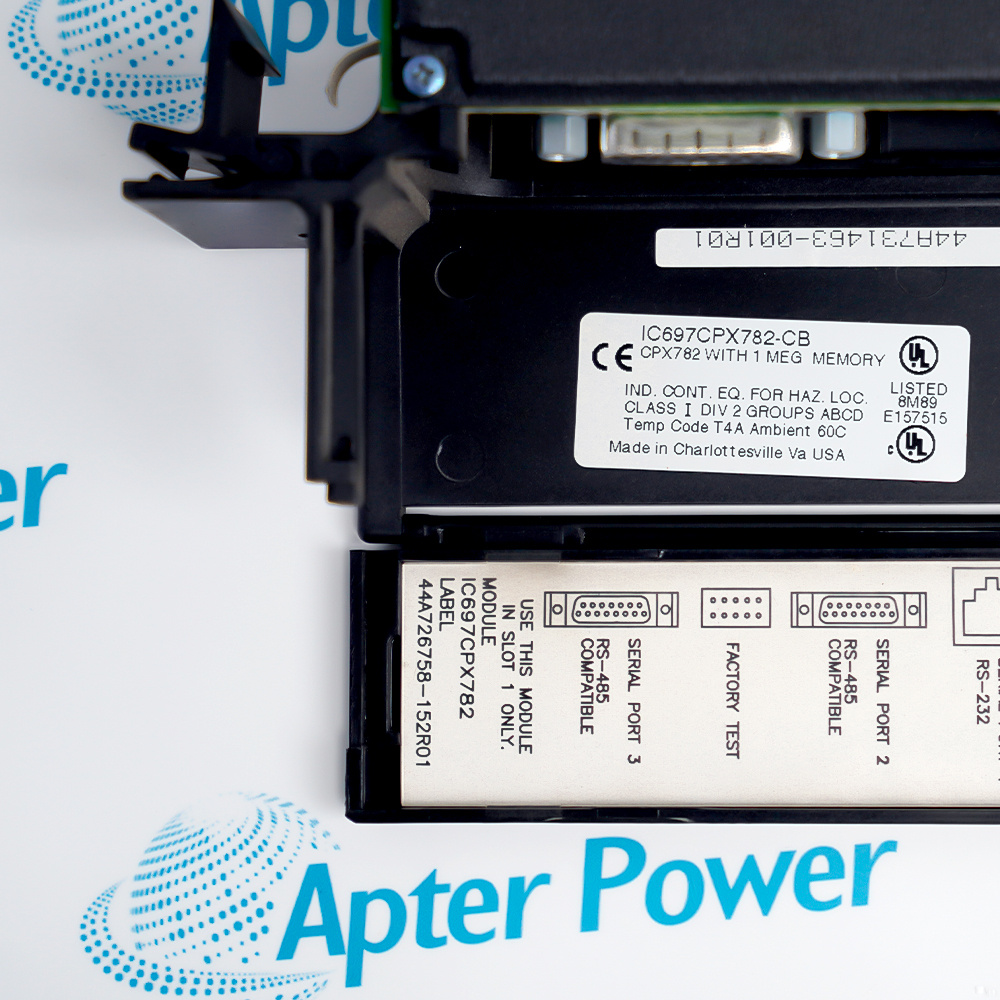

      General Electric IC697CPX782
      General Electric IC697CPX782
      General Electric IC697CPX782
      General Electric IC697CPX782
      General Electric IC697CPX782
      General Electric IC697CPX782
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      IC697CPX782

      PLC CPU
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      GE IC697CPX782 is a Series 90-70 PLC CPU module with user flash memory and three serial communication ports. Manufacturer product information for releases 8.00 and 8.10 defines the compatible programming software, firmware behavior and companion-module requirements.

      Ask our team:

      Get a quick price for： IC697CPX782
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for IC697CPX782

      Technical specifications for IC697CPX782

      • Manufacturer:
        General Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        IC697CPX782
      • Estimated shipping dimensions:
        4x21.8x29.2cm
      • Weight:
        0.84 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Controller family:
        Series 90-70
      • Module type:
        PLC CPU module
      • Documented releases:
        Firmware 8.00 and 8.10 product information
      • Serial interfaces:
        Ports 1 and 2 plus the standard programmer port
      • Memory function:
        User flash supports logic, configuration, reference tables, passwords and OEM key
      • Windows programming software:
        Version 2.2 or later for the cited 8.00 release
      • MS-DOS programming software:
        IC697 version 7.02 or later for the cited 8.00 release
      • Companion CMM/PCM revision:
        Revision F or later recommended by the product information
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      GE IC697CPX782 is a Series 90-70 PLC CPU module with user flash memory and three serial communication ports. Manufacturer product information for releases 8.00 and 8.10 defines the compatible programming software, firmware behavior and companion-module requirements.
      • Executes Series 90-70 PLC logic with user flash memory
      • Provides additional serial ports for configured communications
      • Supports current and previous firmware-release features
      • Requires documented programming and companion-module compatibility

      Apply GE IC697CPX782 only in the documented system position after checking its interfaces, companion hardware and configured values.

      Important Notice: Confirm the full IC697CPX782 marking, installed revision, compatible hardware and approved commissioning record before release.

      GE IC697CPX782 Manuals & Downloads
      GE IC697CPX782 Technical Reference (PDF)GE IC697CPX782 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Series 90-70 control
      Runs the approved PLC application in a compatible VME rack.
      Serial integration
      Uses the configured CPU serial ports for approved device communications.
      Flash-backed application
      Stores approved logic and configuration in user flash memory.
      Legacy CPU replacement
      Restores an identical CPX782 after firmware and companion-module checks.
      Read the applicable GE instructions before work. Verify GE IC697CPX782 and the installed system configuration before commissioning.
      1
      Verify the complete IC697CPX782 suffix and firmware release.
      2
      Back up logic, hardware configuration, reference data and user flash contents.
      3
      Confirm the installed programming-software version supports the CPU release.
      4
      Record all serial-port parameters before removal.
      5
      Check PCM and CMM companion-module revision compatibility.
      6
      Use the documented Series 90-70 rack and slot arrangement.
      7
      Restore memory-protect and operating-mode settings exactly.
      8
      Verify communications, I/O scan and the controlled machine sequence before release.

      Technical notes

      Technical notes

      Use only the complete GE IC697CPX782 identity and the current manufacturer documentation. Verify the installed revision, companion hardware, wiring and saved configuration before replacement or release.

      FAQS

      • What is GE IC697CPX782?
        It is a Series 90-70 PLC CPU module covered by the GFK-1432 release-specific product information.
      • Which GE IC697CPX782 firmware releases are documented by GFK-1432E/G?
        Those revisions cover releases 8.00 and 8.10, including release-specific compatibility and operating notes.
      • What can GE IC697CPX782 user flash store?
        The product information identifies program logic, configuration data, reference tables, passwords and the OEM key.
      • Which programming software is cited for GE IC697CPX782 release 8.00?
        Windows programming software 2.2 or later and IC697 MS-DOS software 7.02 or later are cited.
      • Why must GE IC697CPX782 PCM and CMM revisions be checked?
        Older companion modules can have compatibility or performance issues with the CPX CPU timing and memory features.
      • What must be backed up before replacing GE IC697CPX782?
        Back up logic, configuration, reference data, flash contents, passwords and every serial-port setting.
      • What confirms successful commissioning of GE IC697CPX782?
        Normal CPU status, verified flash contents, stable communications and a controlled I/O/function test confirm release.
