      Invensys P0923RK
      Invensys P0923RK
      Invensys P0923RK
      Invensys P0923RK
      Invensys P0923RK
      Invensys P0923RK
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      P0923RK

      Upgrade Adapter
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

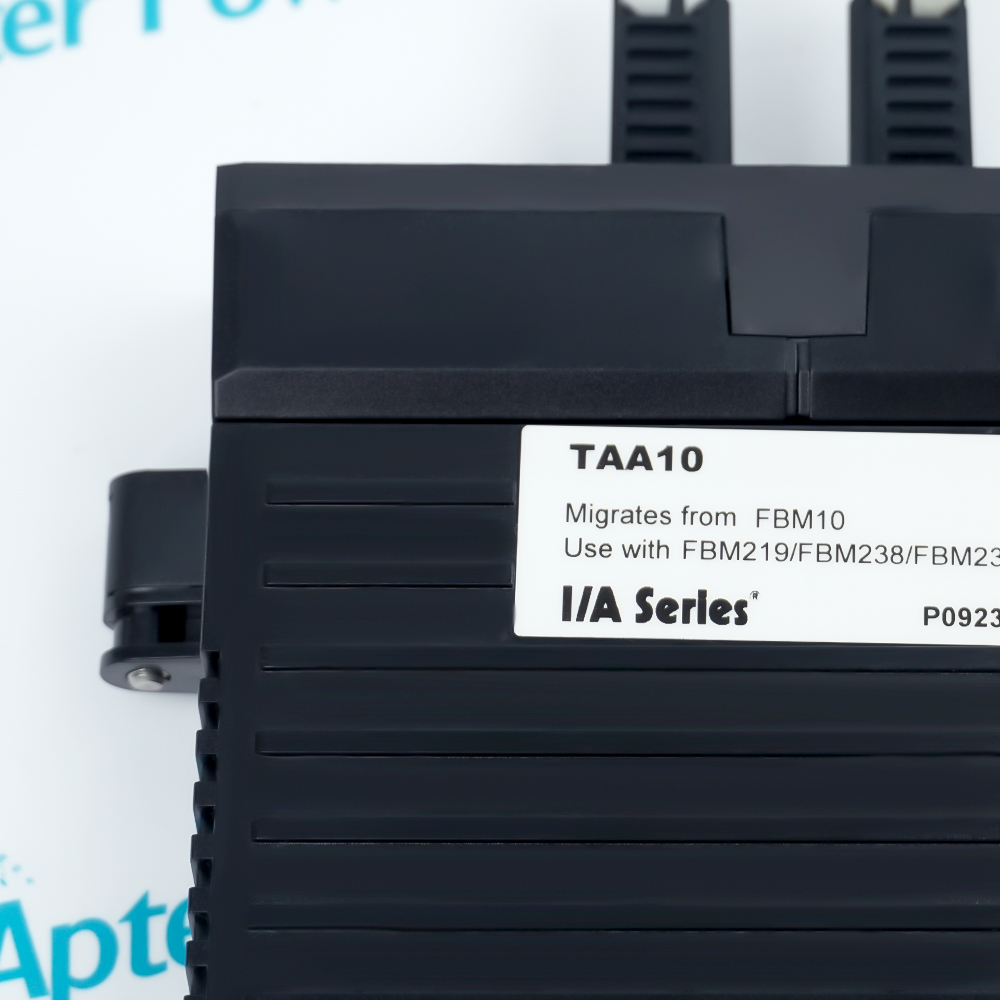

      Foxboro P0923RK is the TAA10 termination-assembly adapter used in documented 100 Series FBM10 upgrade paths. The official upgrade overview pairs TAA10 with replacement termination assembly P0924HG and selects FBM238 or FBM239 according to the installed expansion-module arrangement.

      Ask our team:

      Get a quick price for： P0923RK
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for P0923RK

      Technical specifications for P0923RK

      • Manufacturer:
        Invensys
      • Product Category:
        General Automation
      • Spare Part Number:
        P0923RK
      • Estimated shipping dimensions:
        27x16x3.5cm
      • Weight:
        0.6 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Adapter identity:
        TAA10
      • Original module:
        100 Series FBM10
      • Replacement termination assembly:
        P0924HG
      • Replacement path with expansion:
        FBM238
      • Expansion modules in FBM238 path:
        FBM12, FBM13, FBM21 or FBM25
      • FBM238 function:
        24-channel voltage monitor/contact sense plus 8-channel discrete output
      • Replacement path without listed expansion:
        FBM239
      • FBM239 function:
        16-channel voltage monitor/contact sense plus 16-channel discrete output
      • Upgrade control:
        Existing FBM and expansion arrangement determines path
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Foxboro P0923RK is the TAA10 termination-assembly adapter used in documented 100 Series FBM10 upgrade paths. The official upgrade overview pairs TAA10 with replacement termination assembly P0924HG and selects FBM238 or FBM239 according to the installed expansion-module arrangement.
      • TAA10 adaptation: Converts the FBM10 termination arrangement for the approved migration architecture.
      • Termination conversion: Couples the existing field wiring path to the replacement termination assembly.
      • Expansion-aware migration: Selects the replacement I/O path according to the installed expansion modules.
      • Mixed-I/O continuity: Preserves voltage-monitoring, contact-sense and discrete-output functions during upgrade.

      Verify the original FBM10 and any expansion FBM before selecting the replacement path. P0923RK is the TAA10 adapter; the official migration record requires P0924HG and identifies FBM238 or FBM239 according to the existing FBM12, FBM13, FBM21 or FBM25 arrangement.

      Important Notice: Confirm the complete Foxboro P0923RK identity and controlled configuration before commissioning.

      Foxboro P0923RK Manuals & Downloads
      Foxboro P0923RK Technical Reference (PDF)Foxboro P0923RK Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      FBM10 upgrade
      Adapts an identified 100 Series FBM10 installation for the documented replacement path.
      Expanded I/O migration
      Supports the FBM238 path when FBM12, FBM13, FBM21 or FBM25 is present.
      Base I/O migration
      Supports the FBM239 path for the documented arrangement without the listed expansion FBMs.
      Termination conversion
      Works with replacement termination assembly P0924HG in the official migration design.
      Read the applicable Foxboro instructions before work. Verify Foxboro P0923RK and the installed system configuration before commissioning.
      1
      Verify the complete P0923RK and TAA10 identity before work.
      2
      Record the original FBM10 and every installed expansion FBM.
      3
      Place all affected field circuits in the approved maintenance state.
      4
      Select FBM238 only for the documented listed expansion-module path.
      5
      Select FBM239 only for the applicable alternate FBM10 arrangement.
      6
      Use the documented P0924HG replacement termination assembly.
      7
      Label every field and termination connection before conversion.
      8
      Complete channel-by-channel I/O verification before release.

      Technical notes

      Technical notes

      Verify the original FBM10 and any expansion FBM before selecting the replacement path. P0923RK is the TAA10 adapter; the official migration record requires P0924HG and identifies FBM238 or FBM239 according to the existing FBM12, FBM13, FBM21 or FBM25 arrangement.

      FAQS

      • What is Foxboro P0923RK?
        P0923RK is the TAA10 termination-assembly adapter identified in the official 100 Series FBM upgrade overview.
      • Which original module is associated with Foxboro P0923RK?
        The official upgrade table uses TAA10 P0923RK in FBM10 replacement paths.
      • Which termination assembly replaces the original arrangement with P0923RK?
        The documented replacement termination assembly is P0924HG.
      • When does Foxboro P0923RK use the FBM238 path?
        FBM238 is selected when the FBM10 installation includes FBM12, FBM13, FBM21 or FBM25 expansion.
      • What I/O function is listed for the Foxboro P0923RK FBM238 path?
        The official table lists 24-channel voltage monitor/contact sense plus 8-channel discrete output.
      • When does Foxboro P0923RK use the FBM239 path?
        FBM239 is the documented alternate for the applicable FBM10 arrangement without the listed expansion modules.
      • What I/O function is listed for the Foxboro P0923RK FBM239 path?
        The official table lists 16-channel voltage monitor/contact sense plus 16-channel discrete output.
      • What confirms Foxboro P0923RK upgrade acceptance?
        The original and replacement identities, termination assembly, expansion path and every affected I/O channel must match the approved migration record.
