Technical specifications for FBM204 P0914SY
-
Manufacturer:Invensys
-
Product Category:DCS Systems
-
Spare Part Number:FBM204 P0914SY
-
Weight:0.32 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Analog inputs:4 isolated 0 to 20 mA dc channels
-
Analog outputs:4 isolated 0 to 20 mA dc channels
-
Input sources:4 to 20 mA transmitters or self-powered 20 mA sources
-
Output load:Each output drives an external current-loop load
-
Module fieldbus:Redundant 2 Mbps communication paths
Information
Overview
Manuals
Common Applications
Product Precautions

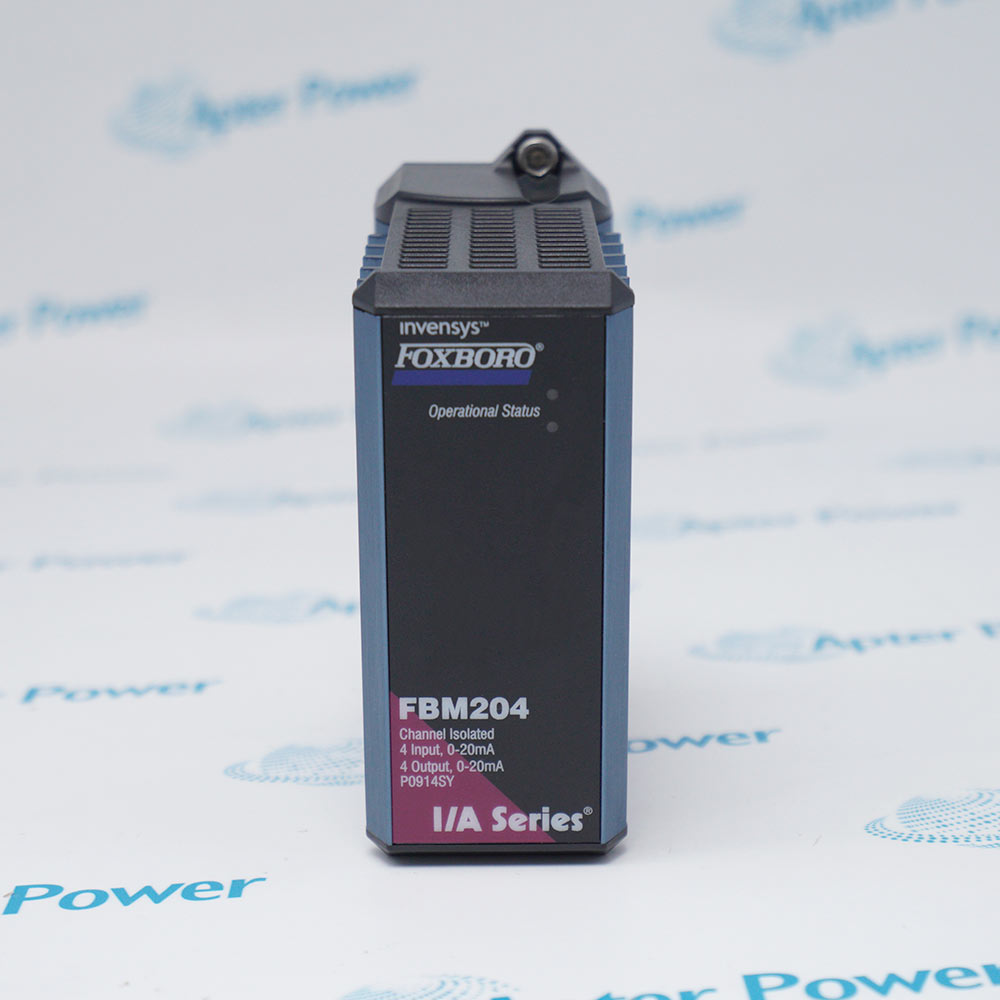

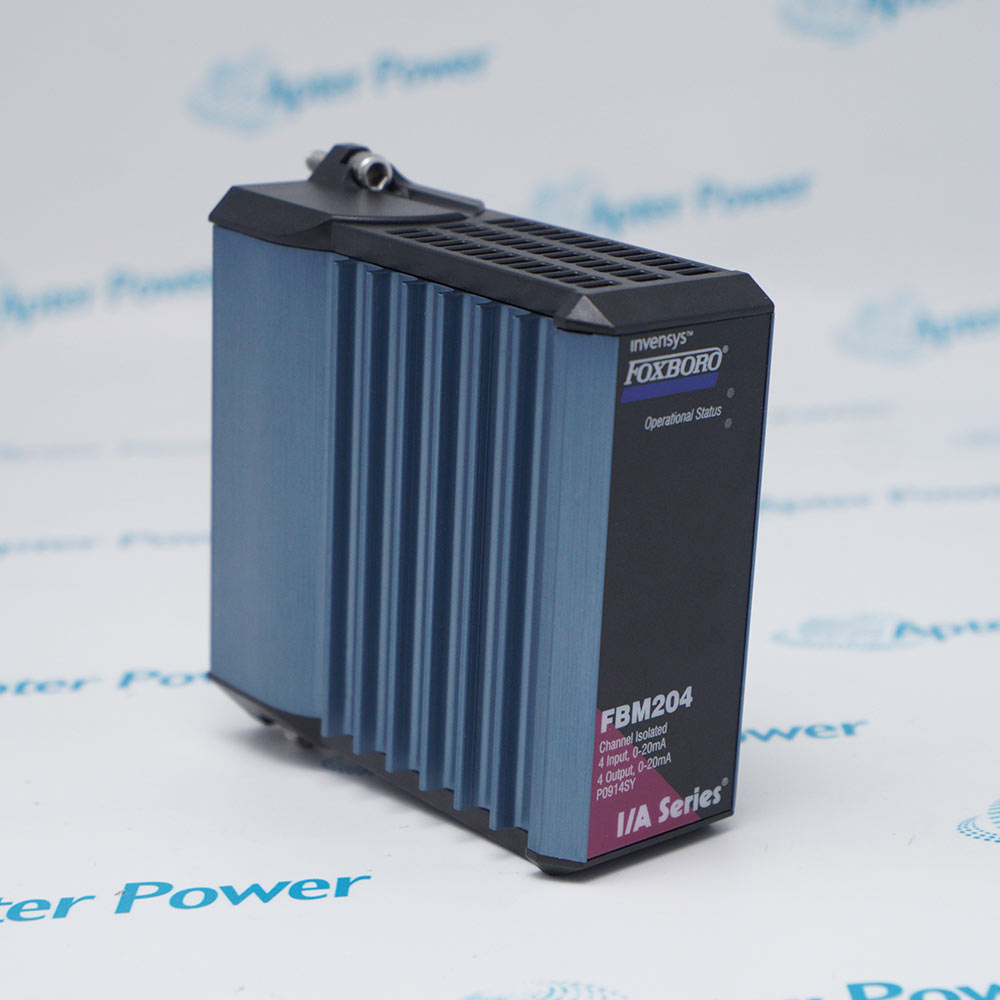

Foxboro FBM204 P0914SY combines four isolated 0 to 20 mA input channels with four isolated 0 to 20 mA output channels for Foxboro process loops.
- Provides four analog inputs and four analog outputs for its mixed analog i/o module function.
- Handles 0 to 20 mA measurement and control loops through the documented Foxboro system path.
- Works with the selected termination assembly and redundant 2 Mbps module Fieldbus.
- Each channel is galvanically isolated from the other channels and ground.
The mixed analog i/o module belongs in the controlled Foxboro architecture and works with the selected termination assembly and redundant 2 Mbps module Fieldbus. Its mating hardware, wiring, database configuration and final response must be checked together before release.
Important Notice: Use FBM204 P0914SY only with the selected termination assembly and redundant 2 Mbps module Fieldbus; verify every interface and the controlled project configuration before energizing or pressurizing the subsystem.
Foxboro FBM204 P0914SY Manuals & Downloads
Foxboro FBM204 P0914SY Official Technical Reference Excerpt (PDF)Foxboro FBM204 P0914SY Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
System maintenance
Restores the documented mixed analog i/o module function in an existing Foxboro control system.
Signal-path service
Supports controlled testing of 0 to 20 mA measurement and control loops at the assigned system position.
Planned replacement
Provides an exact-identity replacement path after the selected termination assembly and redundant 2 Mbps module Fieldbus has been verified.
Commissioning
Allows the responsible engineer to prove configuration, diagnostics and response for four analog inputs and four analog outputs.
Before installing Foxboro FBM204 P0914SY, confirm the documented system, interfaces and controlled configuration.
1
Match the complete FBM204 P0914SY marking to the work order and installed position before removal.
2
Confirm the selected termination assembly and redundant 2 Mbps module Fieldbus before disconnecting any interface.
3
Keep 0 to 20 mA measurement and control loops within the documented electrical or pneumatic range.
4
Record terminal designations, polarity, common, shield and cable routing before disconnection.
5
Inspect mounting, connector keying, terminal condition and retention hardware before installation.
6
Restore the controlled database, range, alarm, filter and fail-state settings before energization.
7
Review local indicators and controller diagnostics during the controlled startup sequence.
8
Prove the intended response across four analog inputs and four analog outputs and record the acceptance result before release.
Technical notes
Use FBM204 P0914SY only with the selected termination assembly and redundant 2 Mbps module Fieldbus; verify every interface and the controlled project configuration before energizing or pressurizing the subsystem.
FAQ View All FAQ
-
How are the input and output channels divided on Foxboro FBM204 P0914SY?The module provides four isolated analog inputs and four isolated analog outputs.
-
Which input signals can Foxboro FBM204 P0914SY accept on its four input channels?They accept 0 to 20 mA dc signals from two-wire transmitters or self-powered current sources.
-
What external loop load does each Foxboro FBM204 P0914SY output channel drive?Each output supplies a controlled current signal to an external loop load.
-
How does Foxboro FBM204 P0914SY isolate interaction among its channels?Galvanic isolation separates each input and output from the other channels and ground.
-
Which fieldbus path carries the converted values from Foxboro FBM204 P0914SY?The module communicates over the redundant 2 Mbps module Fieldbus.
-
What should be checked before connecting a transmitter to Foxboro FBM204 P0914SY?Confirm loop power method, polarity, termination assembly and the assigned input range.
-
What should technicians observe during an output-loop test on Foxboro FBM204 P0914SY?Verify commanded current, load response, channel status and the receiving device indication.
-
Can Foxboro FBM204 P0914SY be replaced by a nearby FBM204 code without an engineering review?No. Match the complete part number, termination hardware, loop wiring and controlled configuration.
