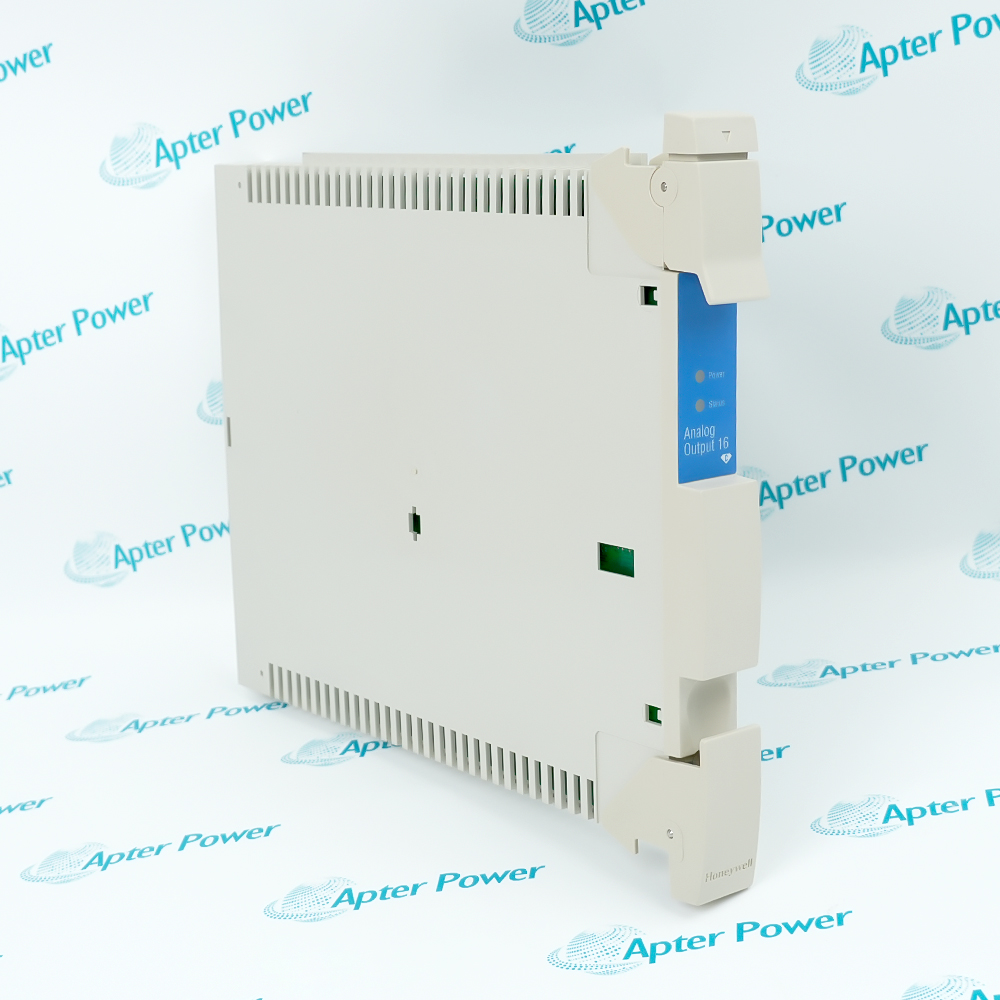

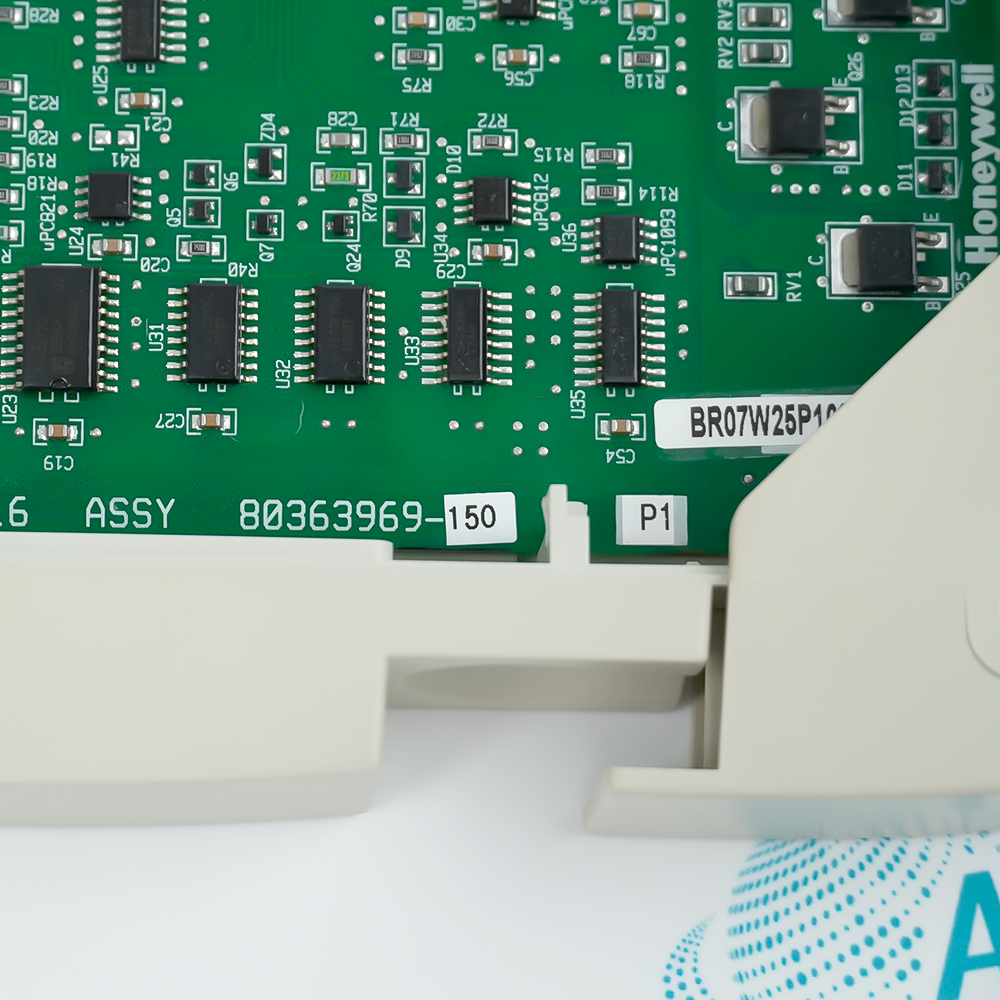

MC-PAOY22 80363969-150

FAQS

• Which installed hardware must be matched before fitting MC-PAOY22?
  Match the complete MC-PAOY22 marking to compatible PM or C200 I/O rack and assigned analog-output termination assembly, then confirm the assigned Honeywell Process Manager / C200 I/O position and approved system configuration.
• How should the field connections for MC-PAOY22 be recorded before replacement?
  Record terminal or connector identity, polarity, shield, cable tag, channel assignment, and the as-found diagnostic state before disconnecting MC-PAOY22.
• What isolation is required before installing MC-PAOY22?
  Place control-valve command outputs in the approved maintenance state, isolate every applicable power, signal, and stored-energy source, and prove the work area safe.
• Which configuration check is essential when commissioning MC-PAOY22?
  Restore only the approved model-specific channel, range, address, scale, or interface settings and compare them with the physical installation before enabling the process function.
• How can an engineer function-test MC-PAOY22 after installation?
  Apply a controlled input, reference, or limited output appropriate to 16-channel analog output processor, observe the system indication and diagnostics, and confirm the intended process response.
• What should be checked if MC-PAOY22 reports an unstable or incorrect value?
  Check seating, supply, grounding, shielding, matched components, mechanical installation, and the signal path before changing configuration or replacing additional hardware.
• Can MC-PAOY22 be replaced by a visually similar model without review?
  No. Verify the complete part number, electrical execution, connector arrangement, companion hardware, and approved software or rack configuration.
• What commissioning evidence should be retained for MC-PAOY22?
  Retain the full MC-PAOY22 identity, as-left wiring and settings, measured functional-test results, final diagnostics, and authorization to return the affected equipment to service.
