With more than 30.000 high-quality spare parts, they can be sold immediately. Our large inventory allows us to quickly meet customer needs, thereby reducing downtime and protecting production schedules. Our timely delivery time provides you with security and save money.
The 330102-00-79-05-02-05 is a core component of the 3300 XL 8 mm system, which delivers the most advanced performance in our eddy current proximity transducer systems. When configured as a standard 3300 XL 8 mm 5-meter system (by pairing this 0.5m armored probe with a 4.5m extension cable), it fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330102-00-79-05-02-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation
Monitors the shaft conditions of high-capacity steam turbine generator sets to prevent catastrophic machine failure due to excessive vibration.
Hydroelectric Power
Measures the shaft runout and thrust clearance of hydro-generator units under the dynamic impact of varying water flows.
Nuclear Power
Provides long-term mechanical integrity monitoring and safety protection for critical large rotors in the conventional island and nuclear secondary loop under stringent safety regulations.
Oil & Gas
Ensures high uptime and prevents unplanned trips for long-distance pipeline transmission units and offshore platform compressors.
Petrochemical & Refining Industry
Monitors critical compressor trains handling high-temperature, high-pressure, and hazardous/flammable process gases.
Air Separation Industry
Protects ultra-high-speed compressors within air separation units (ASUs) from bearing burnout using precise non-contact sensing.
When operating this probe, strict electrical length matching must be maintained (it must form a complete 5-meter or 9-meter system with its designated cable and Proximitor); cutting or splicing the cable is strictly prohibited. During installation, precisely adjust the initial gap voltage (typically -9 Vdc) using the Proximitor, and ensure adequate structural clearance around the probe tip and sides to prevent mechanical impact or electromagnetic cross-talk. Furthermore, keep the ClickLoc coaxial connectors absolutely clean, dry, and free of oil contamination, while properly routing the armored cable to avoid any sharp or over-radius bends.

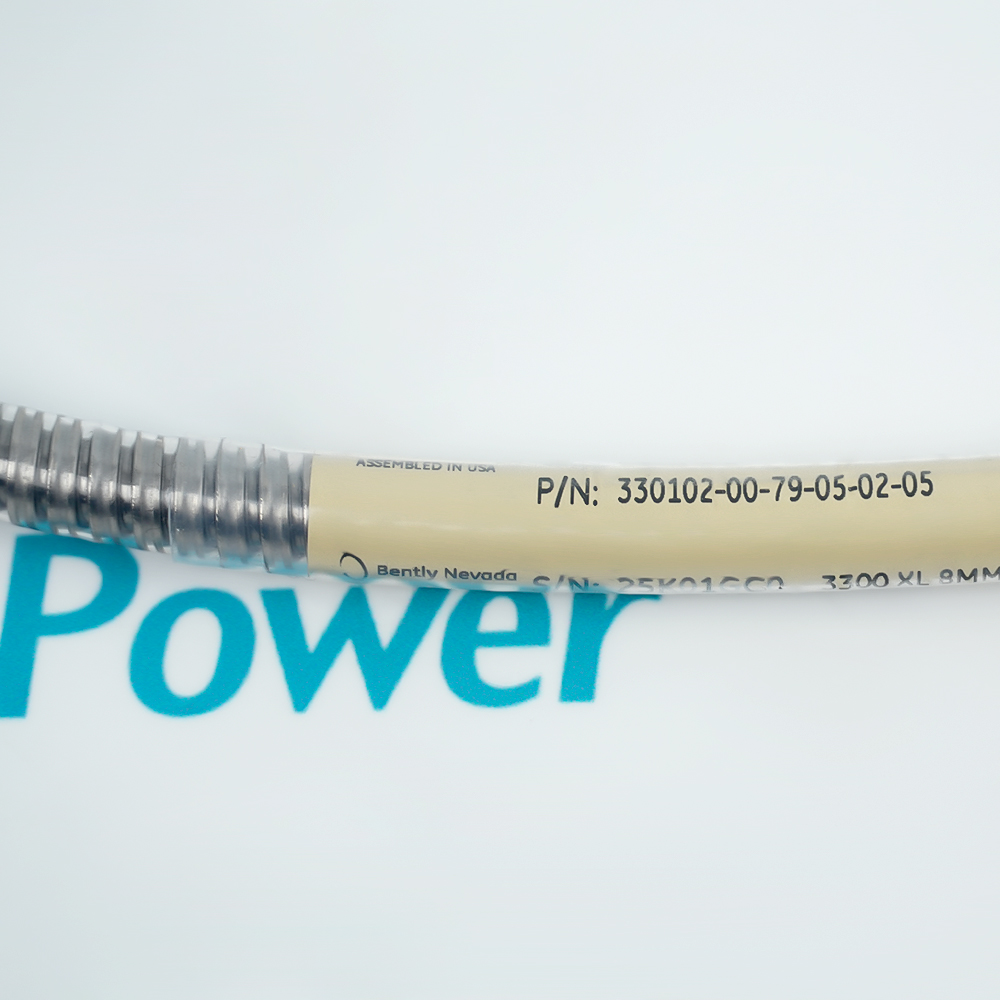

The system utilizes the Bently Nevada 3300 XL series 8 mm proximity transducer probe (Part Number: 330102-00-79-05-02-05) to provide an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. Featuring a fully threaded 3/8-24 UNF body (7.9-inch overall case length, 0.0-inch unthreaded length), the probe comes equipped with a 0.5-meter standard cable protected by stainless steel armor and terminated with a miniature coaxial ClickLoc connector. It is engineered to withstand an extreme operating temperature range of -52°C to +177°C and carries multiple international hazardous area agency approvals (including CSA, ATEX, and IECEx). Within its 2.0 mm (80 mils) linear measurement range, the system delivers high-precision static (position) and dynamic (vibration) measurements with a standard scale factor of 7.87 V/mm (200 mV/mil). The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
It is an industrial non-contact eddy current proximity probe belonging to the Bently Nevada 3300 XL 8 mm probe series.
What is the core function of 330102-00-79-05-02-05?
It measures static values (axial position) and dynamic values (radial vibration, speed, and Keyphasor references).
How to install and use products like 330102-00-79-05-02-05?
Thread the probe into a standard mounting hole on the machine bearing housing, adjust the gap between the tip and the shaft surface, and secure it with a locknut.
What is the working principle of 330102-00-79-05-02-05?
Based on the eddy current effect, the probe tip generates an alternating magnetic field. When a metal shaft approaches, it alters the field, converting the gap distance into a proportional voltage signal.
What is the measurement range of 330102-00-79-05-02-05?
Its linear measurement range is 2 mm (approximately 80 mils).
