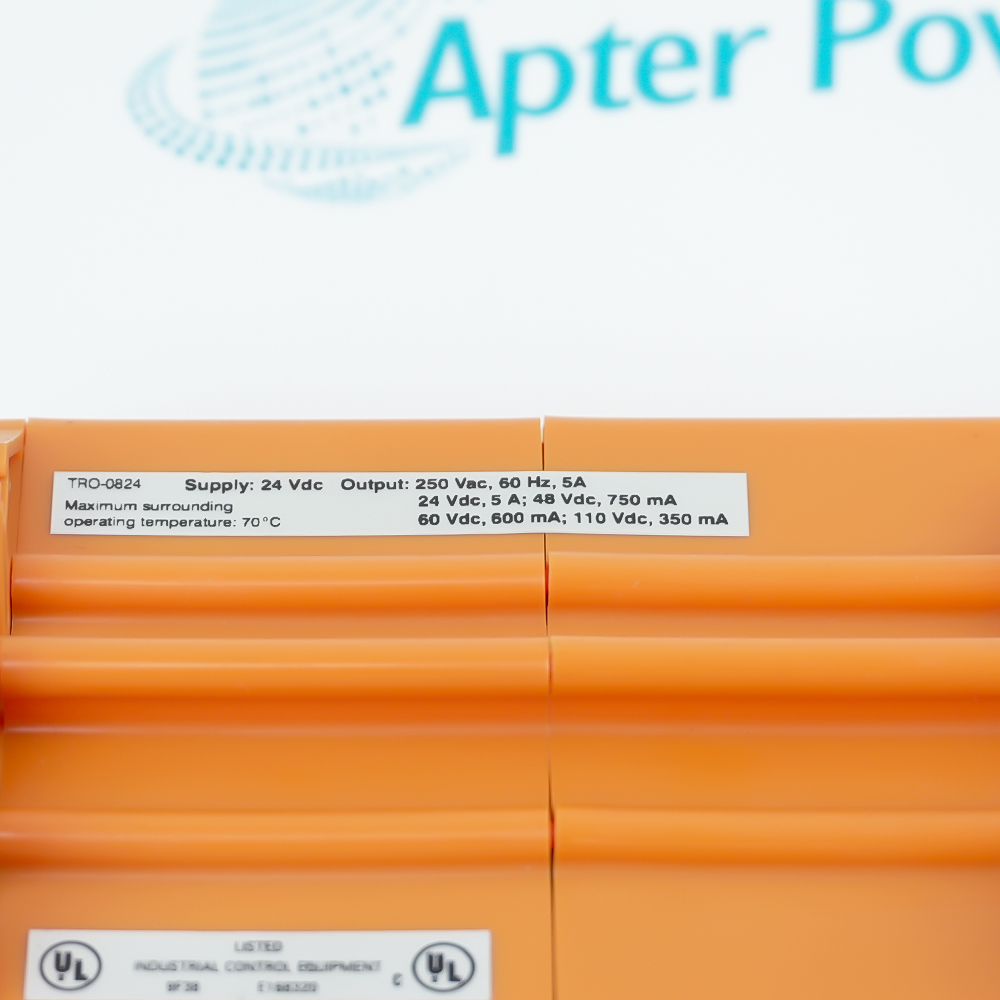

FS-TRO-0824 is a Honeywell Safety Manager TRO-0824 field termination assembly. Honeywell's hardware reference identifies TRO-0824 as a non-safe dry digital output FTA with eight relay-contact channels providing normally open and normally closed contacts.
- Honeywell
- TRO-0824
- Non-safe dry digital output FTA
- 8
The assembly interfaces controller output commands to eight isolated dry relay contacts for field loads and interposing circuits; relay loading, external power, grounding, and the non-safe classification must be applied exactly as stated in the Honeywell hardware reference.
Important Notice: Use the complete FS-TRO-0824 code and verify the physical nameplate and current Honeywell documentation before installation or replacement.
Apter Power FS-TRO-0824 Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published Honeywell information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
Honeywell Safety Manager
Maintains the documented relay-contact loading and non-safe output classification role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact Honeywell documentation and host-equipment instructions before use. Verify FS-TRO-0824 from the physical nameplate.
