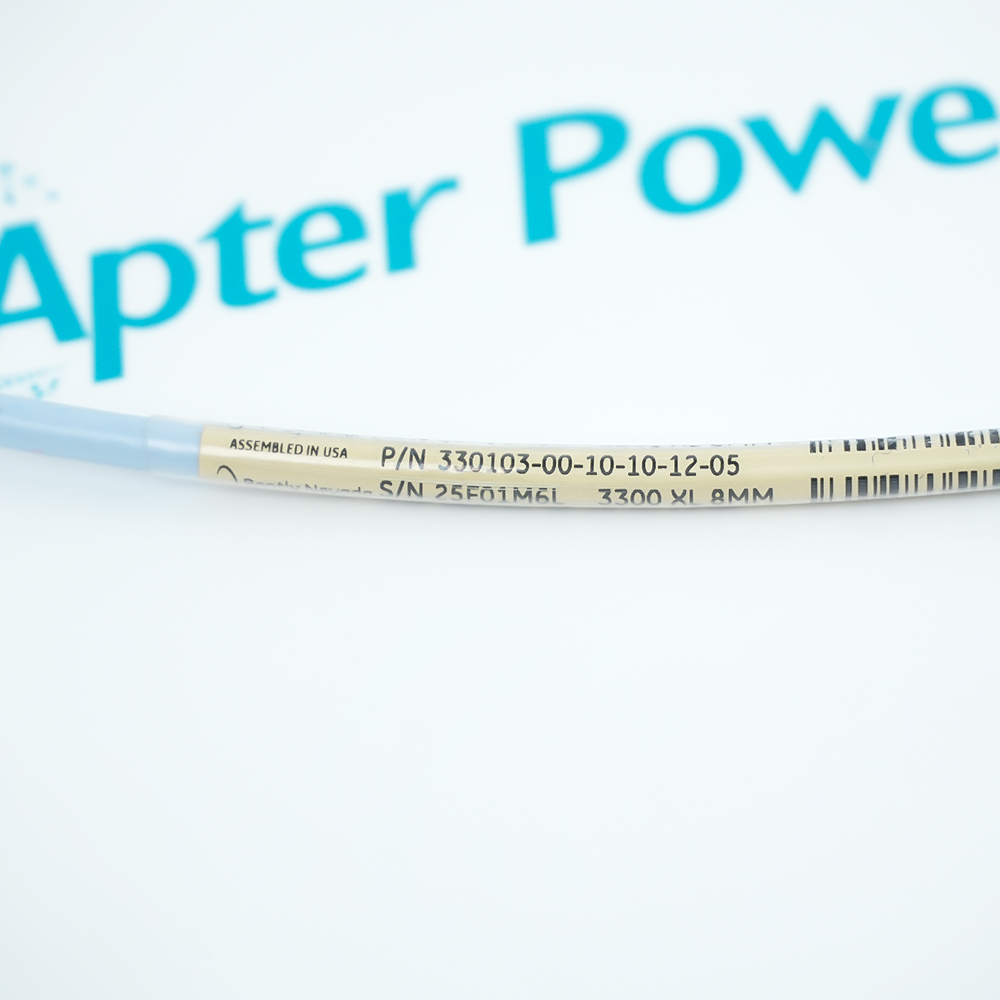

The 330103-00-10-10-12-05 is a 3300 XL series 8mm metric non-contact eddy current proximity transducer probe. Serving as a core sensor for industrial condition monitoring systems, it is utilized primarily for shaft vibration, static axial displacement (axial position), and speed/Keyphasor measurements on rotating machinery.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330103-00-10-10-12-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Mounted inside the main fluid-film bearings of European-standard steam turbines to track real-time dynamic shaft vibration and prevent catastrophic oil-film whip.
Petrochemical Refining
Deployed inside the high-pressure sealing chambers of centrifugal compressors where the armored cable resists aggressive hydrocarbon fluids and complies with ATEX zone 1 explosion-proof regulations.
Nuclear Power
Mounted on the convention island steam-driven auxiliary feed-water pumps with metric mechanical interfaces to monitor rotor radial runout under strict regulatory oversight.
Iron & Steel Metallurgy
Applied to the high-speed bearings of blast furnace blast blowers and TRT (Top Gas Recovery Turbine) systems to track radial vibration under continuous hot dust exposure.
Geothermal Power Generation
Mounted inside geothermal steam turbine bearing pedestals, leveraging the sealed armored assembly to eliminate moisture ingress from hot sulfurous vapors.
Chemical Fertilizer Manufacturing
Placed inside the thrust bearing housing of synthesis gas (syngas) compressors where the FluidLoc barrier prevents corrosive ammonia or urea vapors from wicking through the cable.
During the utilization of 330103-00-10-10-12-05, the recommended static gap of 1.27 mm (corresponding to a gap voltage of approximately -9 Vdc to -10 Vdc) must be strictly maintained, and force-threading while the machine is running is prohibited to prevent the probe tip from colliding with the shaft.
Since this metric probe only has an integrated 1.0-meter cable, it must be paired with an original armored 3300 XL extension cable in the field to connect to the Proximitor sensor, maintaining a physical bend radius above 25.4 mm during routing, and the ClickLoc coaxial connectors must be kept completely free of moisture and oil ingress. Lastly, as this model carries multiple agency approvals, all operations in explosive gas or dust environments must strictly comply with intrinsically safe regulatory grounding and isolation standards.
The 330103-00-10-10-12-05 is an 8 mm proximity probe featuring a Metric M10x1 threaded case, a 1.0-meter integrated fluid-resistant armored cable, and multiple agency approvals for hazardous zones. This system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface, enabling the measurement of both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
It is a metric 3300 XL 8mm non-contact eddy current proximity transducer probe utilized to measure the distance variance between the probe tip and an observed conductive surface.
What is the output voltage characteristic of the 330103-00-10-10-12-05?
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface.
Does replacing a 330103-00-10-10-12-05 require individual matching or bench calibration?
No. The system supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Can the 330103-00-10-10-12-05 function with older non-XL system components?
Yes. Each 3300 XL transducer system component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components.
What alternatives exist if the available installation space is too tight for the 330103-00-10-10-12-05?
When an 8 mm probe is too large for the available mounting space, its system compatibility permits the alternative use of a 3300 5 mm probe.
