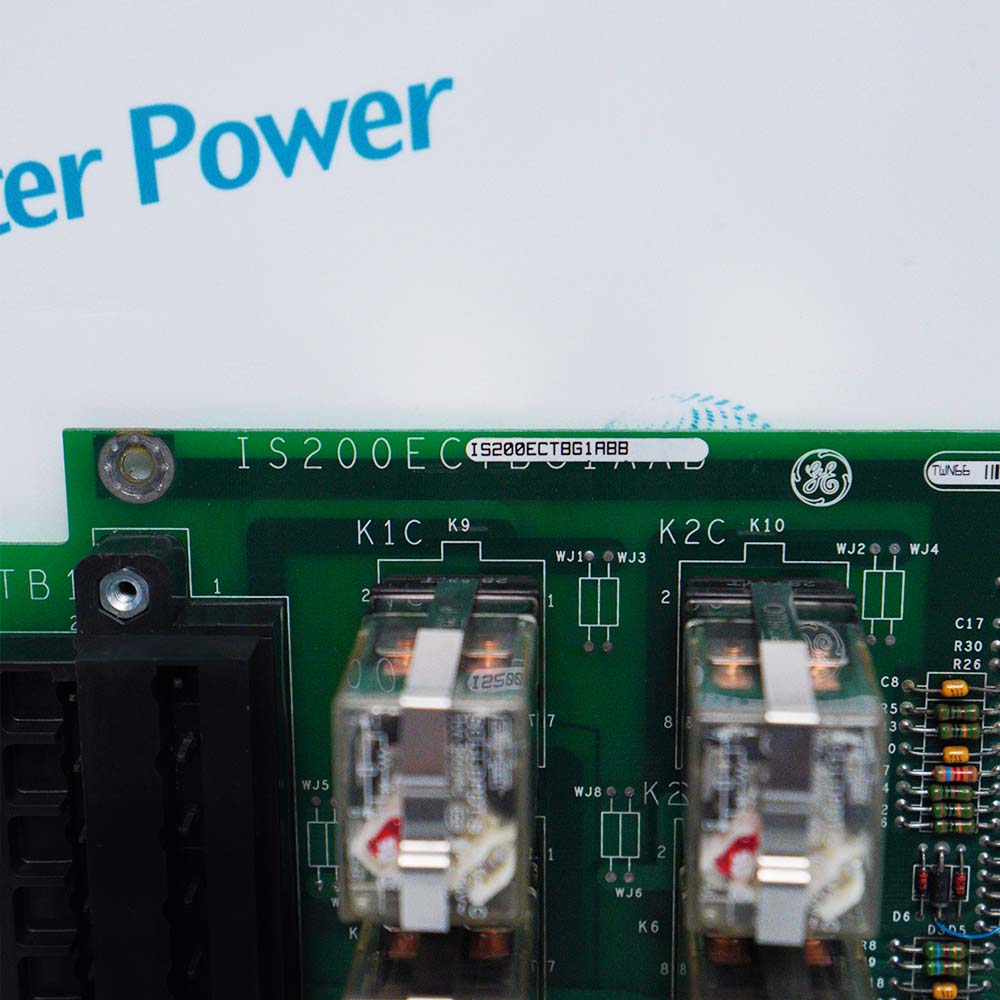

IS200ECTBG1ABB

Exciter Contact Terminal Board
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

GE IS200ECTBG1ABB is an ECTB contact terminal board for an EX2100 excitation-control arrangement. Its group-1 family supports the redundant-control terminal interface described in the GE system instruction.
  • Manufacturer part number
    IS200ECTBG1ABB
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    33cm × 17.8cm × 5.5cm
  • Country of Origin
    USA
Get a quick price for IS200ECTBG1ABB
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Send the full IS200ECTBG1ABB marking, quantity and label photos. We review the item and any version details that need clarification.

  • 1

    Confirm the offer

    Check the quoted IS200ECTBG1ABB reference, condition, included items and expected dispatch date before approving your order.

  • 2

    Arrange dispatch

    Confirm delivery details and receive the tracking number when it becomes available for IS200ECTBG1ABB.

  • Match the complete marking

    Include IS200ECTBG1ABB and any revision or assembly number visible on the item. Keep the exact reference on your enquiry and quotation.

  • Check the offered item before ordering

    Request current label, board and connector photos of IS200ECTBG1ABB. Compare the offered reference and host configuration with the installed equipment before approval.

Technical specifications for IS200ECTBG1ABB

  • Manufacturer:
    General Electric
  • Product Category:
    General Automation
  • Spare Part Number:
    IS200ECTBG1ABB
  • Weight:
    0.86 kg
  • Tariff Code:
    8537101190
  • Control arrangement:
    Redundant EX2100 control
  • Lockout trip outputs:
    Two outputs for the 86G lockout device
  • General relay outputs:
    Four Form-C contacts
  • Auxiliary contact inputs:
    Six inputs wetted by 70 V dc
  • Additional status inputs:
    52G and 86G contacts
  • Controller connectors:
    J405, J408 and J418
  • Relay decision logic:
    Two-out-of-three voting
  • Input supply arrangement:
    Redundant 70 V dc and 24 V dc inputs

Information

Overview Downloads Applications / Compatibility Product Precautions
  • The documented family arrangement includes trip-contact outputs and contact inputs. Their circuit assignments and the applicability of the family figures to a particular ABB revision must be checked against the installed cabinet drawings and board marking.
Control: EX2100 excitation
Arrangement: Redundant ECTB group 1
Interface: Trip outputs and contact inputs
GE IS200ECTBG1ABB is an ECTB contact terminal board for an EX2100 excitation-control arrangement. Its group-1 family supports the redundant-control terminal interface described in the GE system instruction.

The documented family arrangement includes trip-contact outputs and contact inputs. Their circuit assignments and the applicability of the family figures to a particular ABB revision must be checked against the installed cabinet drawings and board marking.

A replacement should preserve the redundant-controller interface, the exact group and revision, and each field terminal destination. After wiring review, perform the approved trip and status-input tests under the plant commissioning plan.
Controller platform reference: GE EX2100 excitation control. Match the installed configuration and interfaces.
GE IS200ECTBG1ABB technical reference and installation verification downloads for Exciter Contact Terminal Board. Check the installed assembly, configuration and project records before service.
Match IS200ECTBG1ABB with the complete installed marking, connector layout and approved equipment documentation before commissioning.
Installation and commissioning checks for General Electric IS200ECTBG1ABB.
Check redundant architecture

Match the board position to the cabinet design.

Map trip contacts

Record each terminal and destination before disturbance.

Confirm input circuits

Verify contact-input wiring against the approved drawing.

Preserve revision

Compare full IS200ECTBG1ABB identity and board revision.

Control stored energy

Apply exciter isolation and discharge procedure.

Prove critical functions

Test intended trip and status circuits after reassembly.

Alternative Names

IS 200ECTBG1ABB

Technical notes

Family functions: GEH-6632 describes ECTB G1 for redundant excitation control.

Electrical scope: Four Form-C trip contacts and six 70 V dc inputs are documented at group level.

Revision check: Confirm the ABB execution and field assignments against cabinet drawings.

FAQ View All FAQ

  • Which cabinet arrangement is relevant to IS200ECTBG1ABB?
    The ECTB group-1 design is documented for a redundant EX2100 control arrangement.
  • How are IS200ECTBG1ABB trip contacts assigned?
    Use the cabinet trip-circuit drawing; the board family count alone does not identify a field destination.
  • What should be checked on IS200ECTBG1ABB contact inputs?
    Verify the installed input circuit, polarity and designated contact points against the approved drawing.
  • Can a different ECTB group replace IS200ECTBG1ABB?
    Only with approved evidence for both redundant-control function and terminal compatibility.
  • What should be captured before IS200ECTBG1ABB removal?
    Record the complete board label, terminal schedule, plug positions and as-found controller state.
  • How should IS200ECTBG1ABB be tested after installation?
    Use the site-approved exciter test to confirm status inputs and trip-contact response.
  • Why is the ABB suffix relevant for IS200ECTBG1ABB?
    It distinguishes the offered execution; family instructions do not automatically establish every revision detail.
  • What safety boundary applies to IS200ECTBG1ABB work?
    Follow excitation-cabinet isolation and stored-energy controls before touching terminals.
