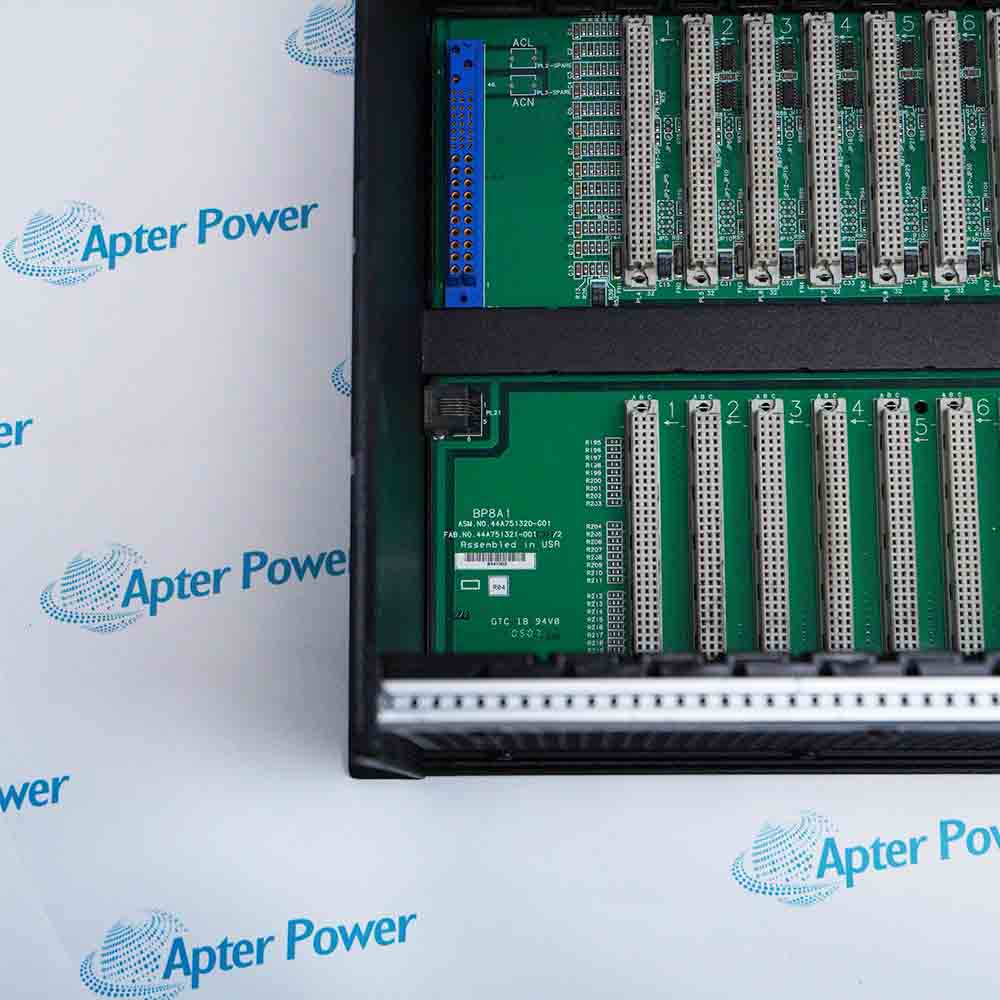

IC698CHS017

RX7i 17-Slot Rear-Mount Rack
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

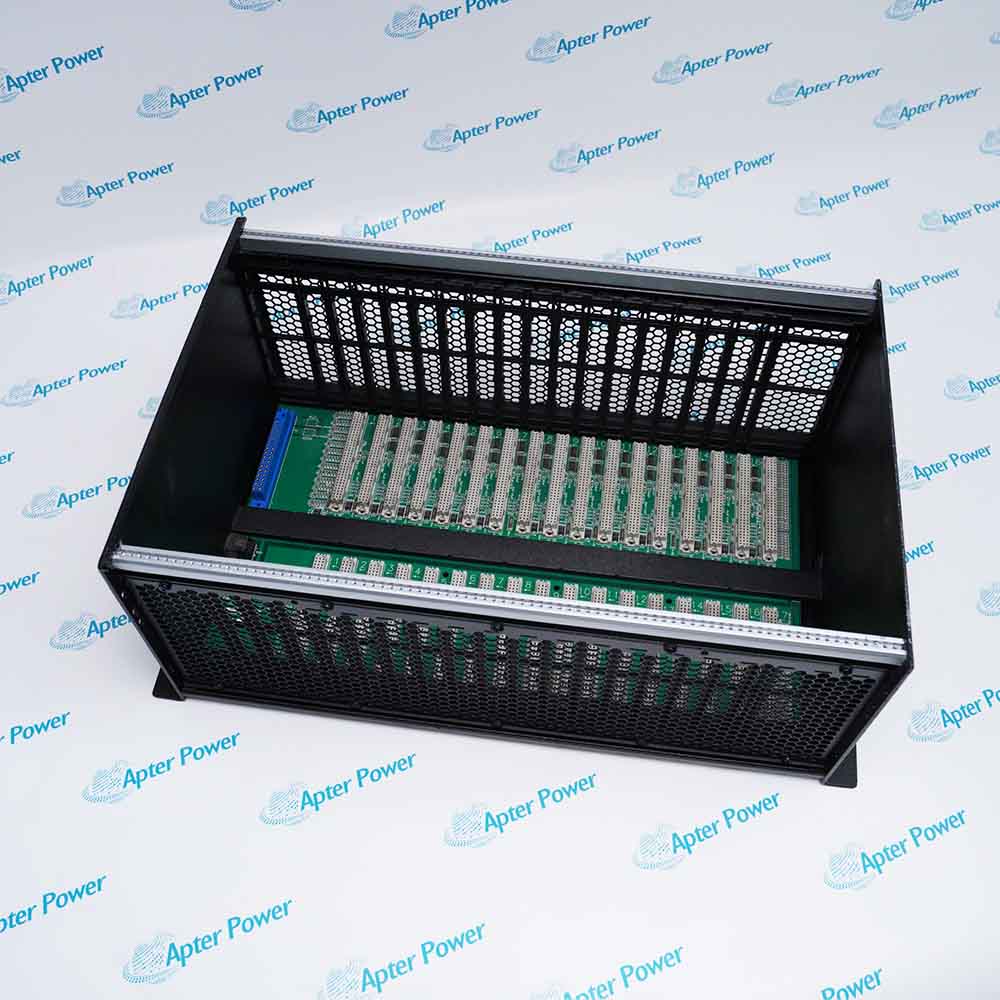

GE IC698CHS017 is a 17-slot, rear-mount rack for the PACSystems RX7i platform. It provides the mechanical and backplane positions for an engineered controller assembly.
  • Manufacturer part number
    IC698CHS017
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    48.3cm × 28.3cm × 18.6cm
  • Country of Origin
    USA
Get a quick price for IC698CHS017
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Send the full IC698CHS017 marking, quantity and label photos. We review the item and any version details that need clarification.

  • 1

    Confirm the offer

    Check the quoted IC698CHS017 reference, condition, included items and expected dispatch date before approving your order.

  • 2

    Arrange dispatch

    Confirm delivery details and receive the tracking number when it becomes available for IC698CHS017.

  • Match the complete marking

    Include IC698CHS017 and any revision or assembly number visible on the item. Keep the exact reference on your enquiry and quotation.

  • Check the offered item before ordering

    Request current label, board and connector photos of IC698CHS017. Compare the offered reference and host configuration with the installed equipment before approval.

Technical specifications for IC698CHS017

  • Manufacturer:
    General Electric
  • Product Category:
    General Automation
  • Spare Part Number:
    IC698CHS017
  • Weight:
    6.12 kg
  • Tariff Code:
    8537101190
  • Rack mounting:
    Rear mount
  • Connector pitch:
    20.3 mm
  • Power-supply slot:
    0
  • CPU slot:
    1 (slots 1–2 for double-width CPU)
  • I/O capacity:
    Up to 15 single-width or 8 double-width modules
  • I/O slot addressing:
    Automatic slot sensing
  • VME backplane transfer:
    Up to 64 data bits per cycle
  • Required enclosure:
    IP54 or higher
  • With 100 W RX7i supply:
    +5 V 20 A; +12 V 2 A; −12 V 1 A (100 W total)
  • With 350 W RX7i supply:
    +5 V 60 A; +12 V 12 A; −12 V 4 A (350 W total)

Information

Overview Downloads Applications / Compatibility Product Precautions
  • The dedicated power-supply position is slot 0; the remaining slot plan depends on the selected CPU, I/O and expansion modules. Some Series 90-70 I/O modules may be used only under the compatibility limits stated for the RX7i installation.
Platform: PACSystems RX7i
Form: 17-slot rear-mount rack
Integration: Module and supply selection is separate
GE IC698CHS017 is a 17-slot, rear-mount rack for the PACSystems RX7i platform. It provides the mechanical and backplane positions for an engineered controller assembly.

The dedicated power-supply position is slot 0; the remaining slot plan depends on the selected CPU, I/O and expansion modules. Some Series 90-70 I/O modules may be used only under the compatibility limits stated for the RX7i installation.

The rack is not a standalone controller. For replacement or expansion, check the backplane revision, module-slot map, power supply and cabinet mounting before transferring the installed module set.
Controller platform reference: GE Fanuc PACSystems RX7i. Match the installed configuration and interfaces.
GE IC698CHS017 technical reference and installation verification downloads for RX7i 17-Slot Rear-Mount Rack. Check the installed assembly, configuration and project records before service.
Match IC698CHS017 with the complete installed marking, connector layout and approved equipment documentation before commissioning.
Installation and commissioning checks for General Electric IC698CHS017.
Preserve slot map

Record every installed module position before removal.

Check supply position

Use the designated slot 0 supply arrangement.

Review I/O exceptions

Verify each Series 90-70 module against the approved compatibility list.

Inspect backplane

Check connector condition and rack revision before reuse.

Confirm cabinet mount

Match rear-mount fixing and service clearance.

Commission systematically

Verify CPU recognition, module diagnostics and affected I/O.

Alternative Names

IC 698CHS017

Technical notes

Rack design: GFK-2236A identifies IC698CHS017 as a 17-slot rear-mount RX7i rack.

Module boundary: CPU, power supply and installed I/O are selected separately.

Compatibility: Apply the GE Fanuc restrictions to every legacy I/O module.

FAQ View All FAQ

  • What belongs in slot 0 of IC698CHS017?
    The rack reserves slot 0 for the selected power supply; verify the exact supply in the system design.
  • Do all Series 90-70 I/O modules fit IC698CHS017?
    No. Apply the RX7i compatibility restrictions to each complete module number.
  • Why is the occupied-slot record important for IC698CHS017?
    It preserves CPU, I/O and expansion placement when a rack is replaced.
  • What should be inspected on the IC698CHS017 backplane?
    Check mating connectors, damage, revision and signs of contamination.
  • Is a CPU included with IC698CHS017?
    The rack identity alone does not establish a supplied CPU; itemize the actual quotation.
  • How should IC698CHS017 power budgeting be checked?
    Use the selected supply rating and the full installed module current requirements.
  • What diagnostics support acceptance of IC698CHS017?
    Confirm CPU recognition, module presence, rack communications and affected I/O checks.
  • What distinguishes IC698CHS017 from a front-mount rack?
    The rear-mount cabinet arrangement must match the installation hardware and service access.
