With more than 30.000 high-quality spare parts, they can be sold immediately. Our large inventory allows us to quickly meet customer needs, thereby reducing downtime and protecting production schedules. Our timely delivery time provides you with security and save money.

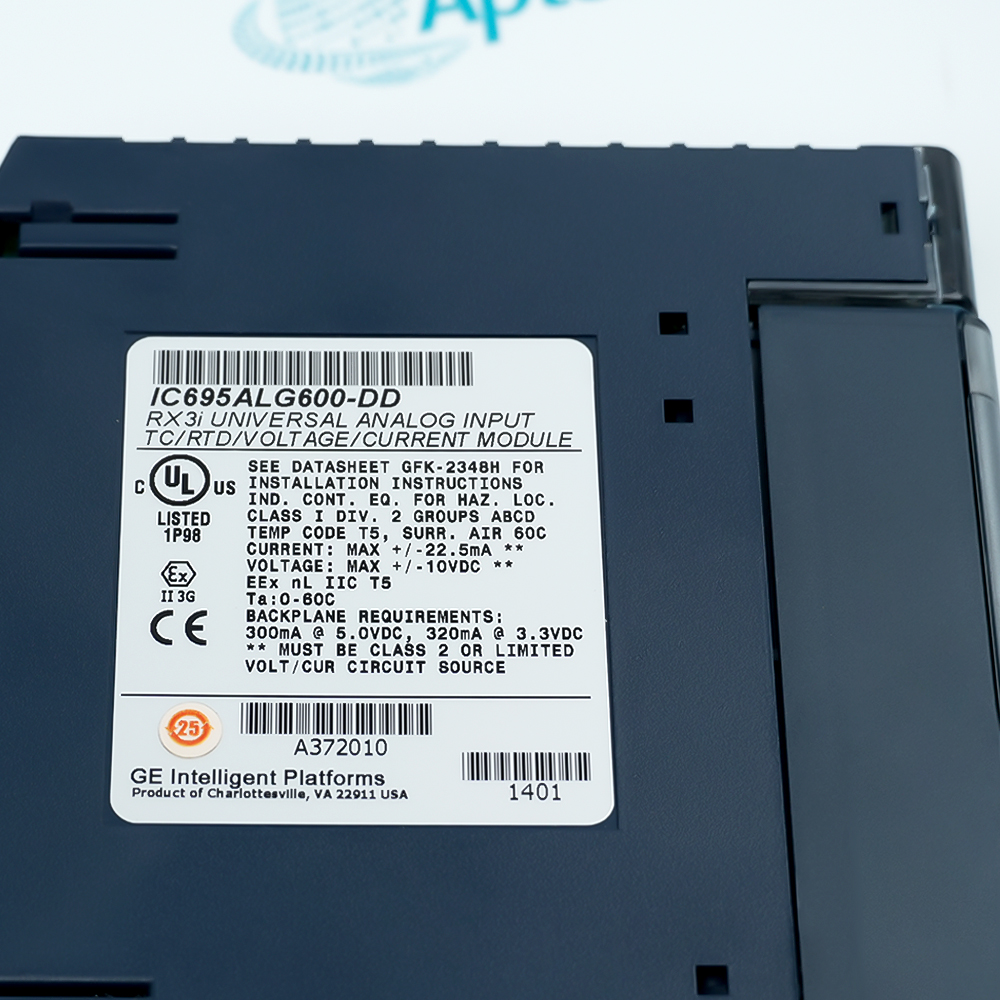

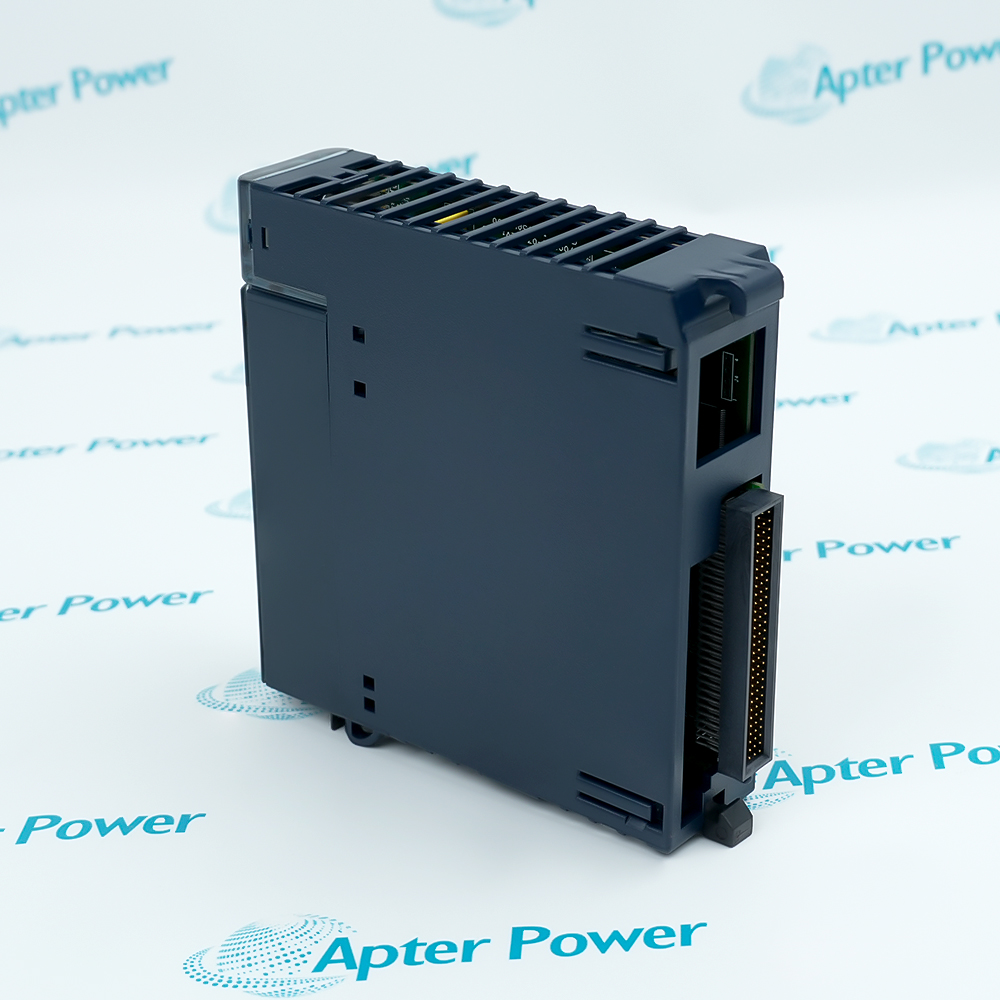

The IC695ALG600-DD is provides eight general purpose input channels and two Cold Junction Compensation (CJC) channels. Inputs are divided into two equal groups of four. Channels can be individually-configured using the Proficy* Machine Edition software.
Universal Channel Flexibility
16-Bit Resolution Precision
Integrated Protection and Isolation
This module must be located in an RX3i Universal Backplane. An RX3i CPU with firmware version 2.80 (Build ID 43A1) or later. Proficy Machine Edition 5.0 SP1A LD-PLC Hotfix 1 ) or later is required for configuration.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric IC695ALG600-DD Universal Analog Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Petrochemical Processing
Used for high-accuracy temperature and pressure monitoring in volatile chemical reactors. The 16-bit resolution supports precise RTD and Thermocouple measurements across an extended range of hazardous environments.
Power Generation
Implemented in turbine and boiler control systems for monitoring critical thermal parameters. It provides 250V AC continuous isolation between the user-side and logic-side to ensure system reliability during high-voltage operations.
Oil and Gas
Applied in refinery and pipeline monitoring where 4-20mA current and voltage signals are prevalent. Internal 250-ohm precision resistors allow for direct interface with field transmitters without requiring external components.
Water Treatment
Utilized in municipal and industrial water facilities for monitoring flow, level, and pH sensors. Each of the 8 differential channels is independently software-configurable, allowing for the integration of diverse sensor types.
Automotive Assembly
Deployed in robotic welding and paint shop operations for coordinating high-density analog sensor feedback. The module supports multiple voltage and current ranges to interface directly with specialized motion control instrumentation.
Pharmaceutical Manufacturing
Used in cleanroom and fermentation environments for precise environmental and process control. It supports various RTD and Thermocouple types (J, K, T, E, R, S, B, N, C) for maintaining strict temperature tolerances.
The Universal Analog Input module has separate enable/disable options for Diagnostic Reporting and Interrupts. Normally, disabling a diagnostic (such as Low/High Alarm or Over/Under range) in the configuration means that its diagnostic bit is never set. However, if interrupts are enabled for a condition and that interrupt occurs, the diagnostic bit for that condition is also set during the same PLC scan. The next PLC input scan always clears this interrupt status bit back to 0, because Diagnostic Reporting has it disabled.
What are the primary input signal types supported by the IC695ALG600-DD module?
The IC695ALG600-DD provides 8 differential channels that support current, voltage, RTD, thermocouple, and resistance inputs (up to 5000 ohms).
Does the IC695ALG600-DD require external resistors for current input signals?
No, the module includes internal 250-ohm precision resistors for each channel, which are software-configurable for current ranges such as 4-20mA.
What is the maximum backplane current draw for the IC695ALG600-DD at 3.3V and 5V DC?
The IC695ALG600-DD draws a maximum of 400 mA from the 3.3V bus and 120 mA from the 5V bus of the RX3i backplane.
How does the IC695ALG600-DD handle Cold Junction Compensation (CJC) for thermocouples?
The module can use internal CJC sensors located in the terminal block or a remote CJC (one for each of the two terminal blocks).
What are the isolation specifications for the IC695ALG600-DD universal input module?
The module provides 250V AC continuous isolation between the user-side and logic-side, and 75V DC/75V AC between individual channels.
